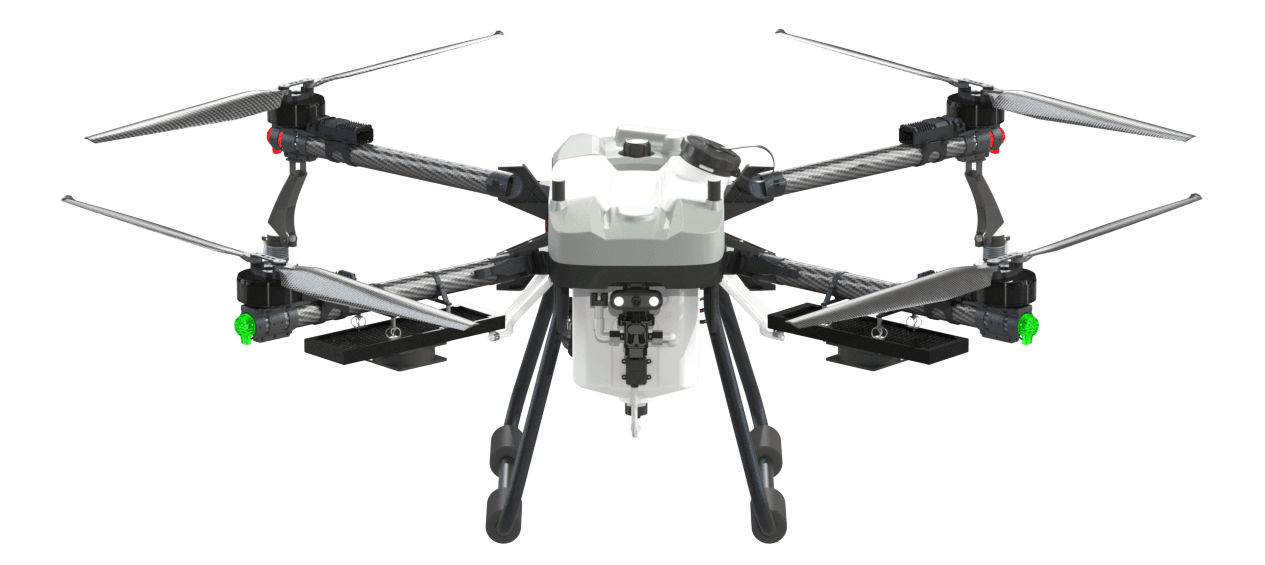

A-22 Falco Hybrid Petrol Powered Drone
The powerful petrol-driven electricity generator works seamlessly with the drone to promise longer airtime. It has rich application scenarios and work efficiency for its efficient operation, rich functions, and simple structure, bringing you a more efficient and relaxed operation experience.

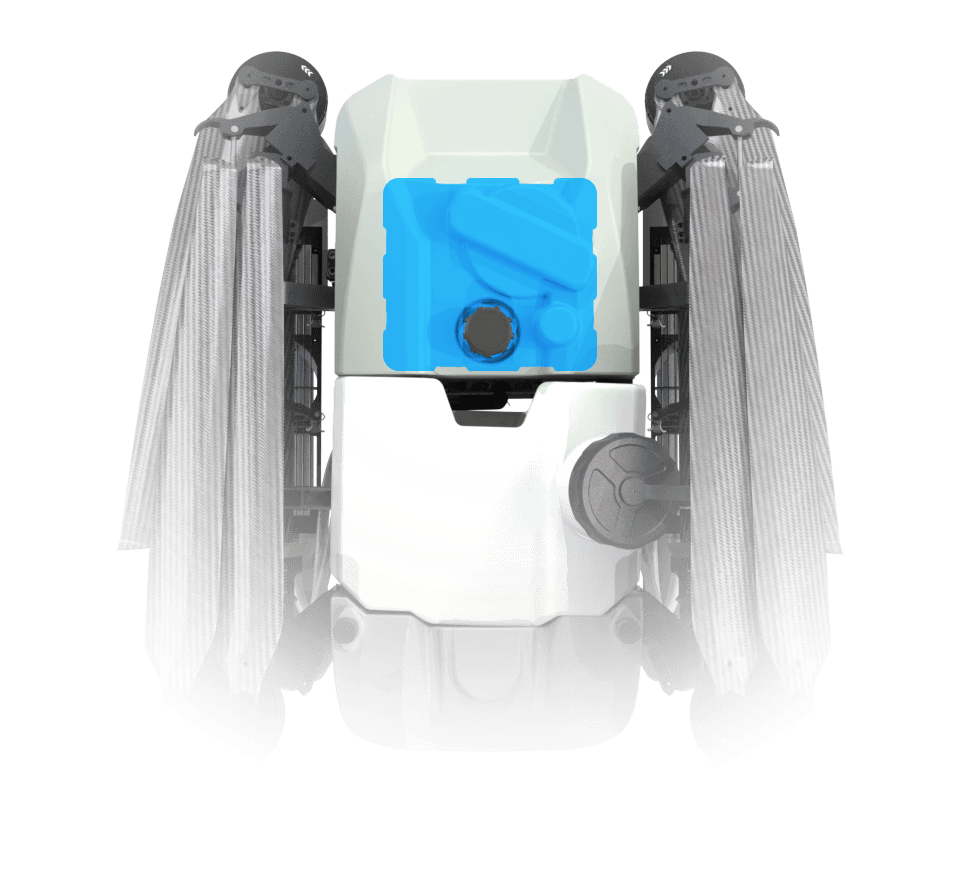

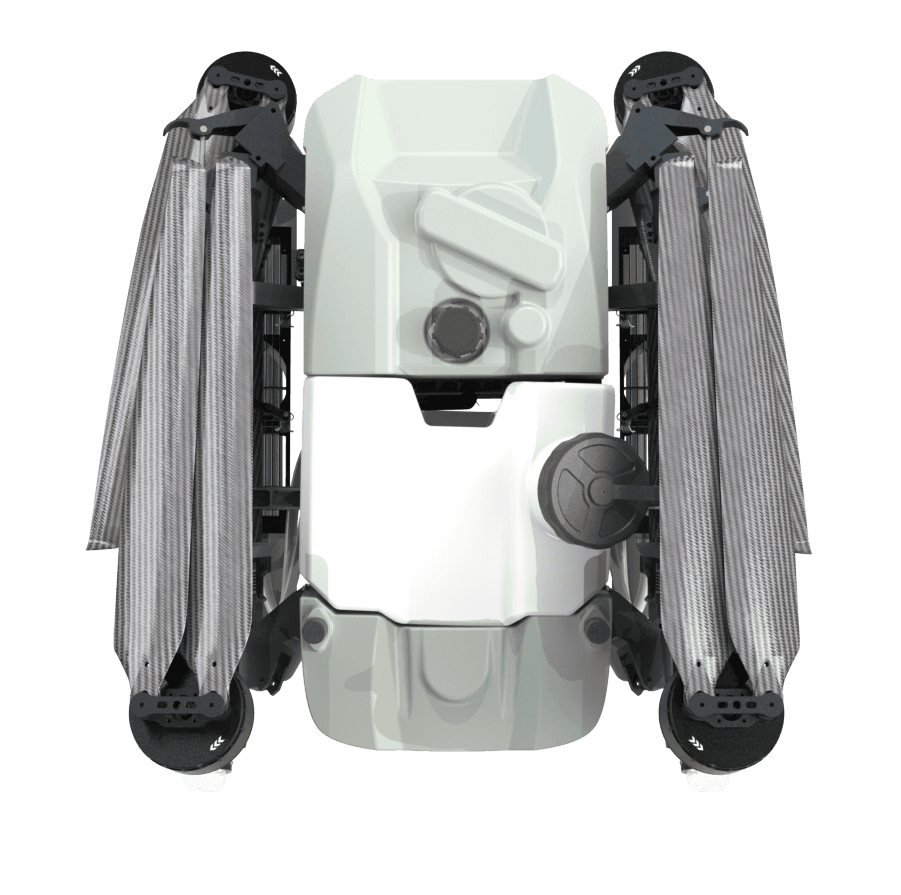

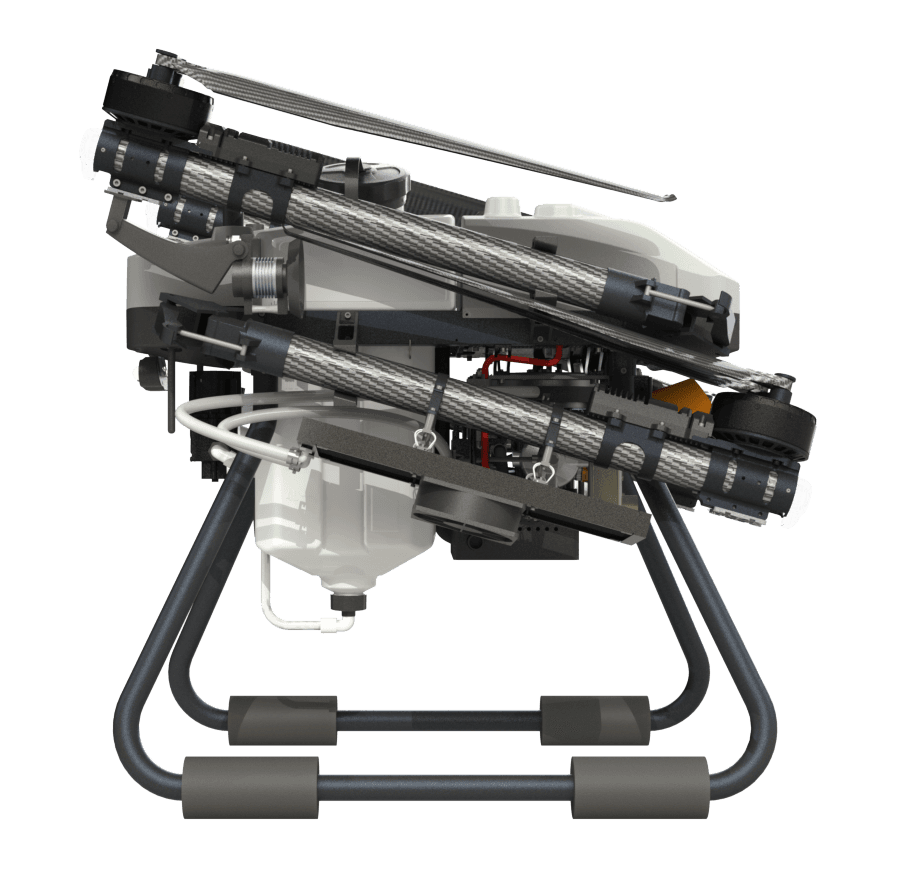

Cross-folding structure
The arm adopts both a cross-folding and staggered folding method, which minimizes the folded size and facilitates transfer and transportation.
<2min deploy time
22L of tank volume (max)
6 m spray width
3K Carbon Fiber Frame
6.5 L/min spray rate
Unstoppable Operation
The Xuanfu (by Geely) efficient gasoline engine allows for more than 3 flights with 22 liters payload using only 3.5 liters of petrol.
Vision Secured

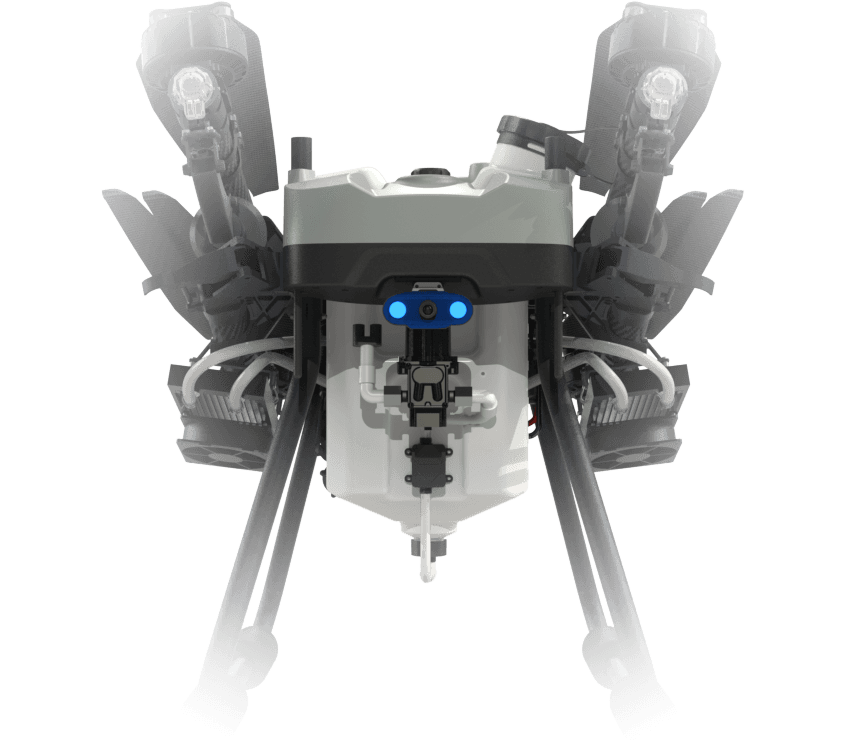

For a safer operation, the A-22 Falco petrol engine drone comes with a real-time front camera providing a 120° wide angle FOV. Operators can monitor the real-time conditions right in front of the drone. The two powerful LEDs are able to provide better lighting for the operators when working at night.

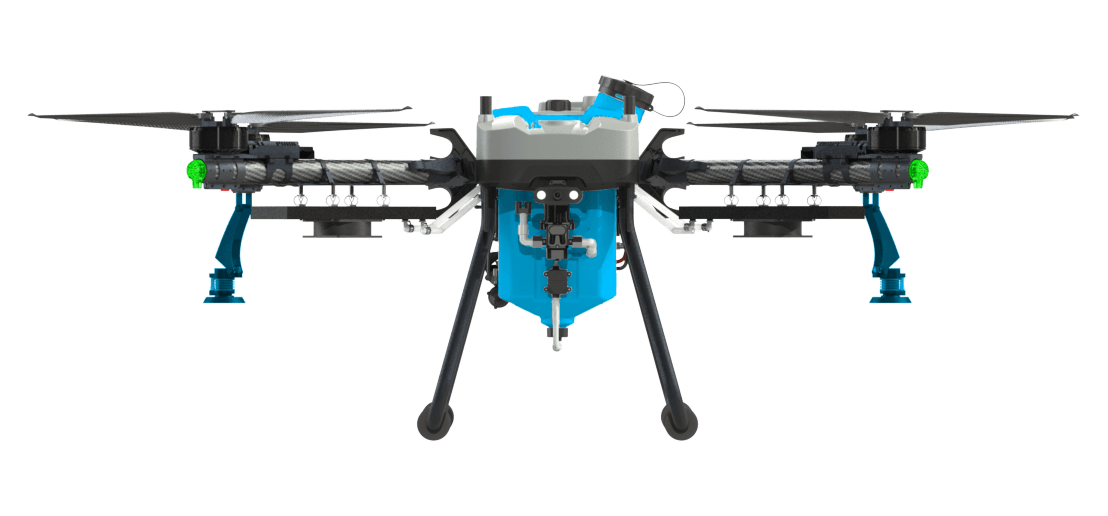

Covers Everywhere
A 22 L liquid tank is installed in the A-22 Falco petrol engine drone to maximize the efficiency of the operation. With the default setup of 4 centrifugal nozzles, the spray width can reach up to 6 meters.
Mightier than Expected

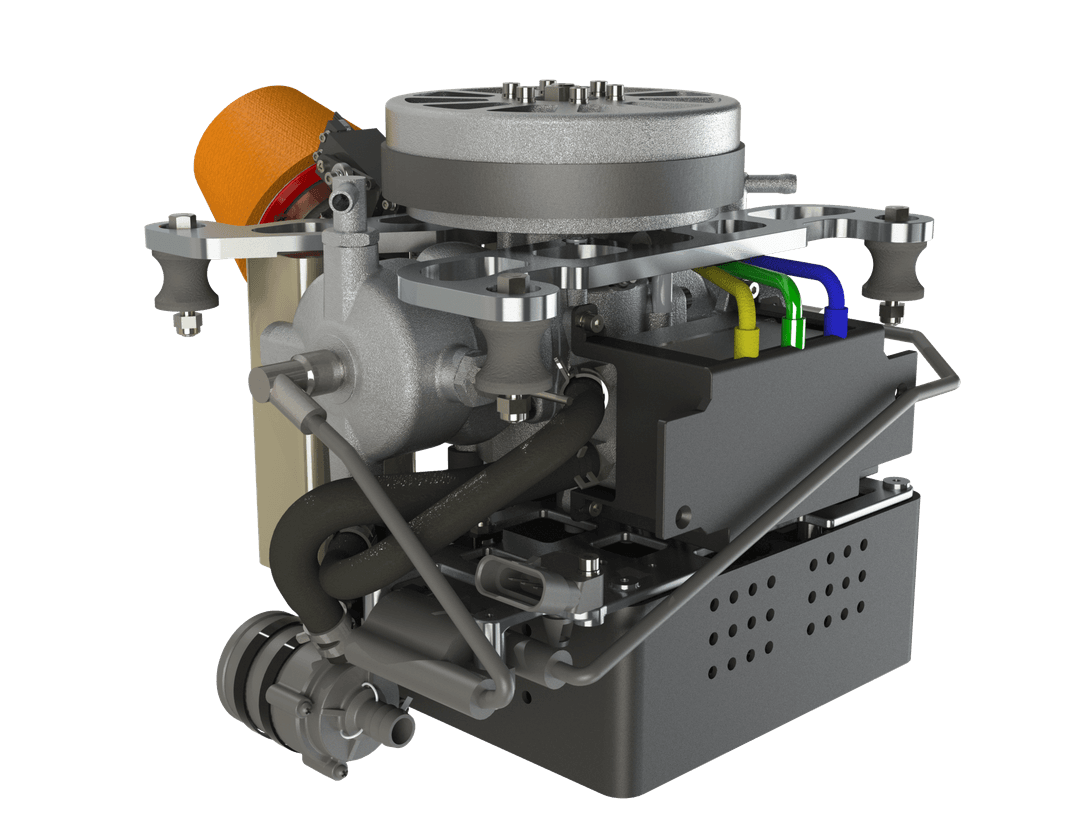

A-22 Falco uses a powerful 6.5 kw petrol-driven generator to charge the batteries, allowing a maximum flight time of more than 30 minutes with a full payload 22 kg
Advanced Obstacle Detection

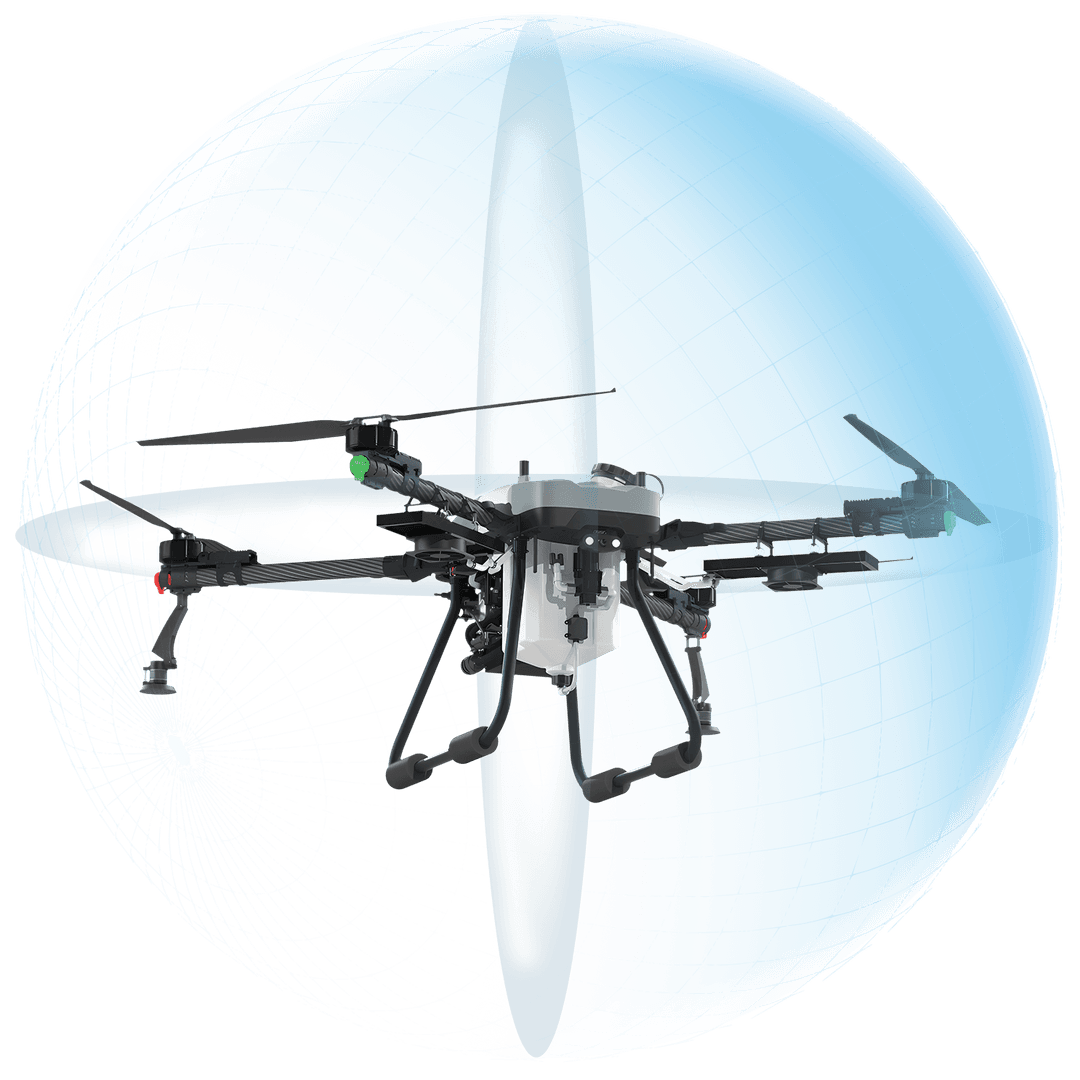

The A-22 Falco features an advanced obstacle detection system that utilizes real-time sensors to identify potential hazards and maintain safe distance. This system enhances mission safety, particularly in dense or uneven terrain, ensuring seamless operations without manual intervention.
Applications
Oil palm plantation
Paddy field
Tropical fruit plantation
Sugar cane plantation
Tech Specs
A-22 Falco
Aircraft
Takeoff weight
64kg
Wheelbase
1965mm
Size (L*W*H)
760*720*850mm (Folded)
1520*1530*710mm (Unfolded)
Fuel consumption
5.9L/hour
Spray width
6m
Spray rate
6.5L/min
Operating liquid tank capacity
20L
Maximum liquid tank capacity
22L
Fuel tank capacity
3.5L
Flying speed
9m/s
Loiter Accuracy (RTK Enabled)
Horizontal & Vertical ±0.1m
Obstacle Avoidance Radar
Horizontal Beam Width (-6dB)
±15°
Vertical Beam Width (-6dB)
-7° - +1°
Maximum EIRP
30dBm
Measurement Range
1.5m - 27m
Measurement Sensitivity
±0.1m
Resolution
0.12m
Transmission Frequency
79Ghz
Refresh Rate
20Hz
Bandwidth
1.4Ghz
Engine
Continuous power
6.5kW
Rated voltage
58V
Maximum current
120A
Weight
8.5kg
Form
Two-cylinder, two-stroke, EFI
Startup mode
Integrated machine for starting and generating
Fuel consumption
570g/kWh
Lifespan
300h
Noise
110dB (1m distance)
Displacement
124.5cc
Remote control
Display size
5.5inch
Channels
12
Working voltage
4.2V
RF power
20dBm@CE
Frequency
2.400 - 2.483Ghz
Frequency hopping
FHSS
Transmission range
2-5km (Ground), 5-10km (Air)
Size
180*152*94mm
Battery
10000mAh
Endurance
6 - 20hours
Charging port
Type-C
Weight
530g
