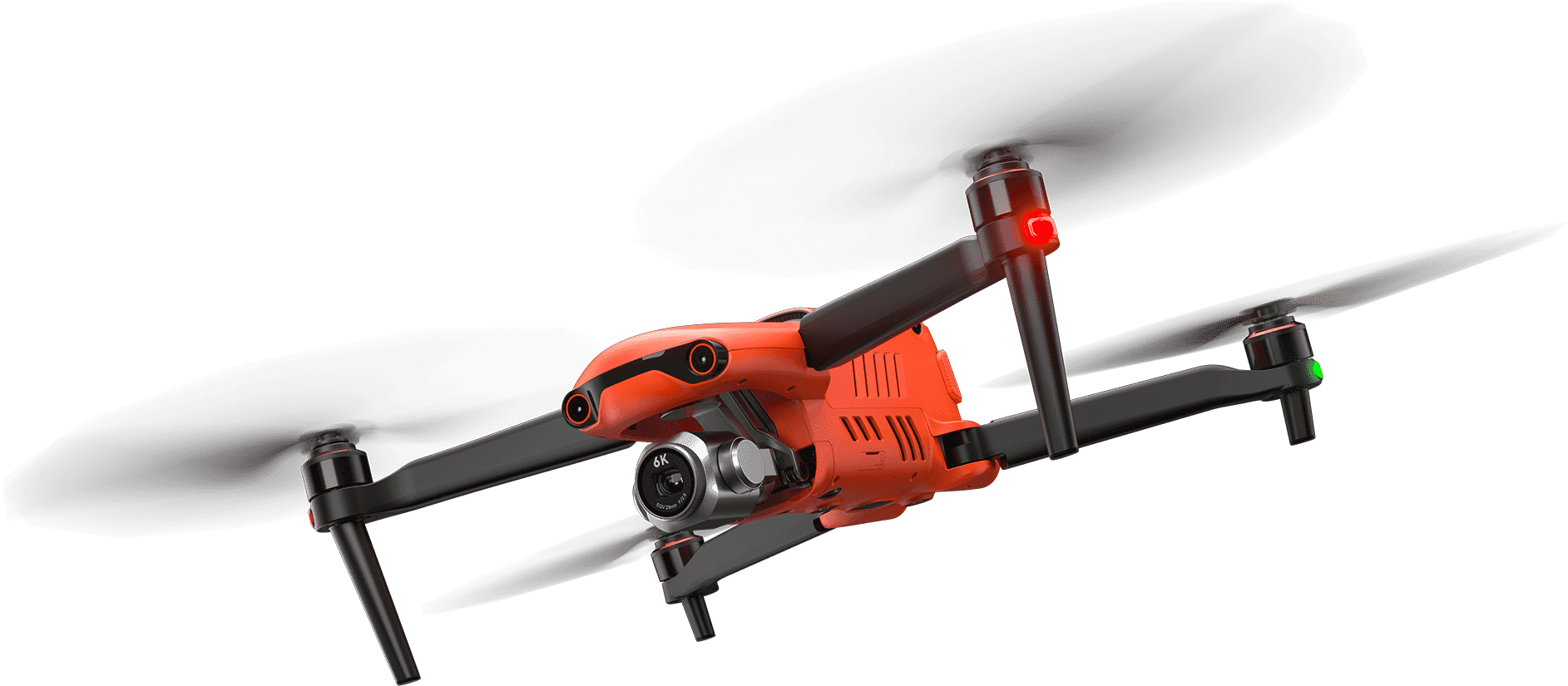

EVO II Pro Enterprise V3

Reliable and Dependable

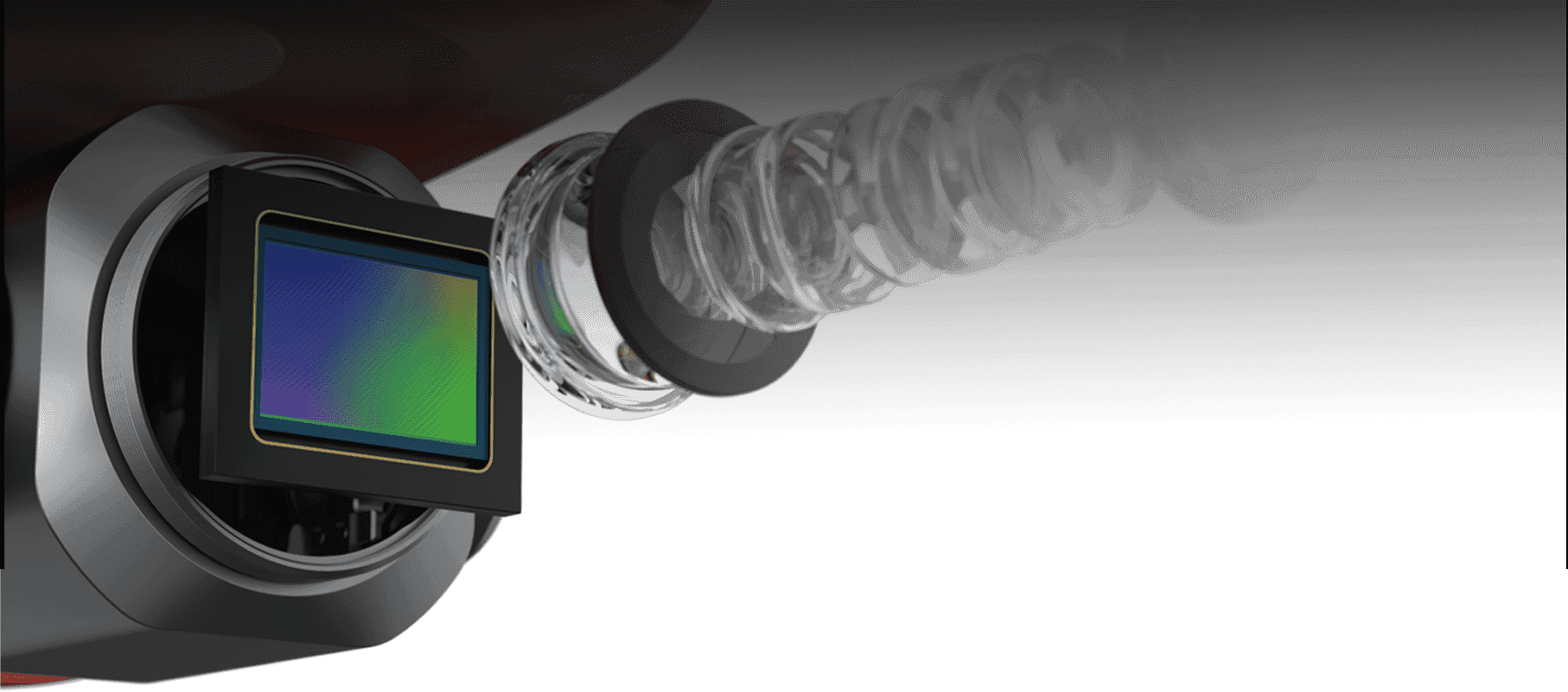

All New 6K 1" CMOS

See clearer with Sony's new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video resolution with stronger noise suppression, and higher frame rates.

1-INCH

CMOS

20MP


6k/30FPS

Video

F2.8~F11

Aperture

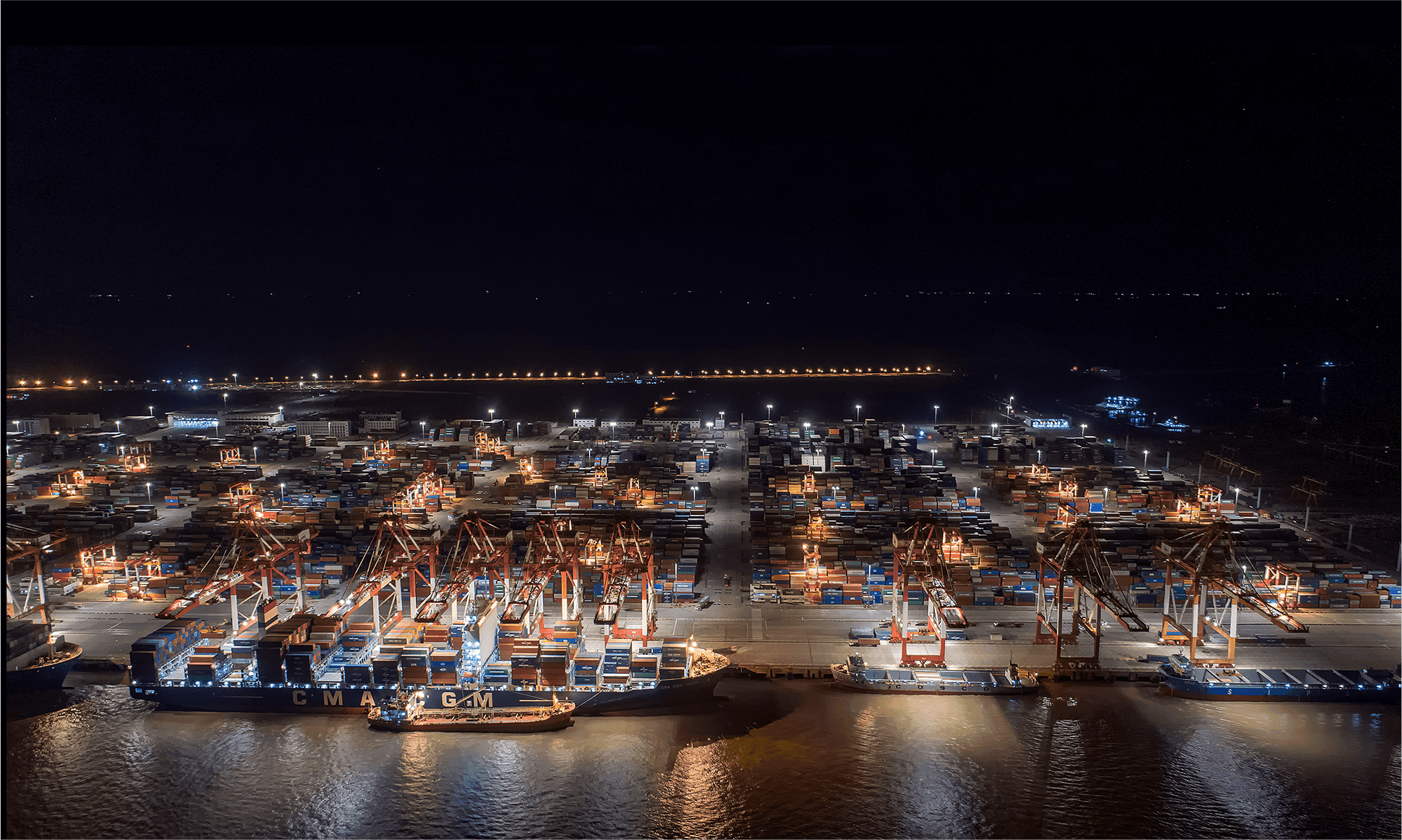

Excel in Low Light

EVO II Pro V3 brings you Autel's Moonlight Algorithm 2.0 with additional noise reduction processing. Paired with EVO II Pro V3's upgraded CMOS, it succeeds in operations with minimal lighting or in harsh lighting situations at night.

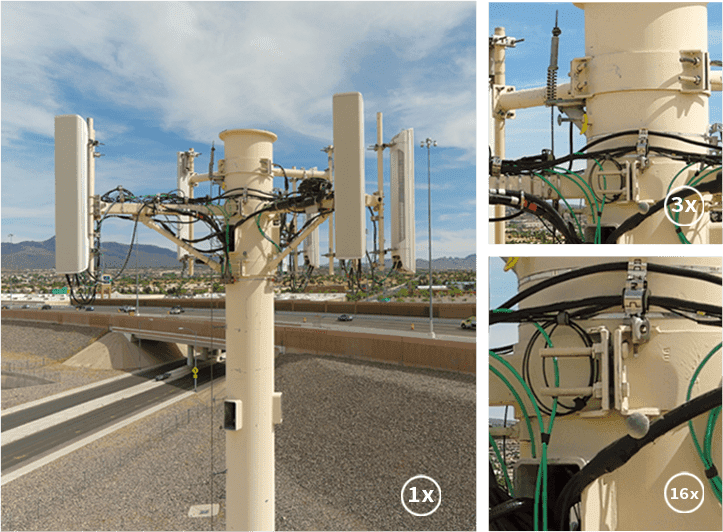

Zoom in for the Details

EVO II Pro V3 supports 3x lossless zoom and 16x digital zoom. Obtain clear intel from farther away without suspicion.

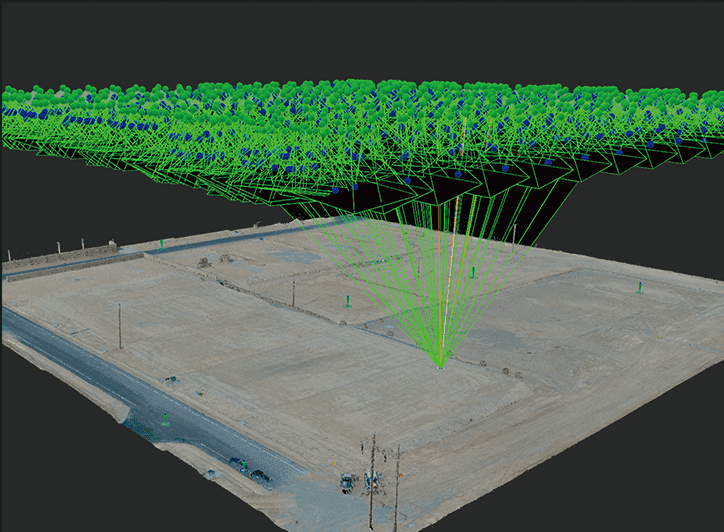

Accident Reconstruction

The EVO II Pro V3 is excellent for accident reconstruction, and is compatible with Pix4D, DroneDeploy, and SkyeBrowse.

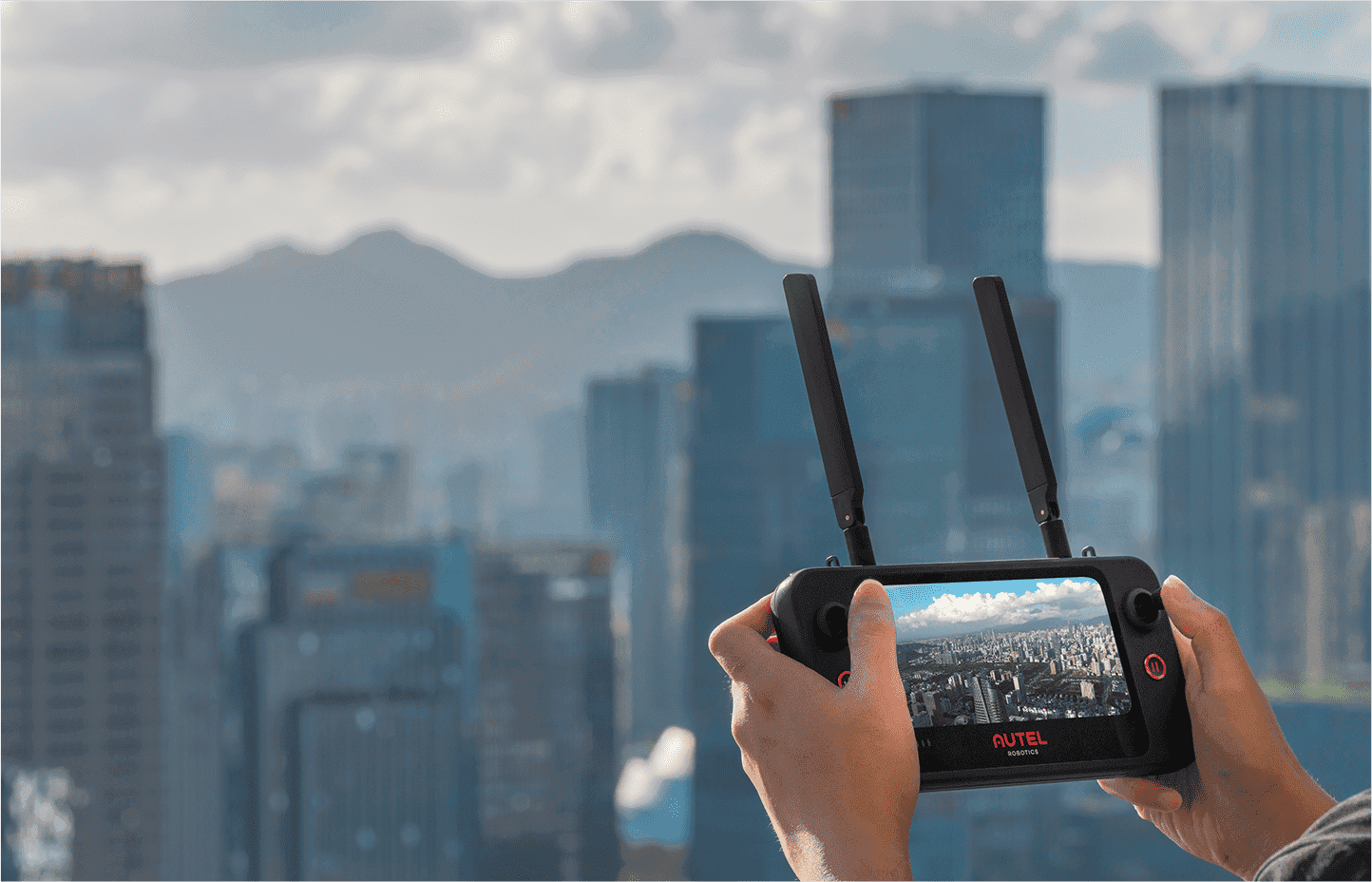

Autel SkyLink 2.0 Video Transmission

The EVO II Pro V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

15KM

Fly farther with HD video transmission up to 15km.

QHD

Obtain critical details with QHD video within 1km.

2.4G/5.8G/900M

Less signal breakups and enhanced anti-interference capabilities.

F2.8~F11

Aperture

* 900MHz is only applicable for FCC countries.

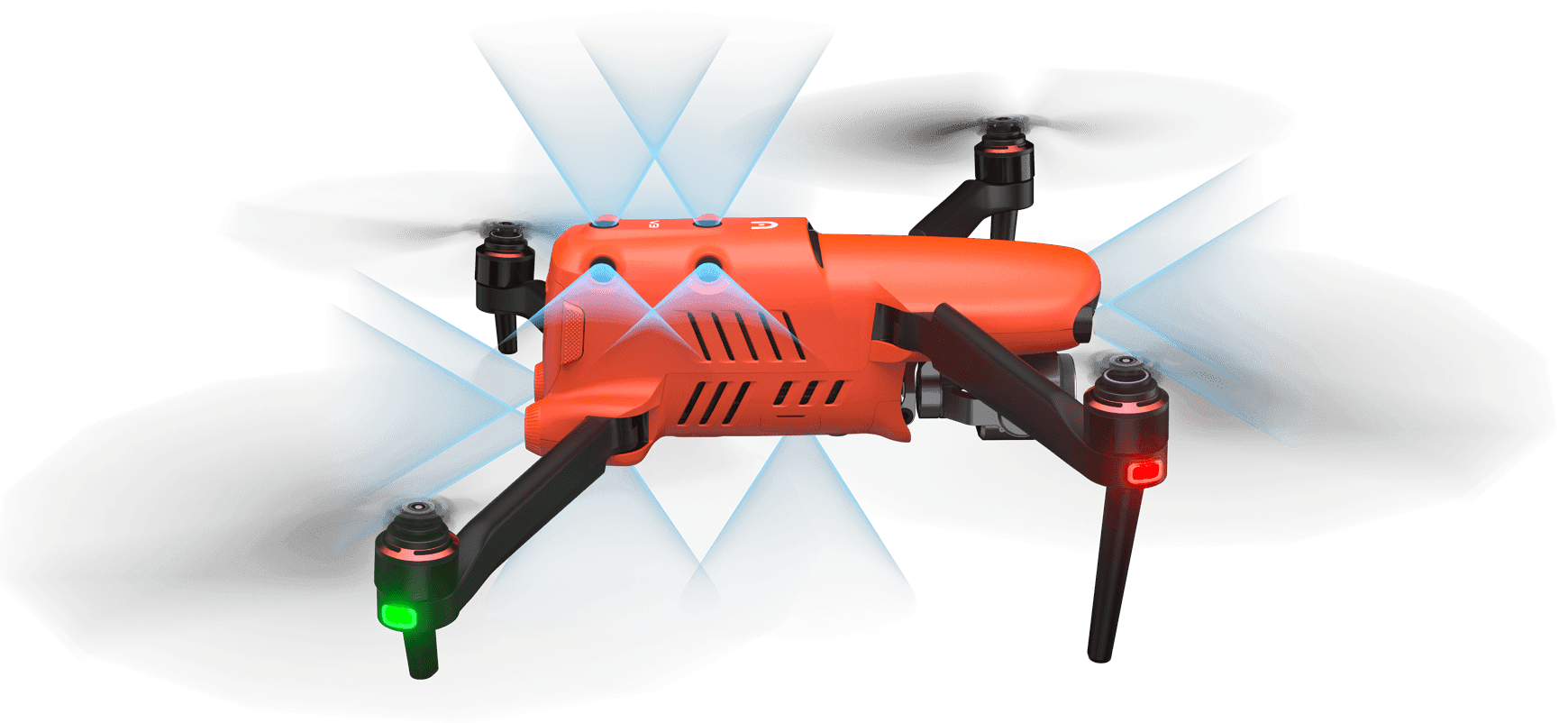

360° Obstacle Avoidance

EVO II Pro V3 is equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real-time. Fly through complex environments without fear as the EVO II Pro V3 will automatically stop near obstacles*.

* Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

Maximum Performance Endless Possibilities

No Forced Updates*
EVO II Pro V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

No Fly Zones**
EVO II Pro V3 does not have any no fly zones and will not prevent the pilot from taking off.

Deploy Rapidly
The EVO II Pro V3 takes 45 seconds from launch to takeoff without fuss.

* It's required to update the latest firmware and app to enjoy a comprehensive warranty. For more information please refer to the warranty policy.
** Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.

Maximum Performance Endless Possibilities

40min

40mins

Maximum Flight Time

15km
(9.3miles)

Maximum Transmission Range

20m/s
(45mph)

Maximum Flight Speed

12m/s
(27mph)

Maximum Wind Resistance

920g
(2lbs)

Maximum Lift Capability

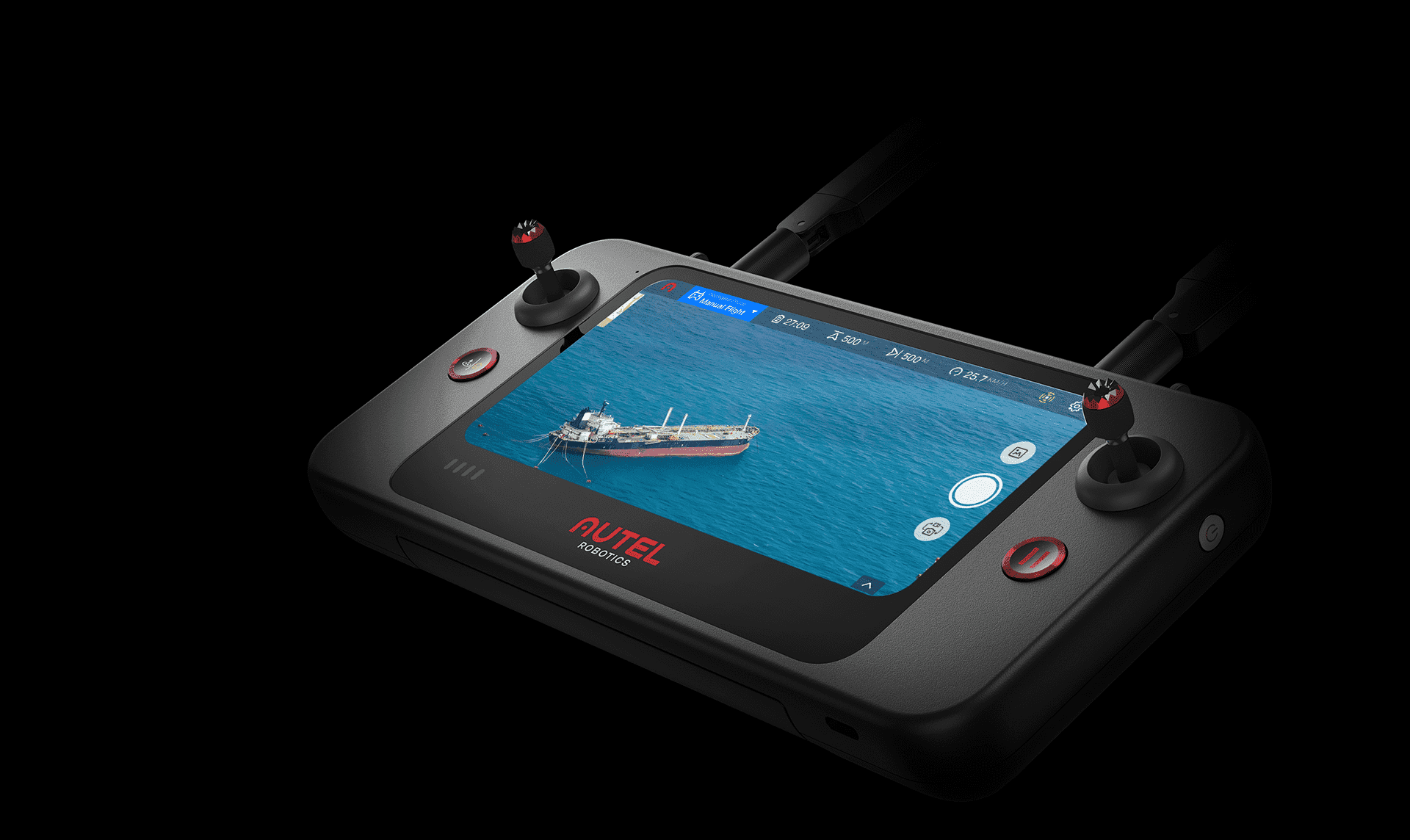

Autel Smart Controller SE

Smart Controller SE comes with a 6.4-inch OLED touch screen and the latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all-weather performance.

6.4-Inch OLED Screen

Removable Battery

15km Transmission Range

10℃ to 40℃ Operating Temperature

3rd Party Apps

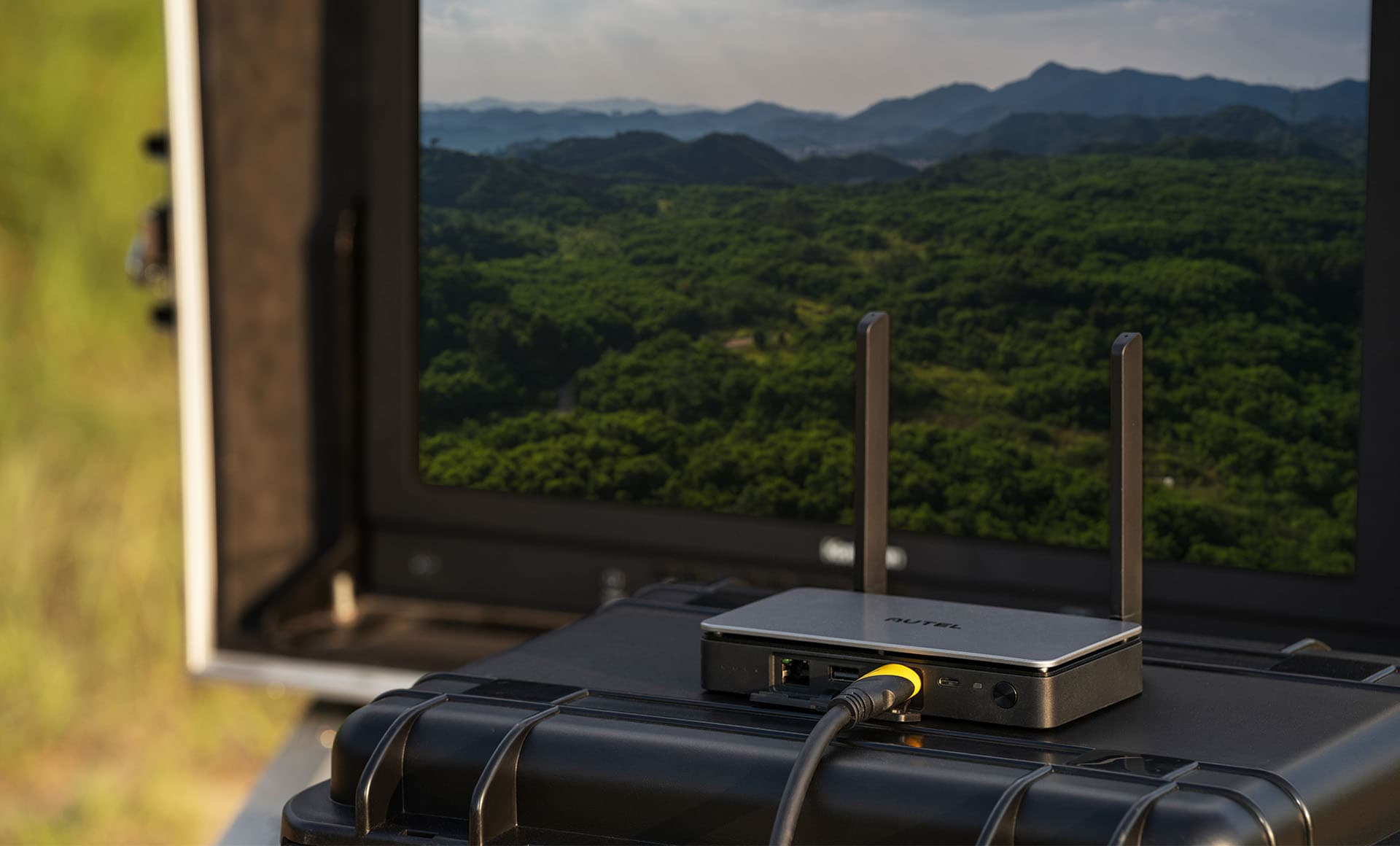

Broadcast with Live Deck 2

Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision-making. The EVO II Pro V3 is compatible with Livedeck 2.0, which offers multiport streaming to monitors and Wifi support for multiple smartphones.

1080P Video Stream

Three Auto-Switch Bands

Transmission Range

5-Hour Battery Life

IP43 Resistance

Applications

Tech Specs

EVO II Pro Enterprise V3

Aircraft

Takeoff weight

1191 g

Max takeoff weight

2000 g

Wheelbase

397 mm

Size(L*W*H)

230*130*108mm(folded)

457*558*108mm(unfolded)

Maximum service ceiling altitude

7000 m

Max ascent speed

8 m/s (Ludicrous)

Max descent speed

4 m/s (Ludicrous)

Max horizontal flight speed

20m/s (Ludicrous)

Max flight distance (no wind)

25 km

Max tilt angle

33° (Ludicrous)

Max angular velocity

120°/s

Max flight time (no wind)

40 min

Max hovering time (no wind)

35 min

Operating temperature range

-10℃ - 40℃

Maximum resistance to wind

12 m/s (Take-off and landing)

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

900MHz: FCC/ ISED: ≤31dBm

2.4GHz: FCC/ ISED: ≤32dBm, SRRC/CE/MIC/RCM: ≤20dBm

5.8GHz (non-Japan);5.7G (Japan): FCC/ISED/SRRC/MIC: ≤33dBm, CE/ RCM: ≤14dBm

Hovering accuracy

Vertical: ±0.1 m (when the visual positioning is working normally);

±0.5 m (when GPS works normally)

Horizontal: ±0.3 m (when the visual positioning is working normally);

±1.5 m (when GPS works normally)

GNSS

GPS/Beidou/Glonass/Gallieo

Internal storage

8GB

SD storage

max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal

3-axis stabilization

Mechanical range

Tilt: -135° to +45°;

Pan: -100° to +100°

Controllable rotation range

Tilt: -90° to +30°;

Pan: -90° to +90°

Max control speed (Tilt)

300°/s

Angular Vibration Range

±0.005°

Remote controller and image transmission

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

FCC: ≤33dBm

CE: ≤20dBm@2.4G, ≤14dBm@5.8G

SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G

Max Transmission Distance (unobstructed, free of interference)

FCC: 15km

CE: 8km

Display screen

2340x1080 60fps

Battery

1900mAh

Operating time

~2 hours (Max. Brightness)

~3 hours (50% Brightness)

Charging time

90 minutes

Internal Storage

ROM 128GB + expandable storage via micro-SD card

Sensing system

Sensing system type

Omnidirectional sensing system

Forward

Accurate measurement range: 0.5-18 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Backward

Accurate measurement range: 0.5-16 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Upward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: Horizontal: 65°, Vertical: 50°

Downward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 100°, vertical: 80°

Left and right

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment

Forward, Backward and Sides:

Surface with clear pattern and adequate lighting (lux > 15)

Upward:

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Downward:

Surface with clear pattern and adequate lighting (lux > 15)

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Camera

Sensor

1 inch CMOS; 20M pixels

Lens

FOV: 82°

Equivalent focal length: 29 mm

Aperture: f/2.8 - f/11

Focus range: 0.5 m to infinity

ISO range

Video: 100-44000

Photo: 100-6400

Shutter speed

Other: 1/8000 ~ 1/frame rates

Photo mode: 1/8000 ~ 8s

Zoom

1-16x (up to 3x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR

Maximum photo size

5472*3648 (3:2)

5472*3076 (16:9)

3840*2160 (16:9)

Image Format

JPG (default) / DNG / JPG+DNG

Photo mode

5472x3076P30/P25/P24

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Video format

MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max bitrate

120Mbps

Supported file system

FAT32/exFAT

Battery

Capacity

7100 mAh

Voltage

11.55V

Battery type

LiPo 3S

Energy

82 Wh

Weight

365 g

Charging temperature range

5℃ to 45℃

Storage temperature and humidity

-10~30℃, 65±20%RH

Recommended storage temperature

22-28℃

Max charging power

93W

Charging time

90 minutes

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A

5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

0.75 kg (Single battery weight)

5.5 kg (Max takeoff weight)

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃
