EVO Nano Series

Make Every Moment Matter

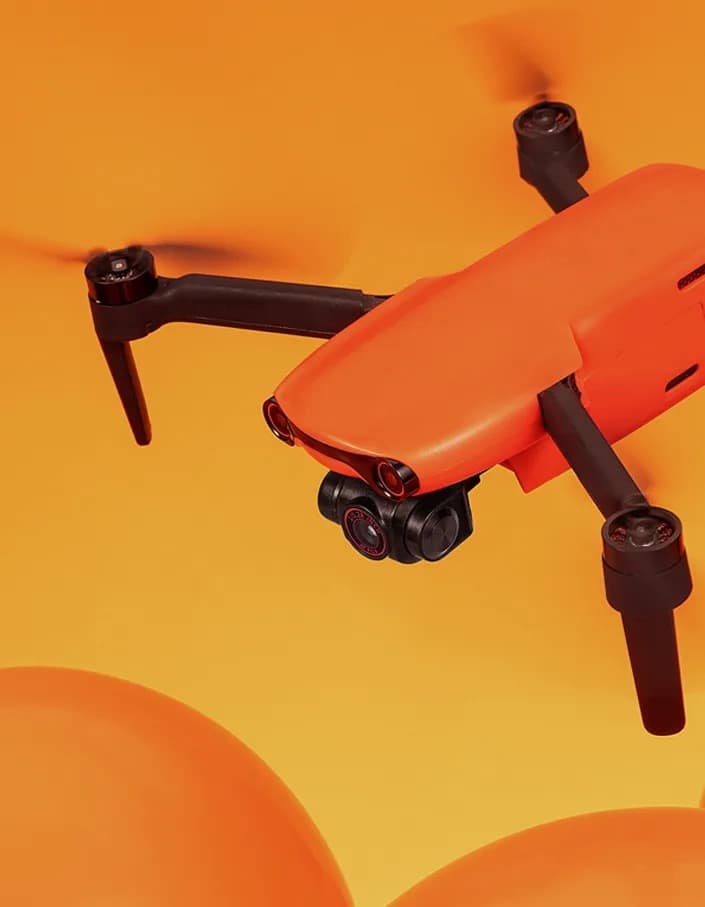

EVO Nano+

The Ultralight Companion For The Photography Enthusiast

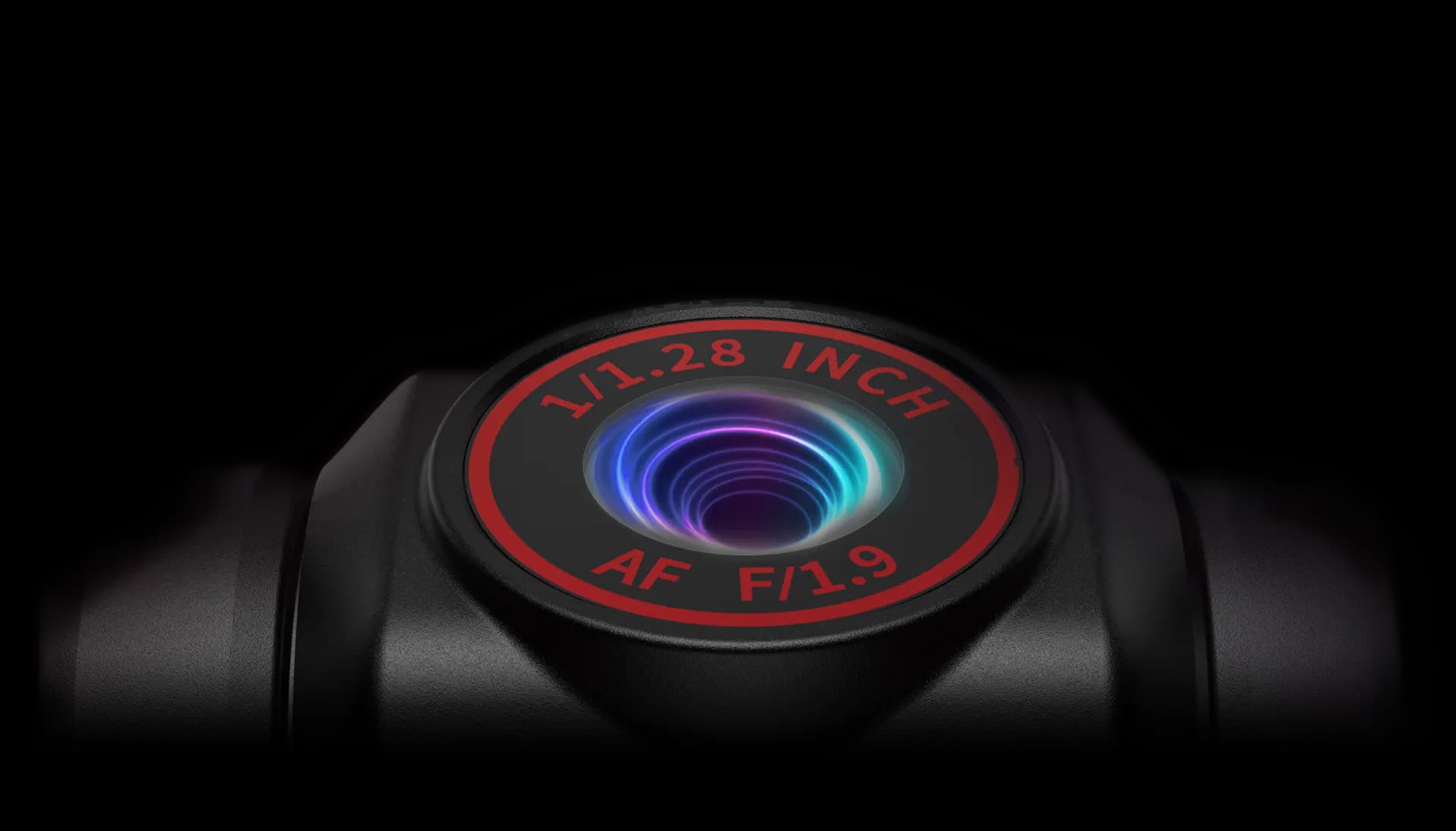

1/1.28″ CMOS

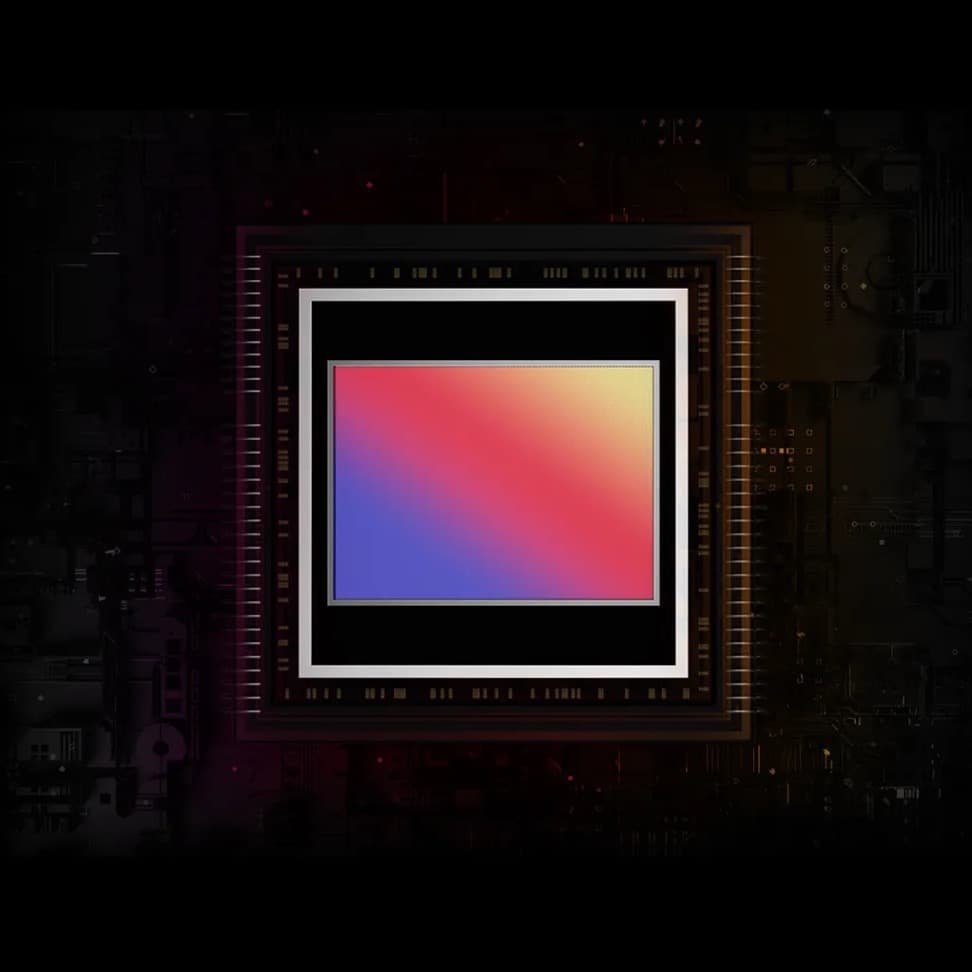

EVO Nano+ is packed with a 1/1.28-inch(0.8-inch) CMOS sensor capable of 50 MP photos. An RYYB color filter array design with a large aperture of f/1.9 offers superior noise reduction capabilities and the power to effortlessly produce quality images in low-light conditions.
Track fast-moving subjects with incredible precision through PDAF + CDAF autofocus system; Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.

1/1.28" (0.8") CMOS

RYYB Sensor

2.44μm Pixel

PDAF+CDAF Autofocus System

Super Sharp. Ultra Smooth.

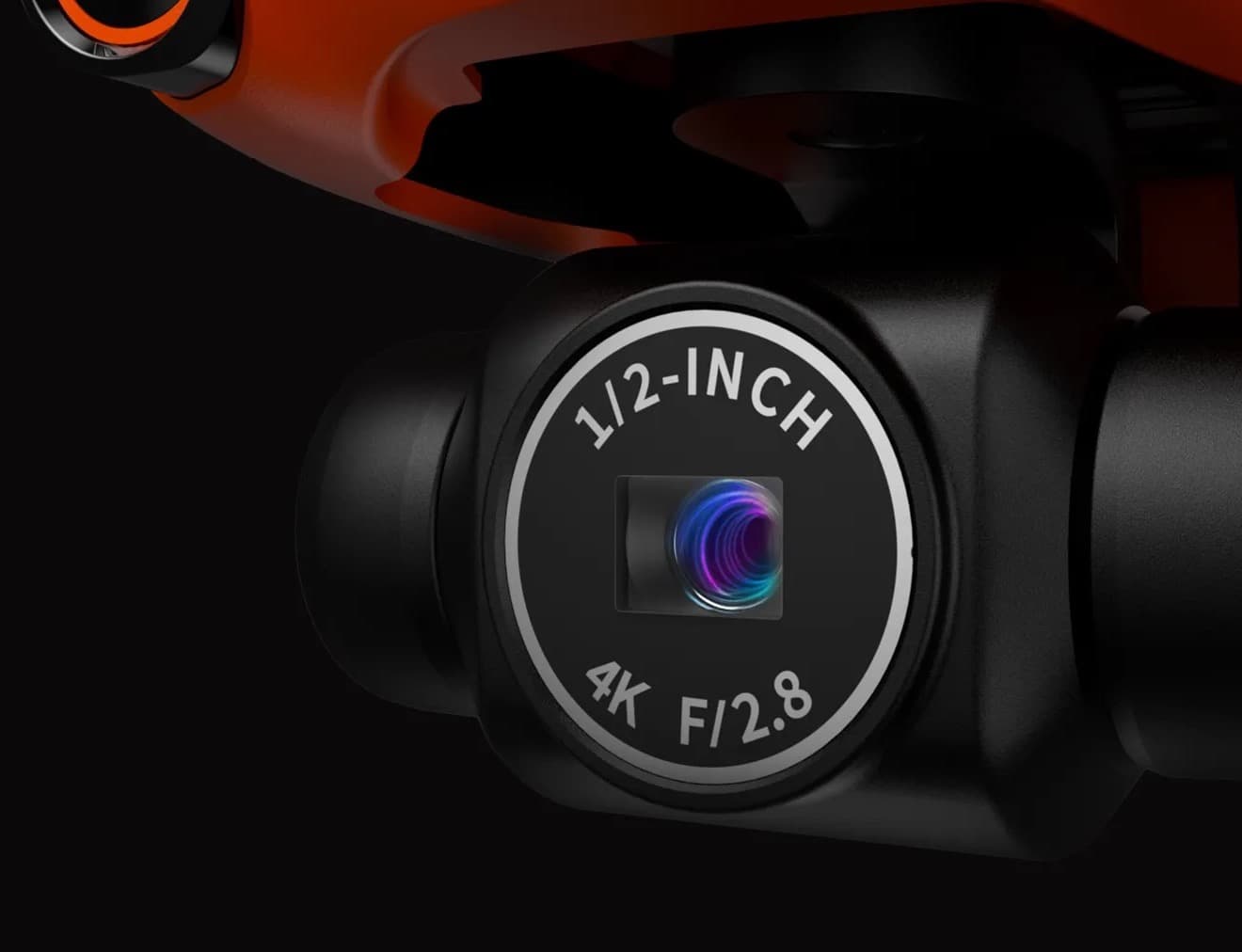

The EVO Nano is equipped with a 48MP camera that can record ultra-sharp 4K/30fps video. Paired with a three-axis mechanical gimbal to prevent vibration, the Nano provides everything you need to ensure your footage is smooth and stable no matter how rough the conditions.

1/1.28" (0.8") CMOS

RYYB Sensor

HDR: Darker Shadows. Brighter Highlights.

With HDR on, Nano and Nano+ will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.

HDR: Darker Shadows. Brighter Highlights.

With HDR on, Nano and Nano+ will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.

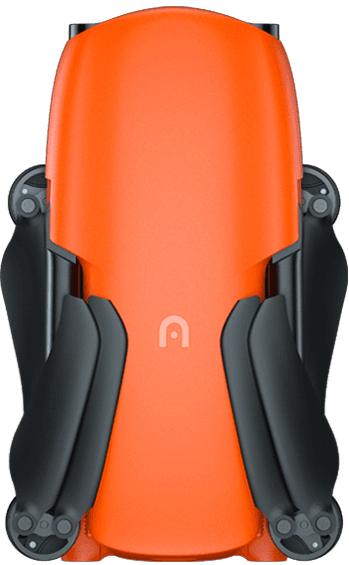

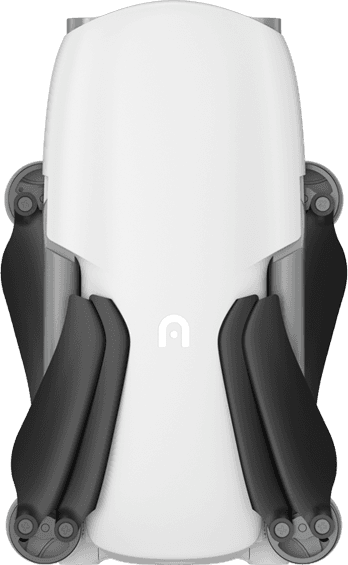

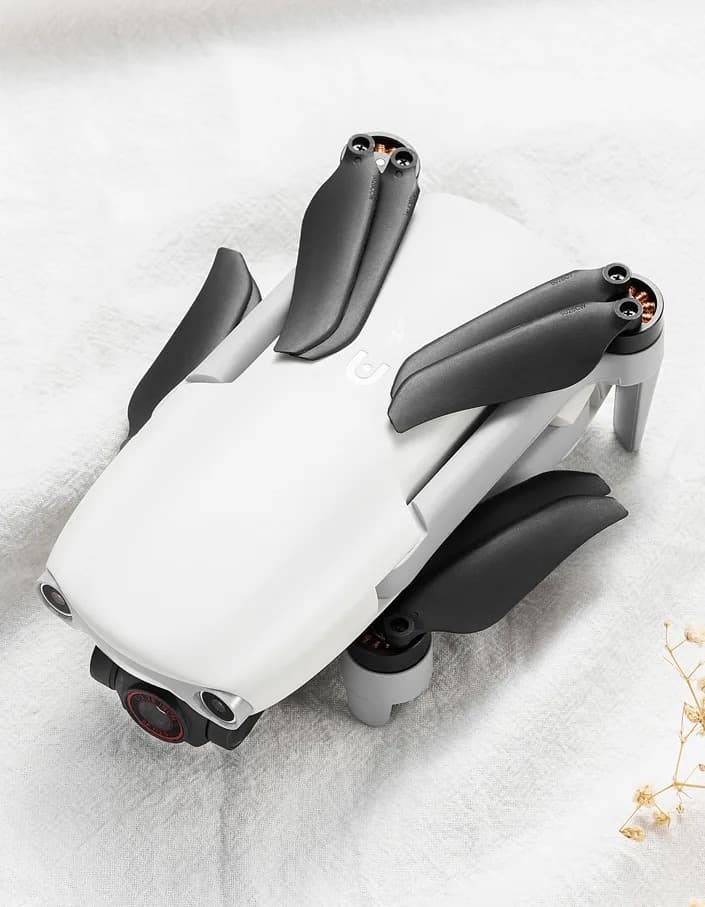

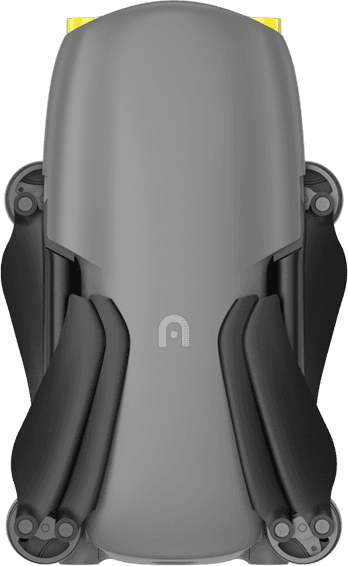

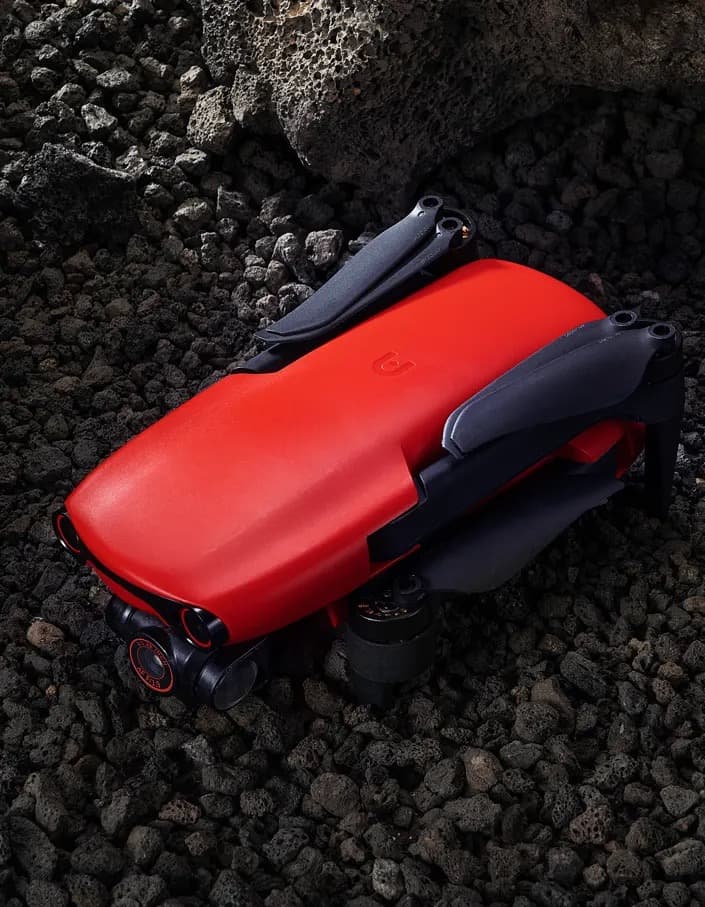

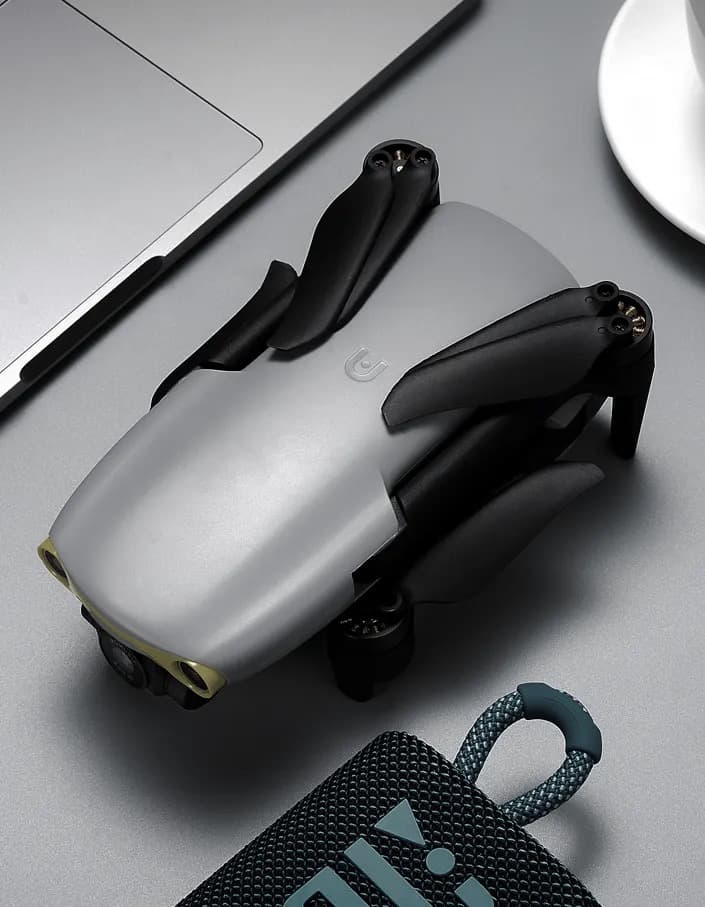

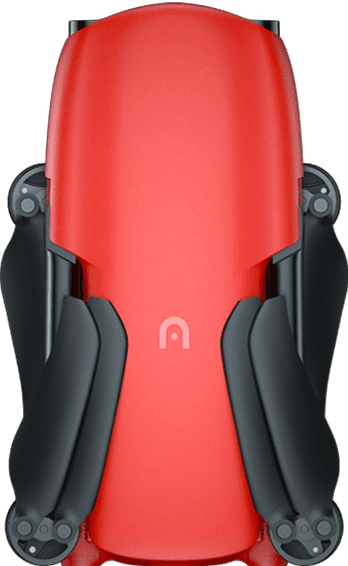

Superlight. Ultracompact.

At only 249 grams, the EVO Nano and Nano+ weigh about as much as a smartphone and fit almost anywhere- from the side pocket of your hiking pack to the palm of your hand.

SkyPortrait: Your Personal Paparazzi

With the touch of a button, the Nano will rise into the air and snap a photo of you and your friends, automatically adjusting the lens so no one gets left out. Blur the background automatically for additional cinematic effect or dramatically reveal your epic destination — whether it's the top of a mountain or your own backyard.

Dynamic Track 2.1: Master Subject Tracking

Recruit your Nano to automatically follow any person, so you can focus on your activities while your Nano handles the cinematic side.

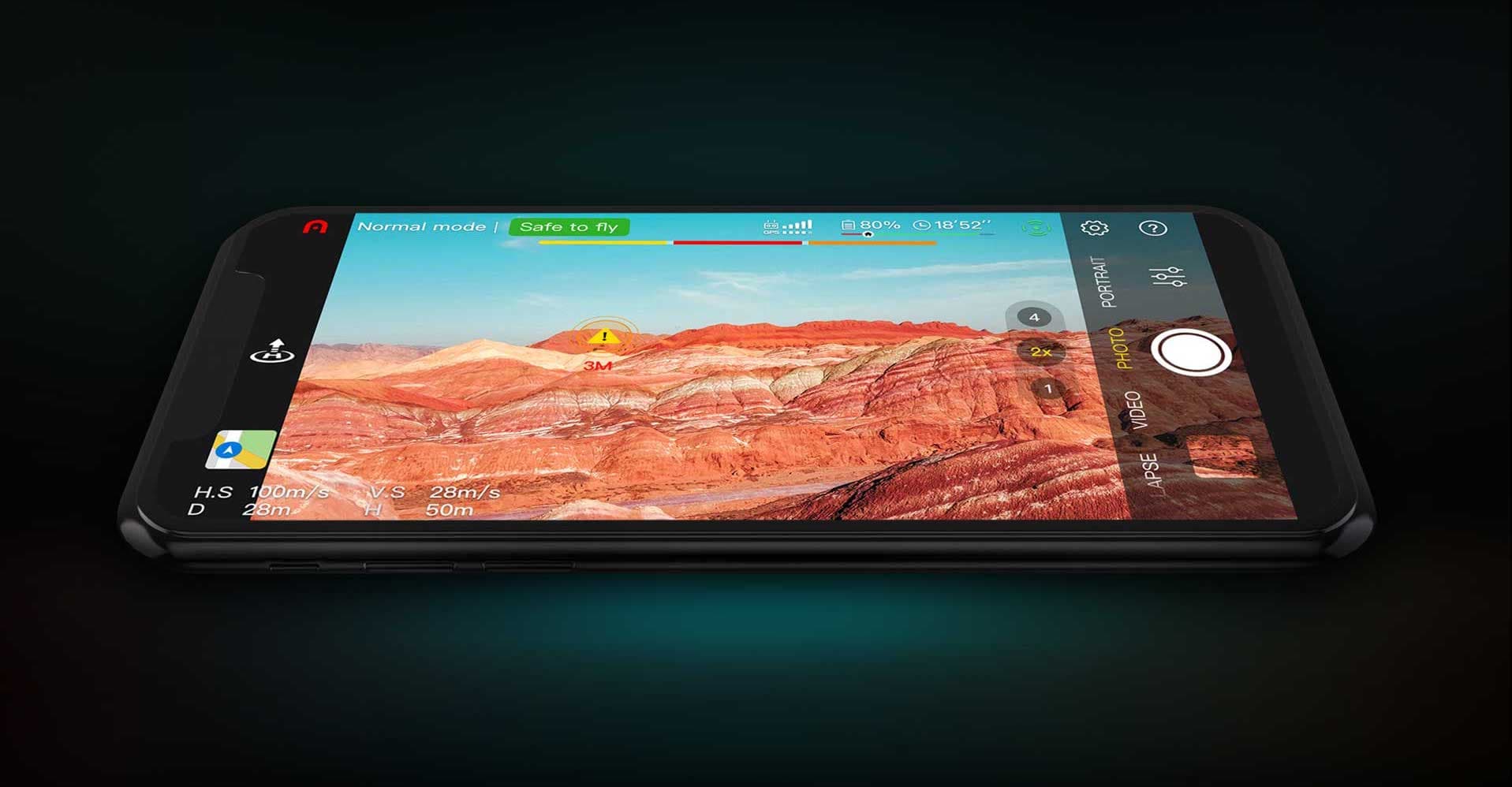

Cinematic Shots Proficiency With A Single Click

Create dramatic, professional-level shots at the touch of a button with four automatic shooting modes. Add a soundtrack and filters in the Autel Sky app to make your video even more epic, allowing you to produce unforgettable results whether you're a veteran pilot or completely new to the drone game.

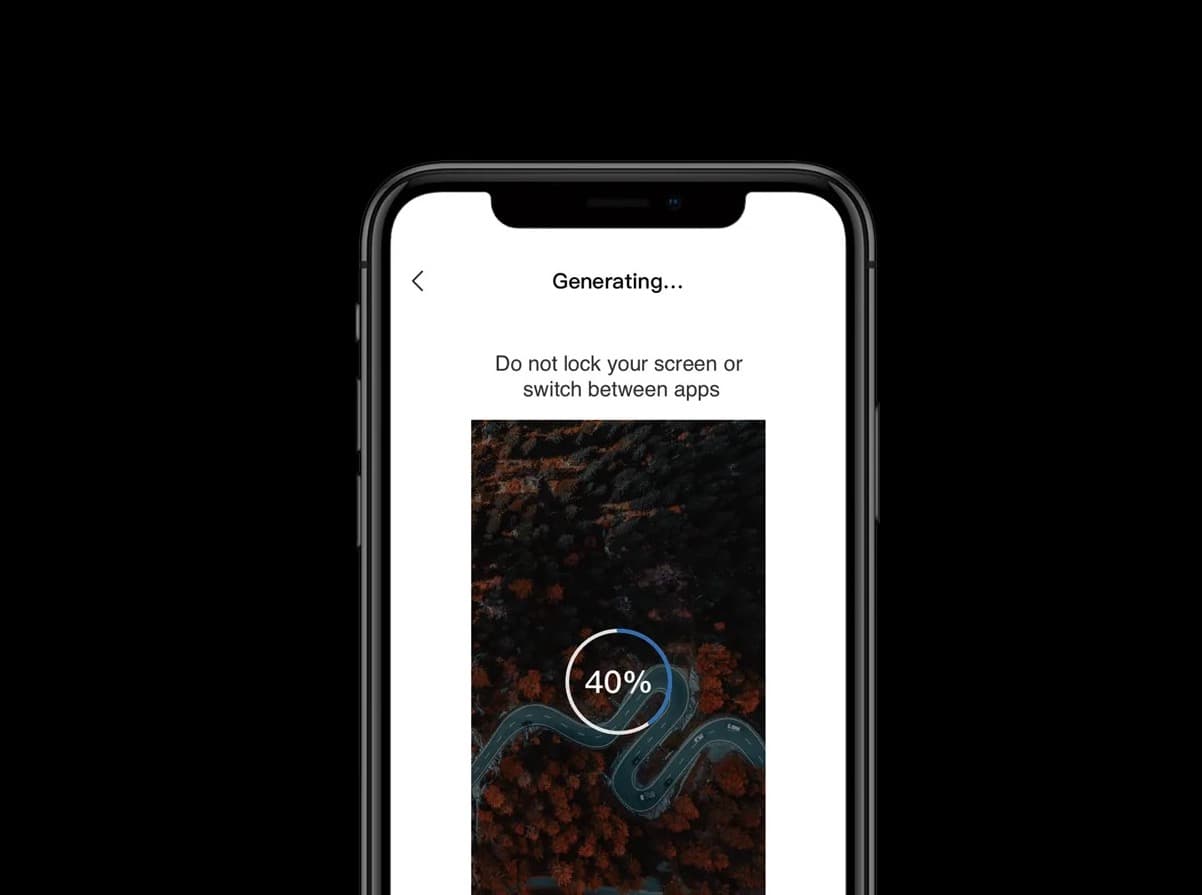

MovieMaster: Easy Movie Making And Sharing

The Autel Sky app provides you a suite of video templates for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can create and share your creations on the spot!

Easy Editing

Imaginative Templates

SuperDownload

SkyLink Video Transmission

Fly Free—More Range, Less Interference

Fly farther while maintaining crisp, clear visuals with the all new Autel SkyLink, our strongest image transmission system yet, which offers a transmission range of 6.2 miles, transmission quality of 2.7K/30FPS, and superior anti-interference capabilities, all while relaying stunning QHD video.

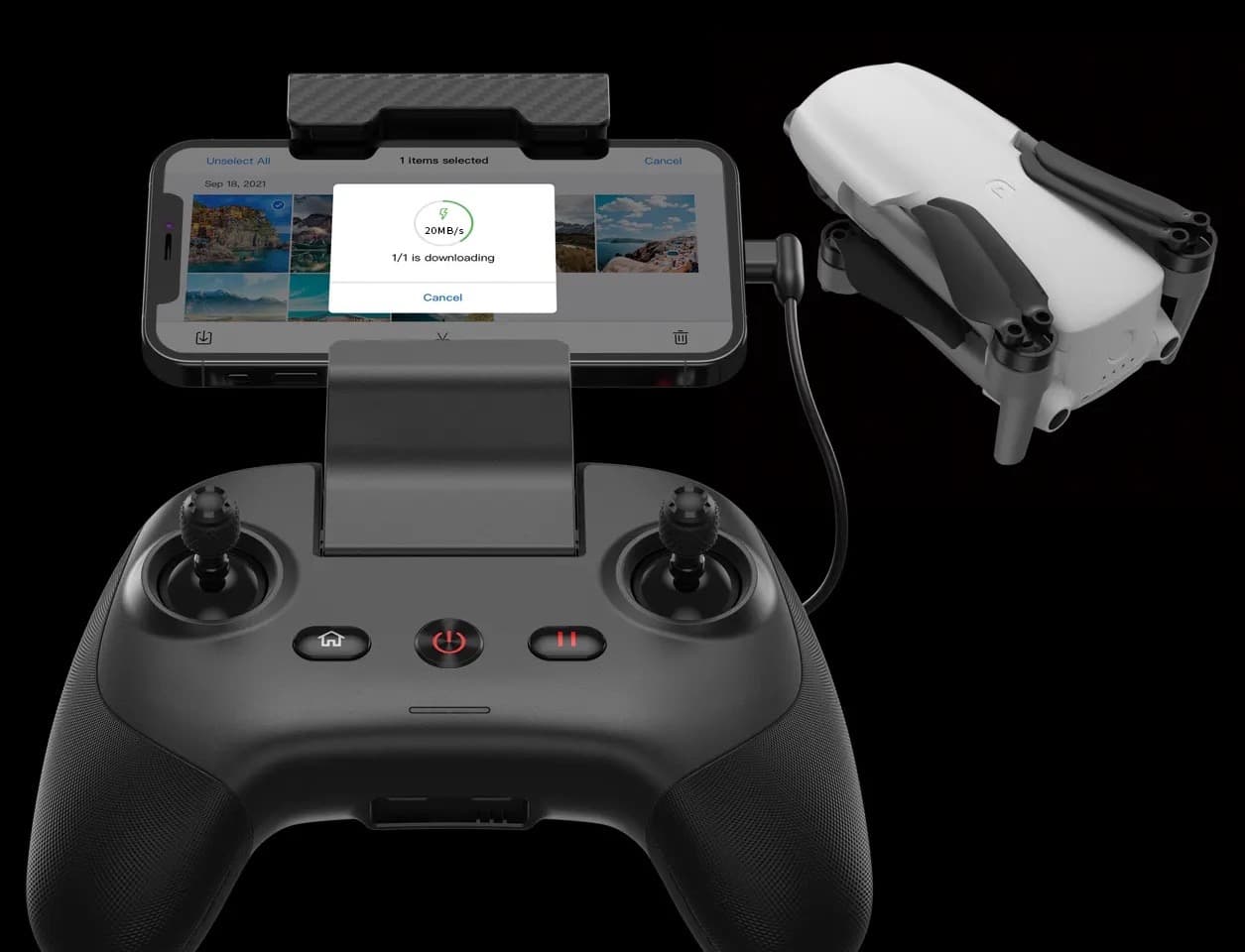

SuperDownload

Done shooting? Simply place your smartphone close to the Nano to download photos and videos at a speedy rate of 160Mbps(20MB/s) using the Autel Sky app.

SoundRecord: Bring Your Videos To Life

Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is far away or use it to narrate while filming for better editing workflow.

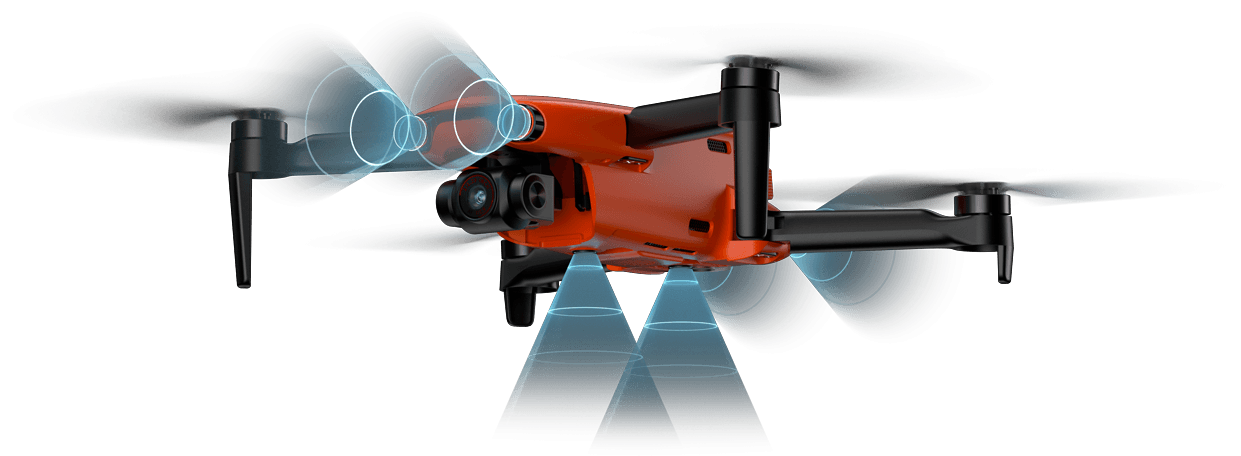

Fly Safe With Advanced Obstacle Avoidance

The EVO Nano series is the first and only aircraft series of its size to offer an advanced obstacle avoidance system — making it the obvious choice for users looking to avoid crashes and preserve the life of their aircraft. With three-way binocular vision sensors that enable the drone to perceive obstructions in front of it, behind it, and below it. The EVO Nano series can easily brake to avoid collisions and navigate obstacles.

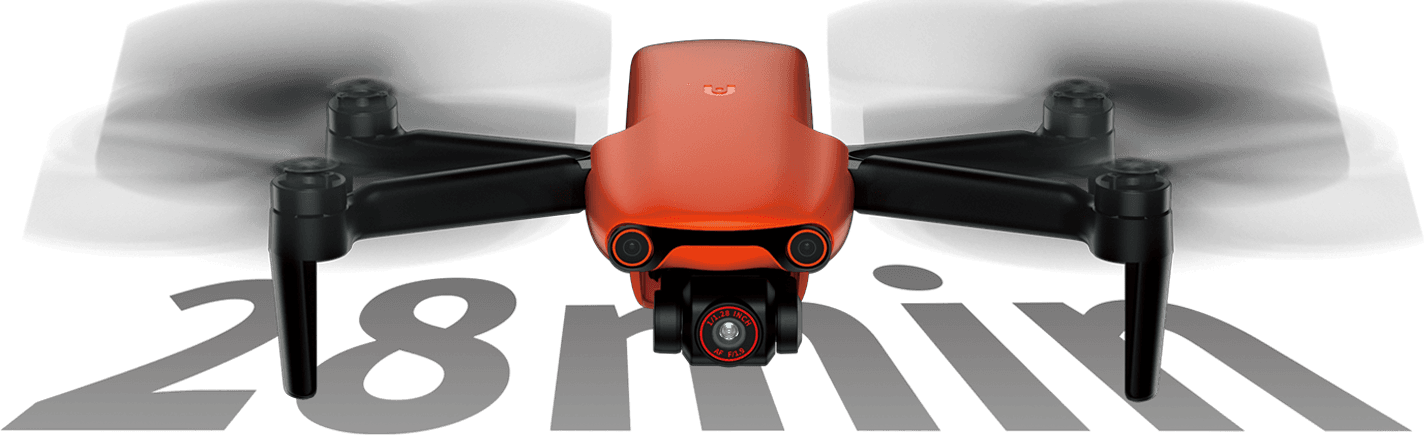

More Battery. More Time. More Creativity.

The EVO Nano can fly continuously for 28 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.

Tech Specs

EVO Nano

Aircraft

Takeoff weight (without Accessories)

249g

Dimensions (including blades)

Folded: 142*94*55mm

Unfolded: 260*325*55mm

Wheelbase

231mm

Max Ascent Speed

5m/s (ludicrous)

4m/s (standard)

3m/s (smooth)

Max level flight speed

4m/s (ludicrous)

3m/s (standard)

2m/s (smooth)

Max level flight Speed(no wind, near sea level)

15m/s (ludicrous)

10m/s (standard)

5m/s (smooth)

Max takeoff altitude

4000m

Max flight time(no wind)

28min

Max hovering time(no wind)

26min

Max flight distance(no wind)

16.8km

Max wind resistance

10 m/s (Take-off and landing)

Max tilt angle

33°(ludicrous)

25°(standard)

25°(smooth)

Operating temperature

-10℃ - 40℃

Operating Frequency

2.4000-2.4835 GHz

5.725-5.850 GHz

5.150-5.250 GHz

Transmission power (EIRP)

FCC: > 30 dBm; CE: > 20 dBm

GNSS

GPS + GLONASS + Galileo

Hovering accuracy

Vertical:±0.1m (when the visual positioning is active),

±0.5m (with GPS positioning);

Horizontal:±0.3m (when the visual positioning is active),

±1.5m (with GPS positioning);

Aircraft

Gimbal

Mechanical range

Pitch: -125° to 35°;

Roll: -34° to 33°;

Yaw: -25° to 25°;

Controllable range

Pitch: -90° to 15°;

Stabilization

3-axis

Max control speed (pitch)

30°/s

Angular Vibration Range

±0.003°

Perception system

Forward

Accurate measurement range: 0.5~16m

Effective sensing speed: <10m/s

FOV: horizontal <40°, vertical <30°

Backward

Accurate measurement range: 0.5~18m

Effective sensing speed: <12m/s

FOV: horizontal <40°, vertical <30°

Downward

Accurate measurement range: 0.5~20m

Visual hovering range: 0.5~40m

FOV: horizontal <40°, vertical <30°

Operating environment

Forward, backward:

Surface with clear pattern and adequate lighting(lux> 15)

Downward:

Surface with clear pattern and adequate lighting(lux> 15);

Detects diffuse reflective surfaces(> 20%) (walls, trees, people, etc.)

Camera - Nano

Sensor

CMOS: 1/2 inch

Effective pixels: 48M

Pixel size: 1.6μm*1.6μm (Bin2)

Lens

FOV: 84°

Equivalent focal length: 24 mm

Aperture: f/2.8

Focus range: 1m to infinity

Focus mode: fixed focus

Shooting mode

Automatic mode (P gear): EV adjustable, ISO/Shutter automatic

Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable

Shutter priority (S file): Shutter/EV adjustable, ISO automatic

ISO range

Video: ISO100 ~ ISO3200

Photo: ISO100 ~ ISO3200

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Portrait blur

Real-time image transmission portrait blur and photo portrait blur

Defog mode

Support

Zoom range

Digital zoom: 1 ~ 16 times

Photo Format

JPG (8-bit) / DNG (10-bit) / JPG+DNG

Photo resolution

48MP: 8000x6000(4:3)

12MP: 4000x3000(4:3)

4K: 3840x2160(16:9)

Photo shooting mode

Single shot

Burst shooing: 3/5

Auto exposure bracketing(AEB): 3/5 shots

Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)

HDR imaging: 3840x2160

Video coding format

H265/H264

Video format

MP4/MOV (8-bit))

Video resolution

3840x2160 p30/25/24

2720x1528 p30/25/24

1920x1080 p60/50/48/30/25/24

HDR:

3840x2160 p30/25/24

2720x1528 p30/25/24

1920x1080 P60/50/48/30/25/24

Max bitrate

100Mbps

Timelapse

Original image: 3840*2160, JPG/DNG

Video: 4K P25

Panorama

Horizontal/Vertical/Wide-angle/Spherical

Original image: 4000*3000, JPG/DNG

Supported file system

FAT32/exFAT

WIFI transfer

20MB/s

Camera - Nano+

Sensor

CMOS: 1/1.28 inch (0.8 inch)

Effective pixels: 50M

Pixel size: 2.44μm*2.44μm (Bin2)

Lens

FOV: 85°

Equivalent focal length: 23 mm

Aperture: f/1.9

Focus range: 0.5 m to infinity

Focus mode: PDAF+CDAF/MF

Shooting mode

Automatic mode (P gear): EV adjustable, ISO/Shutter automatic

Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable

Shutter priority (S file): Shutter/EV adjustable, ISO automatic

ISO range

Video: ISO100 ~ ISO6400

Photo: ISO100 ~ ISO6400

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Portrait blur

Real-time image transmission portrait blur and photo portrait blur

Defog mode

Support

Zoom range

Digital zoom: 1 ~ 16 times

Photo Format

JPG (8-bit) / DNG (10-bit) / JPG+DNG

Photo resolution

50MP: 8192x6144(4:3)

12.5MP: 4096x3072(4:3)

4K: 3840x2160(16:9)

Photo shooting mode

Single shot

Burst shooing: 3/5

Auto exposure bracketing(AEB): 3/5 shots

Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)

HDR imaging: 3840x2160

Video coding format

H265/H264

Video format

MP4/MOV

Video resolution

3840x2160 p30/25/24

2720x1528 p30/25/24

1920x1080 p60/50/48/30/25/24

HDR:

3840x2160 p30/25/24

2720x1528 p30/25/24

1920x1080 p60/50/48/30/25/24

Max bitrate

100Mbps

Timelapse

Original image: 3840*2160, JPG/DNG

Video: 4K P25

Panorama

Horizontal/Vertical/Wide-angle/Spherical

Original image: 4096*3072, JPG/DNG

Supported file system

FAT32/exFAT

WIFI transfer

20MB/s

Remote controller and image transmission

Operating frequency

2.400-2.4835GHz

5.725-5.850GHz

5.150-5.250GHz

Max transmission distance (unobstructed, free of interference)

FCC: 12km; CE: 5km

Operating temperature

0℃ ~ 40℃

Transmission power (EIRP)

FCC: ≤30dBm

CE: ≤20dBm

Battery capacity

3930mAh

Max battery life

~2.5 h (when connected to mobile phone)

~3.5 h (when not connected to mobile phone)

Interface type

Type C

Transmission system

Autel SkyLink

Realtime transmission quality

Transmission distance<1km: 2.7K 30fps

Transmission distance>1km: 1080P 30fps

Transmission bitrate

90Mbps

Transmission delay

≤200ms

Smartphone/Tablet holder size

Length ∞, Width 83mm, Height 13mm

Adapter

Input

100-240V/50-60HZ

Output

12.75V⎓5A

Rated power

63.75W

Aircraft Battery

Capacity

2250mAh

Voltage

7.7V

Maximum charging voltage

8.8V

Battery type

LiPo 2S

Energy

17.32 Wh

Charging temperature

5℃ to 45℃

Operating temperature and humidity

-10℃ to 40℃

Single battery charging time

90 minutes

Max charging power

30W

App

Mobile app

Autel Sky

Mobile system required

iOS 13.0 and above

Android 6.0 and above

Storage

Built-in storage

No

SD storage

Max. support 256GB(UHS-3 rating required)
