H1600

The H1600 is built to custom fit your specialized payloads or to fly your mission in a very unique method as per your requirements.

Built-in Safety Features

With a rigid frame and strong mechanical joints, the H1600 is built tough to withstand all mission conditions. Electronic failsafe and redundancies are designed for the autopilot flight controller, preventing accidents and unsafe operations.

The H1600 frame is built tough to withstand all mission conditions.
Water and dust resistance are designed for the H1600

Water and Dust Resistant

The multipurpose H1600 drone is built to work in tough environments. Water and dust resistance are designed for these machines. All the core components are shielded, and you can operate your missions in all weather conditions.

The H1600 is designed to be easily disassembled or folded in just a few minutes for storage and transportation.

Fold or Disassemble for Storage

Transporting, unpacking, and assembling is a big part of any drone mission. The H1600 is designed to be easily disassembled or folded in just a few minutes for storage and transportation. Get the drones working in just a few quick easy steps, without any hassle.

Smart LiPo Batteries

Our drones are powered by Tattu LiPo smart batteries. With the quick charging technology and ultra-high capacity, flying with just a few packs of batteries for the whole mission is now possible. The Smart Battery Management System (BMS) allows you to monitor your battery usage, increases safety, and enhances battery life.

The H1600 powered by Tattu LiPo smart batteries and uses AS-150U connector to provide the solid connection.
The H1600 can reach top speeds of up to 20 m/s.

Powerful and Precise

The H1600 can reach top speeds of up to 20 m/s, which is one football field in 5 seconds. Get to your destination quickly and hover at the spot with a precision of 5 centimeters with our RTK GPS.

H1600 uses Pixhawk Cube Orange as main flight controller which is capable of oeprating autonomously.

Advanced Flight Controller

Powered by Pixhawk Cube Orange, our multi-copters are capable of operating autonomously without any pilot input. The Pixhawk Cube Orange is an NDAA-compliant, Executive Order 13981 Compliant autopilot flight controller, authorized for usage by the US Defence. Have all kinds of customized unmanned missions and operations built to your specifications.

H1600 is compatible with most of the GSC (Ground Control System) available in the market.H1600 is compatible with most of the GSC (Ground Control System) available in the market.

Heavy Duty Ground Control Station

Choose between a ruggedized, long-endurance Ground Control Station with dual monitors or an ultra-portable Remote Control with a smartphone for your next drone mission. Both types of equipment are capable of up to 15km of control and HD video transmission.

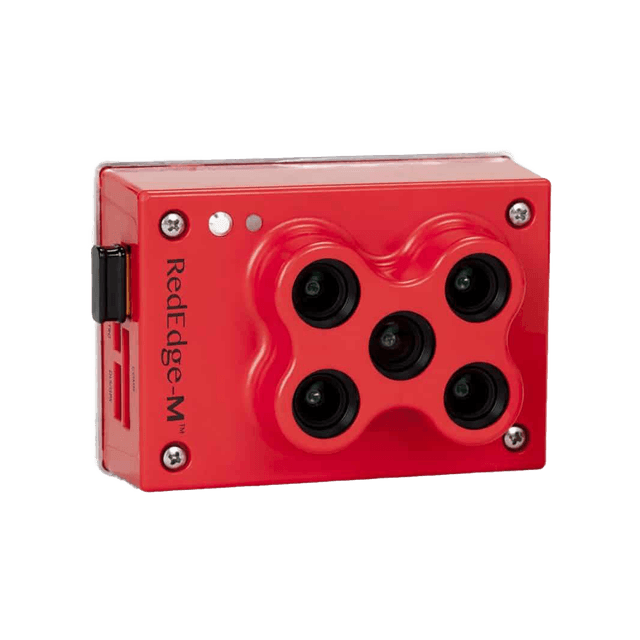

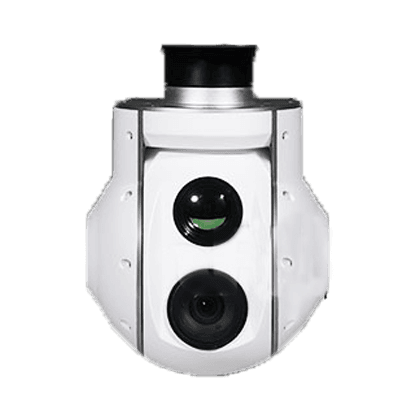

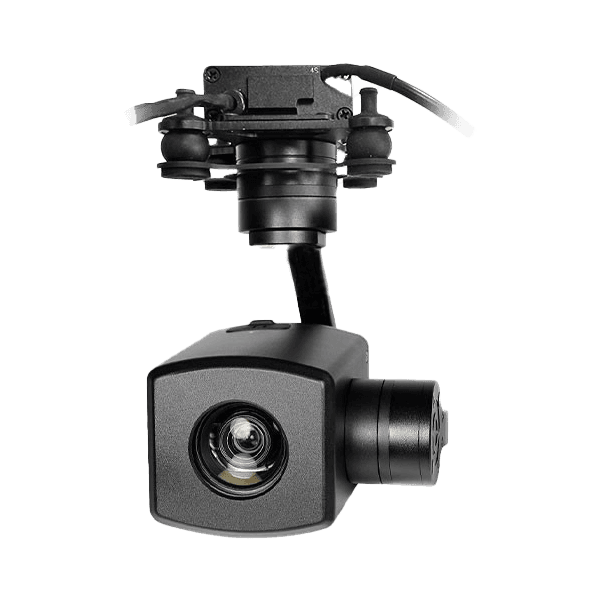

Unlimited Payload Options

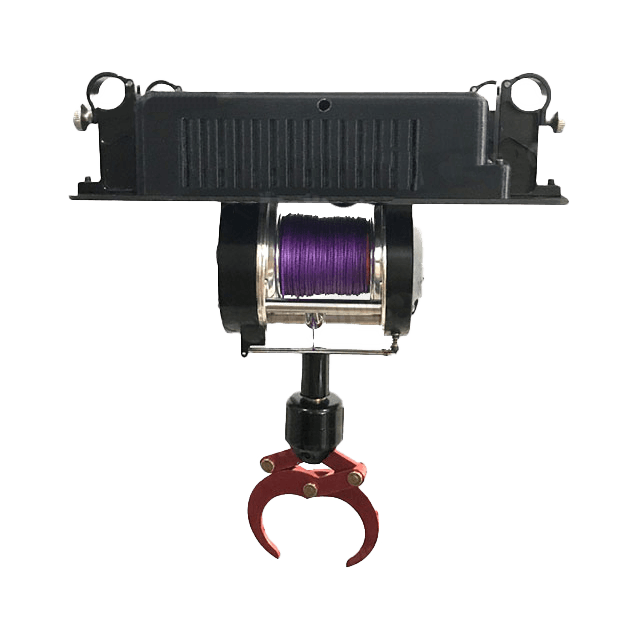

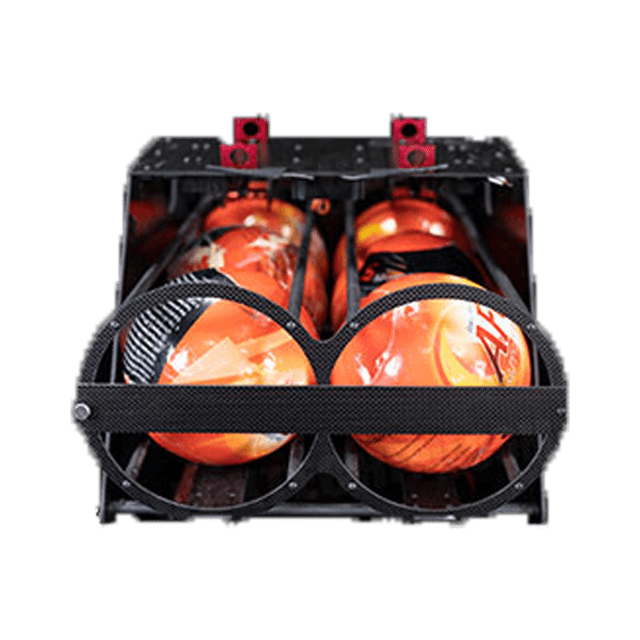

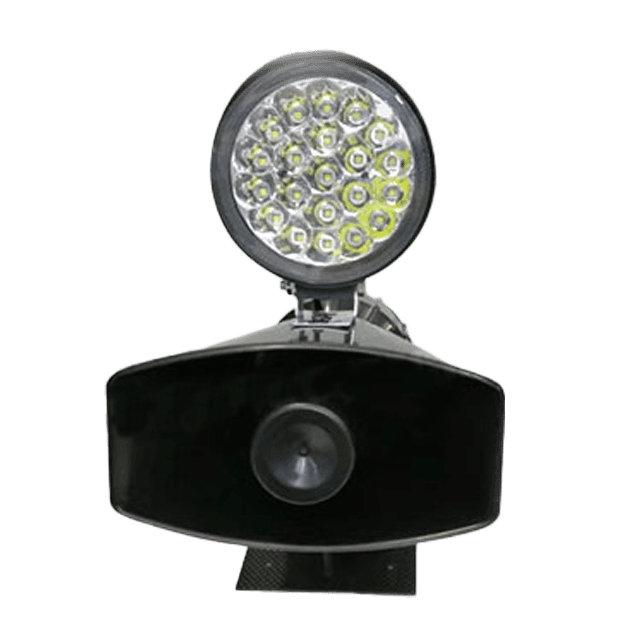

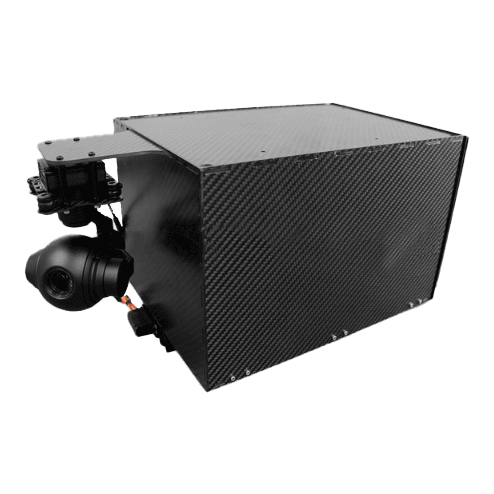

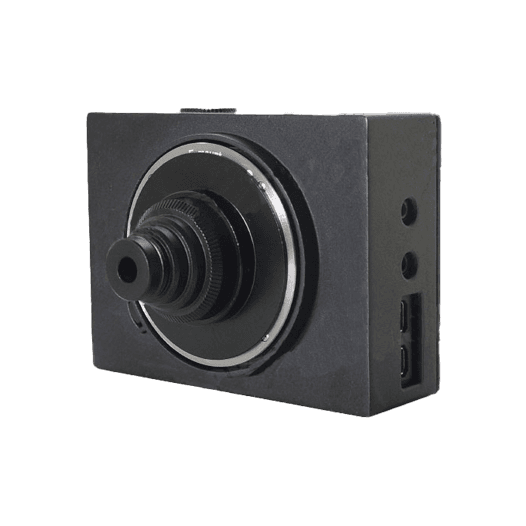

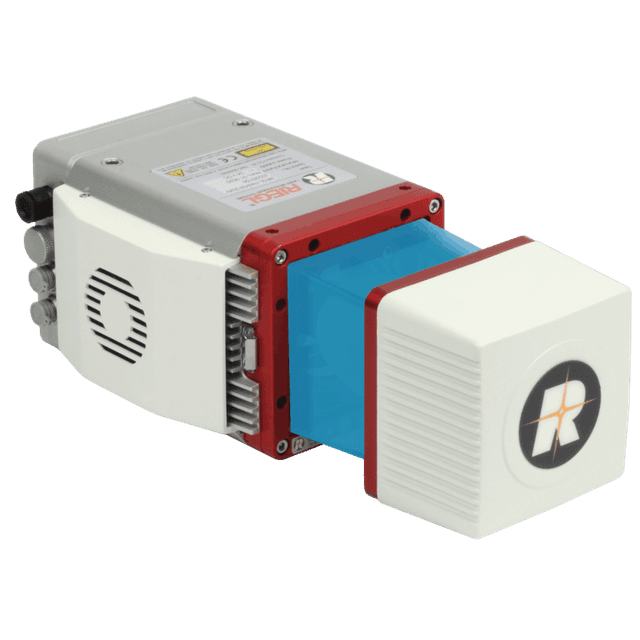

A quick-release adapter for interchangeable payloads is available for the H1600. Here is a list of payload options available for your mission. Talk to us about any new payload that you need to perform your mission, and we will design and build the best drone configuration for you.

Applications

Tech Specs

H1600

Structure

Material

Carbon fiber

Wheelbase

1628mm

Unfolded size

1720*1500*556mm

Folded size

1073*956*546mm

Water resistance

IP64

Propulsion

Motor

XRotor Pro X8 KV100

Propellers

30inch

Max Thrust

15 kg per motor

Battery

Tattu 12S 22000 mAh Smart LiPo Battery

Performance

Operating Temperature

0 - 45 Celcius

Navigation System

GPS

Obstacle Avoidance (Optional)

Terrain Following (Optional)

Navigation Sensors

GPS Antenna

Camera

Radar

RTK GPS (Optional)

Failsafe RTL Condition

Low Battery

Transmission Loss

Ease of Use

Geofence

Auto Waypoint Following

Real-time Data and Video

Interchangeable Payload

Night Light (Optional)

Empty Weight

20 kg (w/o battery & payload)

Battery Weight

6 kg

No Payload Weight

26 kg

Max. Payload Weight

20 kg

Max. Take-off Weight

46 kg @ sea level

Standard Take-off Weight

36 kg

Hovering Time

34 mins w/o payload

11 mins w/ 20 kg payload

Max. Operation Speed

15 m/s

Max. Flying Speed

15 m/s

Wind Resistance

Scale 6, 13 m/s

Autopilot Software

Ease of Use

Autonomous Operation

Easy Calibration

Auto Tuning

Remote Control/Ground Control Station

Operating Frequency

2.4 GHz

Max Range

15 km

Camera

Camera

HD Live Stream
