Autel Alpha
Beyond The Frontiers
Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide-angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.
Superior Anti-interference
High-precision Visual Navigation
A-Mesh Network
56x Dual Thermal Camera
4K 35x Optical Zoom
IP55 Rating
Hot-swappable Battery
Wire-Level Obstacle Avoidance and Pathfinding
20 Kilometers Video Transmission Range
Flexible Payload Expansion
Insight Beyond Limits

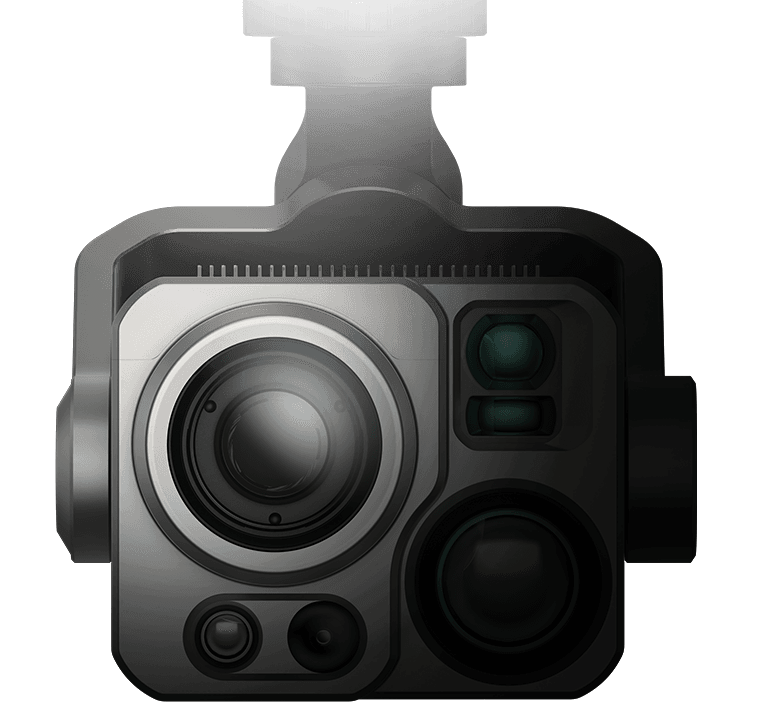

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), a 4K 35x optical Zoom camera, a wide-angle camera and a laser rangefinder.
Super Zoom
Strong Infrared Perception
Super Sensitivity
Accurate Ranging
Super Zoom
The zoom camera supports 4K 35x optical zoom and 560x maximum hybrid zoom with clear observation up to 8 kilometers away. lt efficiently empowers applications such as long-distance inspection.

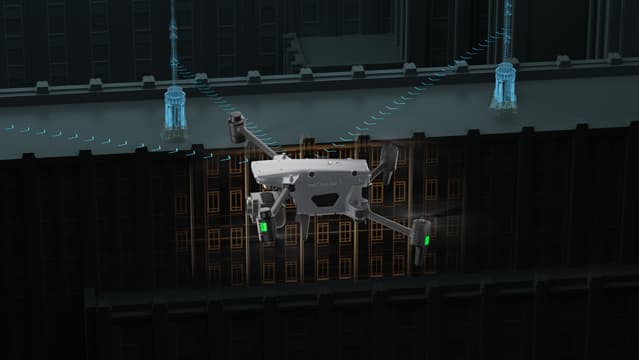

Exceptional Anti-Interference Capability
Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.

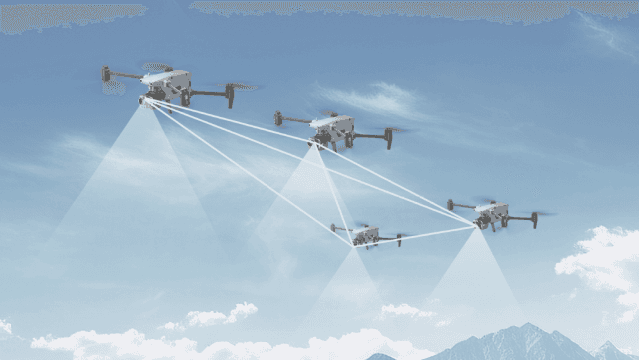

A-Mesh Networking
With integrated A-Mesh networking technology, all drones and controllers establish a private network, supporting various working modes such as "single-controller multiple drones" and "master-slave dual control". Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without public network, the drones can achieve multi-device networking, enabling drone-to-drone autonomous communication, connection, and collaboration.

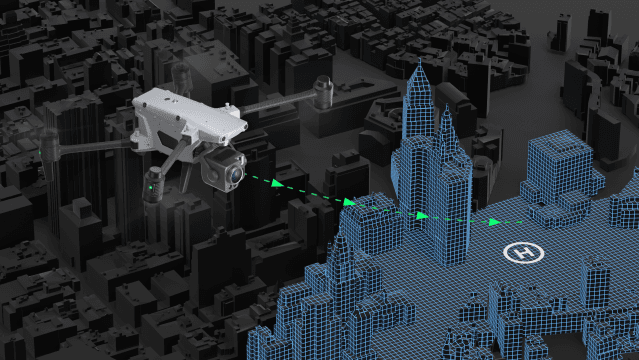

Autonomous Flight
Autel's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. It ofers various obstacle avoidance capabilities, including return-to-home, manual contro, and mision planning, providing a more professional solution for industries such as security, inspection, and surveying.

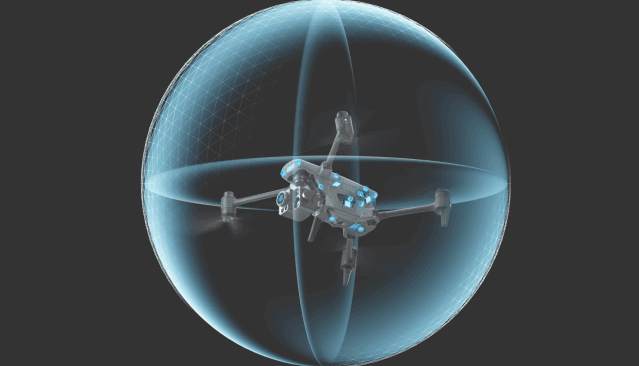

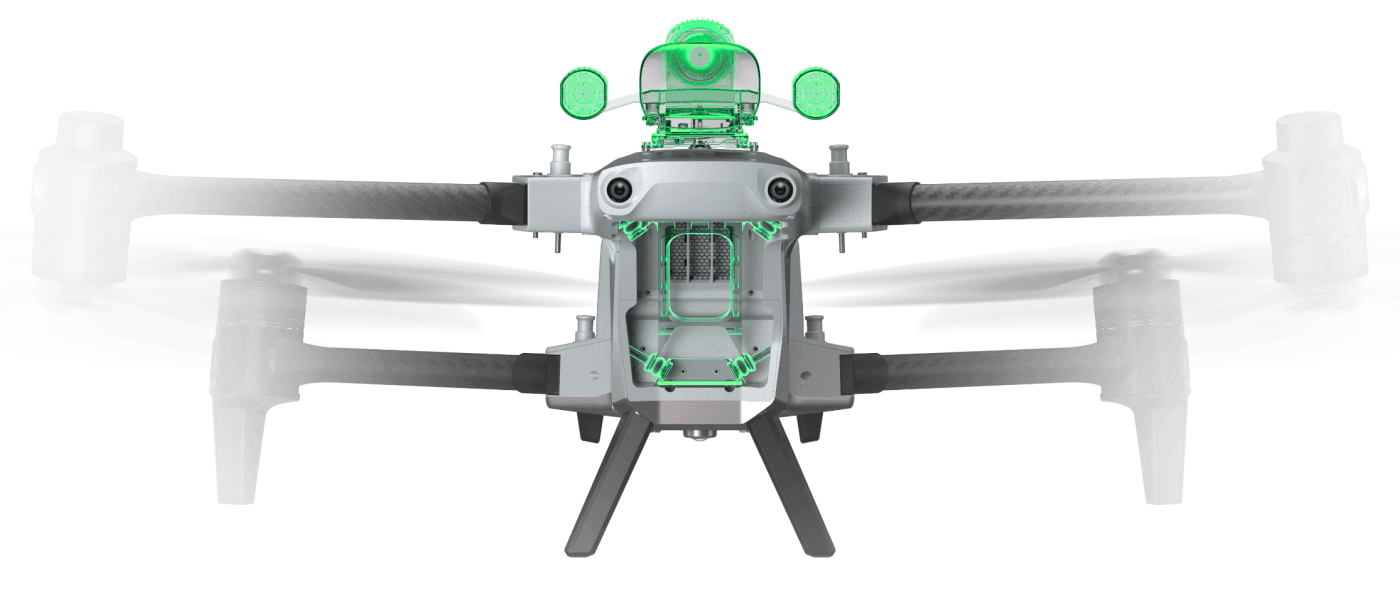

No Blind Spots, Ultimate Obstacle Avoidance
By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, the drone is equipped with wire-level obstacle avoidance and pathfinding capabilities. It can detect minor obstacles like glass, poles, and powerlines. Additionally, it supports nighttime obstacle avoidance for flight safety.
Platform Capabilities
Redefines proficiency with its robust platform and all weather design.
Protection Rating: IP55
Wind Resistance: 12m/s
Maximum Flying Altitude:4500 meters
Operation Temperature: -20℃ to 50℃
*With high-altitude propeller

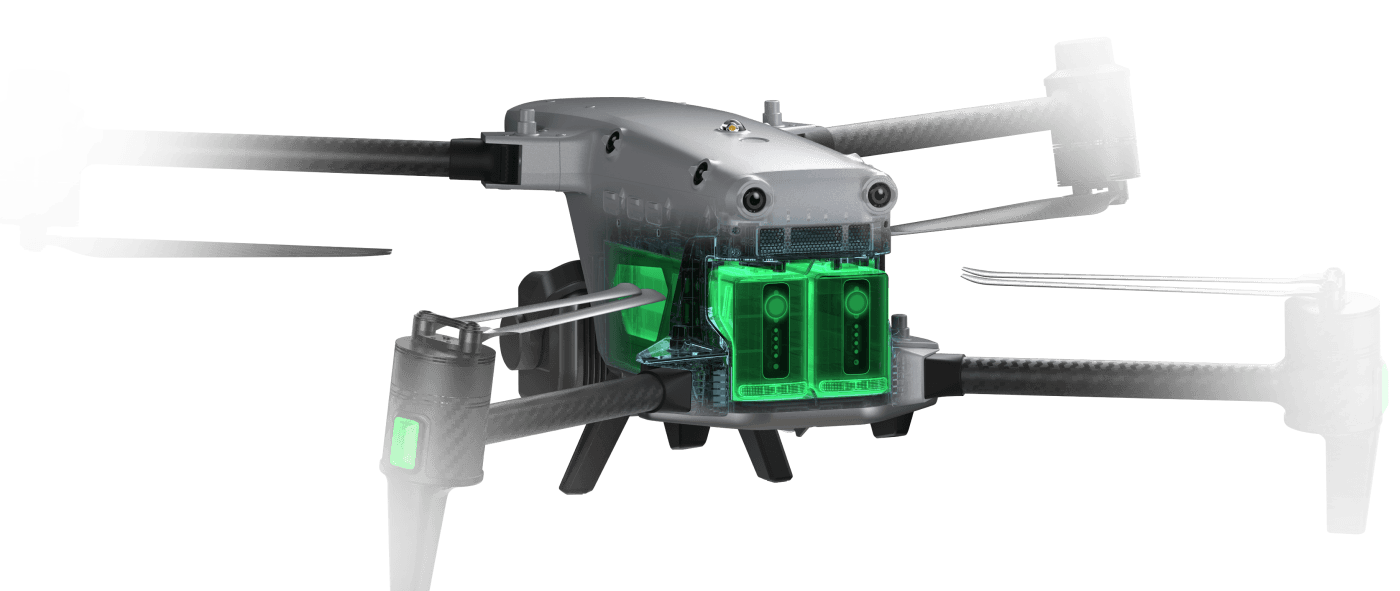

Hot-Swappable Batteries
Adopting a dual-battery redundant design, the fight time reaches 40 minutes, supporting hot-swappable batteries for seamless, eficient operations.
Multiple Payload Capability
The aircraft features multiple mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, 4G/5G modules, and more.
High-definition Transmission, Performance Upgrade
With Autel Skylink 3.0, the system comes with 4 antennas, 4 Frequency bands, enabling a transmission distance of up to 20 kilometers. It supports auto frequency hopping on 900MHz/2.4GHz/5.2GHz/5.8GHz*, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities, featuring a high transmission of 64Mbps and low transmission latency.
20 kilometers
Image Transmission Distance
1080P/30 fps
Real-Time Video Quality
900 MHz/2.4 GHz/5.2 GHz/5.8 GHz*
Frequency Bands
*5.2 GHz is applied only to FCC, CE, and UKCA regions, while 900 MHz only to FCC regions.

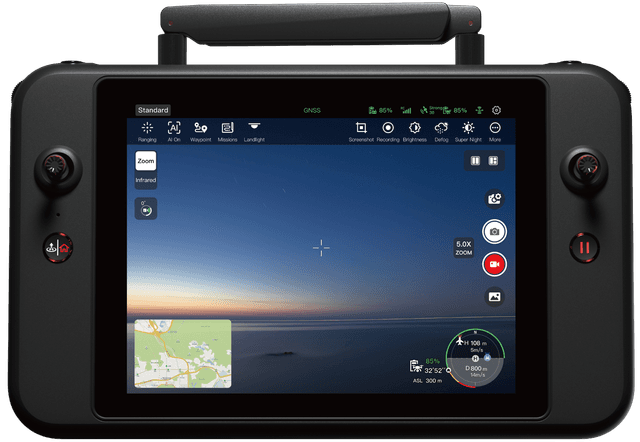

Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Multiple Mission Types
Slide left or right to view more.

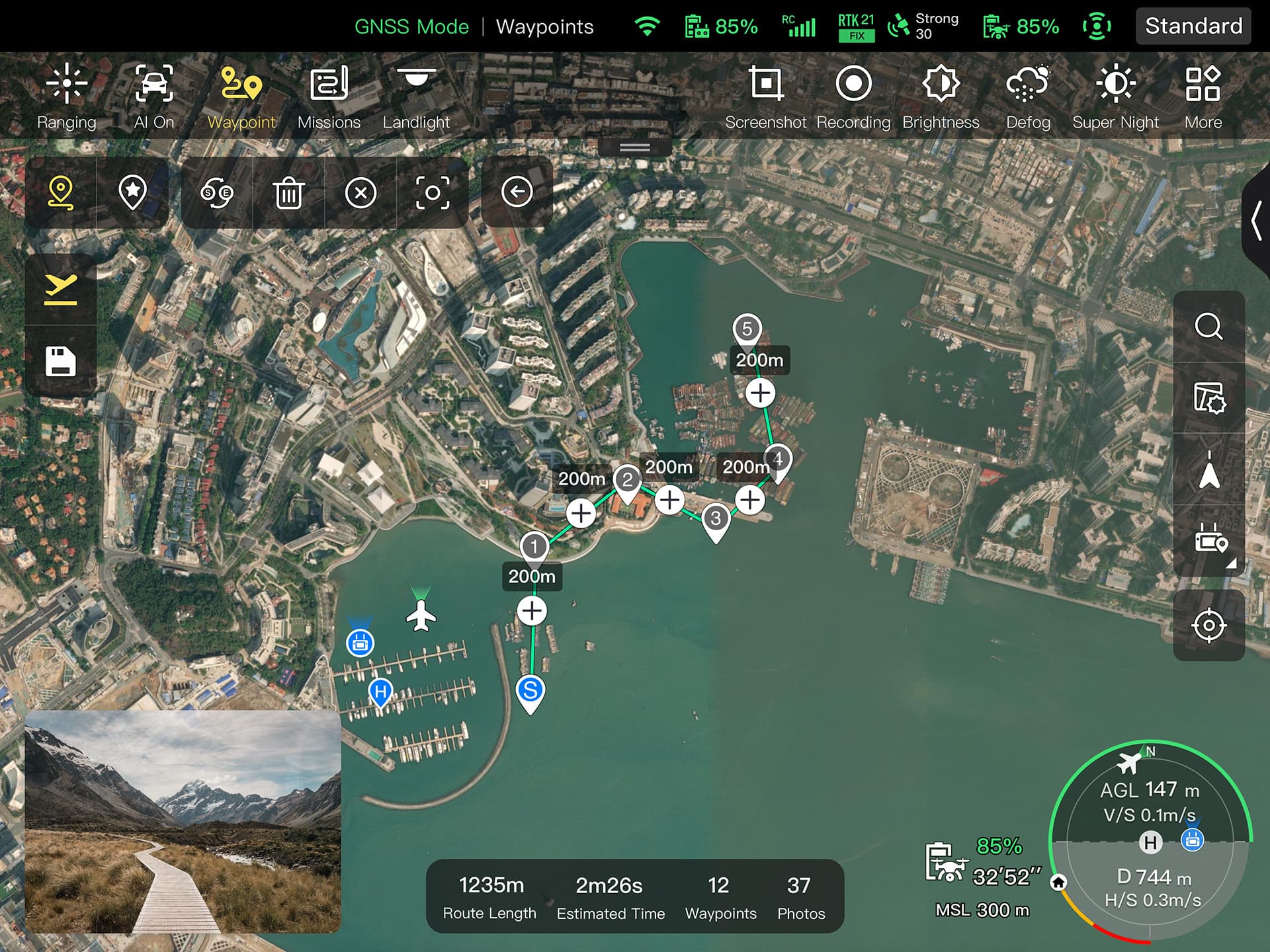

Waypoint Mission
Users can add waypoints for flexible, non-structured flight paths.

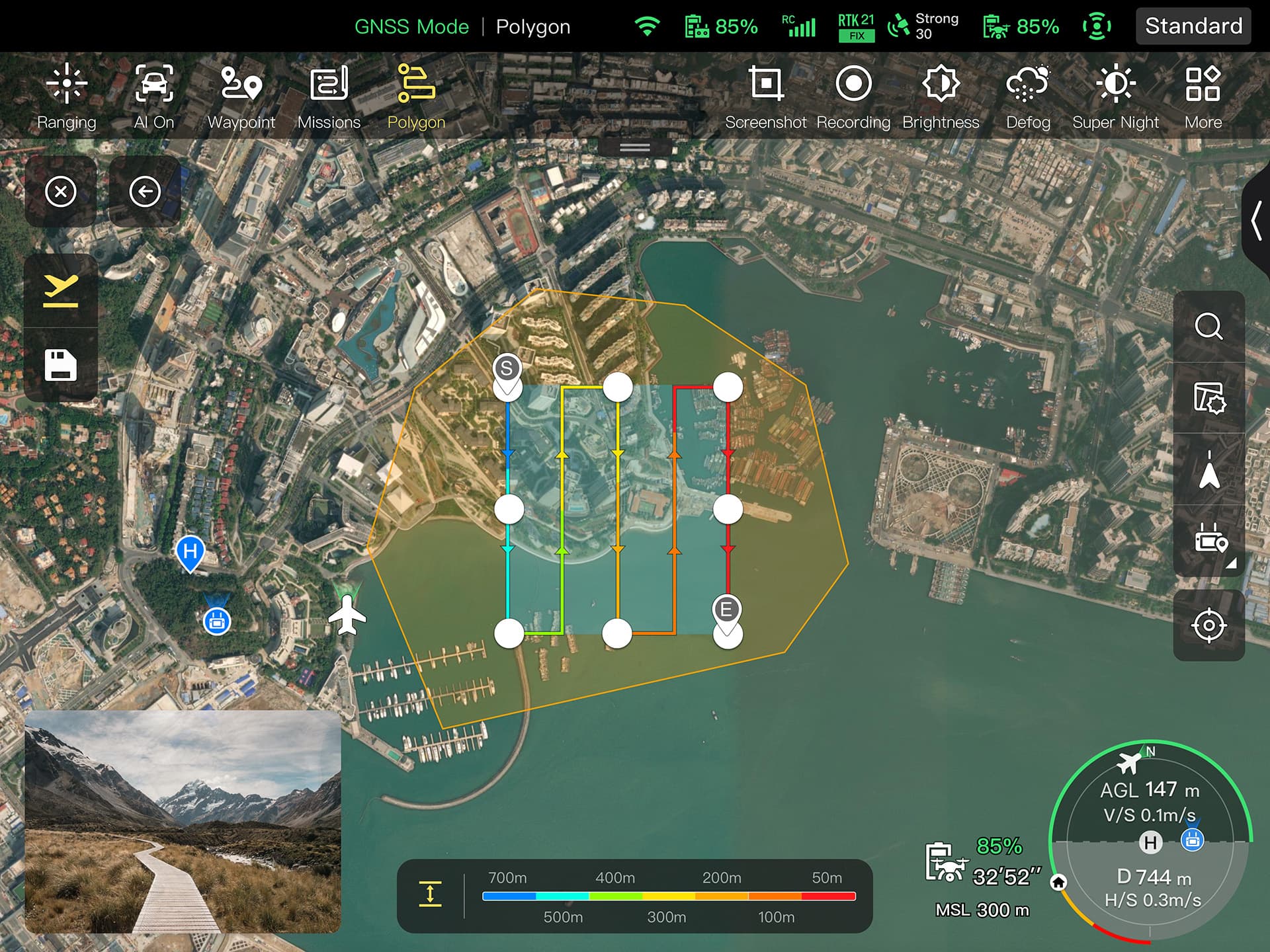

Polygon Missions
Supports one-cick automatic generation of polygon flight areas.

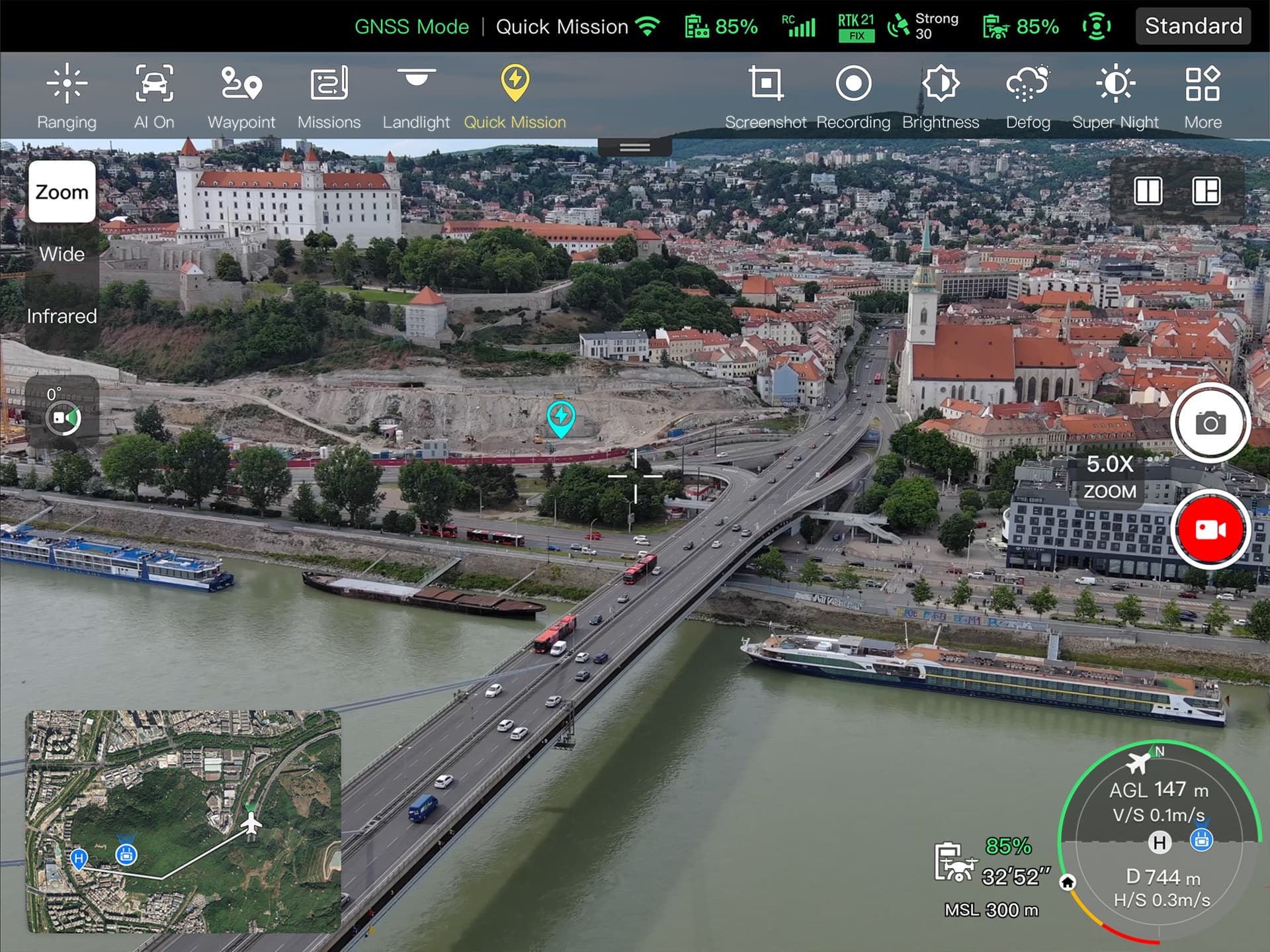

Quick Mission
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Smart Assistive Features
Slide left or right to view more.

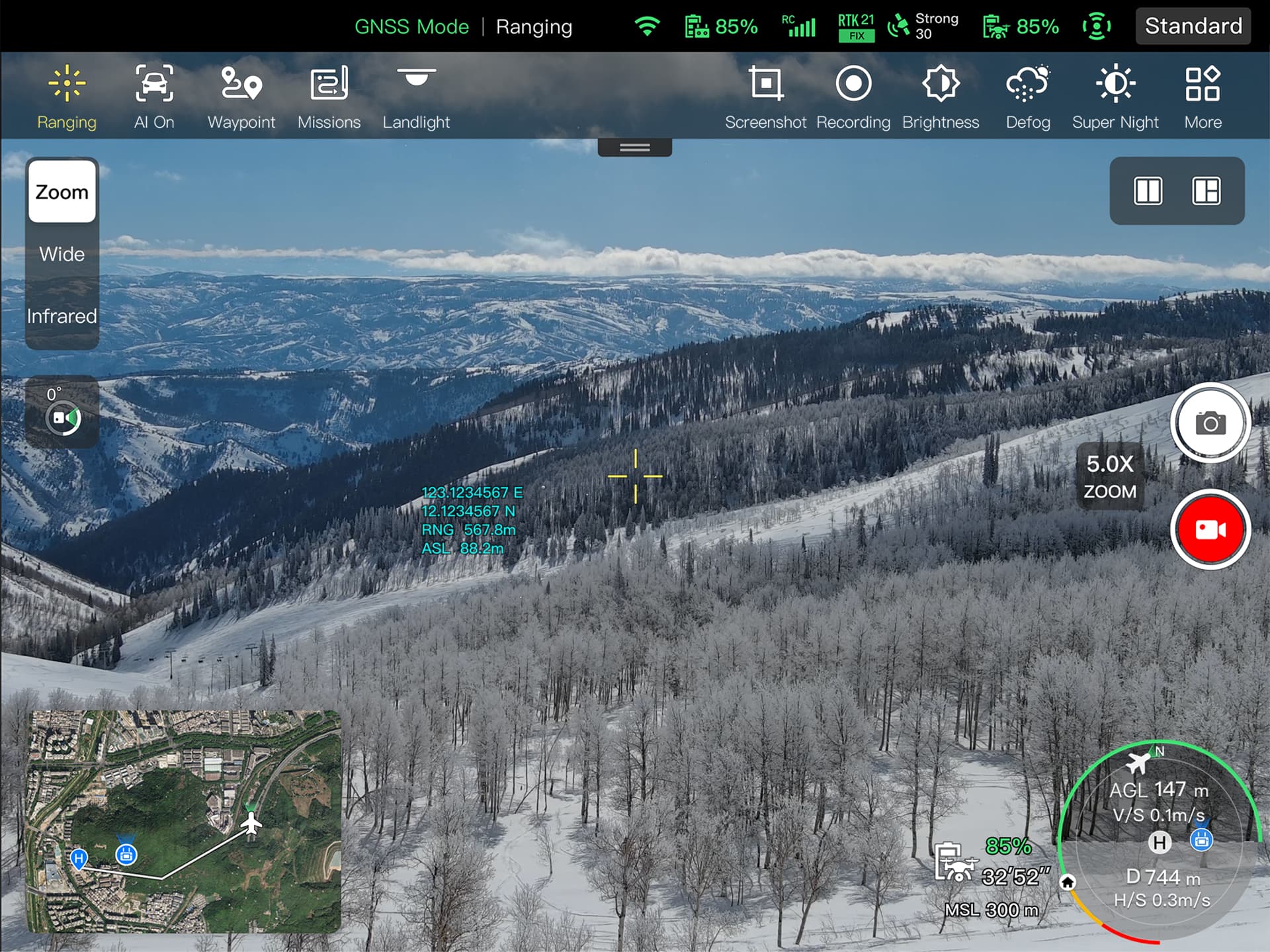

Laser Ranging
Click on the remote controller screen or map, it will show the target latitude, longitude, height, and other information swiftly.
Tripod
The gimbal locks onto the target, and follows the target's movement while hovering, ensuring the target remains at the center of the frame.

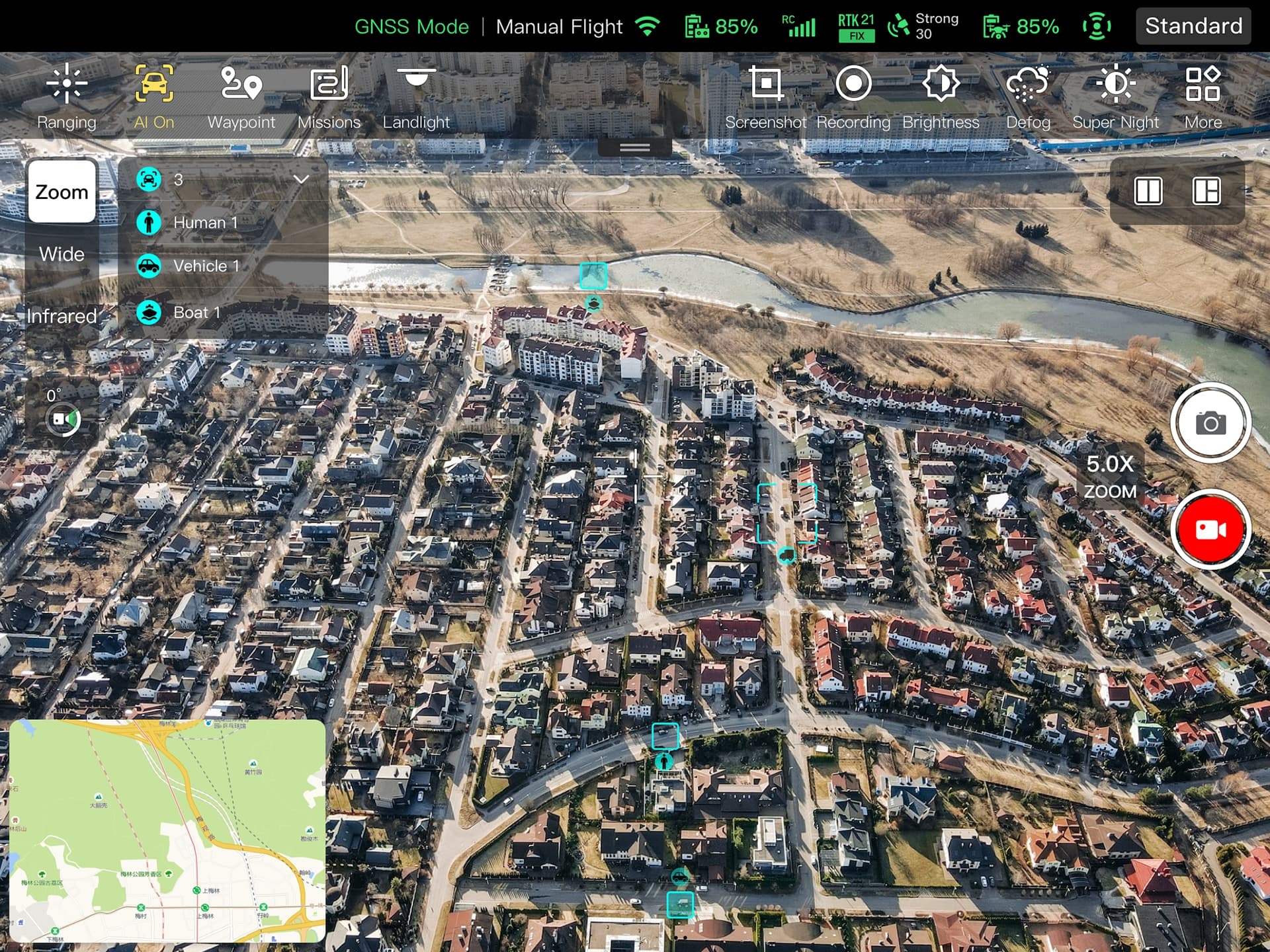

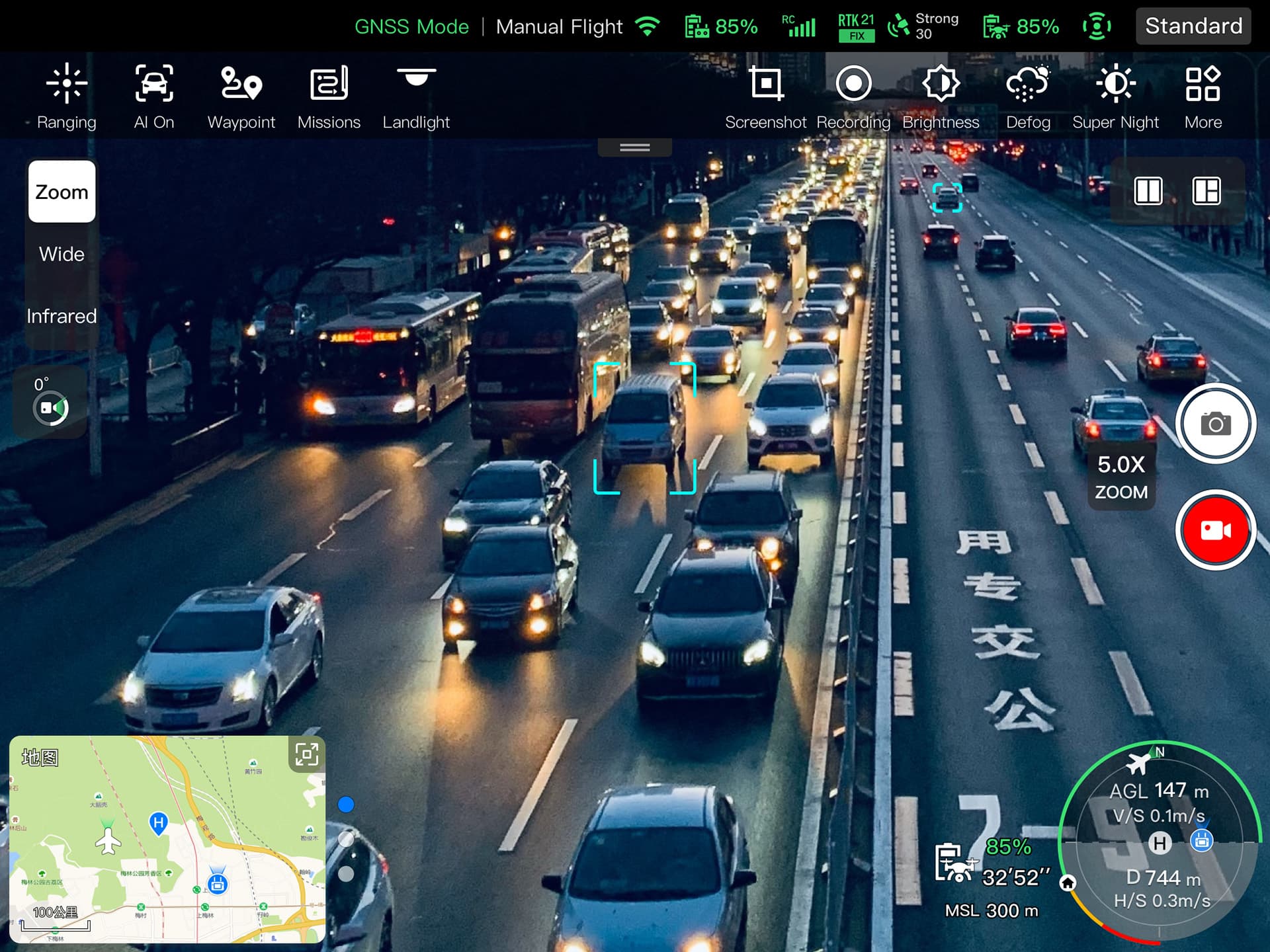

AI Target Recognition
Based on Autel's AI recognition technology, the Autel Alpha can automatically identify and lock onto different types of targets such as human, boat, or vehicles through zoom, wide, or infrared cameras, projecting the target's location onto the map.

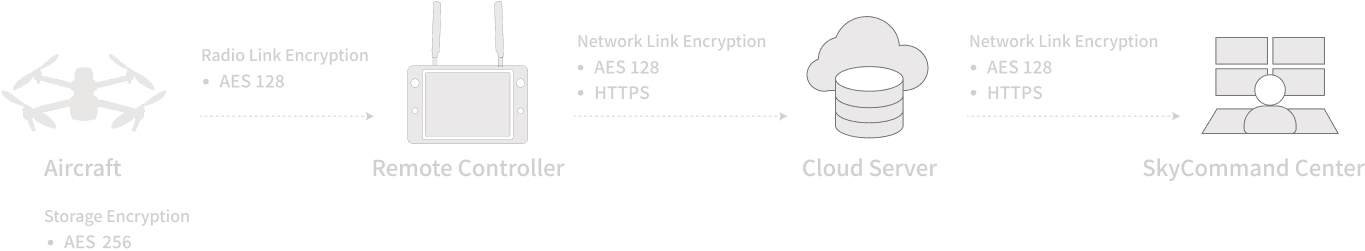

Data Security
Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: It supports AES encryption for photos, videos, and flight logs, requiring a password input for access.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK
Open UX SDK (iOS&Android) can directly call up the ready-made interactive interface.
Payload SDK
Unified interface standards support access to third-party mounts such as microphones and gas detectors.
Accessories

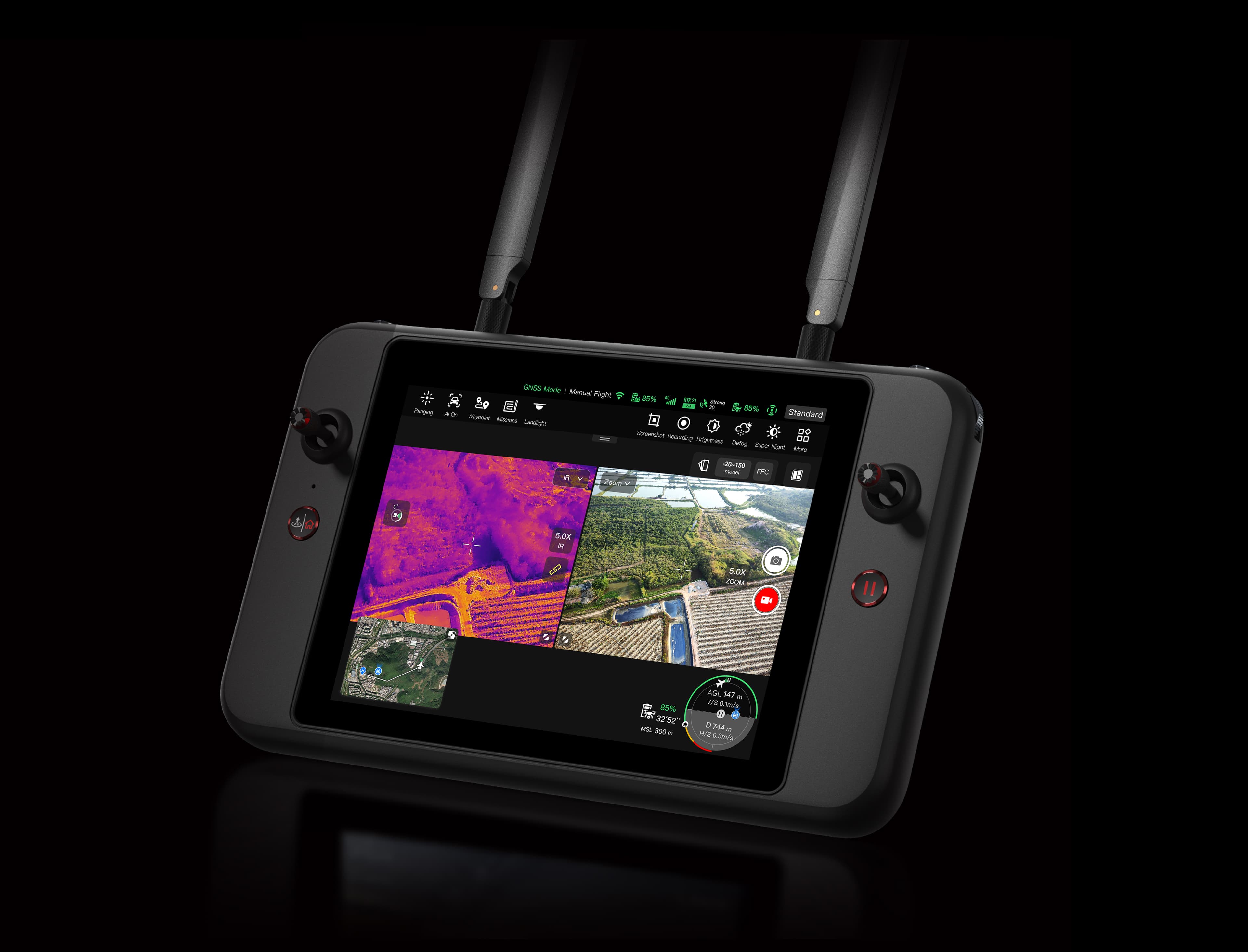

Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution.
SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s.
Functional Interface: HDMI ports allow connection to 3rd party displays or monitors.
Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty.
Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
RTK Module (optional)
Dimension: 163 x 132 x 77mm
Electrical Interface: PSDK Interface
Installation Method: Standard quick release mount
Working Temperature: -10 ℃ to 50 ℃

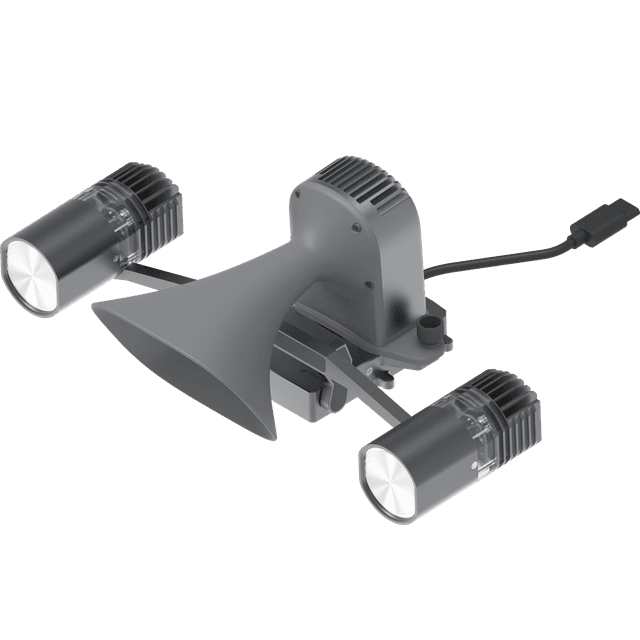

Speaker: Power @10W; Sound pressure 114db@1 meter; Broadcasting Distance≥300 m
Spotlight: Follow gimbal pitch; Brightness level adjustment; 30° to -90° controllable
Applications

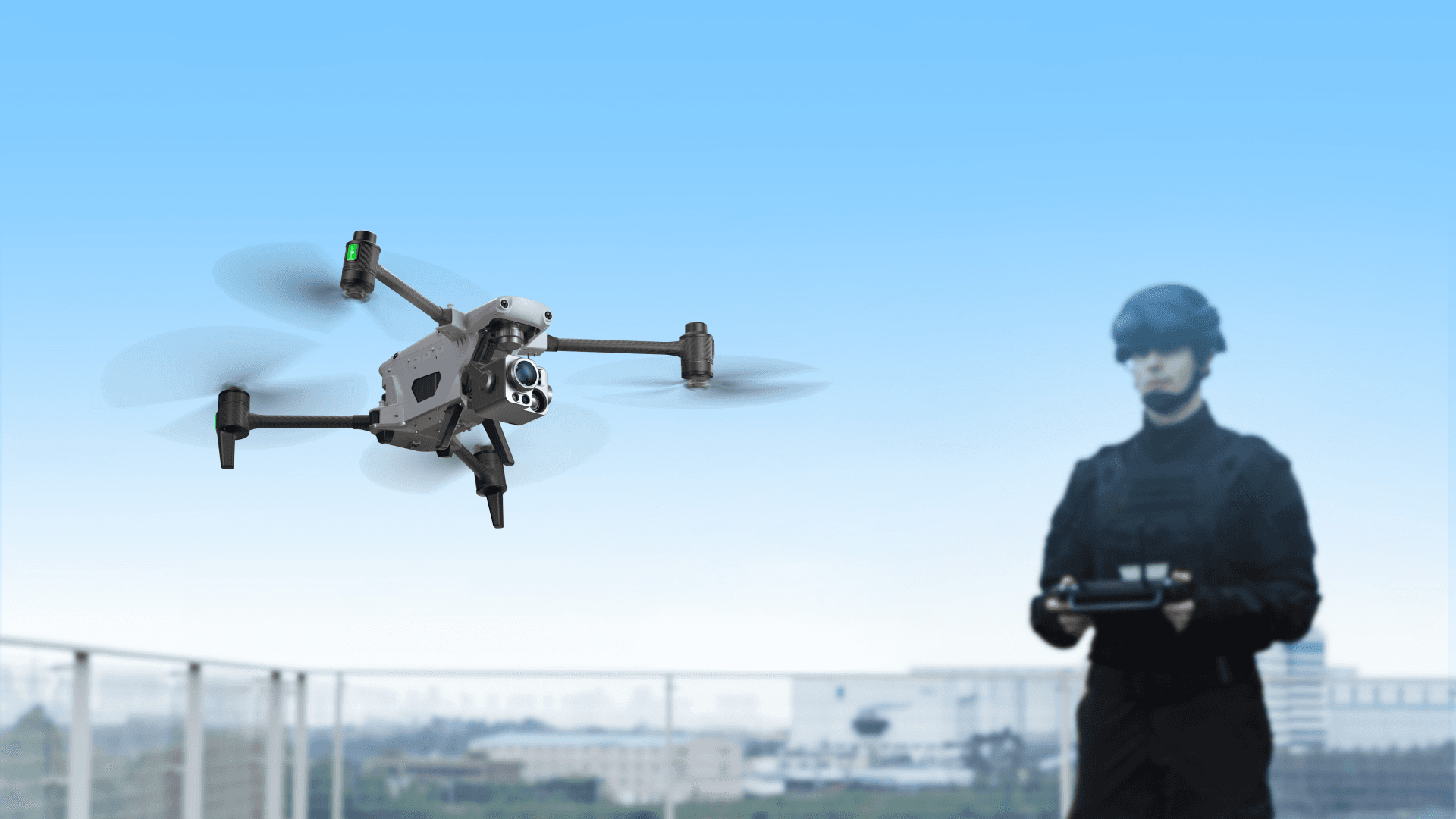

Public Safety

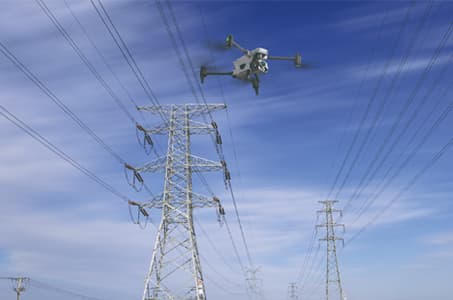

Powerline Inspection
Search & Rescue
Tech Specs
Autel Alpha
Aircraft
Weight
6.34kg (battery and gimbal included)
Max. Takeoff Weight
8.4kg
Dimensions
1205 x 980 x 278mm (folded, incl. propellers)
780 x 568 x 278mm (folded, excl. propellers)
455 x 263 x 245mm (unfolded, excl. propellers)
Diagonal Wheelbase
814mm
Max ascent speed
low: 3m/s
smooth: 5m/s
standard: 6m/s
sport: 15m/s
Max descent speed
low: 3m/s
smooth: 5m/s
standard: 6m/s
sport: 10m/s
Max Horizontal Speed
low: 3m/s
smooth: 10m/s
standard: 15m/s (Forward & Backward), 10m/s (Sidewards)
sport: 25m/s (Forward & Backward&Sidewards)
Max Takeoff Altitude
4500m
Max Flight Time (windless)
40min
Max Hovering Time (windless)
38min
Max Wind Resistance
27mph
IP Rating
IP55
Max Tilt Angle
low: 10°
smooth: 30°
standard: 30°
sport: 36°
Max Angular Velocity
Pitch: 300°/s; Yaw: 120°/s
Operating Temperature
-4°F to 122°F (-20℃ - 50℃)
Operating Frequency
902 -928MHz
5.150 - 5.250GHz(CE: 5.170 - 5.250GHz)
2.400 - 2.4835GHz
5.725 - 5.850GHz
GNSS
GPS+Galileo+BeiDou+GLONASS
Transmission power
902-928MHz: ≤30dBm(FCC)
2.400-2.4835GHz: ≤30dBm(FCC); ≤20dBm(CE /SRRC)
5.150-5.250GHz: ≤30dBm(FCC); ≤23dBm(CE)
5.725-5.850GHz: ≤33dBm(SRRC); ≤30dBm(FCC); ≤14dBm(CE)
Hovering accuracy
Vertical: ±0.1 m (Vision System enabled);
±0.3 m (GPS enabled)
±0.1 m (RTK enabled)
Horizontal: ±0.15 m (Visual System enabled);
±0.3 m (GPS enabled)
±0.1 m (RTK enabled)
Gimbal
Gimbal
3-axis mechanical gimbal (pan, tilt, roll)
Mechanical range
Pan: -135° to 45°
Tilt: -60° to 60°;
Roll: -90° to 90°;
Controllable range
-90° to 30°;
Max control speed (Tilt)
100°/s
Angular Vibration Range (º)
≤0.005°
Millimeter-wave Radar Sensing System
Frequency
60Ghz~64Ghz*
*Please fly safely and consult your local laws and regulations.
Sensing Range
60GHz radar:
Upper: 0.3~20m
Downward: 0.15~40m
Forward and Backward: 0.3~30m
Left and right: 0.3~30m
24GHz radar:Downward: 0.8~20m
FOV
Horizontal(6dB): ±35°/±22° (60Ghz/24Ghz)
Vertical(6dB): ±30°/±20° (60Ghz/24Ghz)
Speed Measurement Range
60GHz Millimeter-wave Radar Sensing System: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 6 directions: forwards, backwards, left, right, and above and below. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
24GHz Millimeter-wave Radar Sensing System: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 20 meters, and the sensing range of grass with a thickness of more than 3cm is less than 10 meters.
Visual Sensing System
Sensing System Type
Omnidirectional sensing system
Forward
0.2~31m FOV: 90°(H),90°(V)
Backward
0.2~26m FOV: 90°(H),90°(V)
Upward
0.2~45m FOV: 90°(H),90°(V)
Downward
0.2~45m FOV: 90°(H),90°(V)
Left And Right
0.2~45m FOV: 90°(H),90°(V)
Operating Environment
Forward, Backward, Sidewards, Upward: Supports all-day, all-weather obstacle avoidance for obstacles such as glass, water surfaces, small branches, buildings, and power lines. Requires sufficient illumination conditions or strong reflection ability of obstacles to electromagnetic waves. Downwards: The surface has rich textures and adequate lighting conditions (>15 lux, in normal indoor lighting environments).
Visual Sensing System
Sensing Range
Forward & Backward: 7.9-1220.5in (0.2-31m)
Sidewards: 7.9-1771.7in (0.2-45m)
Upward: 0.66-85.3ft (0.2-26m)
Downward: 0.49-164.1ft (0.15-50m) (60GHz radar)
FOV
Forward/Backward: 90°(H), 90°(V)
sidewards: 90°(H), 90°(V)
Upward/Downward: 90°(H), 90°(V)
Operating Environment
Forward, Backward, Upward, Downward: Supports all-day, all-weather obstacle avoidance for obstacles such as glass, water surfaces, small branches, buildings, and power lines. Requires sufficient illumination conditions or strong reflection ability of obstacles to electromagnetic waves. Sidewards: The surface has rich texture, under a sufficient lighting environment >15 lux, normal indoor fluorescent lighting environment)
Visible light camera Wide Camera
Sensor
1/2" CMOS, Effective pixels: 48M
FOV
84°
Aperture
F/2.8
Focus Range
5m~∞
Equivalent Focal Length
24mm
ISO Range
Auto: ISO100~ISO3200
Zoom
Digital zoom: 1-16X
Electronic Shutter Speed
Photo: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Photo Mode
AUTO
Photo Resolution
4000x3000(default),
8000x6000
Image Format
JPG
Video Resolution
4000x3000 25P
Video Format
MP4
Max Bitrate
30Mbps
Supported File System
exFAT/Fat32
Visible light camera Tele Camera
Sensor
1/1.8" CMOS, Effective pixels: 8M
FOV
66.7-2.76°
Aperture
F1.61(Wide) ~ F5.19(Tele) ±5%
Focus Range
10m~∞
Equivalent Focal Length
Focal length: 7.1mm~171.95mm±5%
35mm equivalent focal length: 34.7~838mm
ISO Range
Normal Mode: Auto: ISO100 ~ ISO25600
Supersensitive mode: Photo: ISO100 ~ ISO240000
Zoom
1 - 35X Optical Zoom, 35 - 560X Hybrid Zoom
Electronic Shutter Speed
Photo: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Photo Mode
AUTO
Photo Resolution
3840×2160
Image Format
JPG
Video Resolution
3840×2160 30P
Video Format
MP4
Max Bitrate
30Mbps
Supported File System
exFAT/Fat32
Visible light camera Thermal Camera
Max Bitrate
30Mbps
Supported File System
exFAT/Fat32
Sensor
Uncooled VOx Microbolometer
FOV
42º/12.3º
Sensor Resolution
640x512
Pixel size
12 um
Lens Focal Length
13mm/45mm
Wavelength Range
8 - 14um
Accurate Temperature Measurement Distance
1 ~ 25m/4 ~ 50m
Temperature Measurement Accuracy
±3℃ or ±3% of reading (whichever is greater)@ambient temperature -20℃ ~ +60℃
Temperature Range
-20℃ ~ +150℃ (high gain mode); 0℃ ~ +550℃ (low gain mode)
Zoom
1 - 3,5x wide-angle thermal imaging digital zoom 3,5x~56x wide-angle thermal imaging digital zoom
Photo Mode
auto
Photo Format
JPG (with temperature information, parsed by dedicated SDK and PC tools)
Video Resolution
640x512@25fps
Video Format
MP4
Laser Range Finder
Wave Length
905nm
Measurement Range
10-2000m
Measurement Accuracy
<400m: +1m; >400m: Dx0.3% where D represents the distance from the vertical reflecting surface
Image Transmission
Operating Frequency
902 -928MHz
5.150 - 5.250GHz (CE: 5.170 - 5.250GHz)
2.400 - 2.4835GHz 5.725 - 5.850GHz
Some regions do not support certain frequency bands mentioned above, please refer to local laws and regulations for more details
Max Transmission Distance
20km(FCC), 8km(CE/SRRC)
*No interference, no obstruction
Transmitter Power (EIRP)
902-928MHzHz: ≤30dBm(FCC)
2.400-2.4835GHz: ≤33dBm(FCC), ≤20dBm(CE/SRRC/MIC)
5.150-5.250GHz: ≤21dBm(FCC)
5.170-5.250GHz: ≤21dBm(CE)
5.725-5.850GHz: ≤33dBm(SRRCC), ≤30dBm(FCC), ≤14dBm(CE)
Remote Controller
Wifi
Default RC: Autel Smart Controller V3
Antenna: 2 Antennas, 1T2R
Protocol: 802.11a/b/g/n/ac
Support 2x2 MIMO Wi-Fi
Operating Frequency:
2.400 - 2.4835GHz 5.725 - 5.850GHz
Transmitter Power (EIRP):
2.400 - 2.4835GHz: ≤24dBm (FCC), ≤20dBm (CE/SRRC)
5.725 - 5.850GHz: ≤22dBm (FCC/SRRC), ≤14dBm (CE)
Bluetooth
Protocol: Bluetooth 5.0
Operating Frequency: 2.400-2.4835GHz
Transmitter Power (EIRP): ≤11dBm
RC Display
Screen resolution: 2048x1536
Size: 7.9 inches
Display refresh rate: 60Hz
Max brightness: 2000nits
Touch control: 10-point multi-touch
RC Battery
Battery type: LiPo
Battery capacity: 5800mAh
Nominal voltage: 11.55V
Power: 67Wh
Battery life: 2.5h (max brightness) 4h (50% brightness)
Charging time: 120min
Charging temperature: 5-45℃
General Parameter
Storage: ROM 128GB+unexpandable storage via MicroSD card
Port: USB-A、HDMI、USB-C
Power Supply Current / Voltage (USB-A port): 5V/2A
RC operating temperature: -20-40℃
RC storage temperature:
+15℃ ~ +25℃ (within one year)
0℃ ~ +30℃ (within three months)
-20℃ ~ +45℃ (within one month)
Ingress Protection Rating: IP43
Dimensions:
269x189x66mm (antennas folded)
269x302x87mm (antennas unfolded)
Weight:
1194g (without protective case)
1365g (with protective case)
Compatibility:
EVO II Pro V3
EVO II Dual 640T V3
EVO II RTK Series V3
EVO II Enterprise V3
EVO Max 4T
EVO Max 4N
EVO Max 4T pro
GNSS: GPS+Galileo+BeiDou+GLONASS
Aircraft Battery
Battery Capacity
10000mAh(high density battery: 13500mAh)
Voltage
23.7V(high density battery: 21.6V)
Battery type
LiPo 6S
Energy
237Wh(high density battery: 291Wh)
Weight
988g±50g(high density battery: 980g±50g)
Charging temperature
50° F to 113° F (10ºC to 45ºC) When the temperature is lower than 50° F (10° C), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery. +10℃~+15℃: Standard charging; 2A +15℃~+45℃: Fast charging; 10A
Storage Temperature
-10℃ ~ +30℃
Ideal Storage Temperature
+22℃ ~ +28℃
Storage Humidity
65±20%RH
Max Charging Power
260W
Hot Swap
Support
Battery Charging Time
The charging time of a single battery is about 45 minutes; The simultaneous charging time of two batteries is about 1 hour
Charger
Input
100-240V~ 50/60Hz, 4.0A
Voltage
26.4V⎓7.0A
Rated Power
184.8W Max
