EVO II Dual 640T V3

Power. Efficiency. Reliability.

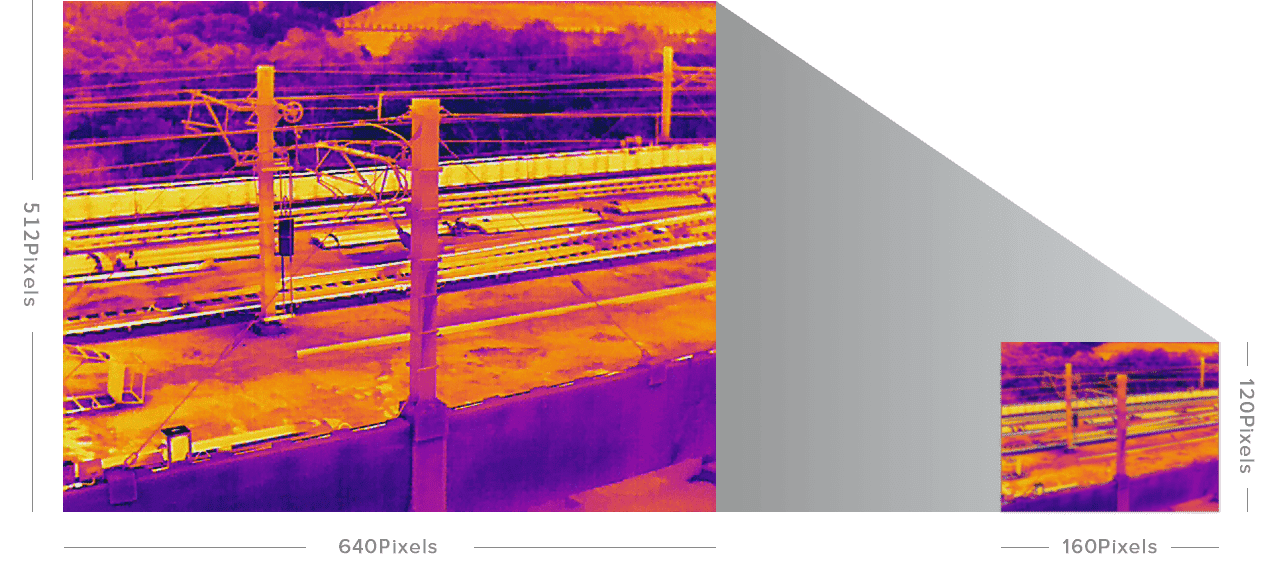

640x512 30Hz New Thermal Imaging Sensor

Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than the competition with similar resolution and hardware.

Autel Robotics EVO II Dual 640T comes with 640x512 30Hz thermal imaging sensor

DRI Ranges

Identification: To see if someone is a friend or foe.


Autel Robotics EVO II Dual 640T able to detect person

Person

Autel Robotics EVO II Dual 640T able to detect suv

SUV

Autel Robotics EVO II Dual 640T able to detect truck

Truck

Dimension

1.8*0.5m

4.2*1.8m

6*4m

Detection

542m

1661m

2889m

Recognition

135m

415m

722m

Identification

68m

208m

361m

  • Detection: Detect if an object is present.

  • Recognition: See what type of object it is (i.e. person, vehicle, airplane).

  • Identification: For example see if someone is a friend or foe.

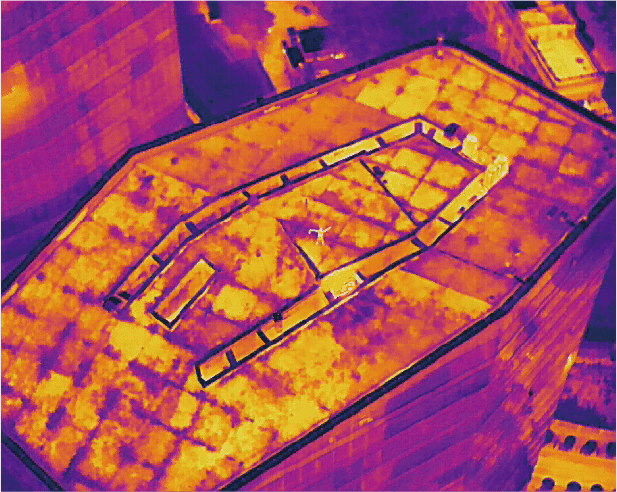

Thermal imaging result generated by Autel Robotics EVO II Dual 640T

Multiple Temperature Measurement Modes

Central temperature measurement

Central temperature measurement
Spot temperature measurement
Regional temperature measurement

Central temperature measurement: View real-time display of the temperature in the center area of the screen.
Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time.
Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

10 Thermal Color Palettes

10 Thermal Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

Picture-in-Picture Display Mode

Picture-in-Picture Display Mode

Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.

Temperature Alarm

Temperature Alarm | Isotherm | Image Enhancement

Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold.
Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified.
Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

Infrared Thermal Analysis Tool

Powerful Infrared Thermal Analysis Tool

IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

Autel Robotics EVO II Dual 640T also comes with 50MP Ultra-Sensitive camera

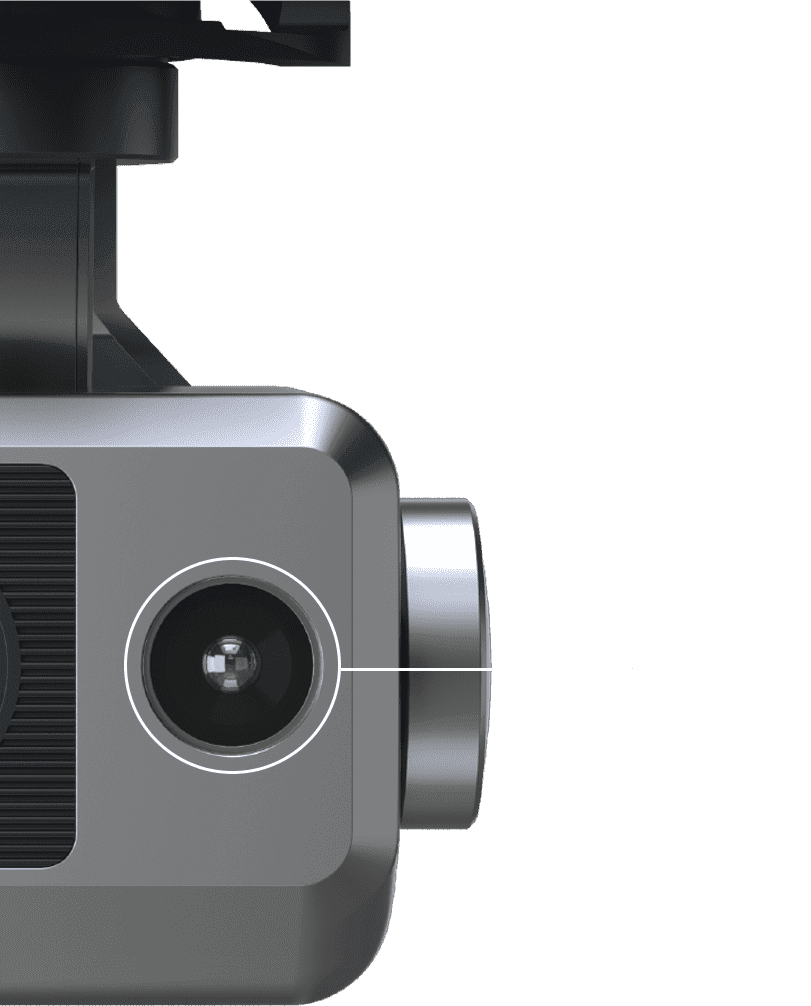

50MP Ultra-Sensitive Camera

The EVO II Dual 640T V3's special RYYB sensor features a moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis.

.8" Sensor Size

The EVO II Dual 640T V3's .8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high contrast lighting conditions.

RYYB Sensor Technology

RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.

PDAF+CDAF Autofocus System

Never lose sight of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.

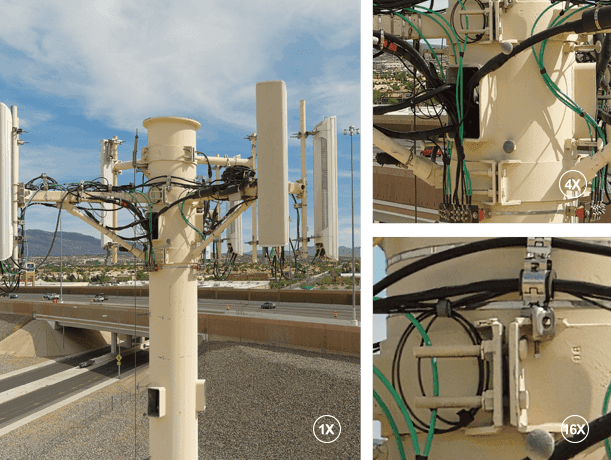

16x digital zoom comparison

See the Scene with 16x Digital Zoom

The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely and without detection.

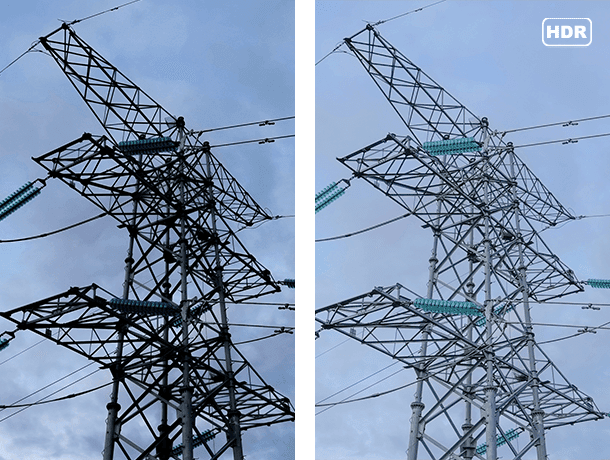

4K HDR comparison

4K HDR for Greater Dynamic Range

4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

Autel SkyLink 2.0 Video Transmission

The EVO II Pro V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

15KM

Fly farther with HD video transmission up to 15km.

QHD

Obtain critical details with QHD video within 1km.

2.4G/5.8G/900M

Less signal breakups and enhanced anti-interference capabilities.

F2.8~F11

Aperture

* 900MHz is only applicable for FCC countries.

Autel Skylink 2.0 video transmission

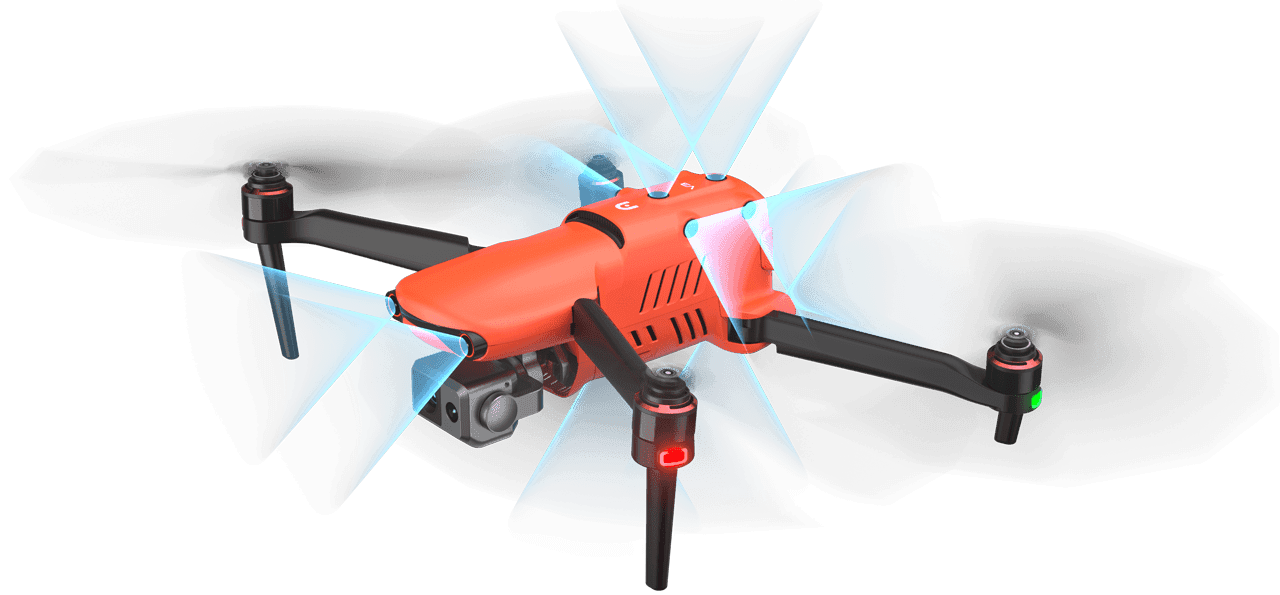

360° Obstacle Avoidance

Equipped with 19 sets of sensors including 12 visual sensors, the main camera, ultrasound, IMUs, and other sensors enable the building of three-dimensional maps and path planning in real-time.

360° obstacle avoidance sensor on Autel Robotics EVO II Dual 640T

* Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

Practical and Convenience Features

Deploy Rapidly

EVO II Dual 640T V3 takes 45 seconds from launch to takeoff without fuss.

No Fly Zones*

EVO II Dual 640T V3 does not have any no fly zones and will not prevent the pilot from taking off.

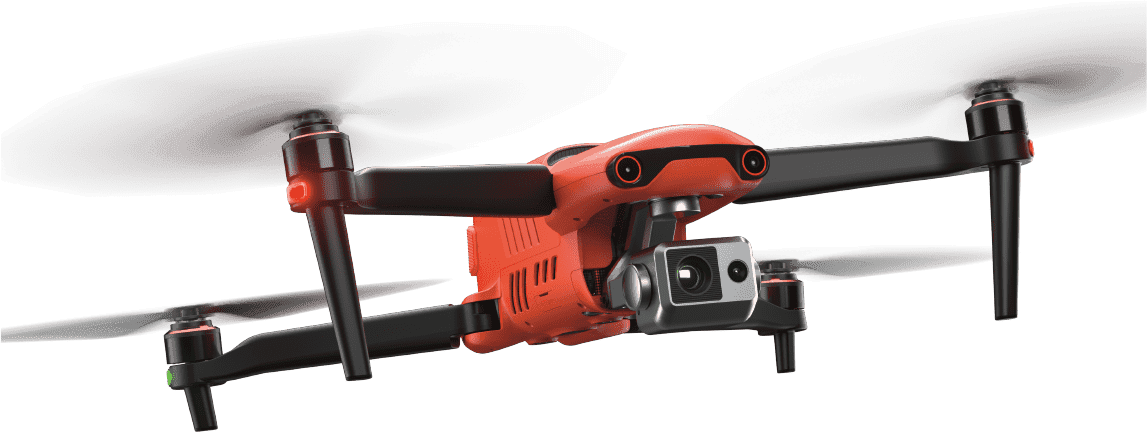

Autel Robotics EVO II Dual 640T

No Forced Updates**

EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

Non-ITAR

More export freedoms as the EVO II Dual 640T V3 is not under US's International Traffic in Arms Regulations.

* Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
** It's required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.

Autel Robotics EVO II Dual 640T

Industry Leading Performance

38minutes

Maximum Flight Time

15miles (15km)

Maximum Transmission Range

27mph (12m/s)

Maximum Wind Resistance

45mph (20m/s)

Maximum Flight Speed

2lbs (920g)

Maximum Lift Capability

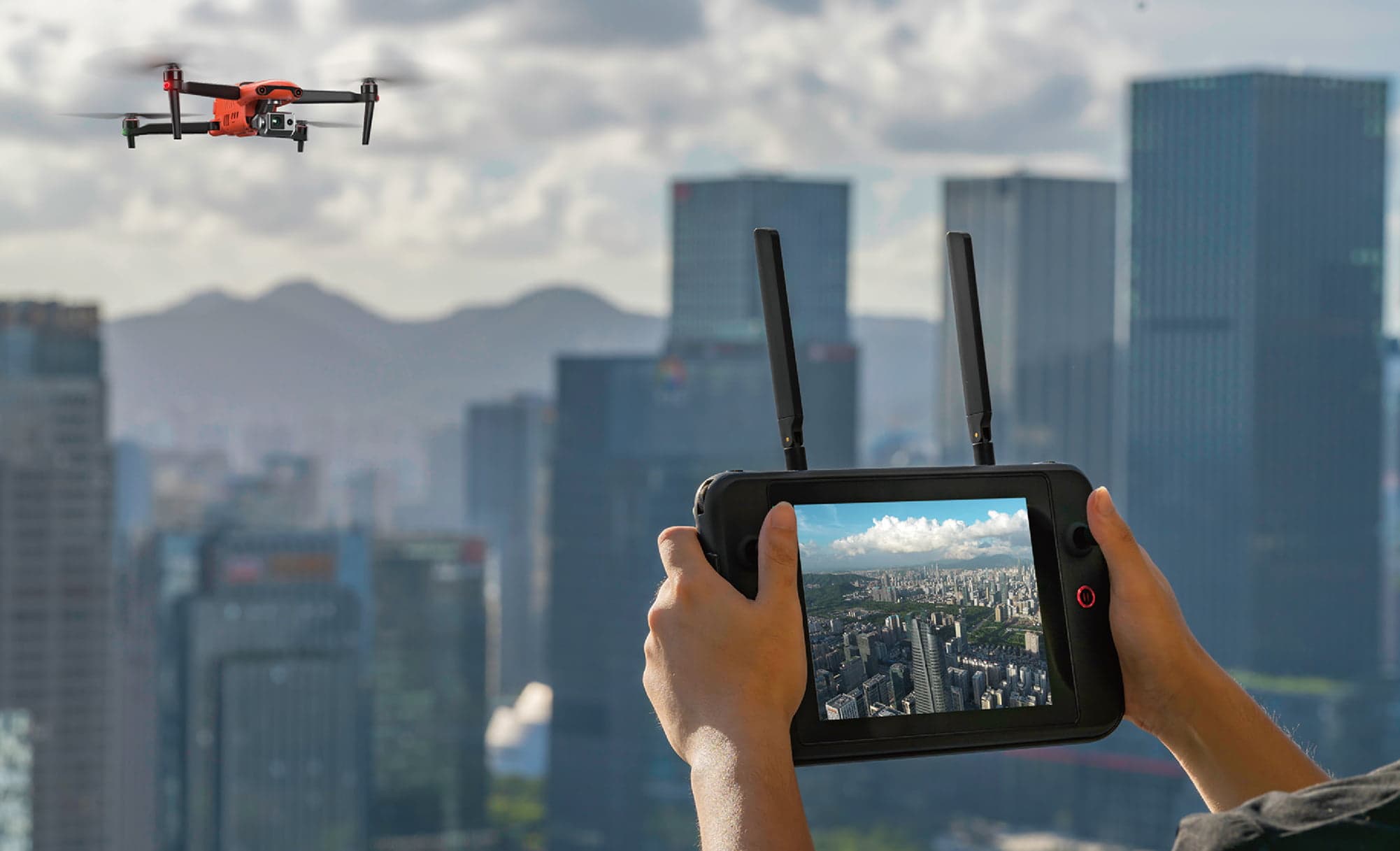

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000nits high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

Autel Smart Controller V3
15km Transmission Range

15km Transmission Range

Maximum 2000nits Brightness

Maximum 2000nits Brightness

4.5 Operating Hours

4.5 Operating Hours

IP43 Resistance

IP43 Resistance

Broadcast with Live Deck 2

Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making. The EVO II Pro V3 is compatible with Livedeck 2.0, which offers multiport streaming to monitors and Wifi support for multiple smart phones.

Autel Live Deck 2
1080P/60FPS Video Stream

1080P/60FPS Video Stream

Three Auto-Switch Bands

Three Auto-Switch Bands

12KM Transmission Range

12KM Transmission Range

IP43 Resistance

IP43 Resistance

Applications

Tech Specs

EVO II Dual 640T V3

Aircraft

Takeoff weight

1150 g

Max takeoff weight

2000 g

Size(L*W*H)

230*130*108mm(folded)

457*558*108mm(unfolded)

Wheelbase

397 mm

Maximum service ceiling altitude

7000 m

Max ascent speed

8 m/s (Ludicrous)

Max descent speed

4 m/s (Ludicrous)

Max horizontal flight speed

20m/s (Ludicrous)

Max flight distance (no wind)

22 km

Max angular velocity

120°/s

Max tilt angle

33° (Ludicrous)

Max flight time

38 min

Max hovering time (no wind)

33 min

Operating temperature range

-10℃ - 40℃

Maximum resistance to wind

12 m/s (Take-off and landing)

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

900MHz: FCC/ ISED: ≤31dBm

2.4GHz: FCC/ ISED: ≤32dBm, SRRC/CE/MIC/RCM: ≤20dBm

5.8GHz (non-Japan);5.7G (Japan): FCC/ISED/SRRC/MIC: ≤33dBm, CE/ RCM: ≤14dBm

Hovering accuracy

Vertical: ±0.1 m (when the visual positioning is working normally);

±0.5 m (when GPS works normally)

Horizontal: ±0.3 m (when the visual positioning is working normally);

±1.5 m (when GPS works normally)

GNSS

GPS/Beidou/Glonass/Gallieo

Internal storage

8GB

SD storage

max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal

3-axis stabilization

Mechanical range

Tilt: -135° to +45°;

Pan: -100° to +100°

Controllable rotation range

Tilt: -90° to +30°;

Pan: -90° to +90°

Max control speed (Tilt)

300°/s

Angular Vibration Range

±0.005°

Remote controller and image transmission

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

FCC: ≤33dBm

CE: ≤20dBm@2.4G, ≤14dBm@5.8G

SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G

Max Transmission Distance (unobstructed, free of interference)

FCC: 15km

CE: 8km

Display screen

2048x1536 60fps

Battery

5800mAh

Operating time

~3 hours (Max. Brightness)

~4.5 hours (50% Brightness)

Charging time

120 minutes

Internal Storage

ROM 128GB

Sensing system

Sensing system type

Omnidirectional sensing system

Forward

Accurate measurement range: 0.5-18 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Backward

Accurate measurement range: 0.5-16 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Upward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: Horizontal: 65°, Vertical: 50°

Downward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 100°, vertical: 80°

Left and right

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment

Forward, Backward and Sides:

Surface with clear pattern and adequate lighting (lux > 15)

Upward:

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Downward:

Surface with clear pattern and adequate lighting (lux > 15)

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Thermal camera

Sensor

Uncooled VOx Microbolometer

Lens

FOV H33°V26°

Focal length 13mm

Zoom

1-16x

Pixel size

12μm

Wavelength range

8 - 14μm

Temperature range

High gain mode: -20° to +150°

Low gain mode: 0° to +550°

Temperature measurement accuracy

±3℃ or ±3% of reading (whichever is greater)

@Environmental temperature-20℃~60℃

Accurate temperature measurement distance

2-20 meters

Video resolution

640x512@30fps

Video format

MOV / MP4 (Support H.264/H.265)

Camera resolution

Infrared mode: 640*512

Picture-in-picture mode: 1920*1080, 1280*720

Photo mode

Single shot

Burst shooting: 3/5 frames, 3 is the default

Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format

JPG (with irg file)

Visible light camera

Sensor

1/1.28"(0.8") CMOS; 50M effective pixels

Lens

FOV: 85°

35 mm format equivalent focal length: 23 mm

Aperture: f/1.9

Focus range: 0.5 m to infinity (with auto focus)

ISO range

Video: 100-64000

Photo: 100-6400

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Zoom

1-16x (up to 4x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size

8192*6144(4:3)

4096*3072(4:3)

3840x2160(16:9)

Image Format

JPG (default) / DNG / JPG+DNG

Video format

MOV / MP4

Video resolution

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Max bitrate

120Mbps

Supported file system

FAT32/exFAT

Battery

Capacity

7100 mAh

Voltage

11.55V

Battery type

LiPo 3S

Energy

82 Wh

Weight

365 g

Charging temperature range

5℃ to 45℃

Storage temperature and humidity

-10~30℃, 65±20%RH

Recommended storage temperature

22-28℃

Max charging power

93W

Charging time

90 minutes

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A

5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃
