Dragonfish Series
Command The Future
Smart. Simple. Efficient.
The Dragonfish's unique tilt-rotor design simplifies operation while maximizing performance and efficiency. With no complicated moving parts, the Dragonfish is modular, waterproof, smart, and reliable. The Dragonfish is mission ready right out of the box and includes powerful AI tracking capabilities and a multitude of modular payload options. An endurance of up to 158 minutes (including payload) further augments the Dragonfish's robust mission capabilities and pushes it significantly ahead of the competition.
158 minutes
Longest flight time with load
3 minutes
Quick assembly
4K 50x
Highest optical zoom
108km/h
Max speed
18.6 miles
Transmission range
5s
System boot and self check
Endurance With Payload
The Dragonfish series includes three models: the Dragonfish Lite, Dragonfish Standard, and Dragonfish Pro. With a flight time of 81 minutes, 126 minutes, and 158 minutes respectively while carrying a payload, each model can greatly improve work efficiency.
Dragonfish Pro
158 min
Dragonfish Standard
126 min
Dragonfish Lite
81 min
Safety and Redundancy

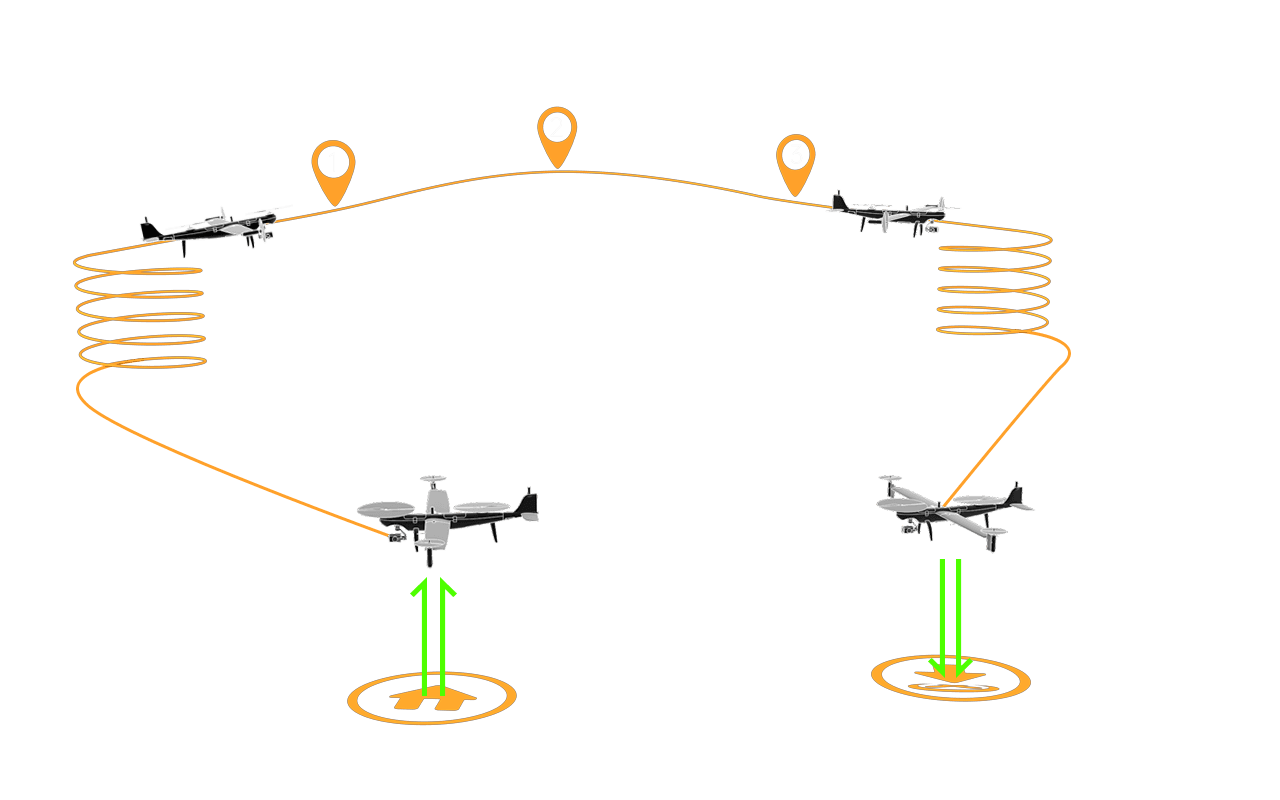

DRAGONFISH FLIGHT LOGIC
CIRCLE UP POINT
CIRCLE DOWN POINT
Transition Distance
Min - 300 ft
Landing Transition Distance
Min - 300 ft
Aircraft descend before transitioning.
Take off Transition Altitude
*AGL from take-off location.
Please set altitude to clear obstacles.
Landing Transition Altitude
*AGL from landing location.
Please set altitude to clear obstacles.
Slide or scroll right to view more.
Intelligence And Autonomy
Simplify mission tasks with the Dragonfish's wide array of automated functions
Using Autel's advanced flight control technology and intelligent AI, the Dragonfish can tackle even the most complex operations.
- 1
- 2
- 3
- 4
- 5

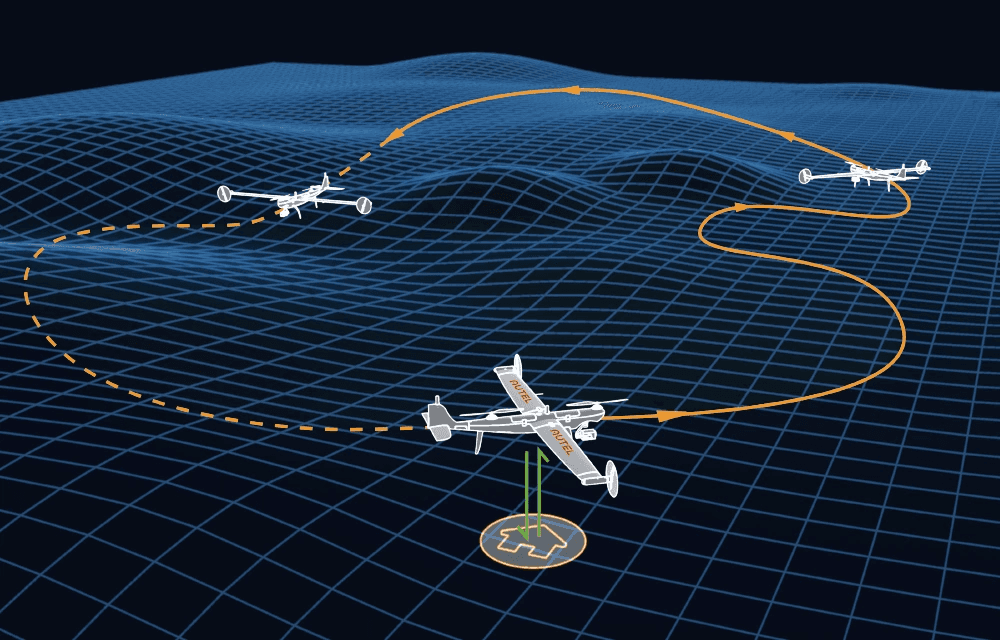

One-Click Takeoff / Landing

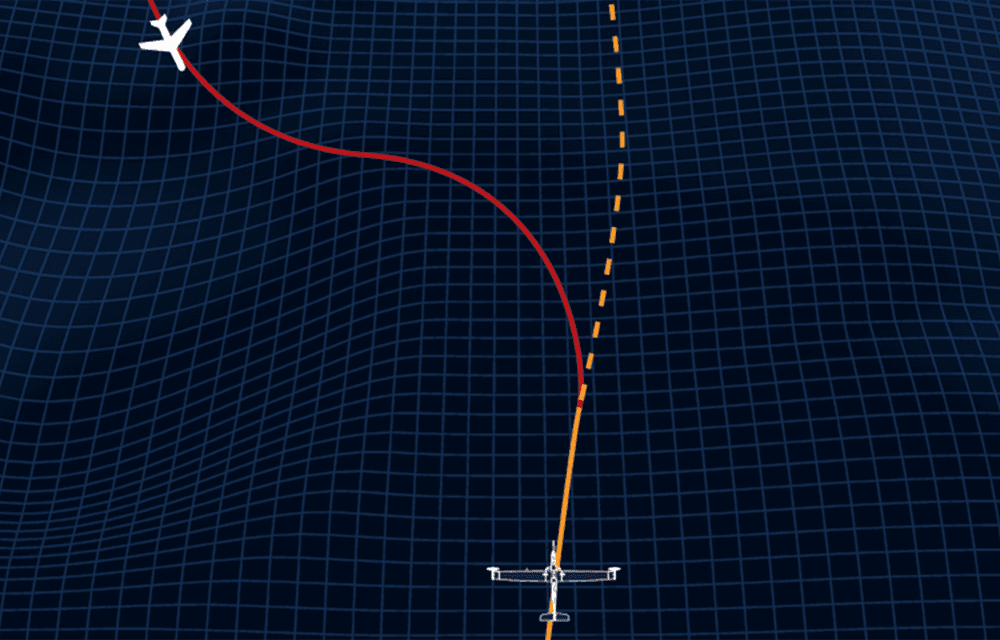

ADS-B Receiver
Millimeter-wave radar is built into the nose of Dragonfish, which can detect obstacles up to 200 meters away. The aircraft automatically adjusts its height and speed based on the collected flight data, giving Dragonfish excellent obstacle avoidance performance.
RTK Accuracy

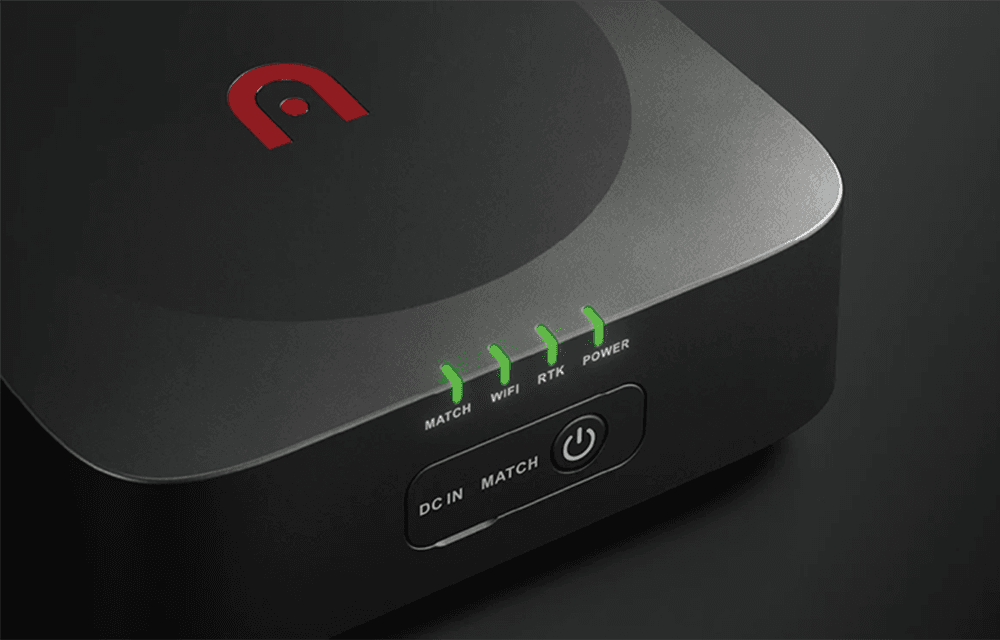

Map with confidence with the Dragonfish's two RTK (Real-Time Kinetic) modules, which enable the aircraft to provide centimeter-accurate location data when paired with a GNSS base station. The dual units back up each other's data for additional peace of mind, while also improving image metadata quality and increasing flight precision and safety.

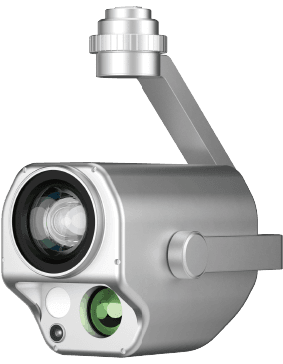

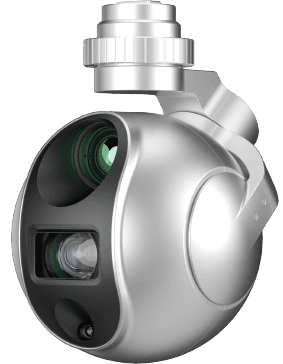

Interchangeable Payload System
Tackle any operation with a variety of payload options that can be tool-lessly swapped to suit mission needs. Dragonfish payloads are designed to be interchangeable between aircraft classes to maximize the value and enhance the mission capability of the system.
Slide left or right to view more.

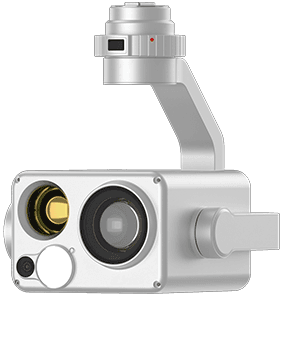

DG-T3
For Dragonfish Lite / Standard / Pro
4K 20x Optical Zoom
12 Megapixel Wide-Angle
640x512 High Resolution Infrared
3-Axis Stabilized Gimbal System

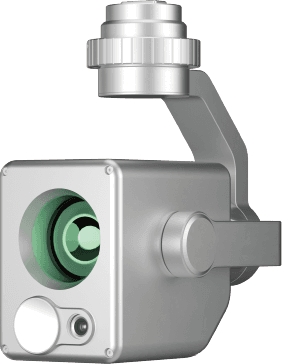

DG-T3H
For Dragonfish Lite / Standard / Pro
12 Megapixel Wide-Angle
1280x1024 High Resolution Infrared
Laser distance measurement rada
3-Axis Stabilized Gimbal System
DG-L20T
For Dragonfish Standard / Pro
4K 20x Optical Zoom
12 Megapixel Wide-Angle
640X512High Resolution Infrared
Laser distance measurement radar
3-Axis Stabilized Gimbal System
DG-L50T
For Dragonfish Pro
4K 50x Optical Zoom
12 Megapixel Wide-Angle
1280X1024High Resolution Infrared
Laser distance measurement radar
3-Axis Stabilized Gimbal System

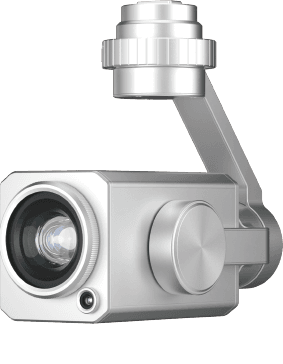

DG-Z2
For Dragonfish Lite / Standard / Pro
4K 20x Optical Zoom
12 Megapixel Wide-Angle
3-Axis Stabilized Gimbal System

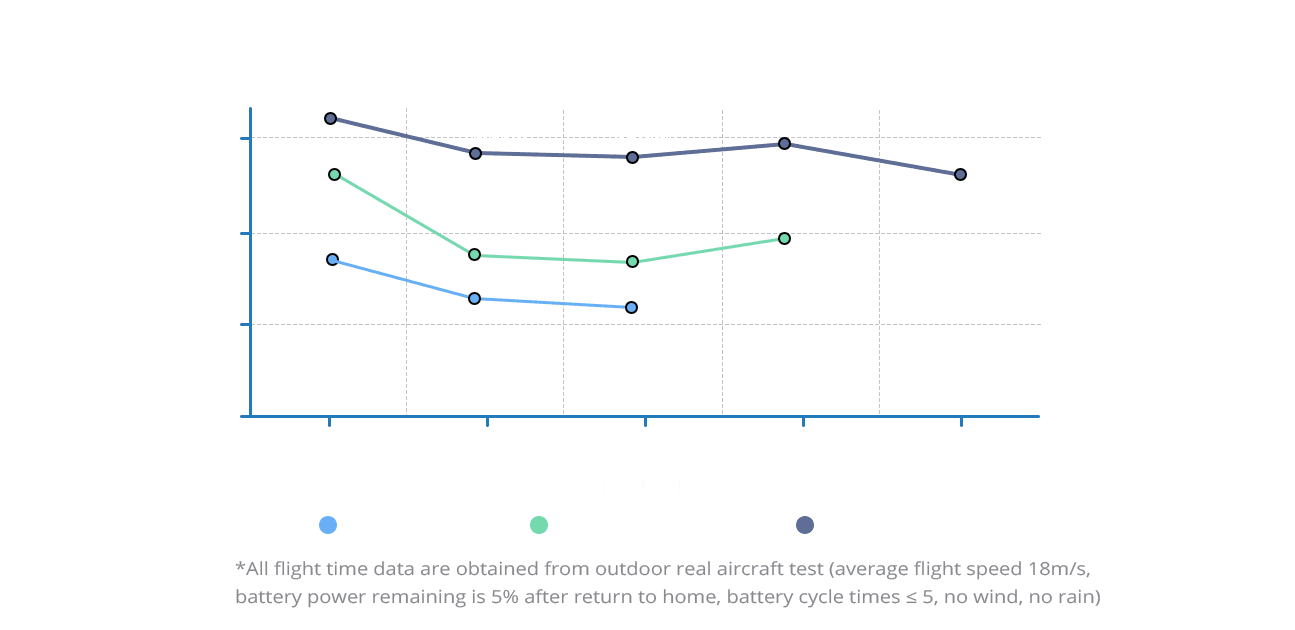

Max. Flight Time Graph for Dragonfish Series with Payload
The Dragonfish Pro with L50T payload can achieve 50x optical zoom and 240x hybrid zoom. Details are clearly visible even when observing targets 2 km away. Operators do not need to go to the site, which not only improves work efficiency, but also ensures the safety of personnel and flight equipment. Efficiently empower energy inspection, emergency rescue, public security and other industry applications.
Zoom level
Applications
Public Safety
Forest Fire Prevention
Powerline Inspection
Traffic Law Enforcement
Coastal Patrol and Security
Agriculture Monitoring

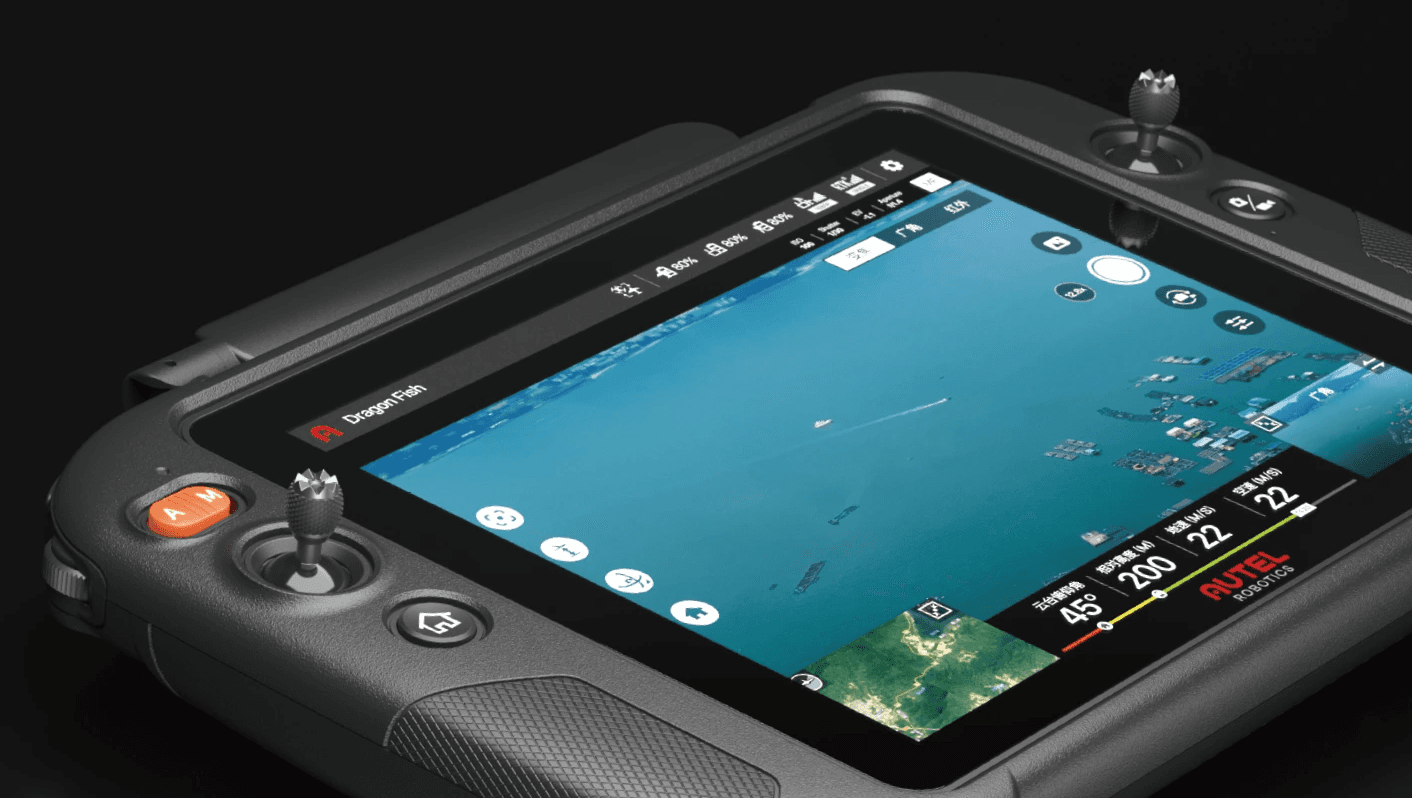

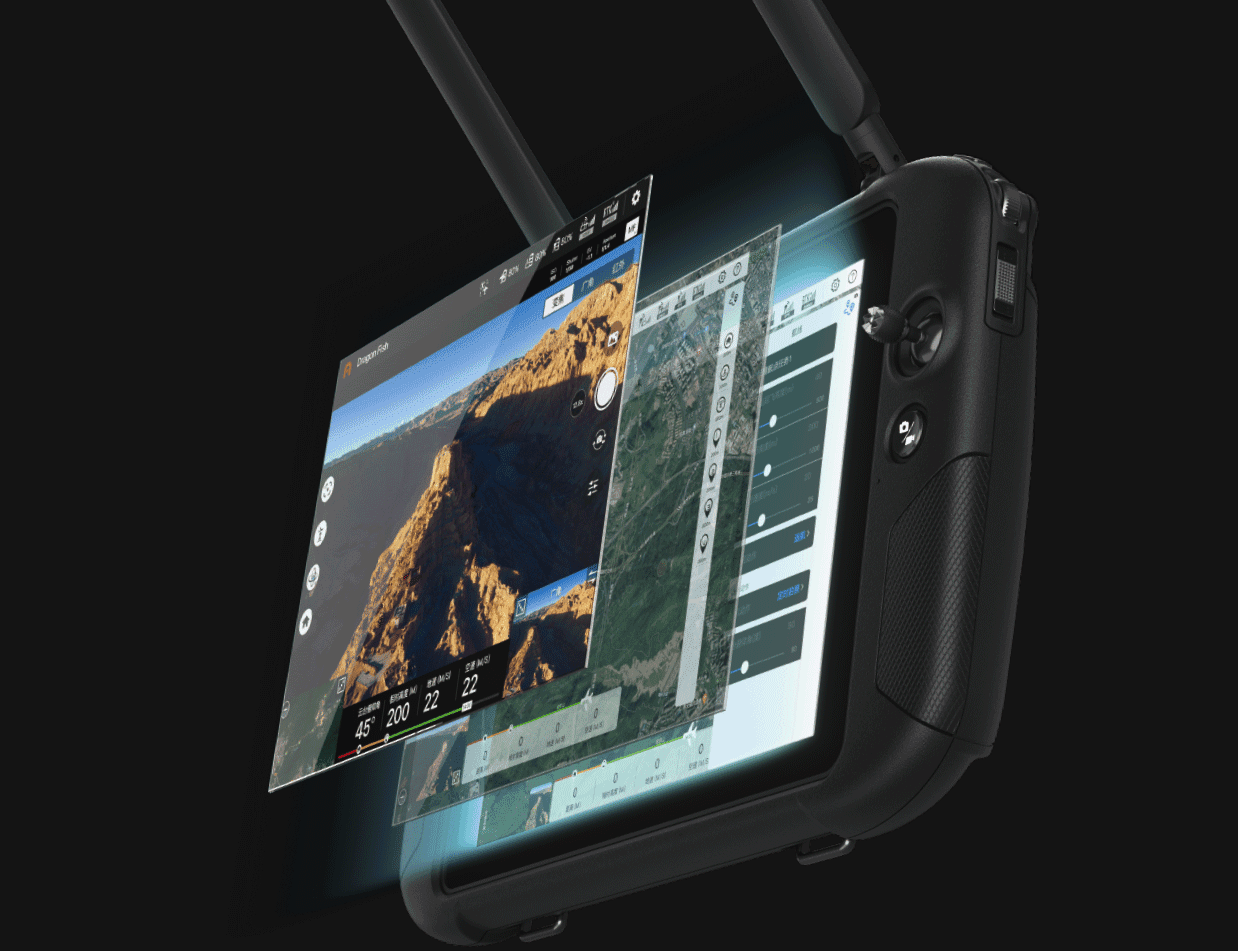

Autel Ground Control Station
With an ultra-bright touchscreen of 1,000 nits, the Autel Ground Control Station is twice as bright as the average smartphone, making the 9.7-inch screen easy to see under direct sunlight.
9.7 inches
TFT-LCD capacitive touchscreen
18.6 miles
Image transmission distance
2048x1536
Ultra HD resolution
4.5 hours
Battery life
Samsung EXYNOS
Eight-core processor
*18.6 miles is the image transmission distance when the base station is used. If there is no base station, the image transmission distance is 6.2 miles.
One Device. Any Mission.
Incredibly powerful yet simple to use, Autel Voyager is the one-stop solution for every mission. Designed specifically for the Dragonfish, the software provides advanced mission planning, intelligent tracking, flight history tracking, and other autonomous features.

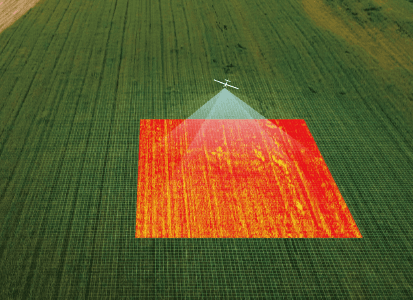

Mission Planning
Waypoint missions, polygon missions, and rectangular missions can be planned offsite prior to mission and started with a single click to begin autonomous flight. The pilot can regain control at any time during the mission for emergency maneuvers or custom flight path planning.
Tap to Fly
Select a target on the camera and the Dragonfish will automatically fly to the selected location and orbit the subject.
Mission Management
Monitor past missions and assign flights.
Quick Mission
Set points of interest on the flight map during any part of the mission and the Dragonfish automatically will deviate from its original path plan to pursue the pilot's needs.

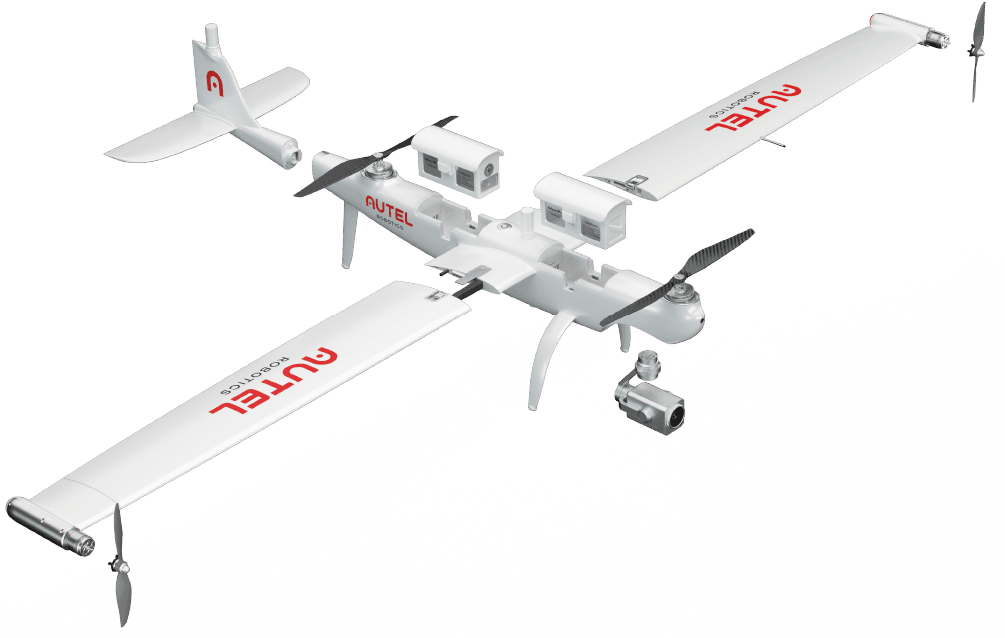

Compact And Portable
With its innovative quick-release design and a speedy self-check, the Dragonfish can be in the air and mission ready within 5 minutes.
The Dragonfish can be easily disassembled by a single person and fits into the trunk of any average-sized car. The entire system can be assembled without tools and ready to fly in less than 5 minutes.
The whole system self checks in 5 seconds and is ready to fly in 5 minutes.
Quick-release blade design makes assembly simple and convenient.
Safety Mechanisms
Click and drag left or right to view more.

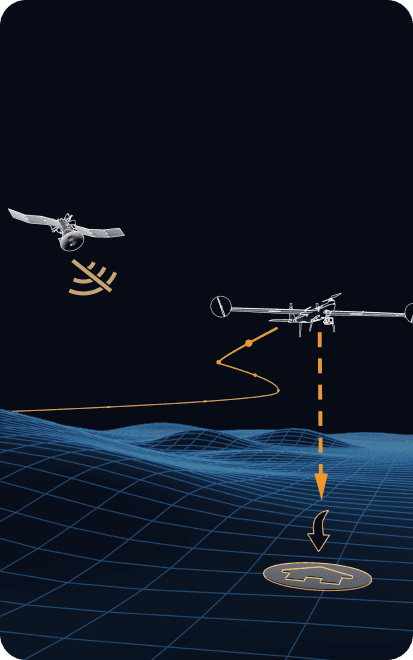

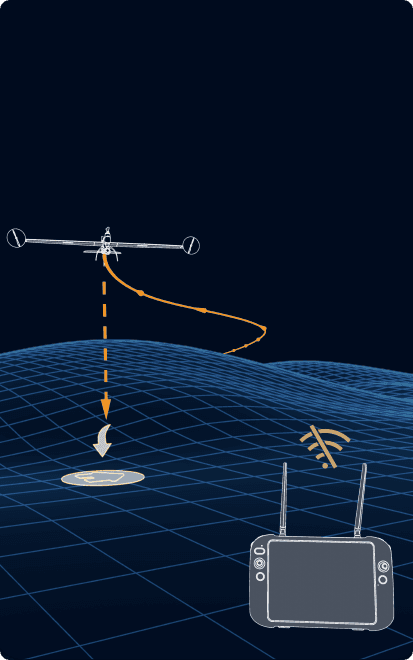

GPS Loss Protection
If GPS signal is lost, the aircraft will automatically land at its current location.

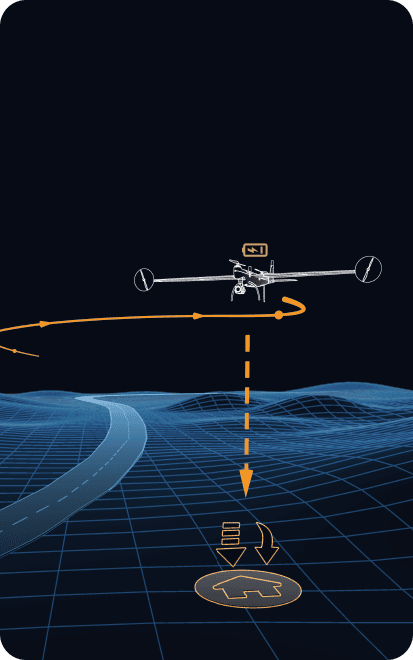

Low Battery Protection
When the aircraft's battery reaches the set threshold, the pilot will receive a low battery warning, and the aircraft will start to return home automatically. Once the battery level has reached 15%, the pilot will receive a critical power warning, and the aircraft will automatically land on the spot.
Lost Signal Protection
If communication between the aircraft and the ground station is interrupted, the aircraft will use its GPS signal to return home automatically.
Why choose Autel Dragonfish
Less training needed
No need for launchers, slingshots, throwing, parachutes.
Easy to fly
Take off anywhere, anytime.
Easy to transport
Dragonfish fits in the back of any car/SUV.
Maintenance-free
Unlike helicopters or other aerial solutions, there's no need for costly maintenance activities, like oil changes.
Low noise
The electric motor is much quieter than a fuel engine, making it perfect for high-altitude reconnaissance.

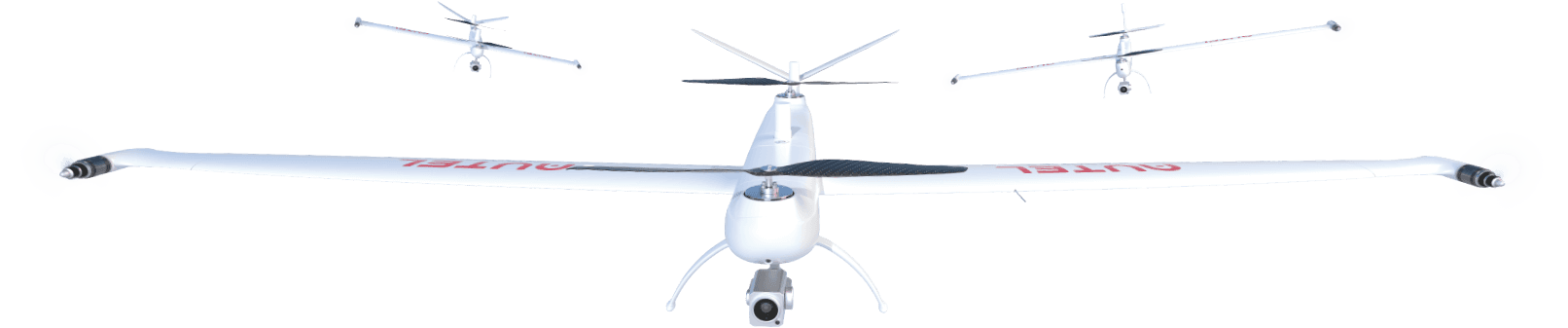

Tilt rotor design
Switch from quadcopter mode to fixed-wing flight at the touch of a button.
Tech Specs
Dragonfish
Lite
Standard
Pro
Dimensions (L*W*H)
965*1600*350 mm
Supported Payloads
Z2, T3, T3H, M1
Weight
4.5 kg (w/ 2 batteries, w/o gimbal)
0.75 kg (Single battery weight)
5.5 kg (Max takeoff weight)
Operating Frequency
902-928 MHz
2.4000-2.4835 GHz
5.725-5.755 GHz
EIRP (Equivalent radiated power)
900MHz FCC: < 30 dBm
2.4 GHz FCC: < 30 dBm, SRRC/CE/MIC: < 20 dBm
5.8 GHz, SRRC/FCC: < 22 dBm, CE: < 14 dBm
Vertical Hovering Accuracy (P-mode with GPS)
±0.1 m(Vision System enabled)
±0.5 m(GPS enabled)
±0.1 m(RTK enabled)
Horizontal Hovering Accuracy (P-mode with GPS)
±0.3 m(Vision System enabled)
±1.5 m(GPS enabled)
±0.1 m(RTK enabled)
RTK Positioning Accuracy
When RTK enabled and fixed:
Multi-rotor:
1 cm + 1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
Fixed Wing:
3 cm + 1 ppm (Horizontal)
3 cm + 1 ppm (Vertical)
Max Angular Velocity
Pitch: 180°/s
Yaw: 60°/s
Max Angle
Pitch: 20°
Roll: 35°
Max Ascent Speed
Vertical Flight Mode: 4 m/s
Fixed Wing Mode: 5 m/s
Max Descent Speed (vertical)
Vertical Flight Mode: 3 m/s
Fixed Wing Mode: 5 m/s
Flight Speed
0m/s ~ 17m/s (Multi-rotor)
17m/s ~ 30m/s (Fixed Wing)
50m/s (Max)
Service Ceiling Above Sea Level
4000m
Max Wind Resistance
Fixed Wing Mode: 15 m/s
Vertical Flight Mode: 12 m/s
Max Flight Time
81 min
Max Payload
1.0 kg
Supported Gimbal Configurations
Fast Disassembly
Ingress Protection Rating
IP43
GNSS
GPS + GLONASS + BeiDou + Galileo
Operating Temperature
-20°C ~ 50°C
Single Battery
Energy: 174 Wh
Charging Time: 120 min
Battery Temperature
Recommended: 22°C ~ 28°C
Charging: 15°C ~ 40°C
Operating: -20°C ~ 40°C
