EVO Lite Series

NEW PERSPECTIVES. NEW POSSIBILITIES.

Cut Through The Darkness.
Take Back The Night.

Discover The World By Moonlight

Equipped with a 1-inch CMOS image sensor and Autel's intelligent moonlight algorithm, the EVO Lite+ can capture crisp, vibrant details at night with low noise — even when the ISO is cranked up high.

Take Control With An Adjustable Aperture

Flex your creativity with an adjustable aperture from f/2.8-f/11, giving you the ability to alter exposure and depth of field in imaginative ways that show off your unique artistic style.

Restore Natural Colors

Automatically balance overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

Instant Lightweight Champion

World's First 4-axis Gimbal Design

The EVO Lite is the first drone in the world to introduce a four-axis gimbal design, enabling you to shoot vertical videos for easy editing and sharing on mobile devices.

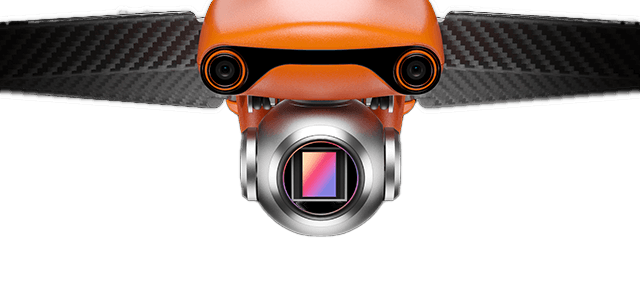

Supersensitive 50MP Camera

Experience a new level of image quality thanks to a supersensitive 50MP camera equipped with a 1/1.28-inch CMOS sensor. The camera adopts an RYYB color filter array design, which absorbs 40% more light than traditional RGGB arrays, allowing you to capture natural scenery in all its glory.

RYYB

Sensor

50MP


4K HDR

Video

1/1.28"(0.8")

CMOS

PDAF + CDAF

Autofocus System

HDR: Darker Shadows. Brighter Highlights.

With HDR on, Lite and Lite+ will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.

Instant Focus, Instant Capture

Track fast-moving subjects with a precise autofocus that locks in within milliseconds using a phase detection autofocus and dual focus algorithm.

More Colors. More Choices.

Fly with style with a new selection of drone colors.

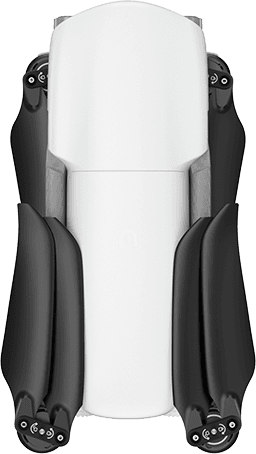

Dress to impress with an elegant Arctic White.

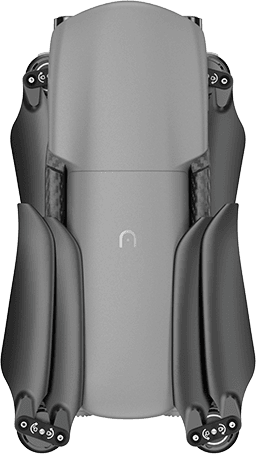

Fly under the radar, cool and confident, with a sleek Deep Space Gray.

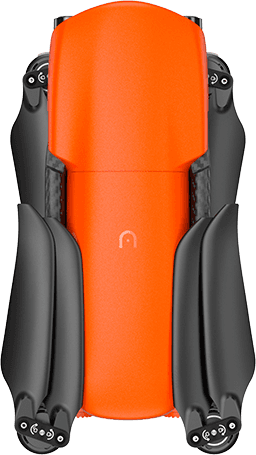

Or go boldly into the unknown with the classic Autel Orange.

Restore Natural Colors

Automatically balance overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

SkyPortrait: Your Personal Paparazzi

With the touch of a button, the Lite will rise into the air and snap a photo of you and your friends, automatically adjusting the lens so no one gets left out. Blur the background automatically for additional cinematic effect or dramatically reveal your epic destination — whether it's the top of a mountain or your own backyard.

Dynamic Track 2.1: Master Subject Tracking

Recruit your Lite to automatically follow any person, so you can focus on your activities while your Lite handles the cinematic side.

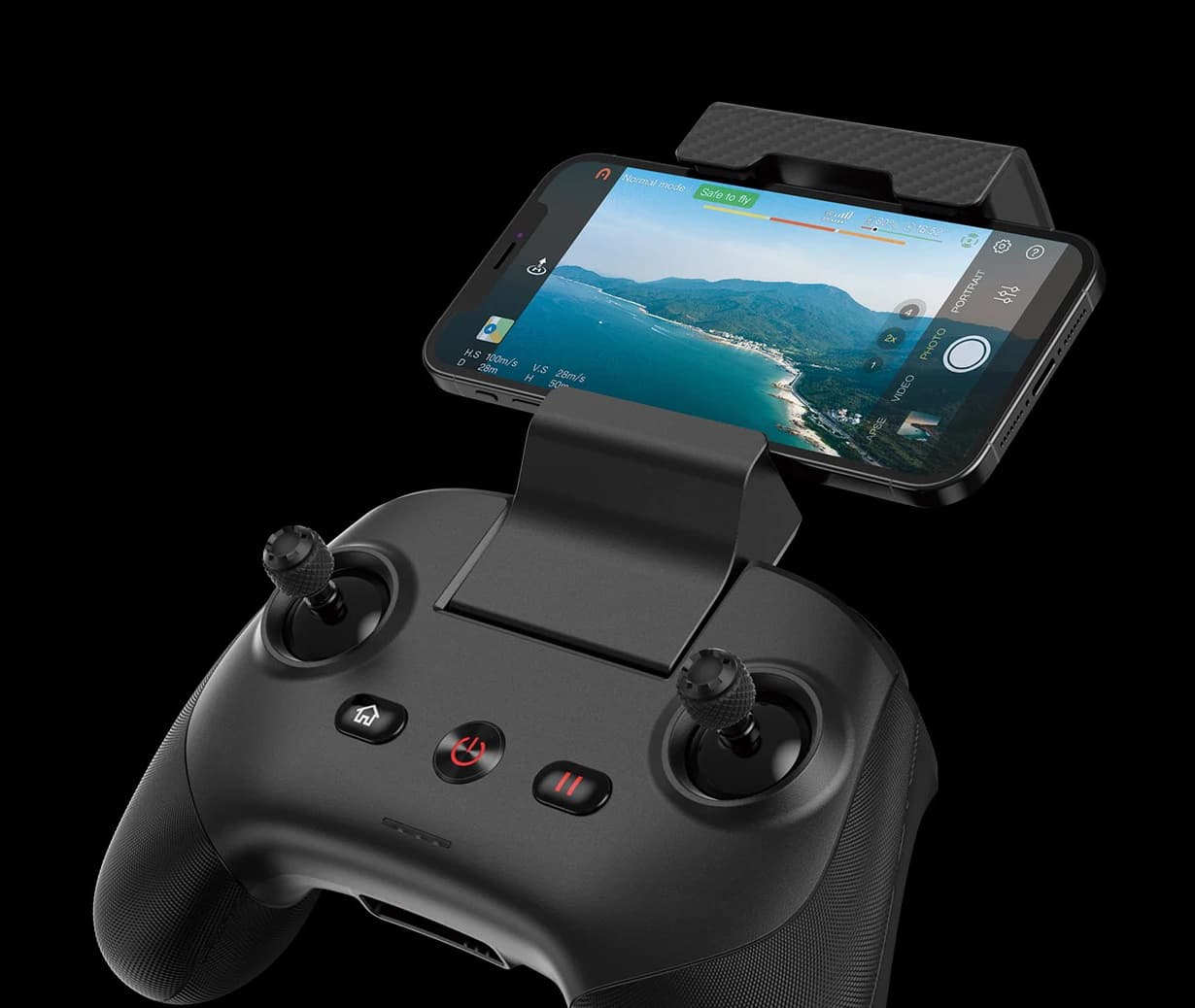

SkyLink Video Transmission

Fly Free—More Range, Less Interference

Fly farther while maintaining crisp, clear visuals with Autel SkyLink, our strongest image transmission system yet, which offers a transmission range of 7.4 miles, transmission quality of 2.7K/30FPS, and superior anti-interference capabilities, all while relaying stunning HD video.

2.4/5.8/5.2GHz

7.4 Miles

2.7K/30FPS

SoundRecord: Bring Your Videos To Life

Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is far away or use it to narrate while filming for better editing workflow.

SuperDownload

Done shooting? Simply place your smartphone close to the Lite to download photos and videos at a speedy rate of 160Mbps(20MB/s) using the Autel Sky app.

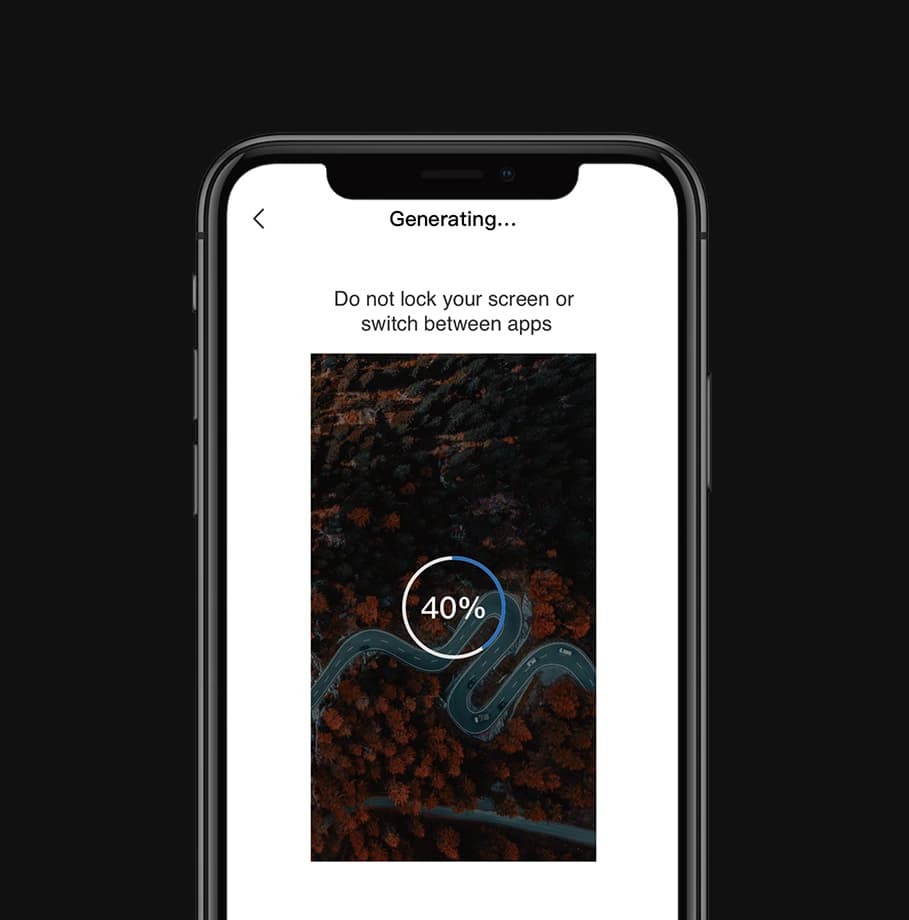

MovieMaster: Easy Movie Making And Sharing

The Autel Sky app provides you a suite of video templates for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can create and share your creations on the spot!

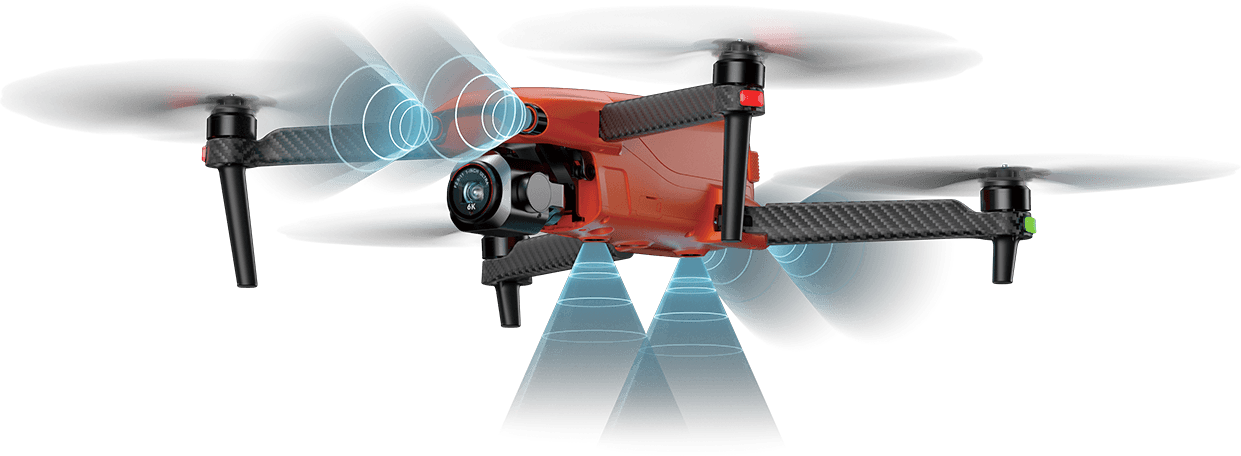

Ultra Wide Angle Obstacle Avoidance

Fly faster, safer, and more confidently than ever before with Autel's new ultra wide angle obstacle avoidance cameras. The sensors give the EVO Lite a front field of view of 150 degrees, eliminating more blindspots than traditional systems while reducing the number of cameras needed.

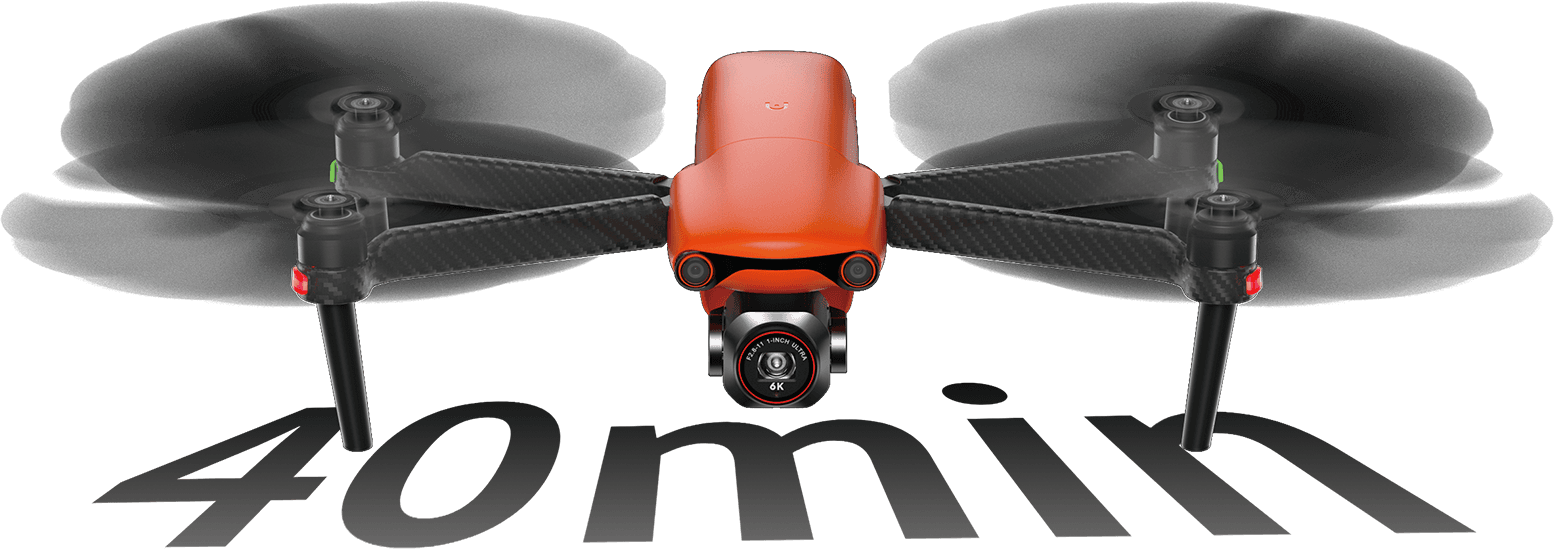

Industry-leading Battery Life

The EVO Lite is the only drone of its size to offer an endurance of 40 minutes, giving you 30 percent more flight time than the competition.

Tech Specs

EVO Lite

Aircraft

Takeoff weight

835g

Dimensions (including blades)

Folded: 210*123*95mm

Unfolded: 427*384*95mm

Wheelbase

368mm

Max Ascent Speed

5m/s (ludicrous)

4m/s (standard)

3m/s (smooth)

Max Descent Speed

4m/s (ludicrous)

3m/s (standard)

2m/s (smooth)

Max level flight Speed(no wind, near sea level)

18m/s (ludicrous)

10m/s (standard)

5m/s (smooth)

Max takeoff altitude

4000m

Max flight time(no wind)

40min

Max hovering time(no wind)

38min

Max flight distance(no wind)

24km

Max wind resistance

12 m/s (Take-off and landing)

Max tilt angle

33°(ludicrous)

25°(standard)

25°(smooth)

Operating temperature

-10℃ - 40℃

Operating Frequency

2.4000-2.4835 GHz

5.725-5.850 GHz

5.150-5.250 GHz

Transmission power (EIRP)

FCC: > 30 dBm; CE: > 20 dBm

GNSS

GPS + GLONASS + Galileo

Hovering accuracy

Vertical:±0.1m (when the visual positioning is active),

±0.5m (with GPS positioning);

Horizontal:±0.3m (when the visual positioning is active),

±1.5m (with GPS positioning);

Aircraft

Gimbal

Mechanical range

Pitch: -135° to 45°;

Roll: -45° to 45°;

Yaw: -90° to 90°;

Rotate: -400° to 400°

Controllable rotation range

Pitch: -90° to +30°;

Yaw: -90° to +90°

Rotate: -360° to 360°

Stabilization

4-axis(horizontal/vertical/tilt/rotation shooting)

Max control speed (pitch)

30°/s

Angular Vibration Range

±0.003°

Gimbal - Lite+

Mechanical range

Pitch: -135° to 45°;

Roll: -45° to 45°;

Yaw: -90° to 90°;

Controllable rotation range

Pitch: -90° to +30°;

Yaw: -80° to +80°

Stabilization

3-axis

Max control speed (pitch)

30°/s

Angular Vibration Range

±0.003°

Sensing system

Forward

Accurate measurement range: 0.5~18m

Effective sensing speed: <12m/s

FOV: horizontal <70°, vertical <88°

Backward

Accurate measurement range: 0.5~18m

Effective sensing speed: <12m/s

FOV: horizontal <40°, vertical <30°

Downward

Accurate measurement range: 0.5~22m

Visual hovering range: 0.5~40m

FOV: horizontal <40°, vertical <30°

Operating environment

Forward, backward:

Surface with clear pattern and adequate lighting(lux> 15)

Downward:

Surface with clear pattern and adequate lighting(lux> 15);

Detects diffuse reflective surfaces(> 20%) (walls, trees, people, etc.)

Camera - Lite

Sensor

CMOS: 1/1.28 inch

Effective pixels: 50M

Pixel size: 1.22μm*1.22μm

Lens

FOV: 85°

Equivalent focal length: 23 mm

Aperture: f/1.9

Focus range: 0.5 m to infinity

Focus mode: PDAF+CDAF/MF

ISO range

Video: ISO100 ~ ISO6400

Photo: ISO100 ~ ISO6400

Night scene: ISO up to 64000

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Portrait blur

Real-time image transmission portrait blur and photo portrait blur

Defog mode

Support

Zoom range

Digital zoom: 1 ~ 16 times

Lossless zoom: 4K: 2 times; 1080p: 4 times

Note:

4K: more than 2 times the digital, the following is lossless

1080P: more than 4 times the digital, the following is lossless

Photo Format

JPG (8-bit) / DNG (10-bit) / JPG+DNG

Photo resolution

50MP: 8192x6144(4:3)

12.5MP: 4096x3072(4:3)

4K: 3840x2160(16:9)

Photo shooting mode

Single shot

Burst shooing: 3/5

Auto exposure bracketing(AEB): 3/5 shots

Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)

HDR imaging: 8192x6144/4096x3072/3840x2160

HyperLight: 8192x6144/4096x3072/3840x2160

Video coding format

H265/H264

Video format

MP4/MOV (8-bit))

Video resolution

3840x2160 p60/50/48/30/25/24

2720x1528 p60/50/48/30/25/24

1920x1080 p120/60/50/48/30/25/24

HDR:

3840x2160 p30/25/24

2720x1528 p30/25/24

1920x1080 P60/50/48/30/25/24

Max bitrate

120Mbps

Timelapse

Original image: 3840*2160, JPG/DNG

Video: 4K P25

Panorama

Original image: 4096*3072, JPG/DNG

Horizontal/Vertical/Wide-angle/Spherical

Supported file system

FAT32/exFAT

WIFI transfer

20MB/s

Camera - Lite+

Sensor

CMOS: 1 inch

Effective pixels: 50M

Pixel size: 2.4μm*2.4μm

Lens

FOV: 82°

Equivalent focal length: 29 mm

Aperture: f/2.8 ~ f11

Focus range: 0.5 m to infinity

Focus mode: CDAF/MF

ISO range

Video: ISO100 ~ ISO6400

Photo: ISO100 ~ ISO6400

Night scene: ISO up to 48000

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Portrait blur

Real-time image transmission portrait blur and photo portrait blur

Defog mode

Support

Zoom range

Digital zoom: 1 ~ 16 times

Lossless zoom: 4K: 1.3 times; 1080p: 3 times

Note:

6K: Digital zoom

4K: more than 1.3 times the digital, the following is lossless

1080P: more than 3 times the digital, the following is lossless

Photo Format

JPG (8-bit) / DNG (10-bit) / JPG+DNG

Photo resolution

5472x3648(4:3)

5472x3076(16:9)

3840x2160(16:9)

Photo shooting mode

Single shot

Burst shooing: 3/5

Auto exposure bracketing(AEB): 3/5 shots

Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)

HDR imaging: 5472x3648/3840x2160

HyperLight: 5472x3648/3840x2160

Video coding format

H265/H264

Video format

MP4/MOV (8-bit))

Video resolution

5472x3076 p30/25/24

3840x2160 p60/50/48/30/25/24

2720x1528 p60/50/48/30/25/24

1920x1080 p120/60/50/48/30/25/24

HDR:

3840x2160 p30/25/24

2720x1528 p60/50/48/30/25/24

1920x1080 p60/50/48/30/25/24

Max bitrate

120Mbps

Timelapse

Original image: 5472*3076/3840*2160, JPG/DNG

Video: 5.4K/4K P25

Panorama

Horizontal/Vertical/Wide-angle/Spherical

Original image: 5472*3648, JPG/DNG

Supported file system

FAT32/exFAT

WIFI transfer

20MB/s

Remote controller and image transmission

Operating frequency

2.400-2.4835GHz

5.725-5.850GHz

5.150-5.250GHz

Max transmission distance (unobstructed, free of interference)

FCC: 12km; CE: 6km

Operating temperature

0℃ ~ 40℃

Transmission power (EIRP)

FCC: ≤30dBm

CE: ≤20dBm

Battery capacity

3930mAh

Max battery life

~2.5 h (when connected to mobile phone)

~3.5 h (when not connected to mobile phone)

Interface type

Type C

Transmission system

Autel SkyLink

Realtime transmission quality

Transmission distance<1km: 2.7K 30fps

Transmission distance>1km: 1080P 30fps

Transmission bitrate

90Mbps

Transmission delay

≤200ms

Smartphone/Tablet holder size

Length ∞, Width 83mm, Height 13mm

Adapter

Input

100-240V/50-60HZ

Output

12.75V⎓5A

Rated power

63.75W

Battery

Capacity

6175 mAh

Voltage

11.13V

Maximum charging voltage

12.75V

Battery type

LiPo 3S

Energy

68.7 Wh

Charging temperature

5℃ to 45℃

Operating temperature and humidity

-10℃ to 40℃

Single battery charging time

90 minutes

Max charging power

90W

App

Mobile app

Autel Sky

Mobile system required

iOS 13.0 and above

Android 6.0 and above

Storage

Built-in storage

6GB

SD storage

Max. support 256GB(UHS-3 rating required)
