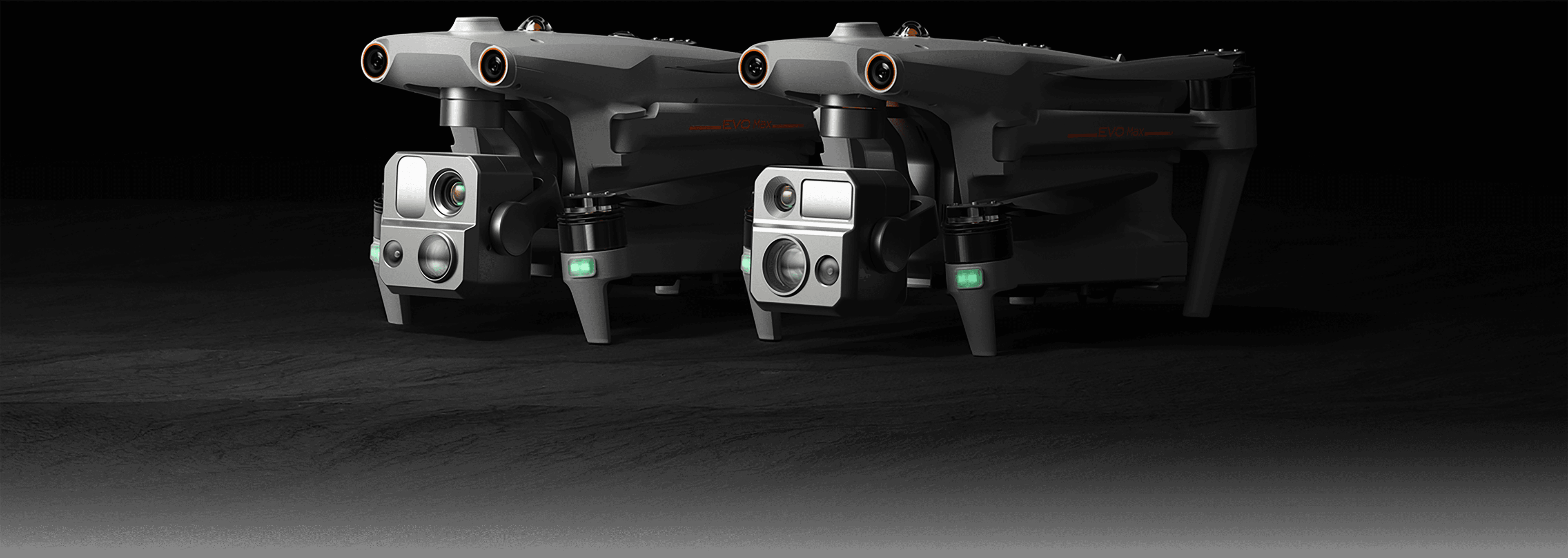

EVO Max Series
Reach New Frontiers
Reach New Frontiers
The EVO Max series brings you advanced autonomy. It assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS unavailable areas possible and the incredible thermal and starlight cameras unlock new object identification and tracking scenarios. With a foldable, weather-resistant design, the series is as portable as it is capable.
720° Obstacle Avoidance
Navigation In GPS Denied Environments
A-Mesh Networking
0.0001 LUX Starlight Camera
Hot-Swappable Batteries
12.4 Miles Transmission Range
42 min Max. Flight Time

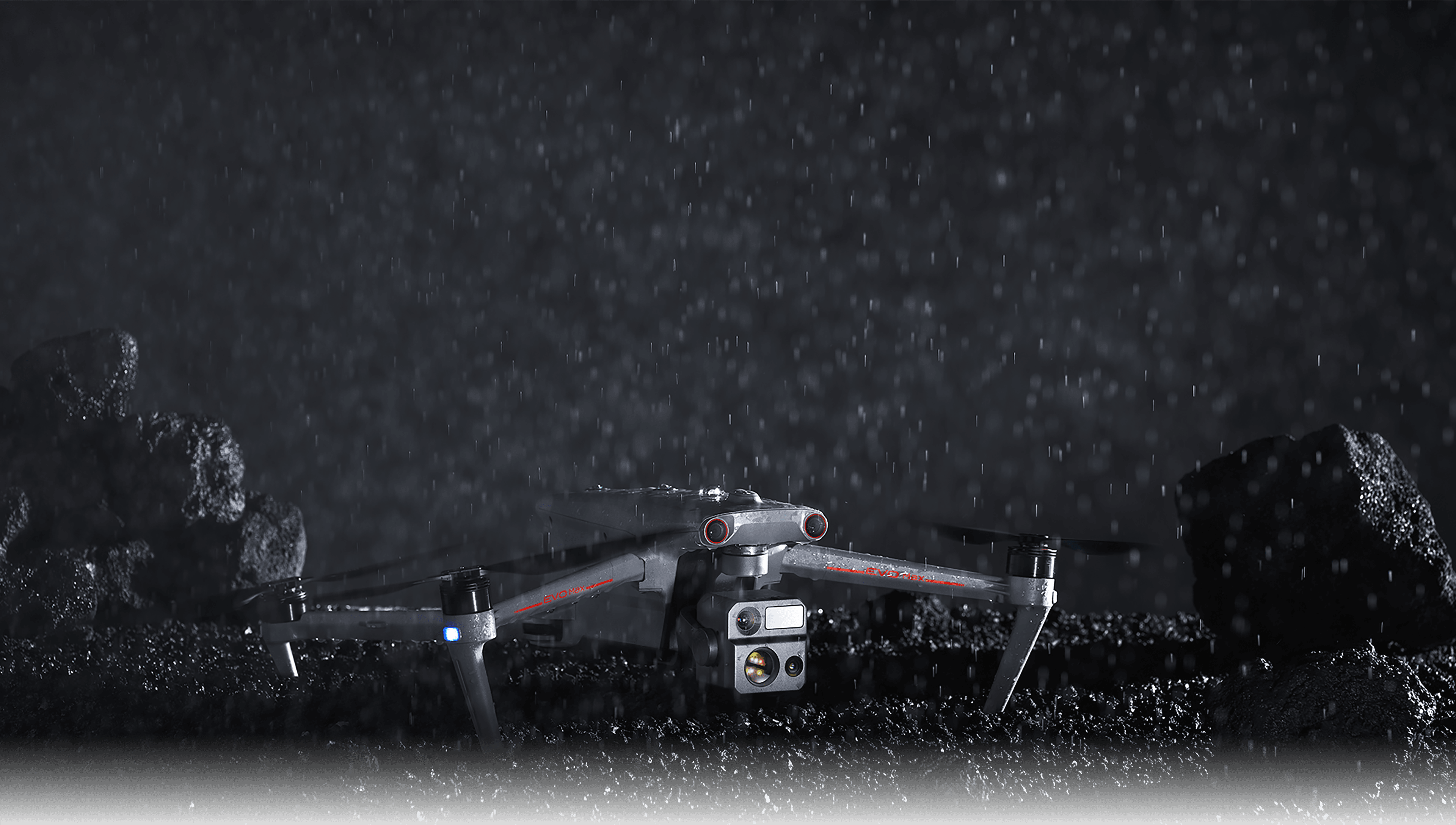

IP43 Weather Rating *

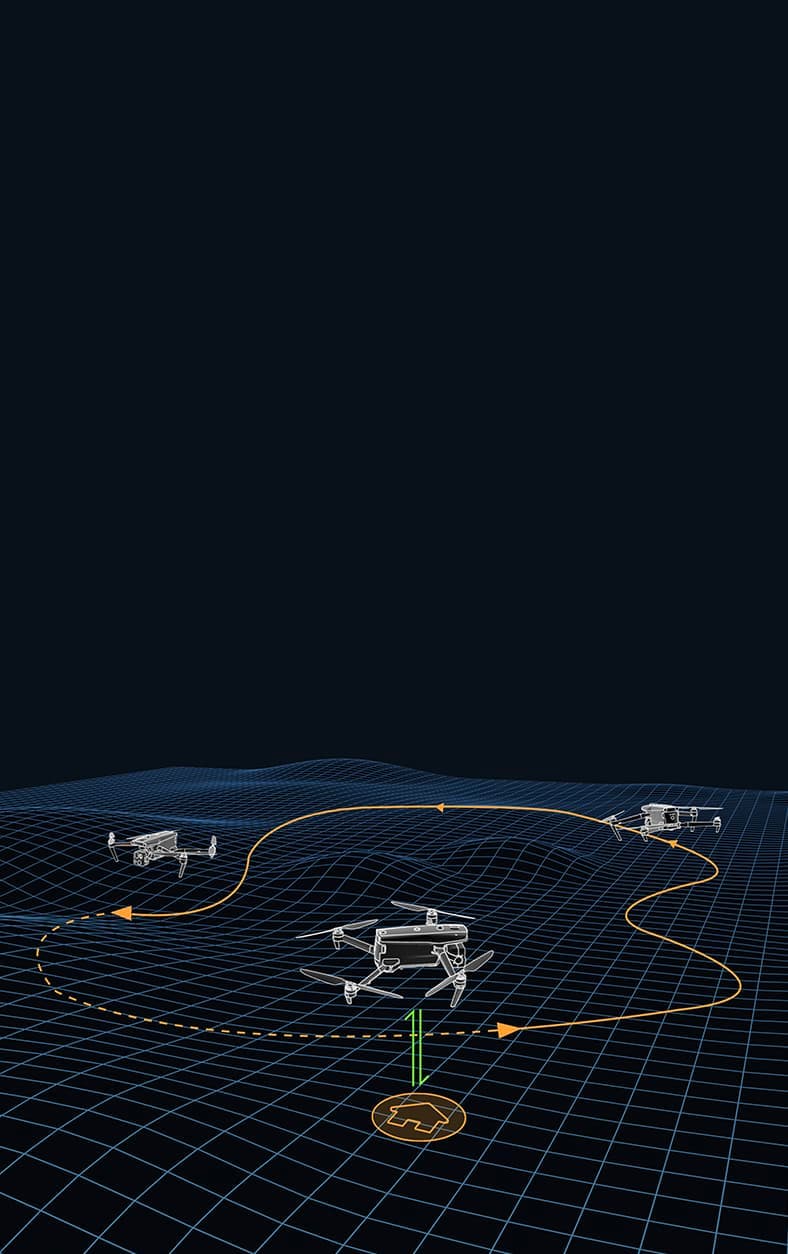

Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

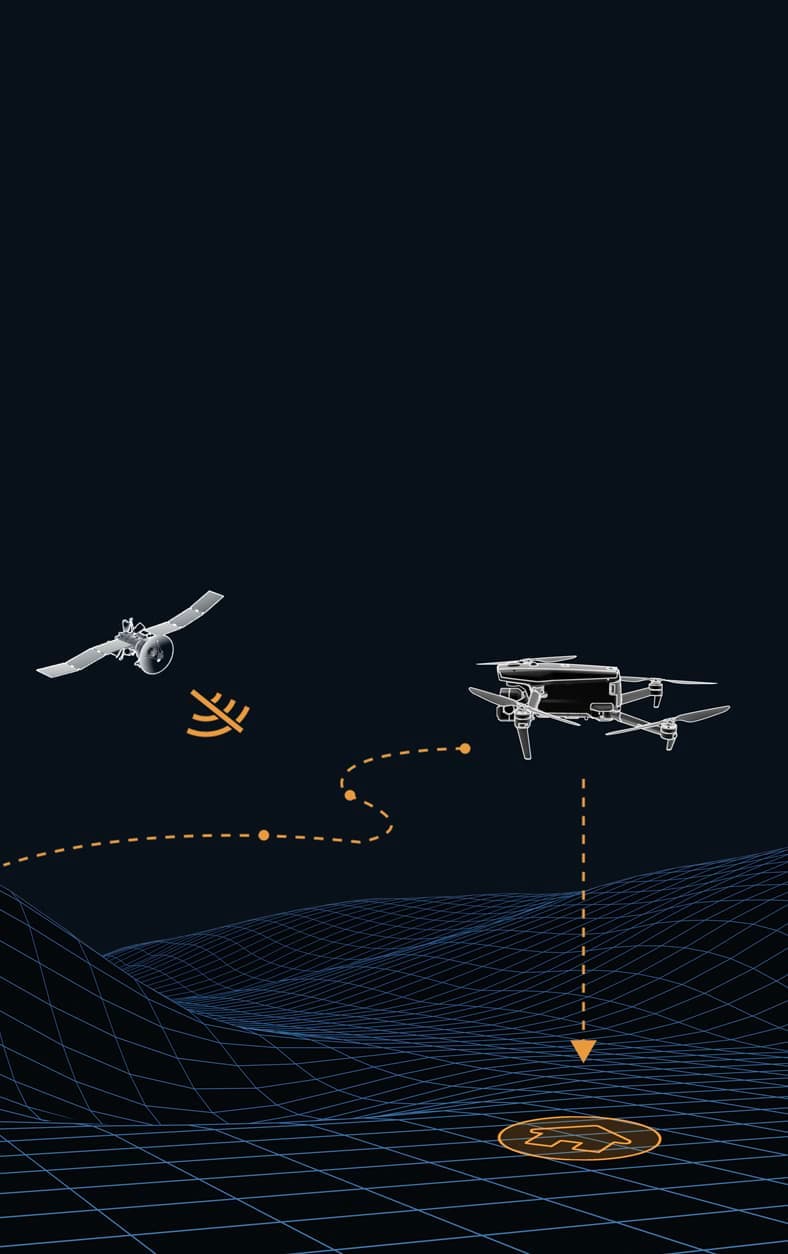

Navigation in GPS Denied Environment
Advanced sensors allow the EVO Max series to navigate within hardened structures, underground, or in environments without GPS.

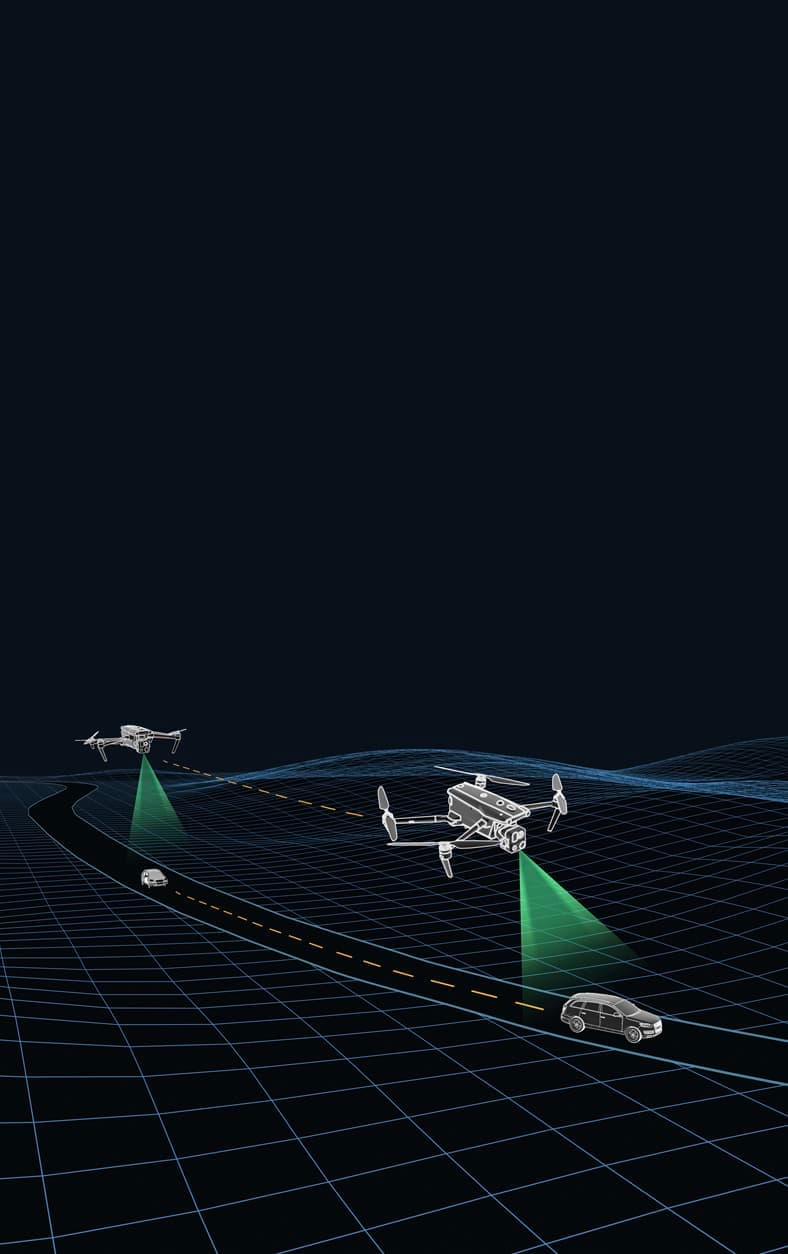

Accurate Object Identification and Tracking
Based on Autel's AI recognition technology, the EVO Max series can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

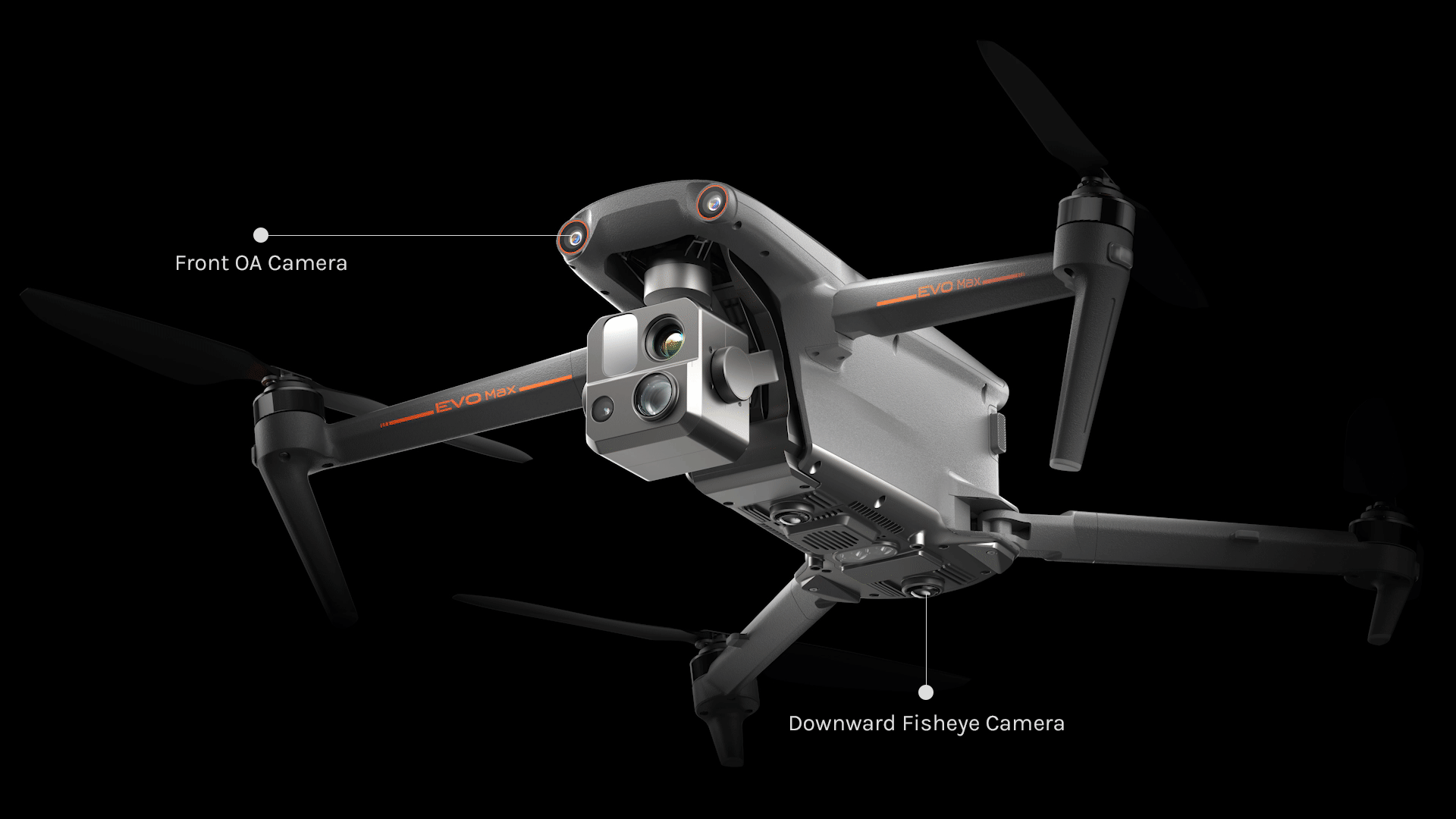

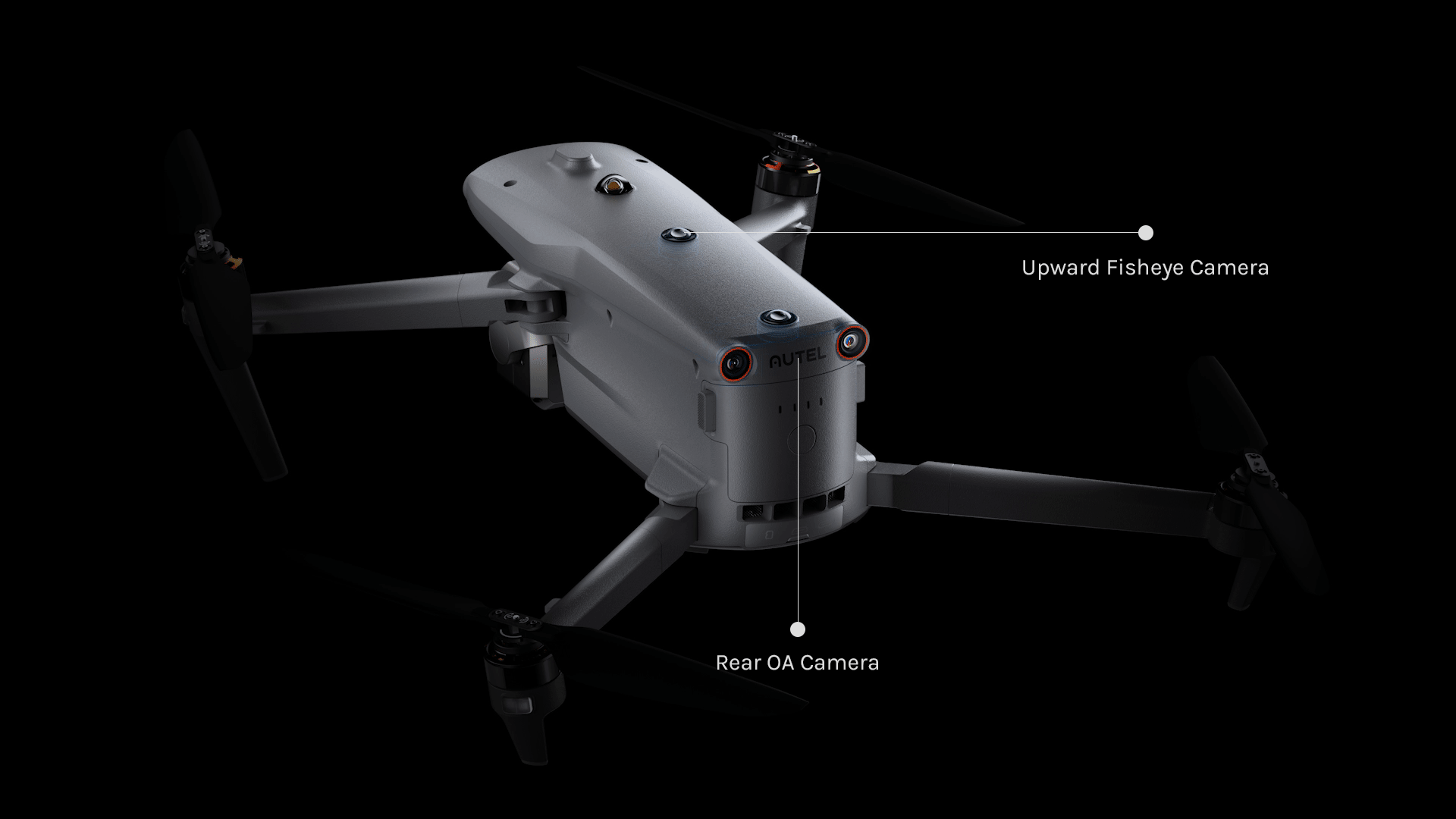

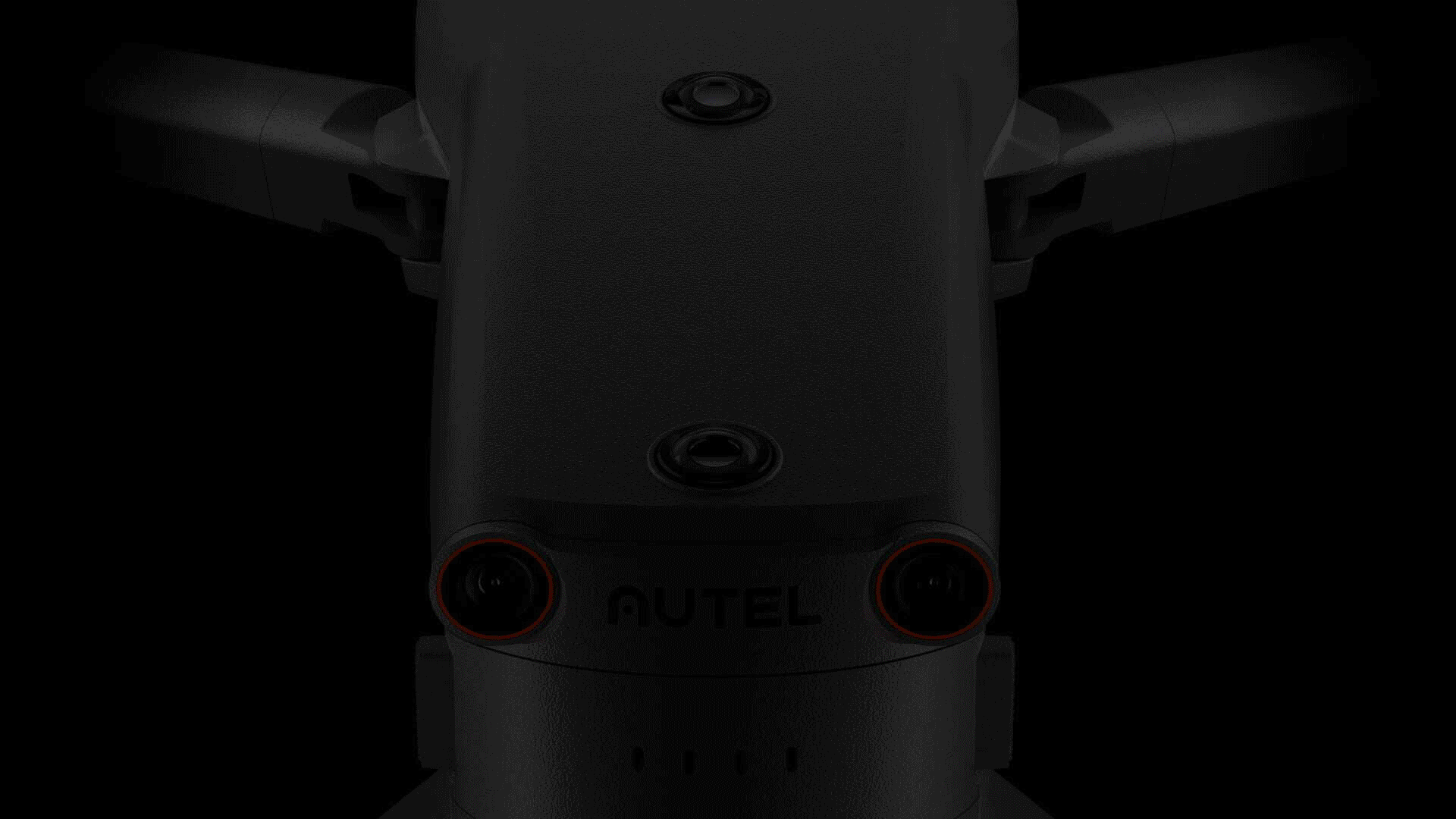

No Blind Spots
Ultimate Obstacle Avoidance
The EVO Max series is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the onboard Autel Autonomy Engine to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.
Anti Interference
The EVO Max series uses advanced flight control modules and algorithms specially designed to resist interference, which enables the EVO Max series to fly confidently near power lines, critical structures, and in complex areas.
A-Mesh 1.0 - The Drone Industries First Mesh Networking Technology
EVO Max series features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.
Enhanced Anti-Interference
The EVO Max series can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple drones in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-Fleet Control
Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0
SkyLink 3.0 system of the EVO Max Series comes with 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in an EVO.
12.4 miles
Image Transmission Distance
<150ms
Latency
1080p/60fps
Real-Time Image Quality
900MHz/2.4GHz/5.2GHz/5.8GHz**
Frequency Bands
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

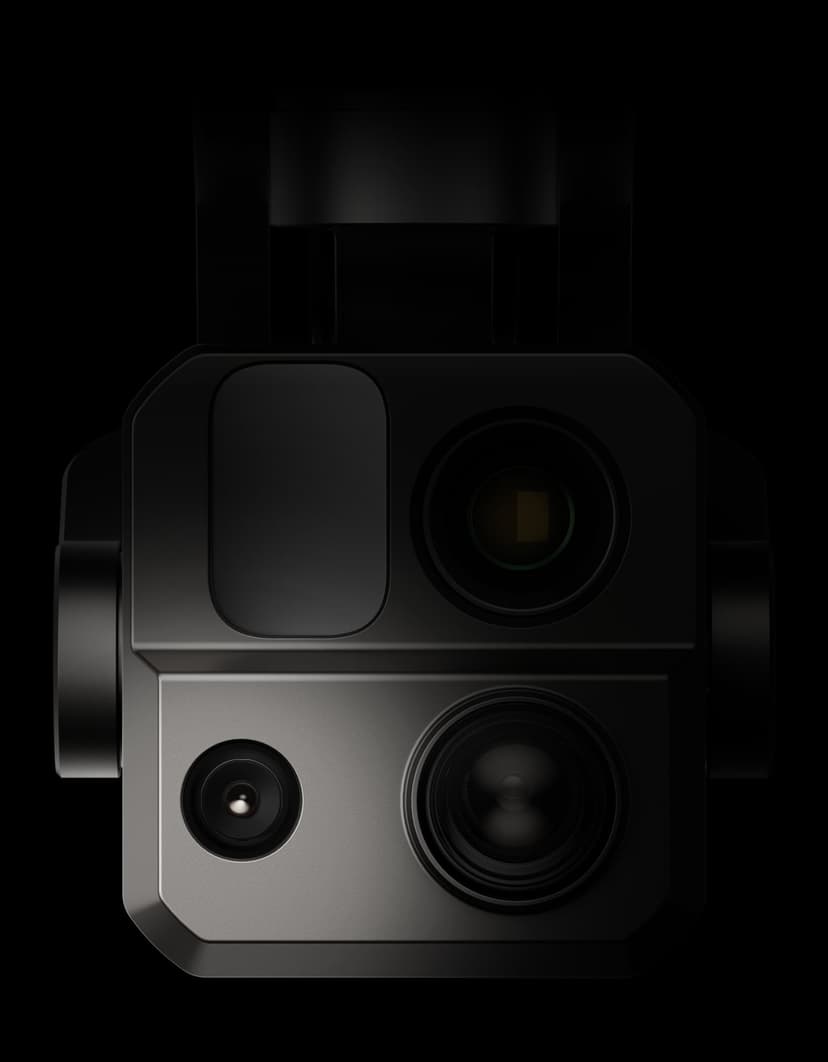

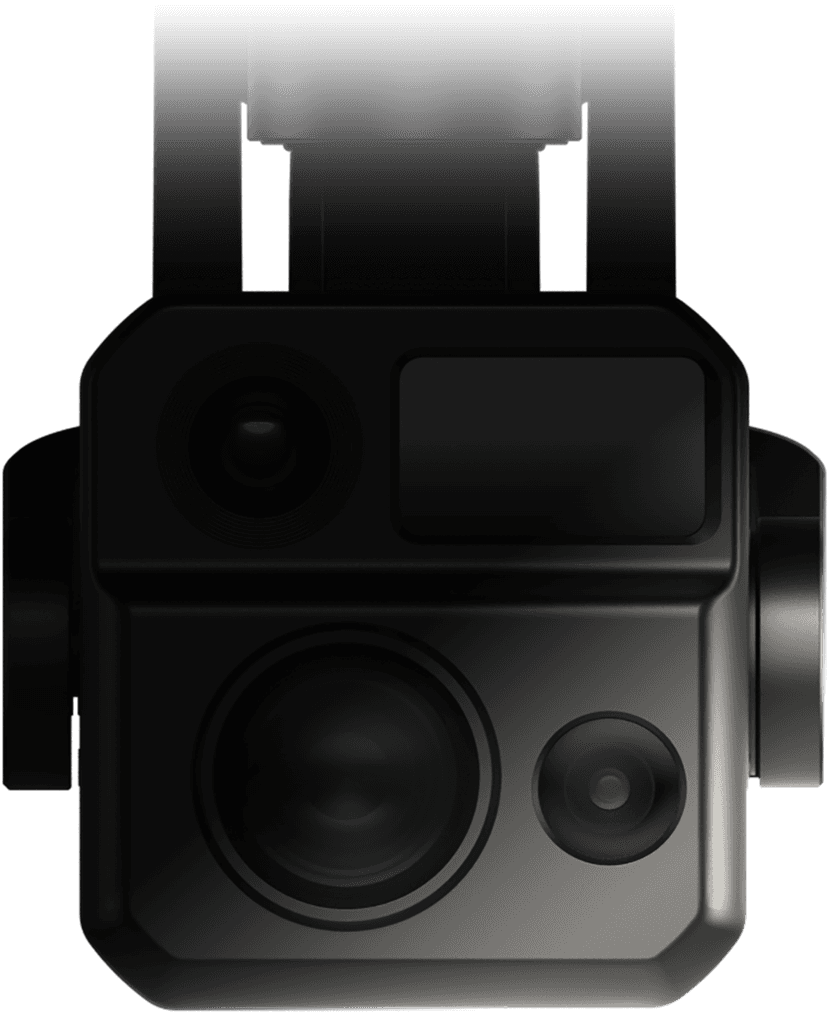

Mission Ready Payload
The payload integrates starlight camera, wide camera, zoom camera, thermal camera, and a laser rangefinder for all data capture needs and critical decision making.
EVO MAX 4T
Chase the heat
Wide Camera
Zoom Camera
Thermal Resolution
Laser Rangefinder
Wide Camera
50MP
1/1.18" CMOS
Aperture: f/1.9
DFVO: 85°
Equivalent: 23mm
EVO MAX 4N
Explore the night
Wide Camera
Thermal Camera
Starlight Camera
Laser Rangefinder
Wide Camera
50MP
1/1.28" CMOS
Aperture: f/1.9
DFVO: 85°
Equivalent: 23mm
Starlight Camera
*EVO Max 4N
Super Zoom
*EVO Max 4T
Supersensitivity
Strong Infrared Perception
Laser Rangefinder
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max series' mission capability.
Smart Features

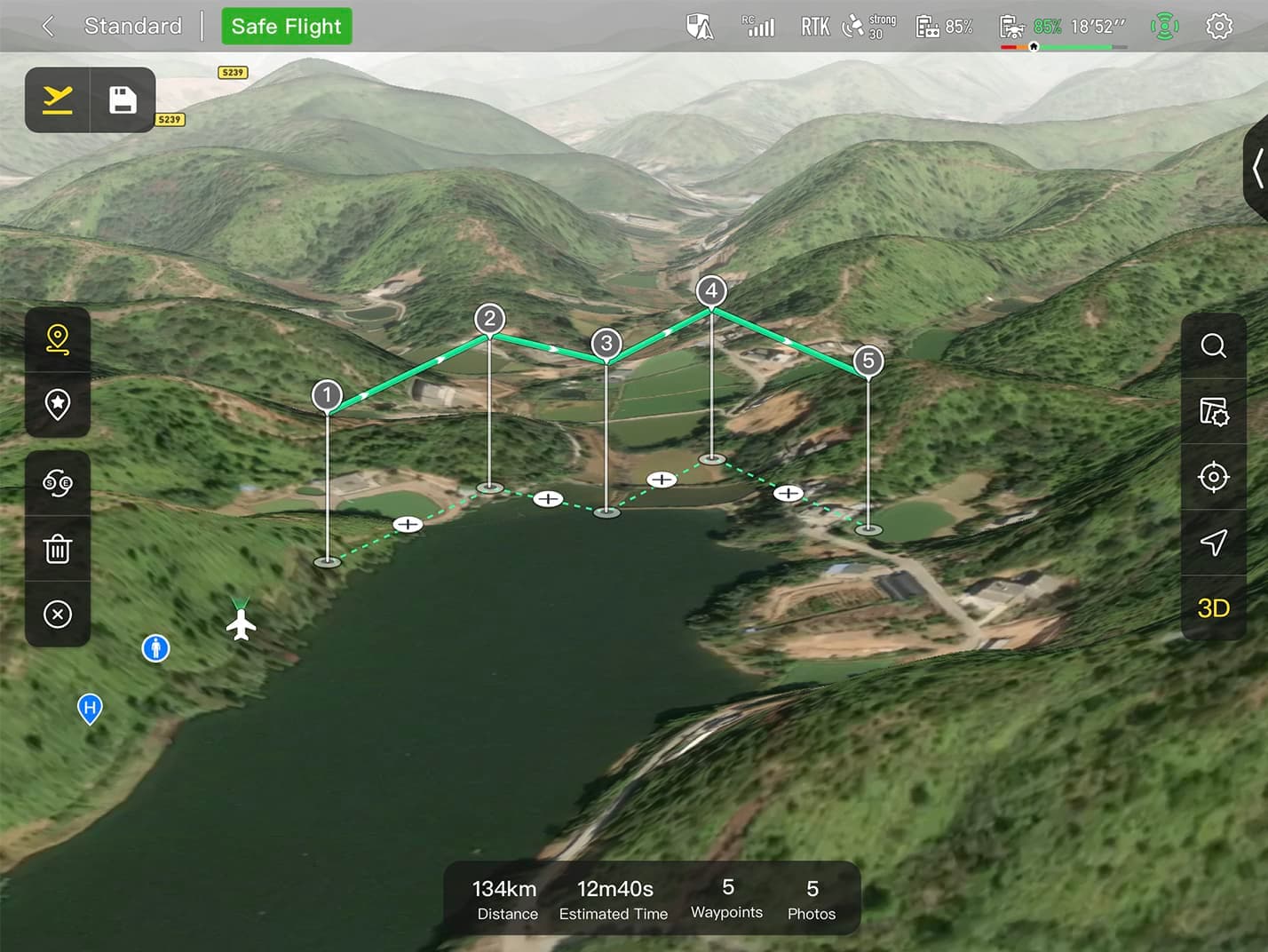

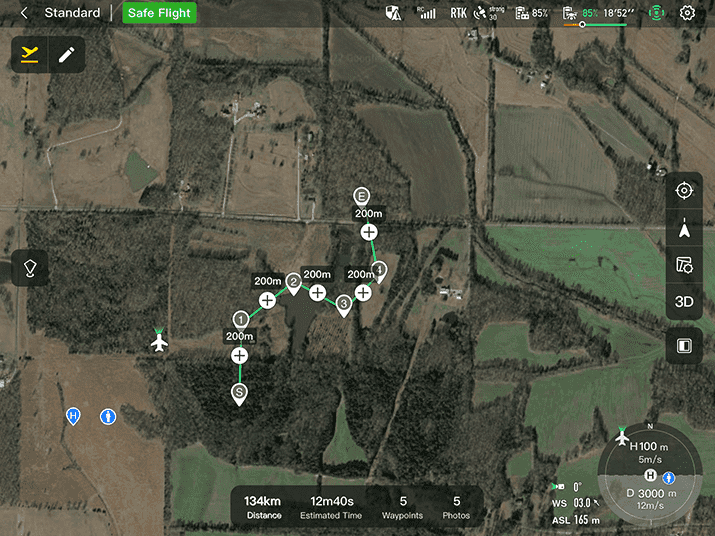

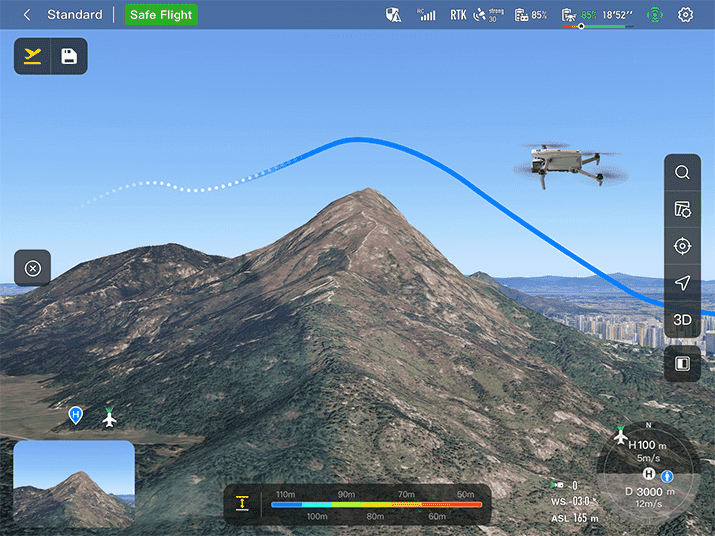

3D Map Planning
Plan, create, and execute 3D waypoint missions on a 3D map, and switch map sources as required.
Quick Mission*
Temporary missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Mission Reproduction*
The EVO Max series automatically records the camera angles and replicates the mission you just flew.
*This feature will be available in a future update.
Multiple Mission Types
The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
Slide left or right to view more.
Automatic Mission Generation And Data Capture*
Automatically produce routes by adding regional boundary points through dots or importing KML files.

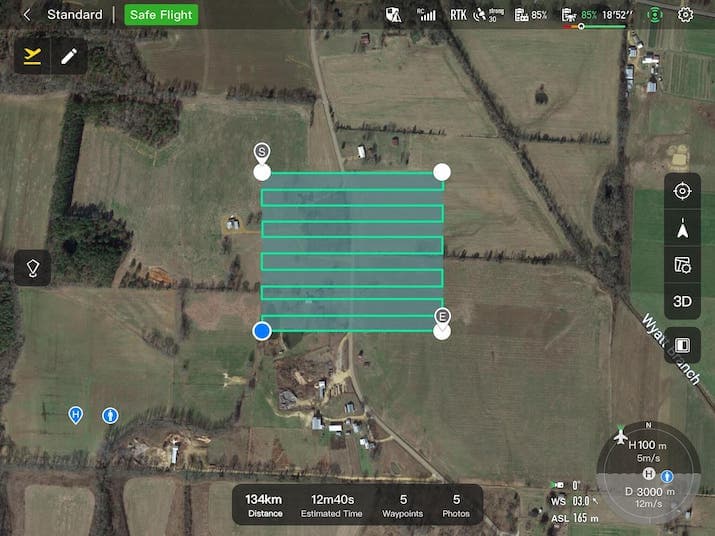

Waypoint Missions
Users can add waypointsfor flexible, non-structured flight paths.
Oblique Photography
Automatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.

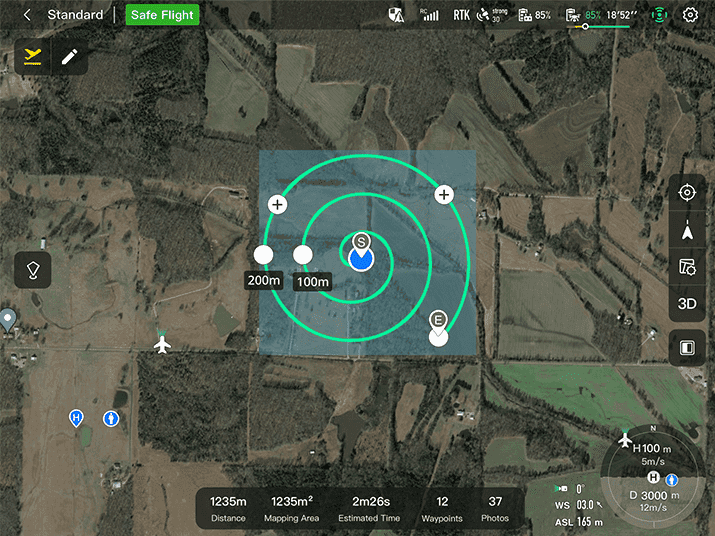

Spiral Mission*
Supports helical flight search in a designated area for SAR.

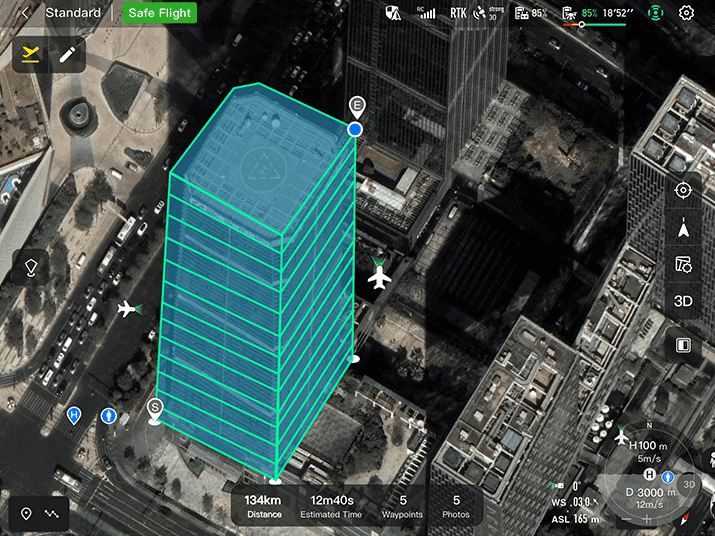

Vertical Scan*
Perform vertical surveys for building facades, open pit walls, and towers.

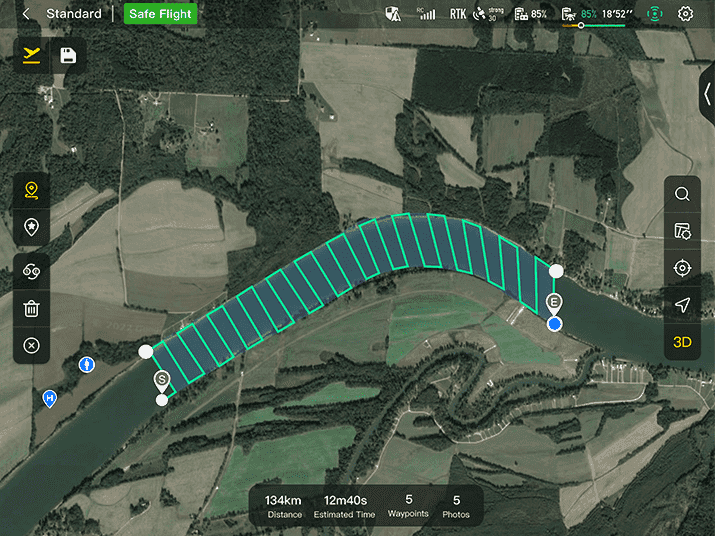

Corridor Mission*
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

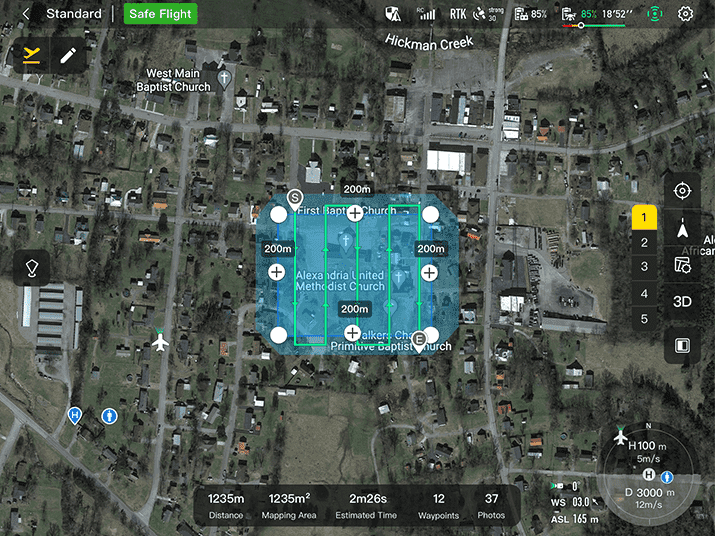

Polygon Mission
Supports one-click automatic generation of polygon flight areas.
Terrain Follow*
Maintain relatively constant altitude from the ground for uneven or sloped terrain.

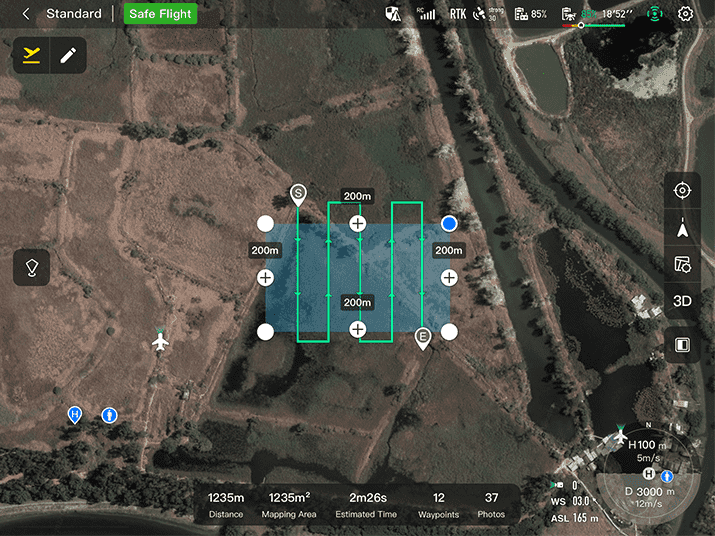

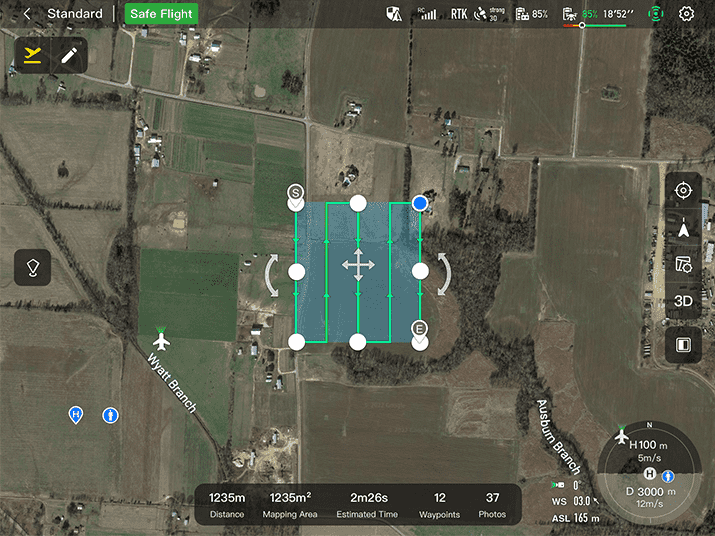

Rectangular Mission
Supports one-click automatic generation of a rectangular flight area.

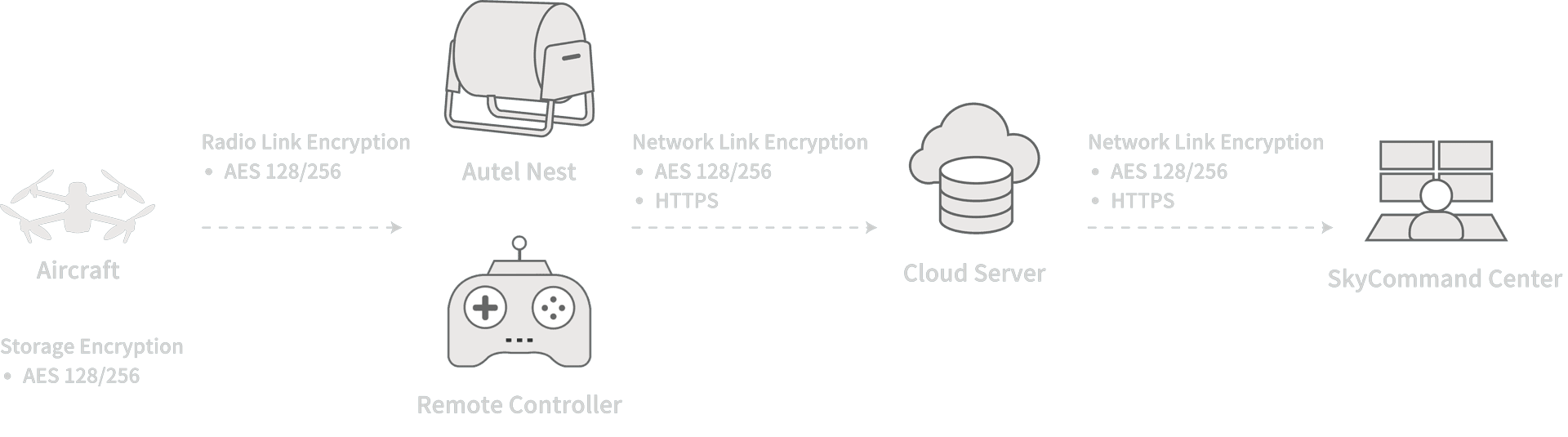

Data Security
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View

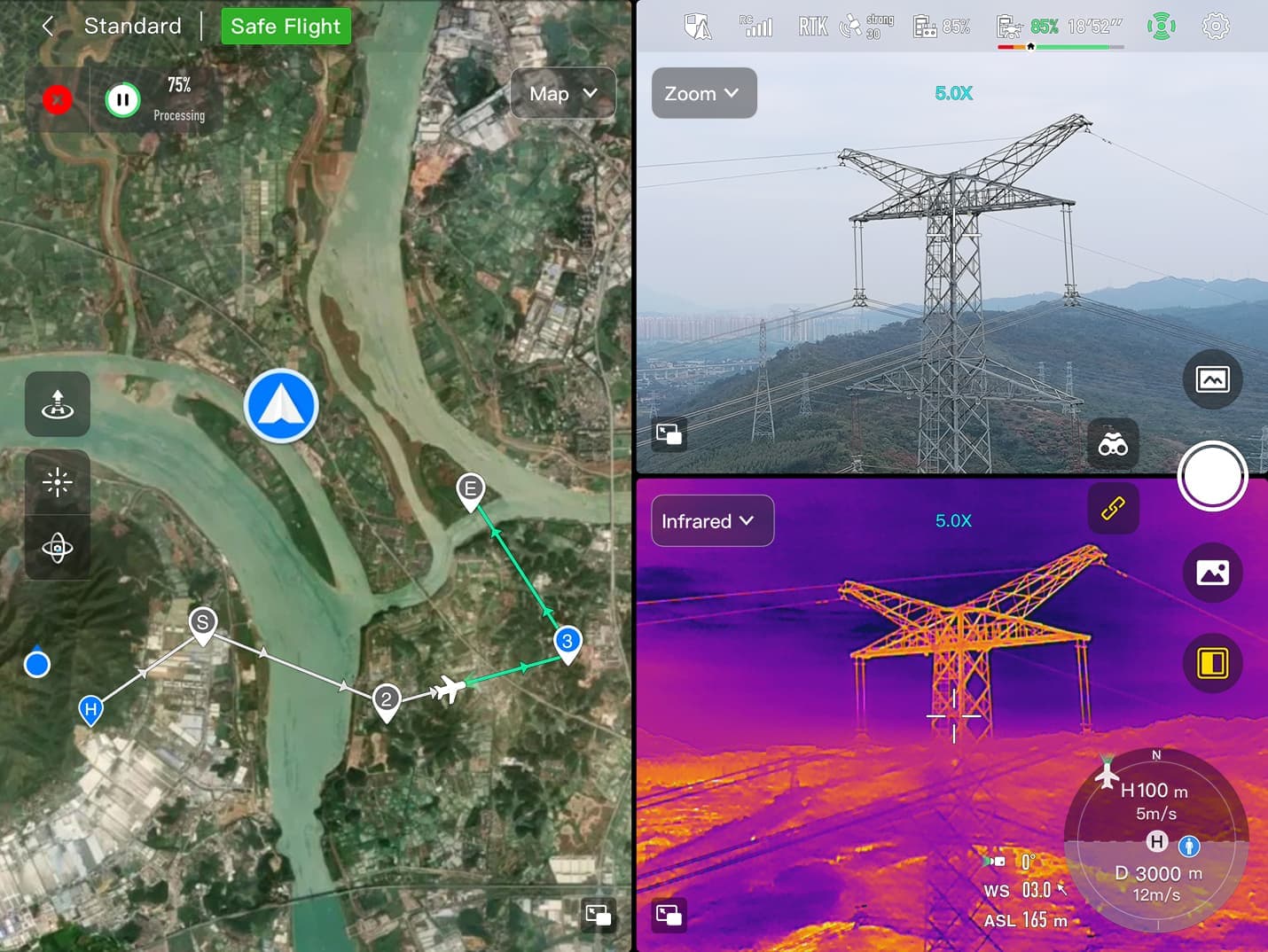

Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
AR Scene*
Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.
*This feature will be available in a future update.
Operating Environment
IP43
IP Rating
-4 ℉ to 122 ℉
Temperature
Complete Remote Operations System
Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK
Open UX SDK (iOS&Android) can directly call up the ready-made interactive interface.
Accessories

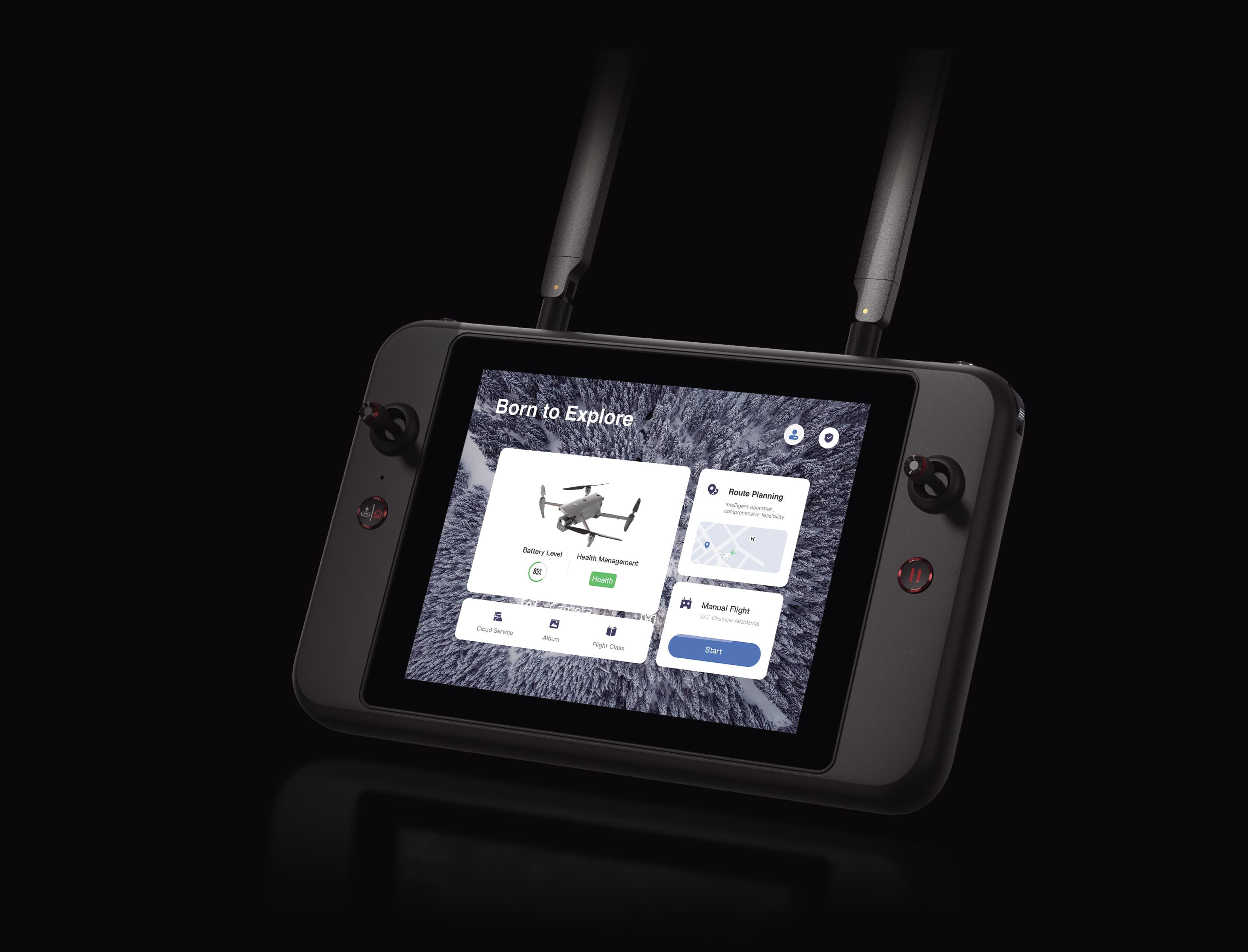

Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution.
SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s.
Functional Interface: HDMI ports allow connection to 3rd party displays or monitors.
Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty.
Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.

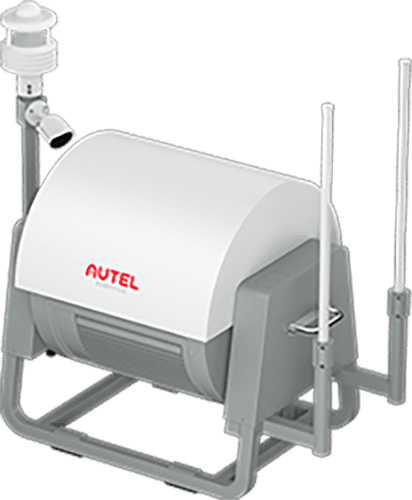

EVO Nest (optional)
EVO Nest is a base for automatic take off, landing, charging, and mission planning for the EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.
Learn more
RTK Module (optional)
Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.

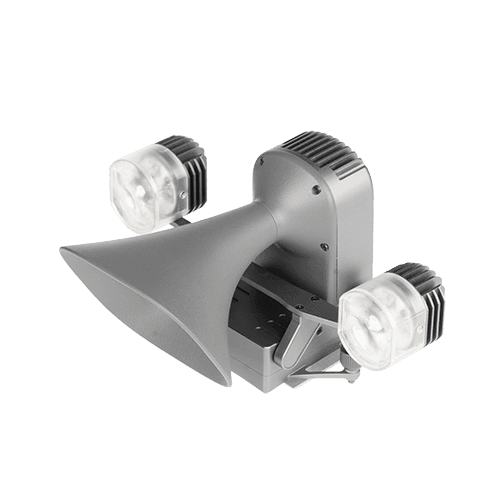

Load Speaker and Spotlight Combo (optional)
Dimension: 145x116x83mm
Electrical Interface: PSDK Interface
Installation Method: Standard quick release mount
Working Temperature: -10 ℃ to 50 ℃
Speaker: Power @10W;
Sound pressure 114db@1 meter;
Broadcasting Distance≥300 m
Spotlight: Follow gimbal pitch;
Brightness level adjustment; 30° to -90° controllable
Applications
Inspection
Search & Rescue
Public Safety

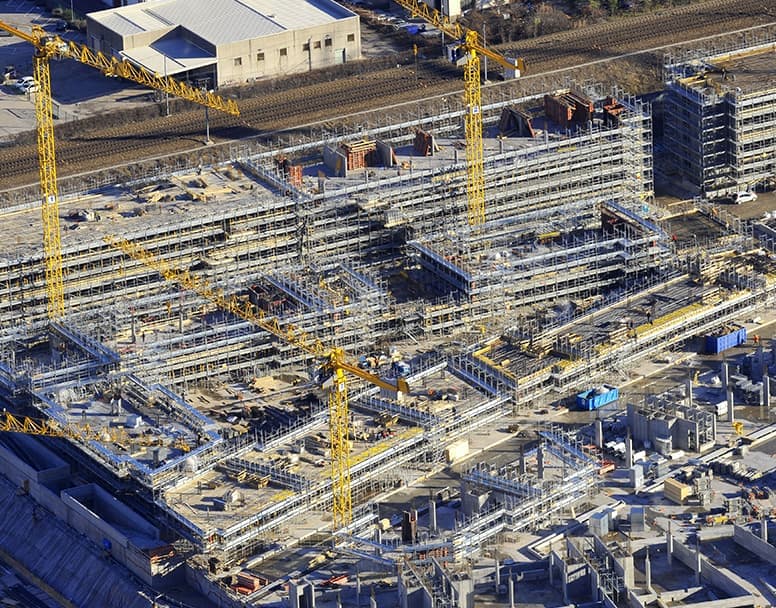

Mapping
Firefighting
Tech Specs
EVO Max Series
Aircraft
EVO Max 4T Weight
3.57 lbs (1620g, battery and gimbal included)
EVO Max 4N Weight
3.62 lbs (1641g, battery and gimbal included)
Max. Takeoff Weight
4.41 lbs (1999 g)
Dimensions
562*651*147 mm (unfolded, incl. propellers)
318*400*147 mm (unfolded, excl. propellers)
257*145*131 mm (folded, excl. propellers)
Diagonal Wheelbase
1.53 ft (466mm)
Max ascent speed
8m/s
Max descent speed
6m/s
Max Horizontal Speed (windless near sea level)
23m/s
Max Service Ceiling Above Sea Level
13,124ft (4000m)
Max Flight Time (windless)
42 mins
Max Hovering Time (windless)
38 mins
Max Wind Resistance
27mph*
*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating
IP43
Max Tilt Angle
35°
Max Angular Velocity
Pitch: 300°/s; Yaw: 120°/s
Operating Temperature
-4°F to 122°F (-20℃ - 50℃)
Operating Frequency
2.4G/5.2G*/5.8G/900MHz*
GNSS
GPS+Galileo+BeiDou+GLONASS
Transmission power
902-928MHz: ≤30dBm(FCC)
2.4GHz: ≤30dBm(FCC), ≤20dBm(SRRC/CE/MIC)
5.8GHz: ≤27dBm(FCC/SRRC), ≤30dBm(SRRC), ≤14dBm(CE)
5.15-5.25GHz: ≤23dBm(FCC/CE)
5.65-5.755GHz: ≤27dBm(MIC)
Hovering accuracy
Vertical: ±0.1 m (Vision System enabled);
±0.5 m (GPS enabled)
Horizontal: ±0.3 m (Visual System enabled);
±0.5 m (GPS enabled)
Wi-Fi Protocol
802.11a/b/g/n/ac/ax
Support 2 x 2 MIMO Wi-Fi
Wi-Fi Operating Frequency
2.400 - 2.4835 GHz;
5.150 - 5.250GHz (CE/FCC/MIC);
5.725 - 5.850 GHz*(Except MIC)
Wi-Fi Transmitter Power (EIRP)
2.4-2.4835GHz: ≤30dBm(FCC), ≤20dBm(SRRC/CE/MIC)
5.15-5.25GHz: ≤22dBm(FCC/CE/MIC)
5.725-5.85GHz: ≤21dBm(FCC/SRRC), ≤21dBm(CE)
Gimbal
Mechanical range
Pan: -135° to 45°
Tilt: -45° to 45°;
Roll: -45° to 45°;
Controllable range
-90° to 30°;
Stable system
3-axis mechanical gimbal (pan, tilt, roll)
Max control speed (pitch)
200°/s
Angular Vibration Range
≤0.005°
EVO Max 4T Zoom Camera (Telephoto)
Sensor
1/2" CMOS, Effective pixels: 48M
Lens
Focal length: 11.8-43.3mm
(35mm, equivalent: 64-234mm)
Aperture: f/2.8-f/4.8
ISO range
Normal Mode:
Auto: ISO100 ~ ISO6400
Manual:
Photo: ISO100 ~ ISO12800
Video: ISO100 ~ ISO6400
Shutter speed
Photo: 8s ~ 1/8000s
Video: 1s ~ 1/8000s
Max Photo Size
8000x6000
Max Video Resolution
7680x4320
EVO Max 4N Starlight Camera
Sensor
Effective Pixels: 2.3M
Lens
Focal Length: 35mm (equivalent 41.4mm)
FOV: 52°
Zoom Range: 1-8x, supports linkage zoom
ISO Range
Auto: ISO100-ISO450000
Super Sensitive Mode:
Auto: ISO100-ISO450000
Camera Modes
Single shot (default)
Photo Format
JPG
Photo Resolution
1920x1200
Video Format
MP4
Video Resolution
20Mbps (1920x1200 P30)
HDR Video
Auto
Video Output
Super Sensitive Mode: 1920x1200 P30
EVO Max 4T Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
FOV: 42°
Focal length: 13mm
Focus: f/1.2
Focusing Distance: 6m ~ ∞
Infrared Temperature Measurement Accuracy
±3 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉Video Resolution
640*512 @ 30fps
Photo Size
640*512
Pixel Pitch
12 um
Temperature Measurement Method
Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range
-4℉ to 302℉, 32℉ to 1022℉
(-20℃ to 150℃, 0℃ to 550℃)
Temperature Alert
High and low temperature alarm thresholds, reporting coordinates and temperature values
Wide Camera
Sensor
1/1.28 CMOS, Effective pixels: 50M
Lens
FOV: 85°
Focal length: 4.5 mm (equivalent: 23 mm)
Aperture: f/1.9
AF motor: PDAF focus
Exposure Compensation
±3EV 0.3EV/step
ISO Range
Photo: ISO100~ISO12800
Video: ISO100~ISO6400
(Night scene mode: up to ISO64000)
Shutter Speed
Photo: 8s ~ 1/8000s
Video: 1s ~ 1/8000s
Max. Video Resolution
4000x3000
Photo Size
4096*3072
Laser Range Finder
Measurement Accuracy
± (1 m + Dx0.15%) D is the distance to a vertical surface
Measuring Range
5m to 1.2km
Image Transmission
Operating Frequency
2.4G/5.2G*/5.8G/900MHz*
*5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Max Transmission Distance (unobstructed, free of interference)
12.4 miles/20km (FCC), 4.9 miles/8km (CE)
Independent Networking
Autel Smart Controller V3
Transmitter Power (EIRP)
902-928MHz: ≤30dBm (FCC)
2.4GHz: ≤33dBm(FCC), ≤20dBm(CE/SRRC/MIC)
5.15-5.25GHz: ≤23dBm(FCC/SRRC/MIC)
5.65-5.755GHz: ≤27dBm (MIC)
5.8GHz: ≤33dBm(FCC), ≤30dBm(SRRC), ≤14dBm(CE)
Millimeter-wave Radar Sensing System
Frequency
60Ghz~64Ghz*
*Please fly safely and consult your local laws and regulations.
Sensing Range
60GHz radar:
Upper: 0.98-787.4in(0.3~20m)
Downward: 5.9-3149.6in(0.15~80m)
Forward and Backward: 0.98-98.43ft(0.3~50m)
24GHz radar:Downward: 2.62-39.4ft(0.8~20m)
FOV
Horizontal(6dB): ±60°/±22° (60Ghz/24Ghz)
Vertical(6dB): ±30°/±20° (60Ghz/24Ghz)
Speed Measurement Range
60GHz Millimeter-wave Radar Sensing System: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 6 directions: forwards, backwards, left, right, and above and below. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
24GHz Millimeter-wave Radar Sensing System: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 20 meters, and the sensing range of grass with a thickness of more than 3cm is less than 10 meters.
Visual Sensing System
Obstacle Sensing Range
Forward: 19.7-1220.5in (0.5-31m)
Backward: 19.7-984.3in (0.5-25m)
Sideward: 19.7-1023.6in (0.5-26m)
Upward: 0.66-85.3ft (0.2-26m)
Downward: 0.98-75.5ft (0.3-23m)
FOV
Forward/Backward Sensor: 60°(H), 80°(V)
Upward/Downward Sensor: 180°(sideward), 120°(forward & backward)
Operating Environment
Forward, Backward, Sidewards, Upward: Supports all-day, all-weather obstacle avoidance for obstacles such as glass, water surfaces, small branches, buildings, and power lines. Requires sufficient illumination conditions or strong reflection ability of obstacles to electromagnetic waves. Downwards: The surface has rich textures and adequate lighting conditions (>15 lux, in normal indoor lighting environments).
Autel Smart Controller V3
Screen
7.9 inch, 2000nits max. brightness, 2048*1536 resolution
External Battery
Capacity: 5800mAh
Voltage: 11.55V
Battery Type: Li-on
Energy: 67Wh
Charing time: 120mins
Intelligent Lithium Ion Battery
Operating time
2.5 hours (Max. Brightness)
4.5 hours (50% Brightness)
Max Transmission Distance (withinterference)
12.4 miles/20km (FCC)
4.9 miles/8km (CE)
IP Rating
IP43
Storage
128GB
GNSS
GPS+GLONASS+Galileo+Beidou
Operating Temperature
-20℃ to 40℃
Wi-Fi Protocol
WiFi Direct, Wi-Fi Display
802.11a/b/g/n/ac
Support 2 x 2 MIMO Wi-Fi
Operating frequency
2.400-2.4835GHz
5.150-5.250GHz
5.725-5.850GHz
Transmission power (EIRP)
2.400 - 2.4835 GHz
FCC/CE: ≤20dBm
5.150 - 5.250 GHz
FCC: ≤17dBm
5.725 - 5.850 GHz
FCC: ≤17dBm
CE: ≤14dBm
Aircraft Battery
Capacity
8070mAh
Voltage
14.88V
Battery type
LiPo 4S
Energy
120Wh
Net Weight
1.15 lbs (520g)
Charging temperature
5℃ to 45℃ When the temperature is lower than 10℃, the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery.
Hot Swap
Support
