H1000

Our most popular light hexacopter is the H1000. With a payload capacity of up to 3 kg, the H1000 drone can be installed with almost any kind of camera: surveillance, mapping, or even movie shooting. Paired with a 15 km long-range video transmission and remote control, it is now possible to perform unmanned drone missions like never before.

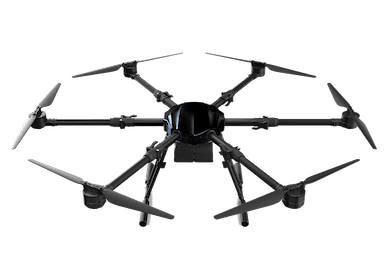

H1600

For payloads of up to 20 kg, we have the powerful H1600 hexacopter for you. We have designed the H1600 to be the simplest heavy load drone, built to carry just about anything from delivery cargo to spectrum analyzers. Pair the H1600 with a ground control station to perform everyday tasks most professionally and efficiently.

Built-in Safety Features

With a rigid frame made of reinforced plastics, carbon fiber and strong mechanical joints, the H1000 and H1600 are built tough to withstand all mission conditions. Electronic failsafe and redundancies are designed for the autopilot flight controller, preventing accidents and unsafe operations.

Water and Dust Resistant

The multipurpose drones H1000 and H1600 are built to work in tough environments. Water and dust resistance are designed for these machines. All the core components are shielded, and you can operate your missions in all weather conditions.

Foldable or Disassemble for Storage

Transporting, unpacking, and assembling is a big part of any drone mission. The H1000 and H1600 are designed to be easily folded in just a few minutes for storage and transportation. Get the drones working in just a few quick easy steps, without any hassle.

Smart LiPo Batteries

Alphaswift drones are powered by Tattu LiPo smart batteries. With the quick charging technology and ultra-high capacity, flying with just a few packs of batteries for the whole mission is now a possibility. The Smart Battery Management System (BMS) allows you to monitor your battery usage, increases safety, and enhances battery life.

Tattu Pro Smart Battery

Tattu Plus 1.0 Smart Battery

Powerful and Precise

Both H1000 and H1600 can reach top speeds of up to 20 m/s, that is one football field in 5 seconds! Get to your destination quickly and hover at the spot with a precision of 5 centimeters with our RTK GPS.

Go the Distance

The H1000 and H1600 have a very high endurance and can reach up to 20 km in a single charge. Distance and speed matter a lot in an emergency mission, and you can rely on the H1000 and H1600 to save lives.

Advanced Flight Controller

Powered by Pixhawk Cube Orange, our multicopters are capable of operating autonomously without any pilot input. The Pixhawk Cube Orange is an NDAA compliant, Executive Order 13981 Compliant autopilot flight controller, authorized for usage for the US Defence. Have all kinds of customized unmanned missions and operations built to your specifications.

Buy now

Heavy Duty Ground Control Station

Choose between a ruggedized, long-endurance Ground Control Station with dual monitors, or an ultra-portable Remote Control with a smartphone for your next drone mission. Both types of equipment are capable of up to 15km of control and HD video transmission.

Unlimited Payload Options

A quick-release adapter for interchangeable payloads is available for both H1000 and H1600. Here is a list of example payload options available for your mission. Talk to us about any new payload that you need to perform your mission, and we will design and build the best drone configuration for you.

Payload Supported

Security and surveillance camera with Pan Tilt Zoom

Thermal camera

Fire extinguishers

Spotlight Megaphone speaker

Multispectral Camera

Telecommunication Spectrum Analyzer

Winch system

LiDAR

Mapping Camera

Cargo Box

Tech Specs

H1000 H1600

Structure

Material

Carbon Fiber

Wheelbase

1000 mm

Assembled size

1500 * 1500 * 680 mm

Water resistance

IP64

Propulsion

Motor

5008 Brushless 300KV

Propellers

18 inch

Max Thrust

3.5 kg per motor

Battery

6S 22000 mAh LiPo Battery

Performance

Operating Temperature

0 - 45 Celsius

Navigation System

GPS
Obstacle Avoidance (Optional)
Terrain Following (Optional)

Navigation Sensors

GPS Antenna
Camera
Radar
RTK GPS (Optional)

Failsafe RTL Condition

Low Battery
Transmission Loss

Ease of Use

Geofence
Auto Waypoint Following
Real-time Data and Video
Interchangeable Payload
Night Light (Optional)

Empty Weight

5.2 kg (w/o battery & payload)

Battery Weight

2.4 kg

No Payload Weight

7.6 kg

Max. Payload Weight

3 kg

Max. Take-off Weight

10.6 kg @ sea level

Standard Take-off Weight

9 kg

Hovering Time

43 mins w/o payload
25 mins w/ 3 kg payload

Max. Operation Speed

20 m/s

Max. Flying Speed

20 m/s

Wind Resistance

Scale 6, 13 m/s

Autopilot Software

Ease of Use

Autonomous Operation
Easy Calibration
Auto Tuning

Remote Control/Ground Control Station

Operating Frequency

2.4 GHz

Max Range

15 km

Camera

Camera

HD Live Stream

Structure

Material

Carbon Fiber

Wheelbase

1628 mm

Unfolded size

1720 * 1500 * 556 mm

Folded size

1073 * 956 * 546 mm

Water resistance

IP64

Propulsion

Motor

XRotor Pro X8 KV100

Propellers

30 inch

Max Thrust

15 kg per motor

Battery

Tattu 12S 22000 mAh Smart LiPo Battery

Performance

Operating Temperature

0 - 45 Celsius

Navigation System

GPS
Obstacle Avoidance (Optional)
Terrain Following (Optional)

Navigation Sensors

GPS Antenna
Camera
Radar
RTK GPS (Optional)

Failsafe RTL Condition

Low Battery
Transmission Loss

Ease of Use

Geofence
Auto Waypoint Following
Real-time Data and Video
Interchangeable Payload
Night Light (Optional)

Empty Weight

20 kg (w/o battery & payload)

Battery Weight

6 kg

No Payload Weight

26 kg

Max. Payload Weight

20 kg

Max. Take-off Weight

46 kg @ sea level

Standard Take-off Weight

36 kg

Hovering Time

34 mins w/o payload
11 mins w/ 20 kg payload

Max. Operation Speed

15 m/s

Max. Flying Speed

15 m/s

Wind Resistance

Scale 6, 13 m/s

Autopilot Software

Ease of Use

Autonomous Operation
Easy Calibration
Auto Tuning

Remote Control/Ground Control Station

Operating Frequency

2.4 GHz

Max Range

15 km

Camera

Camera

HD Live Stream
