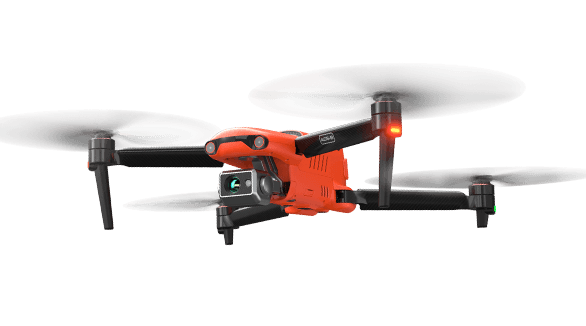

EVO II Enterprise V3

Reliable and Dependable

Compact. Versatile. Powerful.

EVO II Enterprise V3 integrates a superior imaging system, an upgraded 15km image transmission (SkyLink 2.0) and additional accessories in order to meet different aerial needs including inspection, search and rescue, law enforcement, fire fighting, and more. The foldable design empowers industry users with an efficient and portable aerial work tool.

SkyLink 2.0 Transmission

360° Obstacle Avoidance

Moonlight Algorithm 2.0

Modular Accessories

Centimeter-level Positioning with RTK

ADS-B Signal Receiver

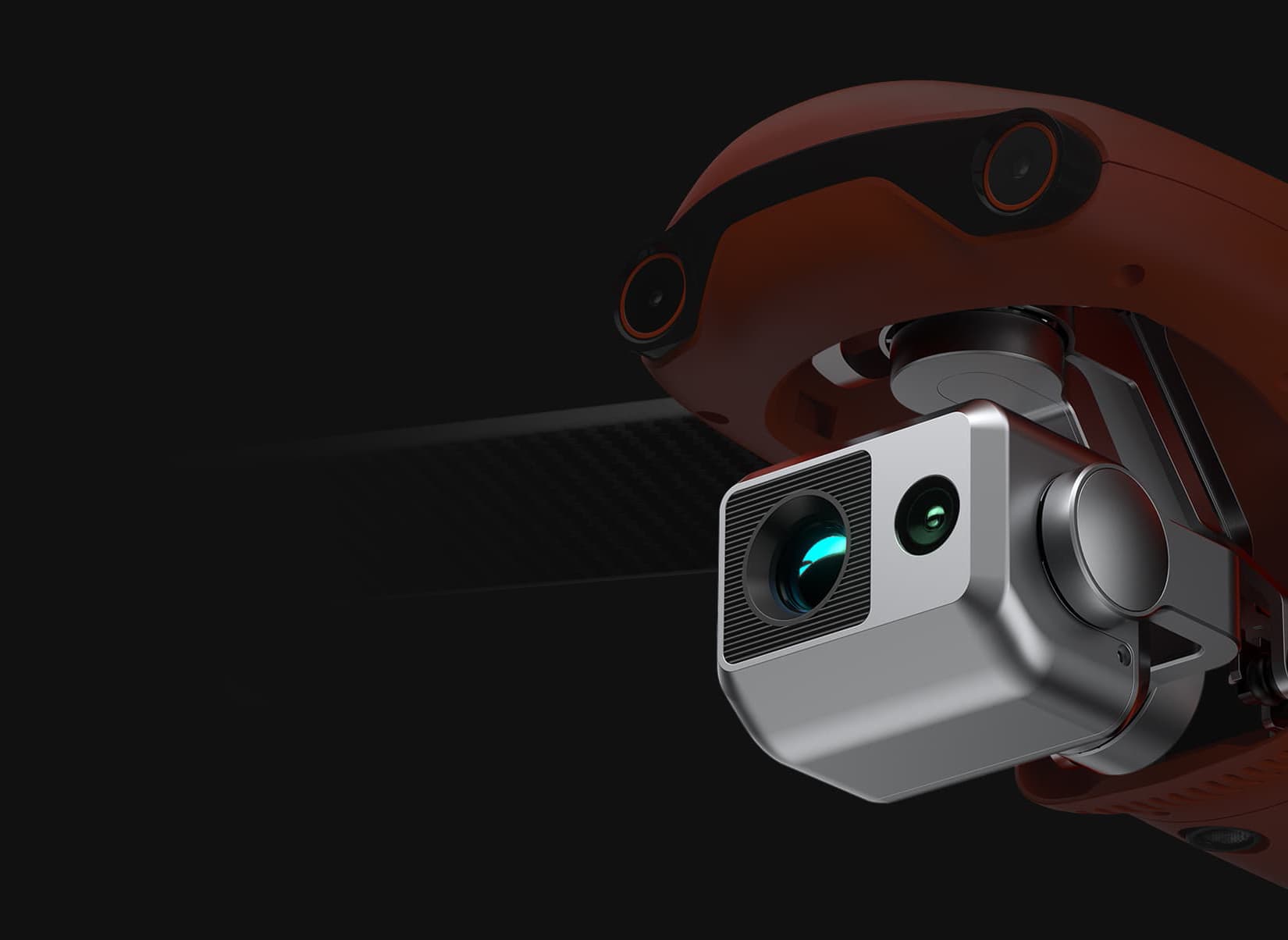

EVO II Dual 640T Enterprise V3

640x512 30Hz Thermal Imaging Sensor

Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.

.8" RYYB CMOS Sensor

Equipped with a .8" RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, classify subjects in low light situations and proceed with certainty.

EVO II Pro Enterprise V3

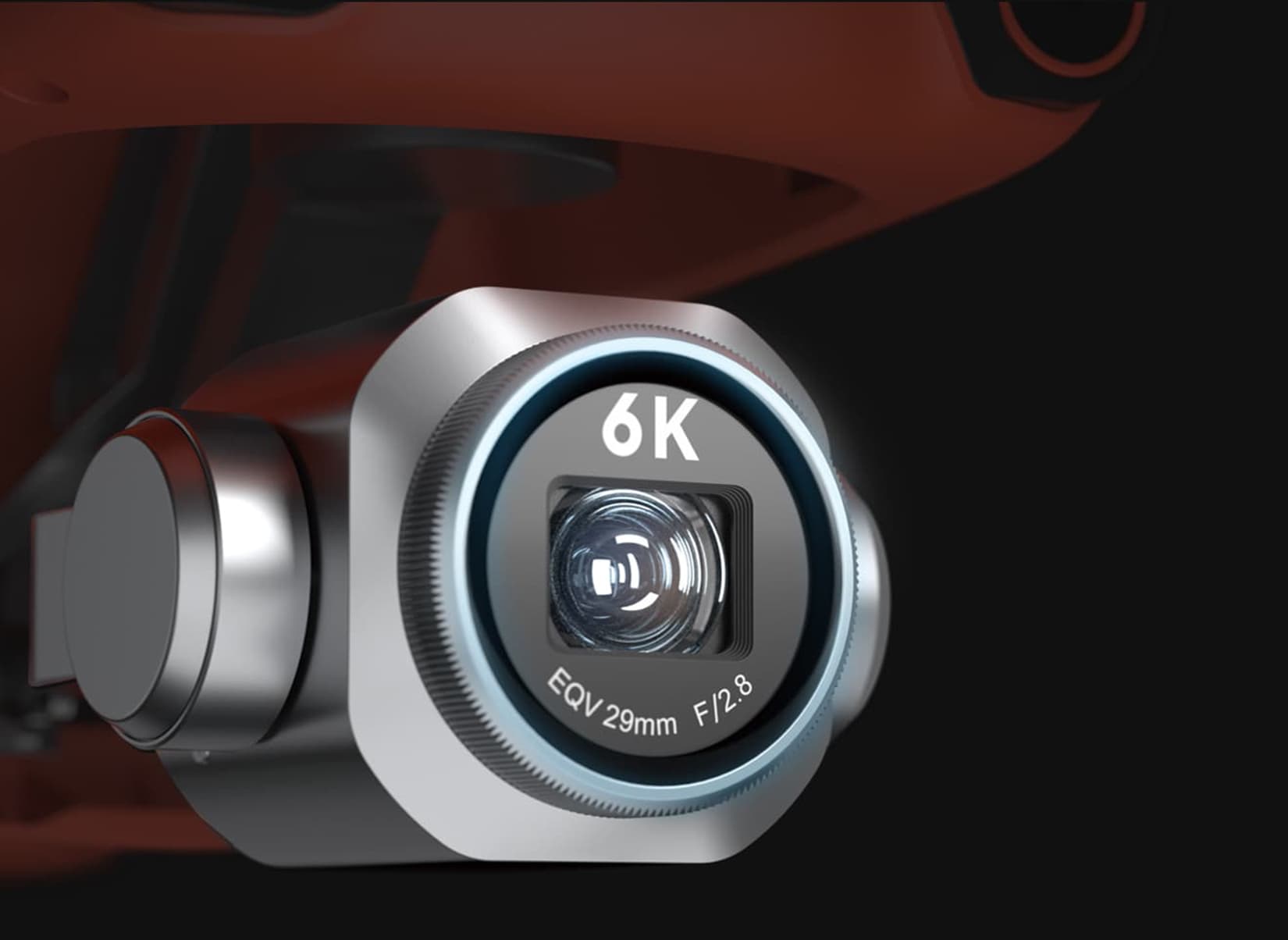

All New 6K 1" CMOS Camera

See clearer with Sony's new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro Enterprise V3 supports up to 6K video resolution with greater dynamic range, stronger noise suppression, and higher frame rates.

Aperture Range of F2.8 to F11

The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.

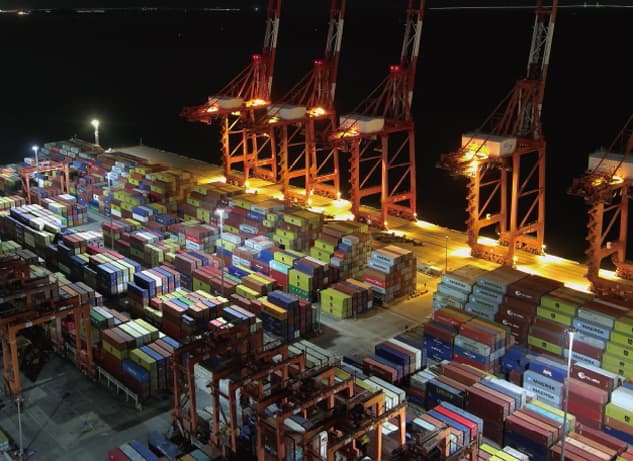

Excel in Low Light

EVO II Pro Enterprise V3 brings you Autel's Moonlight Algorithm 2.0 with additional noise reduction processing. Paired with EVO II Pro V3's upgraded CMOS, it succeeds in operations with minimal lighting or in harsh lighting situations at night.

Zoom in for the Details

EVO II Pro Enterprise V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without arousing suspicion.

Accident Reconstruction

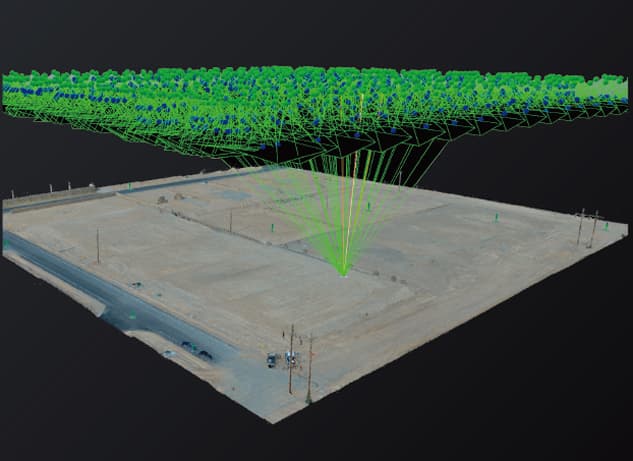

EVO II Pro Enterprise V3 is excellent for rapid accident reconstruction with built in mission planning, and is compatible with Pix4D, DroneDeploy and SkyeBrowse.

Greater Dynamic Range with 4K HDR

4K HDR offers greater detail in highlights and shadows, providing higher- quality images from the most demanding environments.

Multiple Temperature Measurement Modes

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

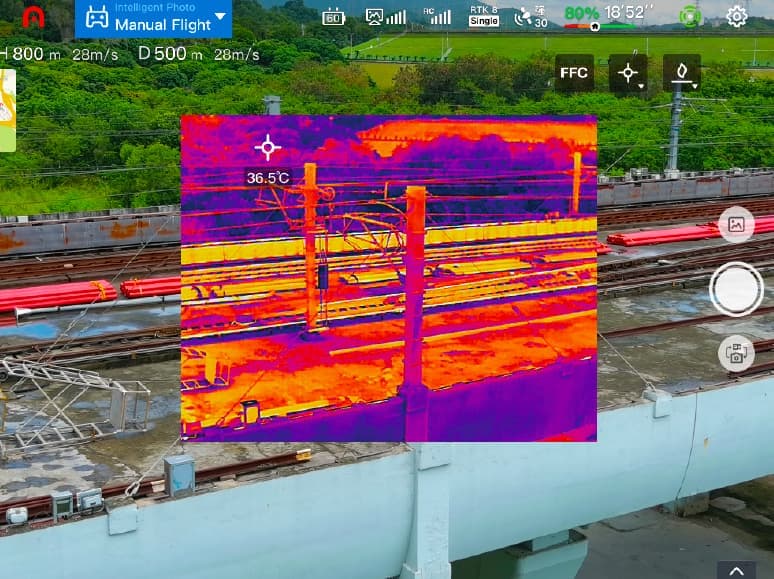

Spot Temperature Measurement

Displays the temperature of a selected object with just a tap of the screen.

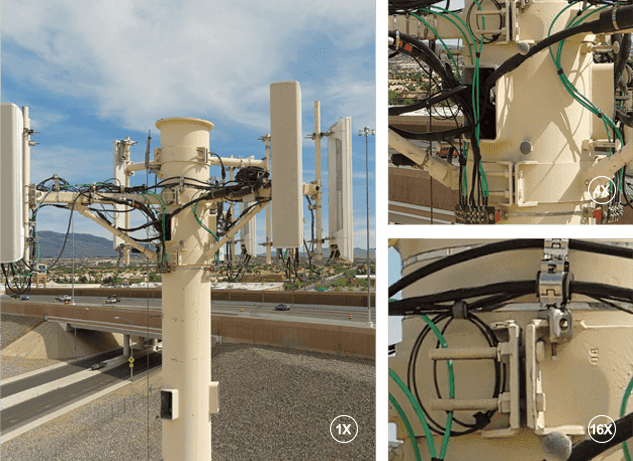

Zoom in from a Safe Spot

EVO II Dual 640T Enterprise V3 supports 4x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without arousing suspicion.

SkyLink 2.0 Video Transmission

The EVO II Enterprise V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

15KM

Fly farther with HD video transmission up to 15km.

QHD

Obtain critical details with QHD video within 1km.

2.4G/5.8G/900M

Less signal breakups and enhanced anti-interference capabilities.

* 900MHz is only applicable for FCC countries.

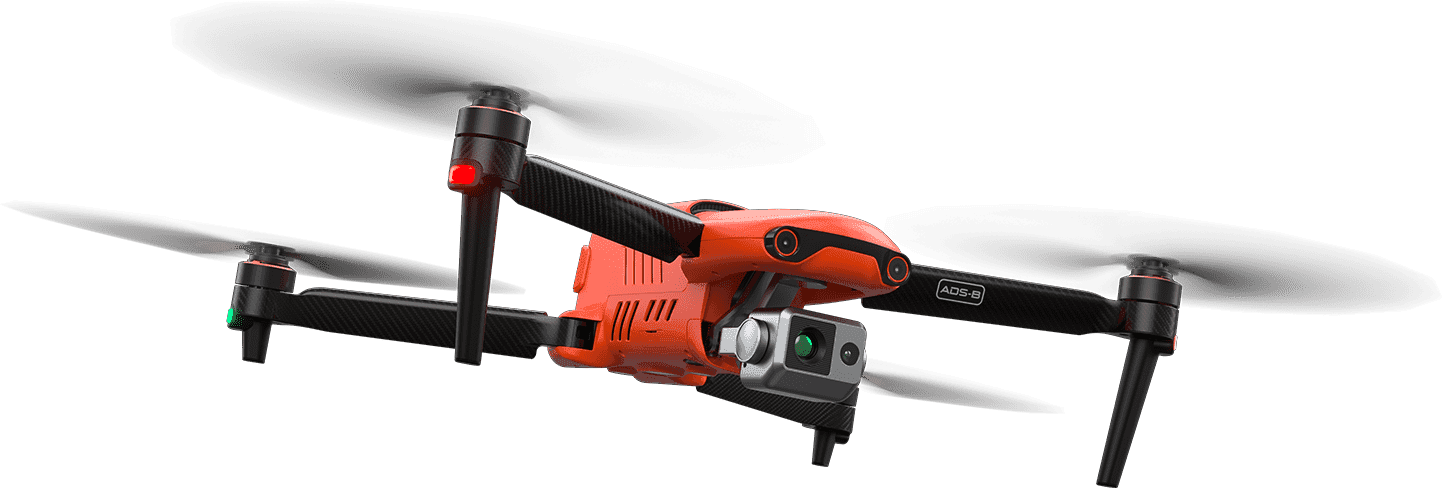

Dedicated Enterprise Airframe

42min

42 Minutes of Flight Time

Large propellers and revised flight algorithms gives the EVO II Enterprise V3 the longest flight time in its category.

Extended Thermal Vents

EVO II Enterprise V3 has additional thermal vents for additional heat dissipation, prolonging battery life.

Longer Carbon Fiber Arms

Carbon fiber arms and longer propellers provide additional rigidity and flight stability to the EVO II Enterprise platform.

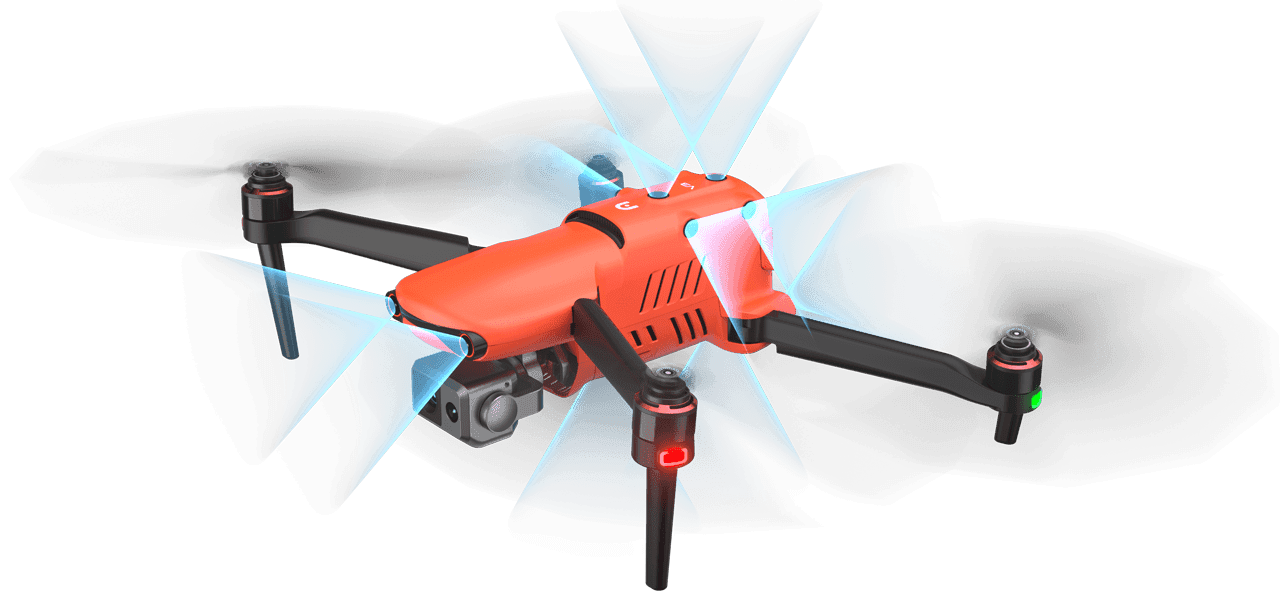

360° Obstacle Avoidance

Equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera, ultrasonic wave, and IMU to build a 3D map of the drone and its surroundings in real time. The sensors are strategically placed to minimize blindspots on the drone so V3 can automatically stop near obstacles.

*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting

Mission Versatility

With an expanded selection of accessories at its disposal, the EVO II Enterprise V3 can evolve from a simple imaging tool to a multifunctional flight platform that can adapt to different scenarios.

Slide left or right to view more.

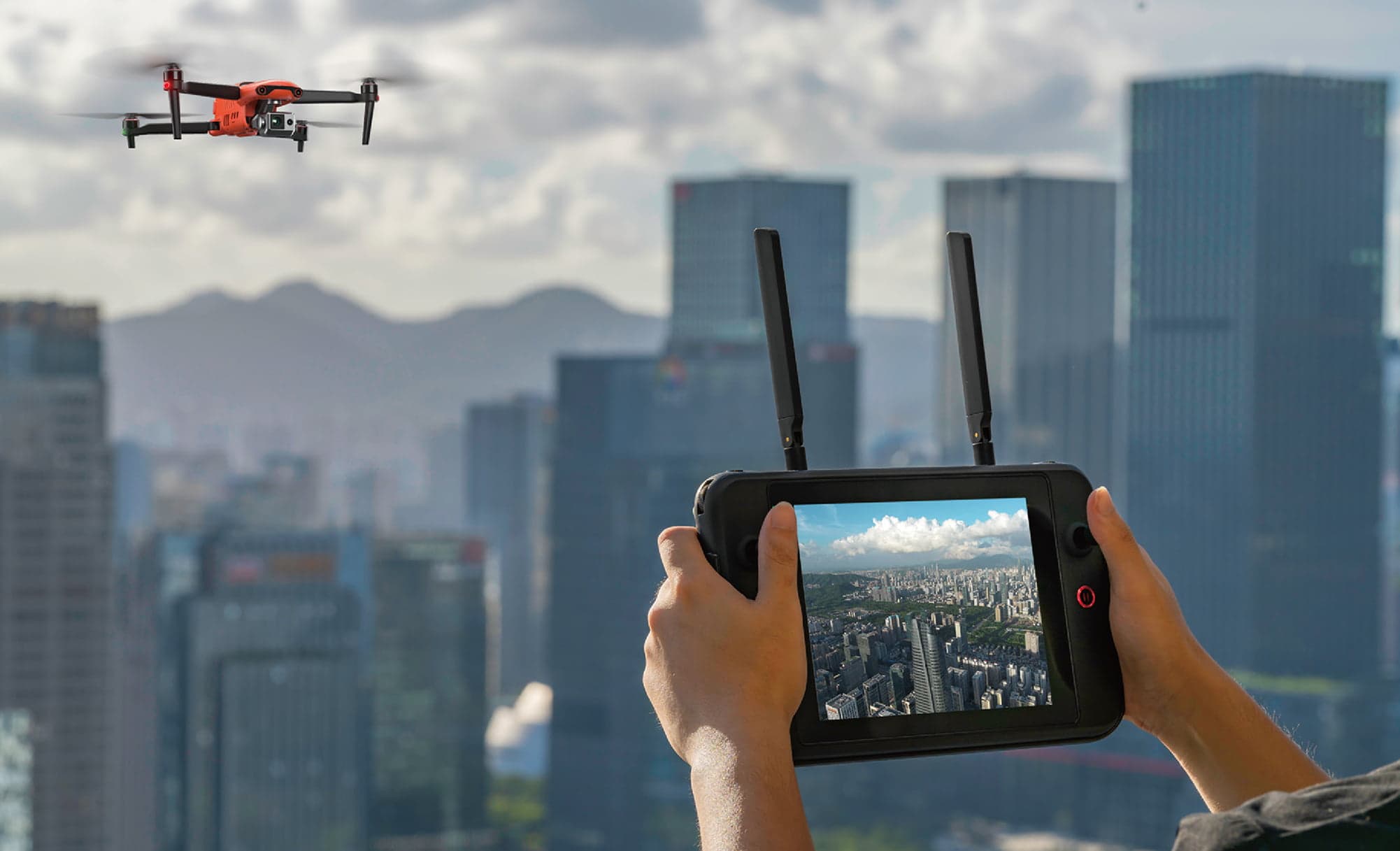

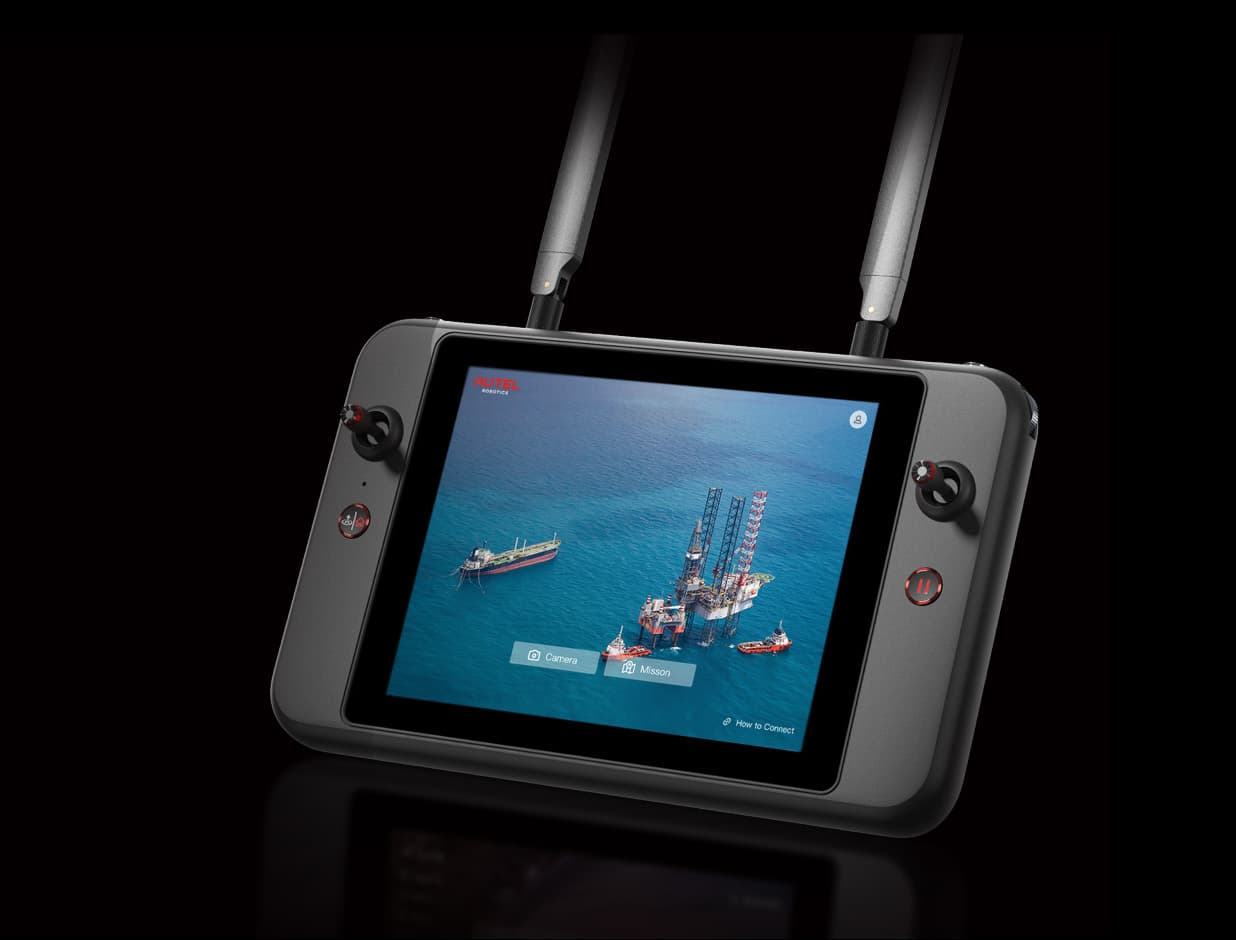

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000nits high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

7.9-Inch HD Touch Screen

2000nits Maximum Brightness

-20℃ to 40℃ Temperature Range

IP43 Resistance

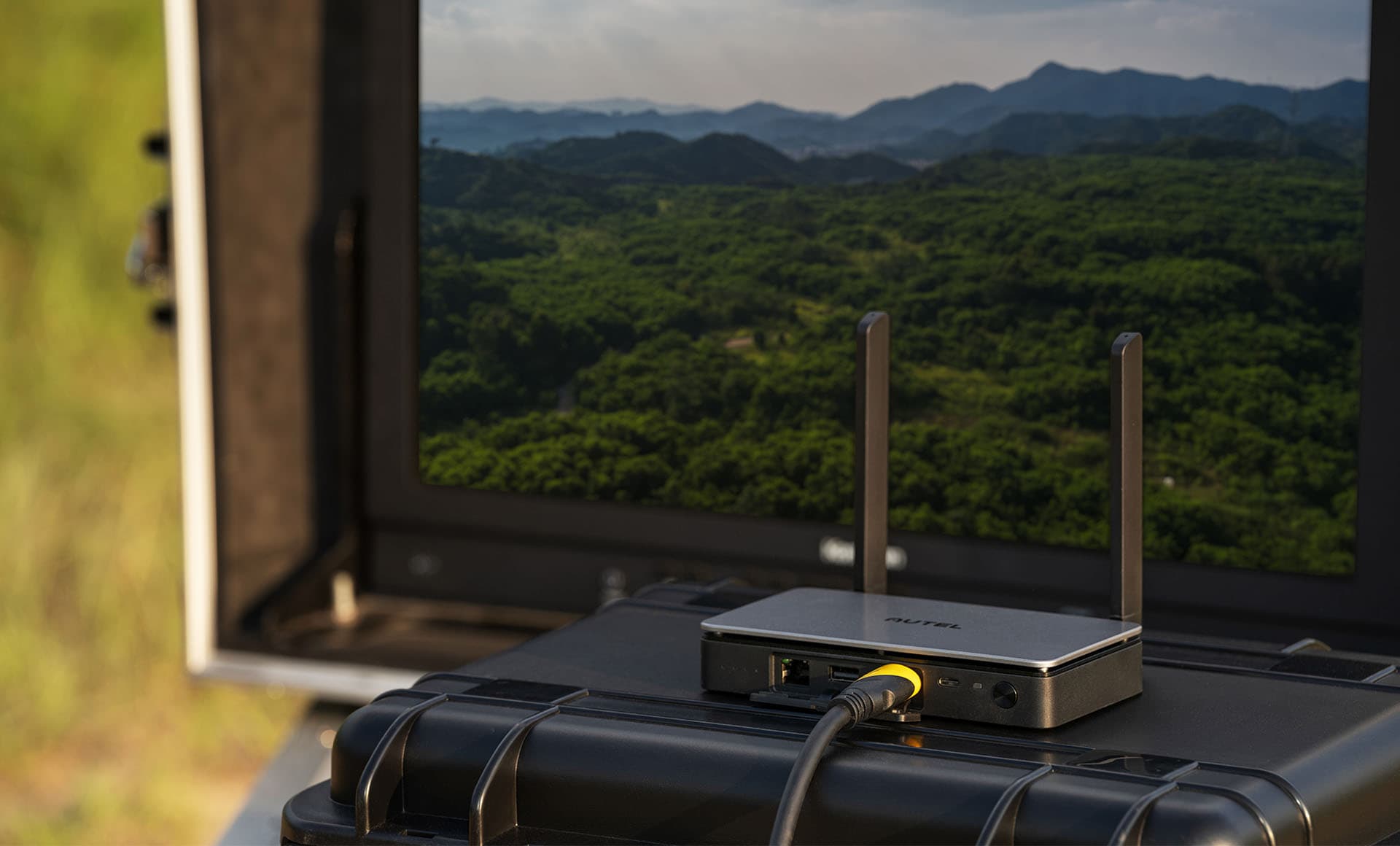

Broadcast with Live Deck 2

Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making. The EVO II Pro V3 is compatible with Livedeck 2.0, which offers multiport streaming to monitors and Wifi support for multiple smart phones.

1080P/60FPS Video Stream

Three Auto-Switch Bands

12KM Transmission Range

IP43 Resistance

Applications

Tech Specs

EVO II Enterprise V3

Aircraft

Takeoff weight(Without Accessories)

EVO II Pro Enterprise: 2.45 lbs (1110 g)

EVO II Dual 640T Enterprise: 2.51 lbs (1136.5 g)

Diagonal Length

16.8 inches (427 mm)

Size(L*W*H)

245*130*111mm(folded)

506*620*111mm(unfolded)

Max Service Ceiling Altitude

4.3 miles (7000 m) MSL

Max ascent speed

18 mph (8 m/s) (Ludicrous)

Max descent speed

9 mph (4 m/s) (Ludicrous)

Max level flight speed

45 mph (20 m/s) (Ludicrous)

Max angular velocity

120°/s

Max tilt angle

33° (Ludicrous)

Max flight time (no wind)

42 min (without accessories)

Max hovering time (no wind)

38 min(with strobe)

29 min(with spotlight)

34 min(with loudspeaker)

36 min(with RTK module)

Operating temperature range

14ºF to 104ºF (-10℃ to 40℃)

Maximum resistance to wind

12 m/s (Take-off and landing)

Operating frequency

2.400 GHz - 2.4835 GHz;

5.725GHz - 5.850 GHz

Hovering accuracy

When RTK is enabled and working normally:

Vertical: ±0.1 m; Horizontal: ±0.1 m

Vertical: ±0.1 m (when the visual positioning is working normally);

±0.5 m (when GPS works normally)

Horizontal: ±0.3 m (when the visual positioning is working normally);

±1.5 m (when GPS works normally)

Internal storage

8GB

SD storage

max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal

3-axis stabilization

Mechanical range

Tilt: -135° to +45°;

Pan: -100° to +100°

Controllable rotation range

Tilt: -90° to +30°;

Pan: -90° to +90°

Max control speed (Tilt)

300°/s

Angular Vibration Range

±0.005°

Remote controller and image transmission

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

FCC: ≤33dBm

CE: ≤20dBm@2.4G, ≤14dBm@5.8G

SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G

Max Transmission Distance (unobstructed, free of interference)

FCC: 15km

CE: 8km

Display screen

2048x1536 60fps

Battery

5800mAh

Operating time

~3 hours (Max. Brightness)

~4.5 hours (50% Brightness)

Charging time

90 minutes

Internal Storage

ROM 128GB

Sensing system

Sensing system type

Omnidirectional sensing system

Forward

Accurate measurement range: 0.5-18 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Backward

Accurate measurement range: 0.5-16 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Upward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: Horizontal: 65°, Vertical: 50°

Downward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 100°, vertical: 80°

Left and right

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment

Forward, Backward and Sides:

Surface with clear pattern and adequate lighting (lux > 15)

Upward:

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Downward:

Surface with clear pattern and adequate lighting (lux > 15)

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

EVO II Pro Enterprise V3 Visual Camera

Sensor

1 inch CMOS; 20M pixels

Lens

FOV: 82°

35 mm format equivalent focal length: 29 mm

Aperture: f/2.8 - f/11

Focus range: 0.5 m to infinity

ISO range

Video: 100-44000

Photo: 100-6400

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Zoom

1-16x (up to 4x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size

5472*3648 (3:2)

5472*3076 (16:9)

3840*2160 (16:9)

Image Format

JPG (default) / DNG / JPG+DNG

Photo Mode

5472x3076P30/P25/P24

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Video format

MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max bitrate

120Mbps

Supported file system

FAT32/exFAT

EVO II Dual 640T Enterprise thermal camera

Sensor

Uncooled VOx Microbolometer

Lens

FOV H33°V26°

Focal length 13mm

Zoom

1-16x

Sensor resolution

640*512

Pixel size

12μm

Wavelength range

8 - 14μm

Temperature range

High gain mode: -20° to +150°

Low gain mode: 0° to +550°

Temperature measurement accuracy

±3℃ or ±3% of reading (whichever is greater)

@Environmental temperature-20℃~60℃

Accurate temperature measurement distance

2-20 meters

Video resolution

640x512@30fps

Video format

MOV / MP4 (Support H.264/H.265)

Camera resolution

Infrared mode: 640*512

Picture-in-picture mode: 1920*1080, 1280*720

Photo mode

Single shot

Burst shooting: 3/5 frames, 3 is the default

Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format

JPG (with irg file)

EVO II Dual 640T Enterprise V3 Visual Camera

Sensor

1/1.28"(0.8") CMOS; 50M effective pixels

Lens

FOV: 85°

35 mm format equivalent focal length: 23 mm

Aperture: f/1.9

Focus range: 0.5 m to infinity (with auto focus)

ISO range

Video: 100-64000

Photo: 100-6400

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Zoom

1-16x (up to 4x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size

8192*6144(4:3)

4096*3072(4:3)

3840x2160(16:9)

Image Format

JPG (default) / DNG / JPG+DNG

Video format

MOV / MP4

Video resolution

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Max bitrate

120Mbps

Supported file system

FAT32/exFAT

Accessories

Strobe

Dimensions: 39*72*34 mm

Weight: 19.5 g

Connections: Floating Connectors

Power: Avg. 1.6W

Controllable Range: 5000 m

Light intensity: Min 50cd; Max 486cd; Avg. 290cd

Loudspeaker

Dimensions: 46*80*77 mm

Weight: 98.5 g

Connections: Floating Connectors

Power: Max 18W

Decibel: 120dB @ 1m; 88dB @ 60m; 70dB @ 110m;

Max Bitrate: 36kbps

Adjustable Angle Range: 0°~45°

Spotlight

Dimensions: 48.5*72*63 mm

Weight: 77 g

Connections: Floating Connectors

Power: Max 35W

Controllable Range: 30 m

Adjustable Angle Range: 0°~90°

Illuminance: FOV14°, Max: 11lux @ 30m Straight

RTK Module

Dimensions: 55.5*72.5*57 mm

Weight: 59.5 g

Connections: Floating Connectors

Power: ~ 3W

RTK Positioning Precision:

1.5 cm + 1 ppm(Vertical)

1 cm + 1 ppm(Horizontal)

Battery

Capacity

7100 mAh

Voltage

11.55V

Battery type

LiPo 3S

Energy

82 Wh

Weight

365 g

Charging temperature range

5℃ to 45℃

Storage temperature and humidity

-10~30℃, 65±20%RH

Recommended storage temperature

22-28℃

Max charging power

93W

Charging time

90 minutes

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A

5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

0.75 kg (Single battery weight)

5.5 kg (Max takeoff weight)

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃
