EVO II RTK Series V3

Unrivaled Accuracy And Control

Centimeter-Level Positioning

The EVO II RTK Series V3 integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

RTK Horizontal Positioning
Accuracy: 1cm+1ppm

RTK Vertical Positioning
Accuracy: 1.5cm+1ppm

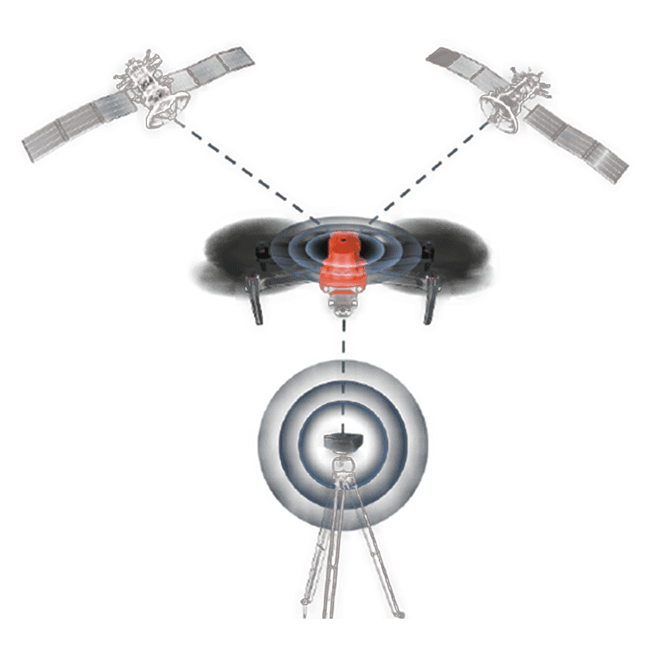

3rd Party Base Station Support

EVO II RTK Series V3 supports all NTRIP compatible base stations.

No GCP Required

EVO II RTK Series V3 connects to NTRIP network and does not need GCPs to provide centimeter grade accuracy.

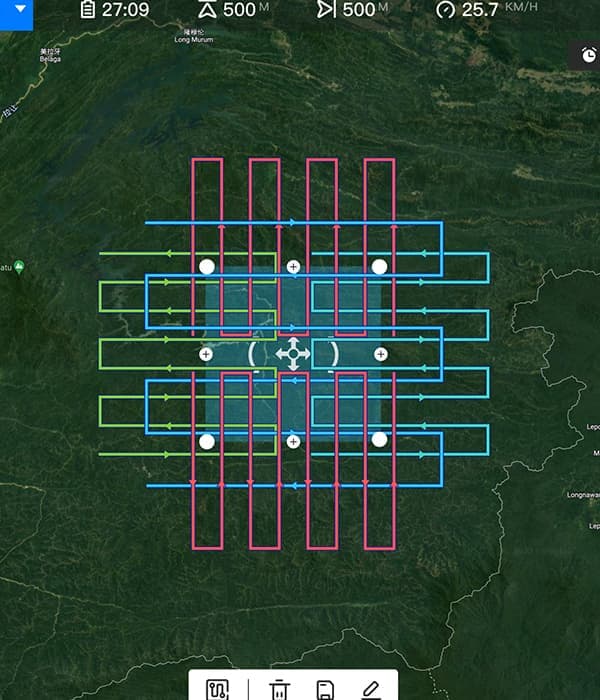

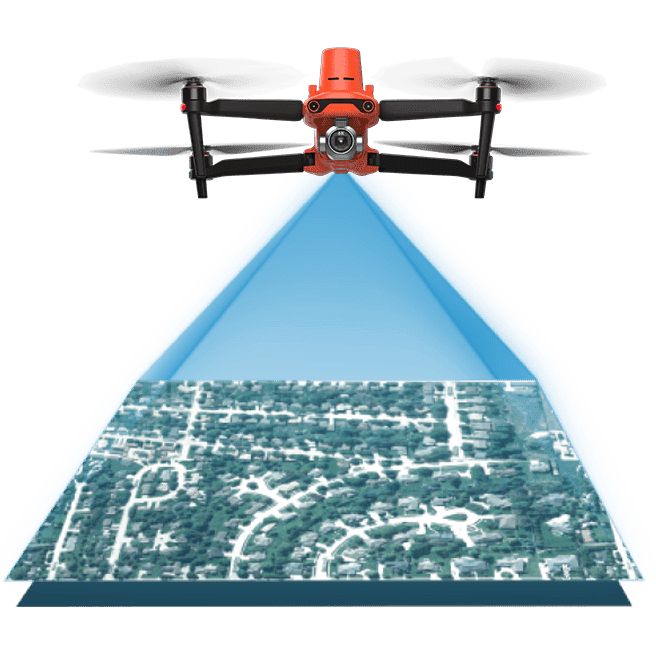

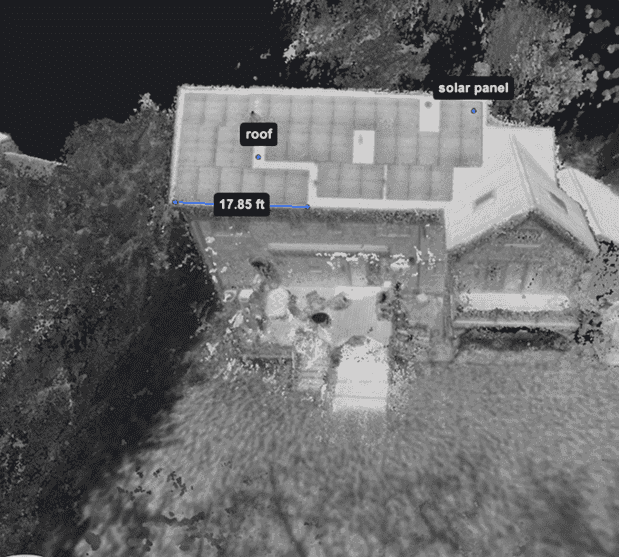

Autel Explorer for Mapping

Multi-NTRIP Profile Saving

For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

Photo Replication

The EVO II RTK Series V3 returns to where it left off in multi-battery missions without starting from the beginning.

Multi-Battery Missions

The Explorer App allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account information every time you travel.

Advanced Feature Sets

1080P/60FPS Video Stream

Three Auto-Switch Bands

12KM Transmission Range

IP43 Resistance

EVO II Pro RTK V3

Capture Every Detail

EVO II Pro RTK V3 has high dynamic range and powerful low light performance, enabling users to capture clear detail sets with minimal distortion and noise.

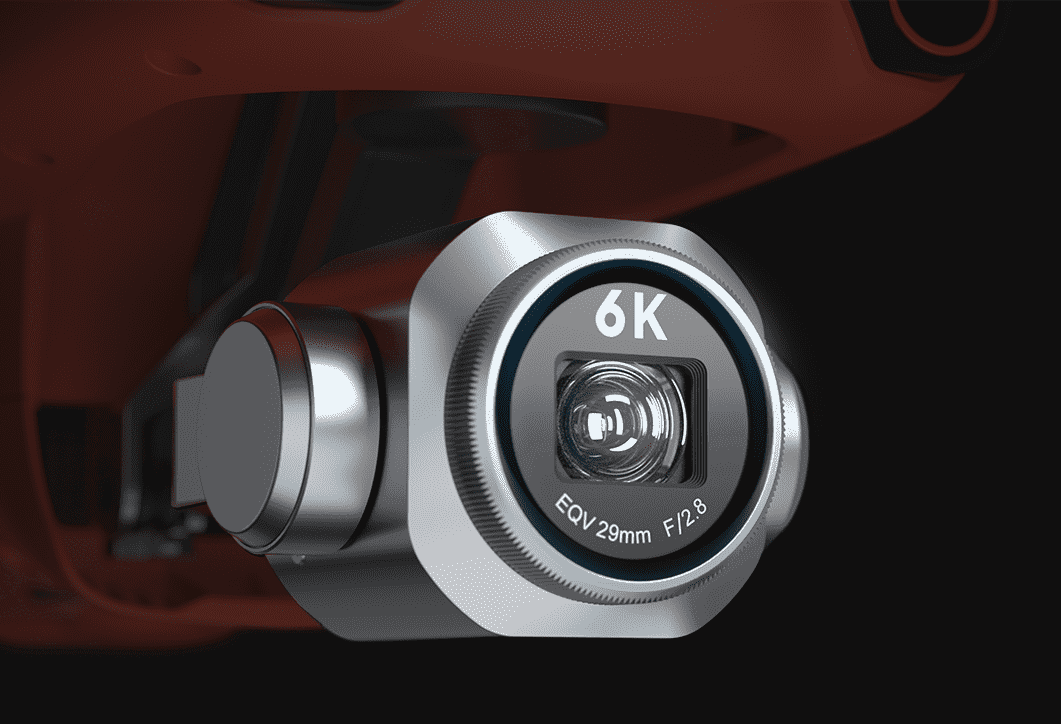

1-Inch Ultra-Sensitive Sensor

The EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.

f/2.8 ~ f/11 Adjustable Aperture

Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.

Zoom in for the Details

EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.

Optimized for Software Image Correction

EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.

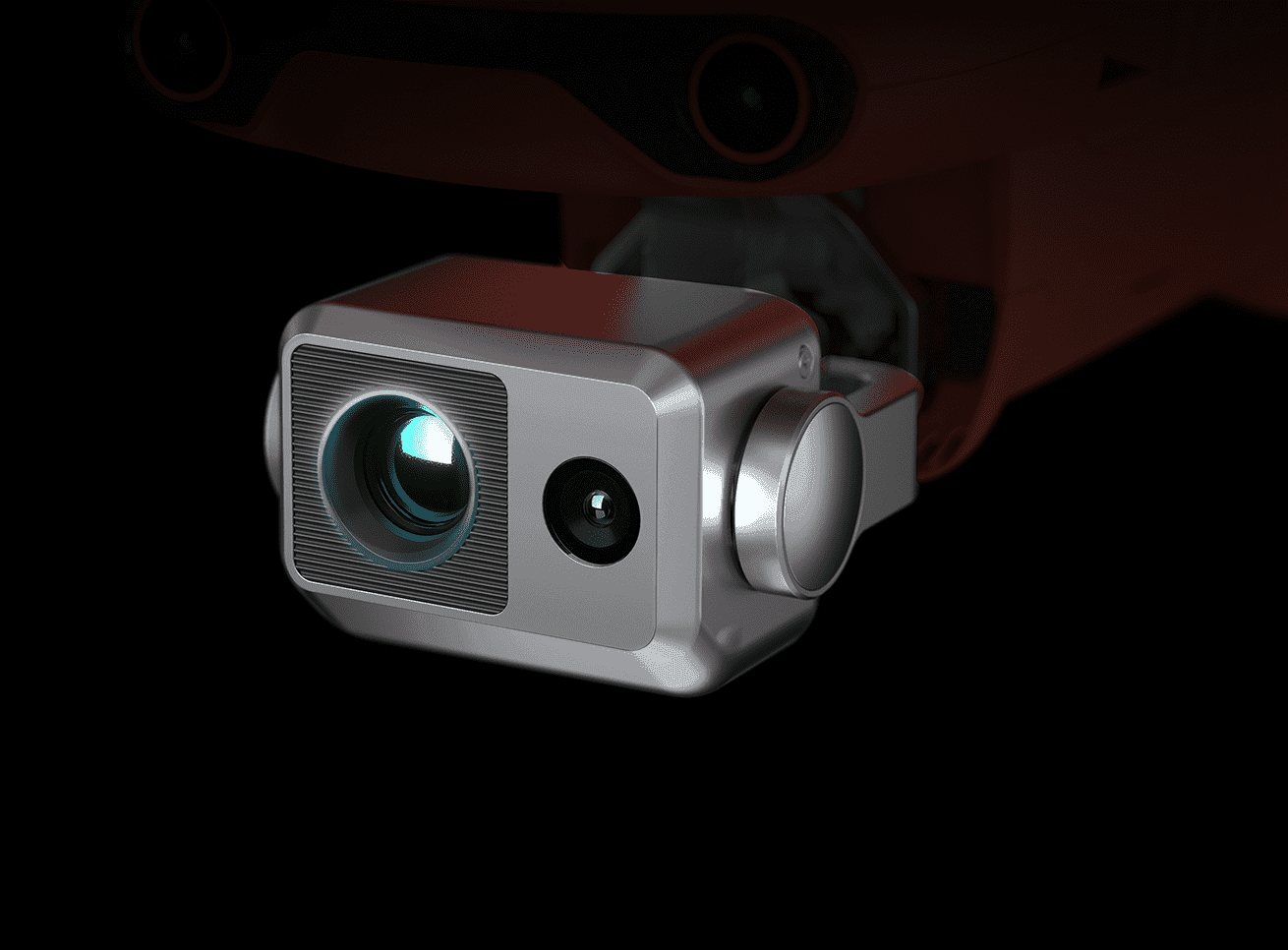

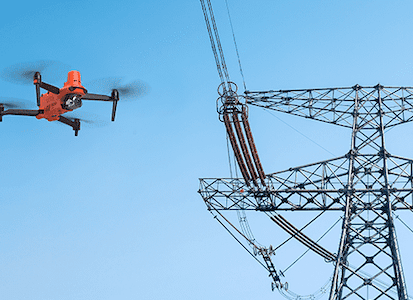

EVO II Dual 640T RTK V3

Dual Cameras, Accurate Temperature Measurement

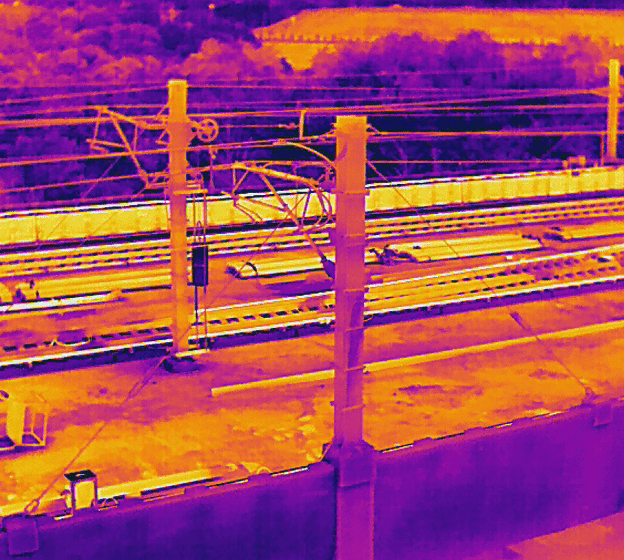

The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.

High-Resolution Thermal Imaging Sensor

The sensor features an industry leading 640*512 high-definition thermal imaging resolution of 30hz.

Precise Temperature Measurement

The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

New Image Processing Algorithm

The V3 system uses a brand new image processing algorithm, making thermal imaging details sharper and more discernible than competition with the similar resolution and hardware.

30hz Refresh Rate for Videogrammetry

The EVO II RTK Dual V3 provides high refresh rates for accurate and detailed 3D thermal maps.

Zoom in for the Details

Zoom in on critical areas with EVO II RTK V3 16x digital zoom that supports 4x lossless zoom.

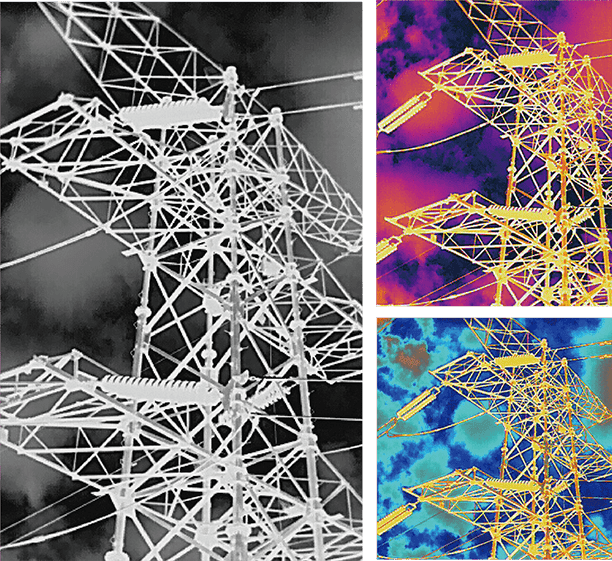

Multiple Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation | Heat Detection

Autel SkyLink 2.0 Video Transmission

The EVO II Pro V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

15KM

Fly farther with HD video transmission up to 15km.

QHD

Obtain critical details with QHD video within 1km.

2.4G/5.8G/900M

Less signal breakups and enhanced anti-interference capabilities.

F2.8~F11

Aperture

* 900MHz is only applicable for FCC countries.

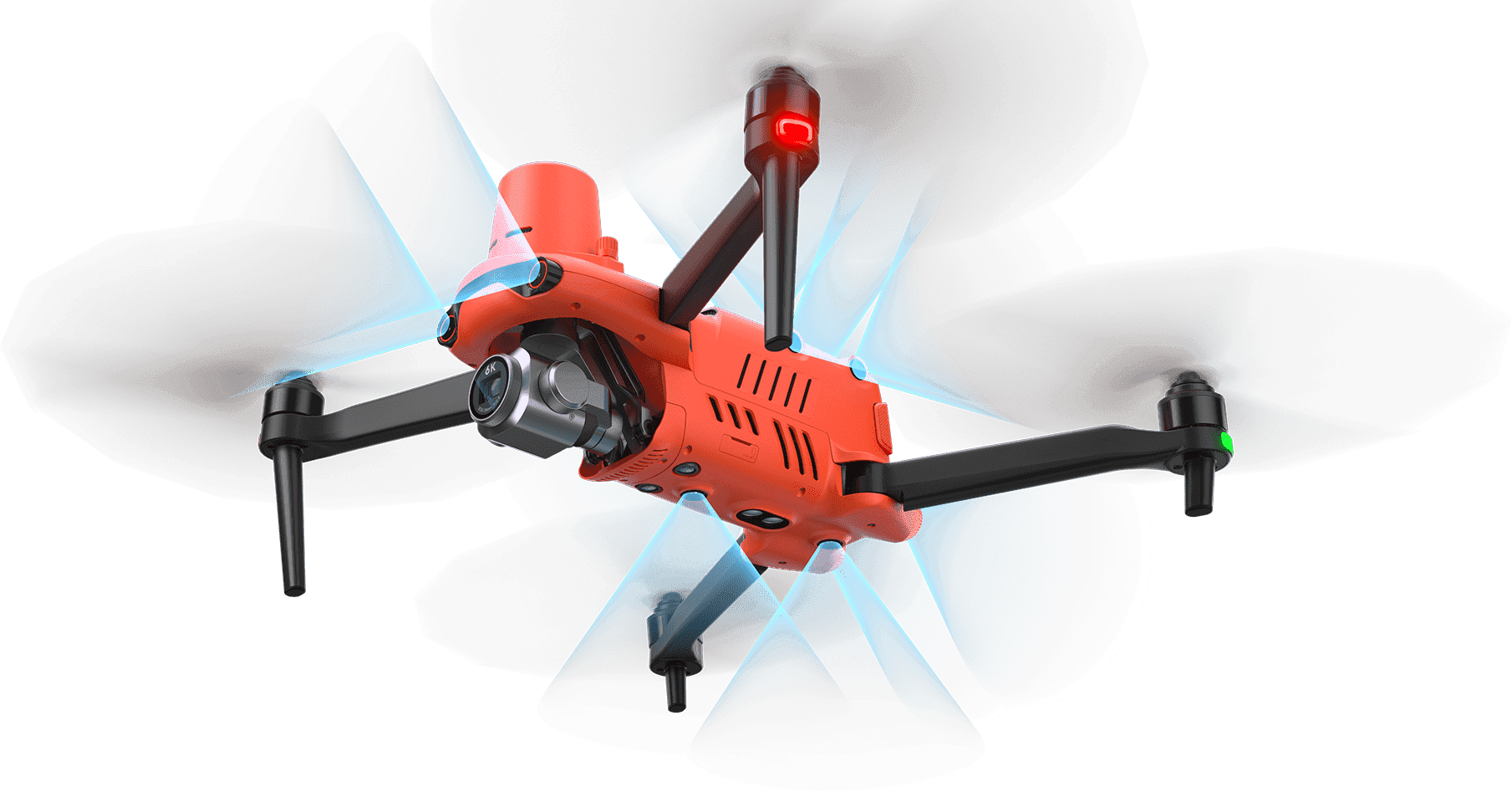

360° Obstacle Avoidance

Equipped with 19 sets of sensors including 12 visual sensors, the main camera, ultrasound, IMUs, and other sensors enable the building of three-dimensional maps and path planning in real-time.

* Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

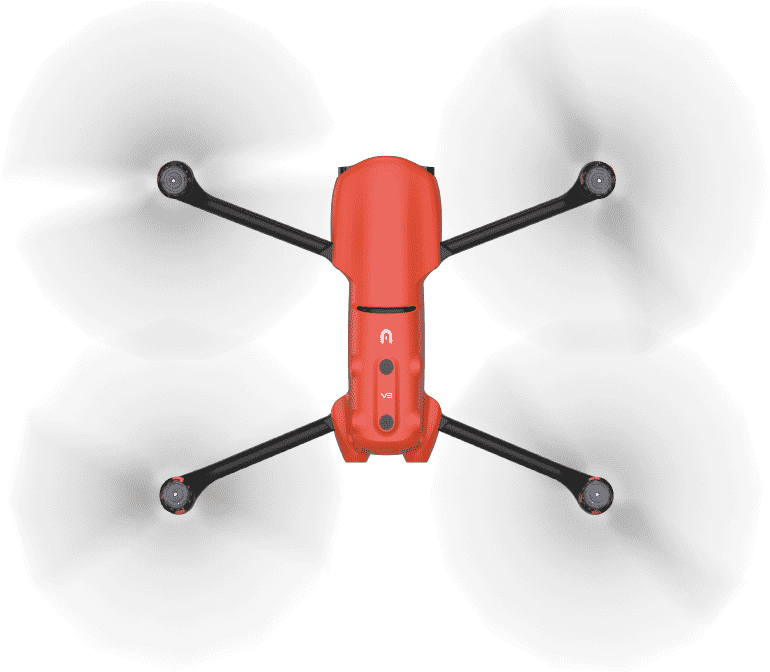

Portable and Easy to Use

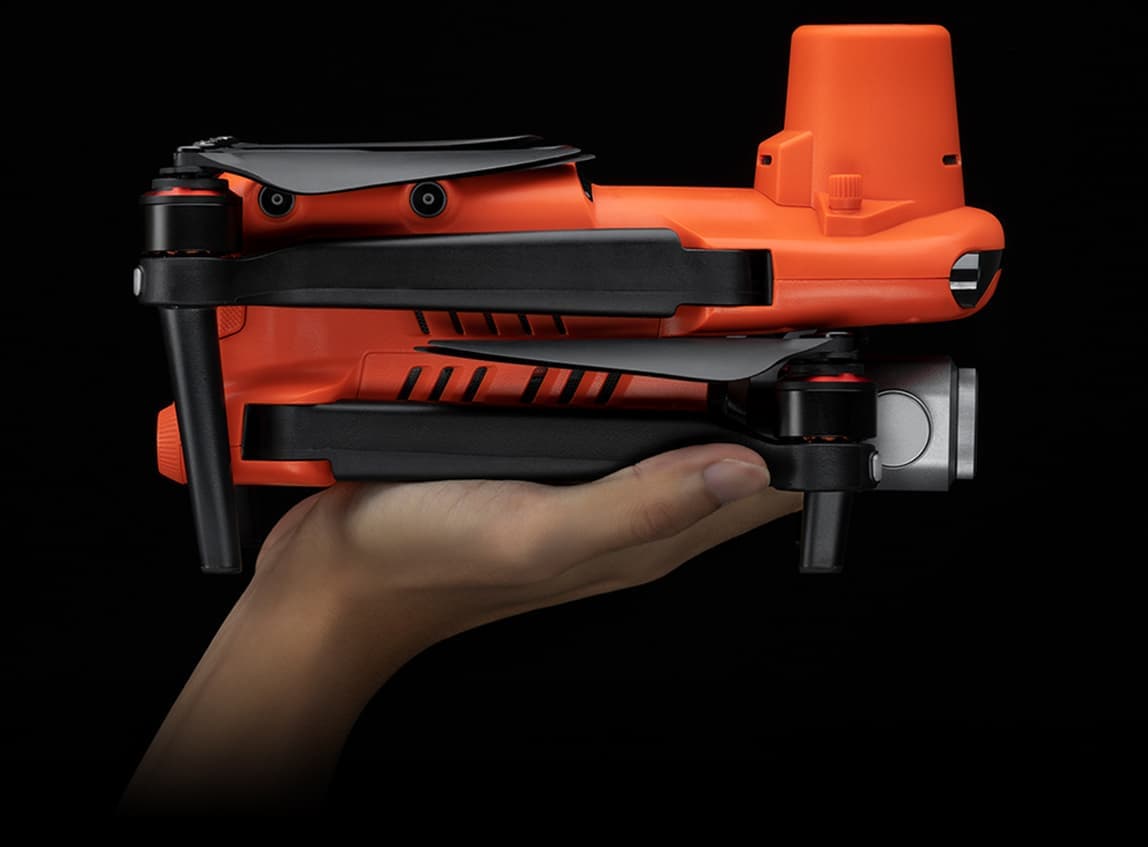

Compact Design

The EVO II RTK Series V3 folds up for ease of transport and deployment.

Trouble Free Daily Workflows

The EVO II RTK V3 takes 45 seconds from launch to takeoff without fuss.

Safe and Sturdy

27mph Max Wind Resistance

EVO II's Smaller Cross Section and powerful motors allows greater stability and control in all windy conditions.

No Fly Zones*

EVO II RTK Series V3 does not have any no fly zones and will not prevent the pilot from taking off.

38 Minutes Flight Time

Enjoy up to 38 minutes of flight time - 20%~30% more than the next leading competitor for more area coverage and longer missions.

No Forced Updates**

EVO II RTK Series V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

* Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
** It's required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.

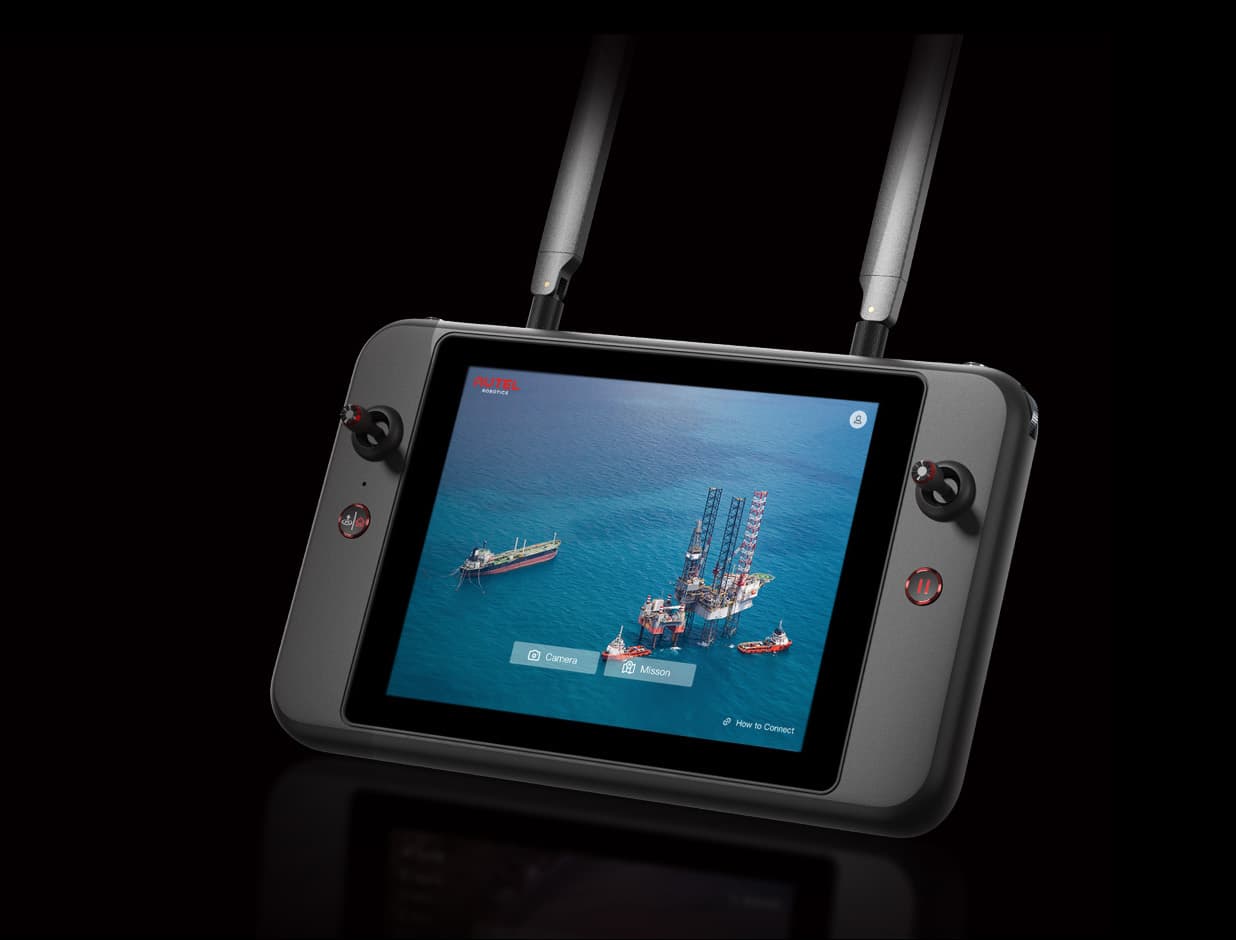

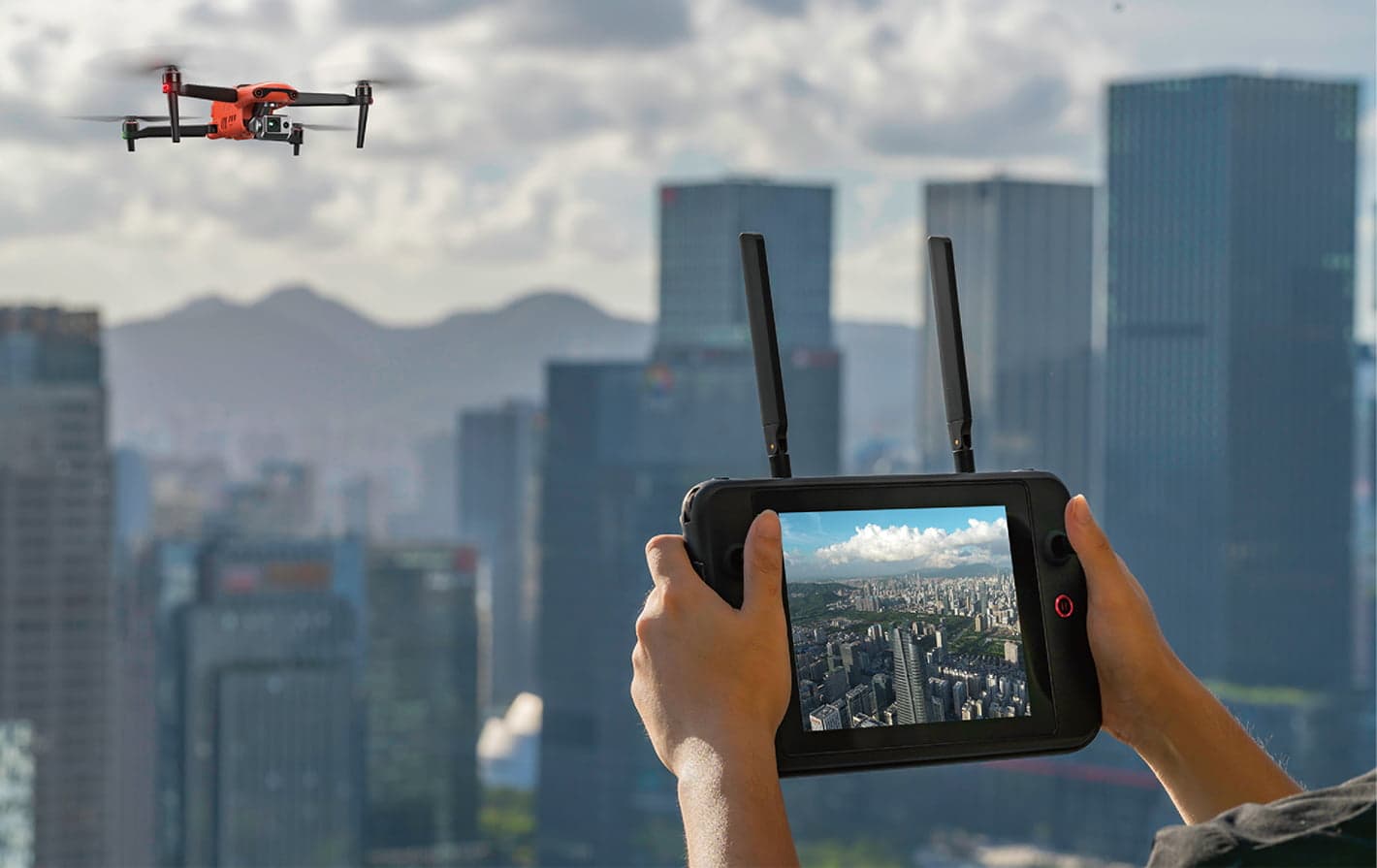

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000nits high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

15km Transmission Range

Maximum 2000nits Brightness

4.5 Operating Hours

IP43 Resistance

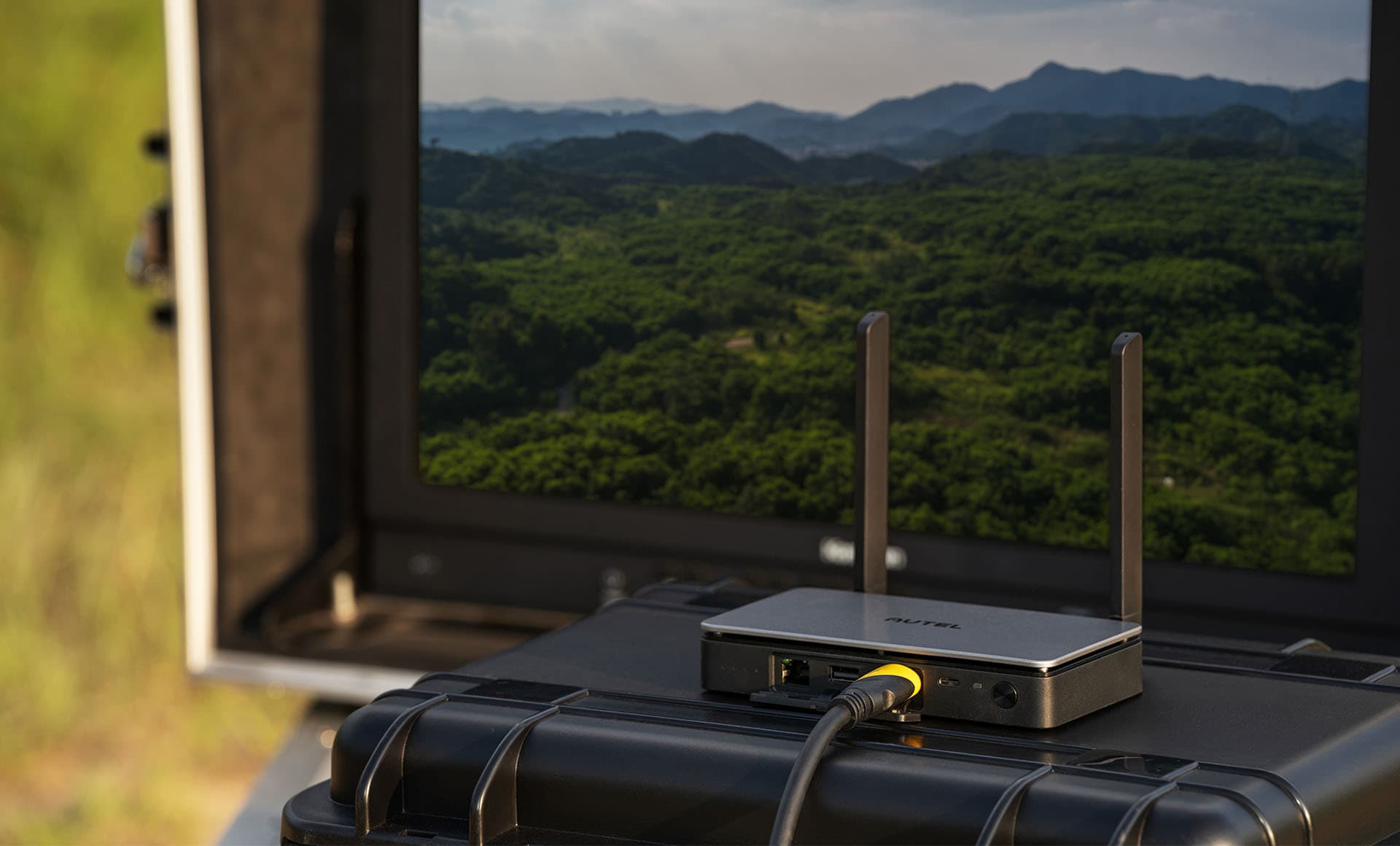

Broadcast with Live Deck 2

Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making. The EVO II Pro V3 is compatible with Livedeck 2.0, which offers multiport streaming to monitors and Wifi support for multiple smart phones.

1080P/60FPS Video Stream

Three Auto-Switch Bands

12KM Transmission Range

IP43 Resistance

Applications

Tech Specs

EVO II RTK Series V3

Aircraft

Weight (with propeller and battery)

1250g ± 0.5g(EVO II Dual 640T RTK V3)

1237g ± 0.5g(EVO II Pro RTK V3)

Size(L*W*H)

230*130*143mm(folded)

457*558*143mm(unfolded)

Wheelbase

397 mm

Maximum service ceiling altitude

7000 m

Max ascent speed

8 m/s (Ludicrous)

Max descent speed

4 m/s (Ludicrous)

Max horizontal flight speed

20m/s (Ludicrous)

Max flight distance (no wind)

21 km

Max angular velocity

120°/s

Max tilt angle

33° (Ludicrous)

Max flight time

36 min

Max hovering time (no wind)

32 min

Operating temperature range

-10℃ - 40℃

Maximum resistance to wind

12 m/s (Take-off and landing)

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

900MHz: FCC/ ISED: ≤31dBm

2.4GHz: FCC/ ISED: ≤32dBm, SRRC/CE/MIC/RCM: ≤20dBm

5.8GHz (non-Japan);5.7G (Japan): FCC/ISED/SRRC/MIC: ≤33dBm, CE/ RCM: ≤14dBm

Hovering accuracy

When RTK is enabled and working normally:

Vertical: ±0.1 m; Horizontal: ±0.1 m

Vertical: ±0.1 m (when the visual positioning is working normally);

±0.5 m (when GPS works normally)

Horizontal: ±0.3 m (when the visual positioning is working normally);

±1.5 m (when GPS works normally)

Image position compensation

The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

Internal storage

8GB

SD storage

max. support 256GB (UHS-3 or Class 10)

GNSS

Single frequency high sensitivity GNSS

GPS+BeiDou+Galileo(Asia)

GPS+GLONASS+Galileo(Other areas)

Multi-frequency multi-system high-precision RTK GNSS

Frequency points used:

GPS: L1/L2;

GLONASS: L1/L2;

BeiDou: B1/B2;

Galileo: E1/E5

First positioning time: <50 s

Positioning accuracy:

vertical 1.5 cm + 1 ppm (RMS);

Horizontal 1 cm + 1 ppm (RMS)

1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

Gimbal

Gimbal

3-axis stabilization

Mechanical range

Tilt: -135° to +45°;

Pan: -100° to +100°

Controllable rotation range

Tilt: -90° to +30°;

Pan: -90° to +90°

Max control speed (Tilt)

300°/s

Angular Vibration Range

±0.005°

Remote controller and image transmission

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz (non-Japan)

5.650-5.755GHz (Japan Only)

Transmission power

FCC: ≤33dBm

CE: ≤20dBm@2.4G, ≤14dBm@5.8G

SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G

Max Transmission Distance (unobstructed, free of interference)

FCC: 15km

CE: 8km

Display screen

2048x1536 60fps

Battery

5800mAh

Operating time

~3 hours (Max. Brightness)

~4.5 hours (50% Brightness)

Charging time

120 minutes

Internal Storage

ROM 128GB

Sensing system

Sensing system type

Omnidirectional sensing system

Forward

Accurate measurement range: 0.5-18 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Backward

Accurate measurement range: 0.5-16 m

Effective sensing speed: <12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Upward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: Horizontal: 65°, Vertical: 50°

Downward

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 100°, vertical: 80°

Left and right

Accurate measurement range: 0.5-10 m

Effective sensing speed: <5m/s

Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment

Forward, Backward and Sides:

Surface with clear pattern and adequate lighting (lux > 15)

Upward:

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Downward:

Surface with clear pattern and adequate lighting (lux > 15)

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

EVO II Pro RTK V3 visual camera

Sensor

1 inch CMOS; 20M pixels

Lens

FOV: 82°

Equivalent focal length: 29 mm

Aperture: f/2.8 - f/11

Focus range: 0.5 m to infinity

ISO range

Video: 100-44000

Photo: 100-6400

Shutter speed

Other: 1/8000 ~ 1/frame rates

Photo mode: 1/8000 ~ 8s

Zoom

1-16x (up to 3x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR

Maximum photo size

5472*3648 (3:2)

5472*3076 (16:9)

3840*2160 (16:9)

Image Format

JPG (default) / DNG / JPG+DNG

Photo mode

5472x3076P30/P25/P24

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Video format

MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max bitrate

120Mbps

Supported file system

FAT32/exFAT

EVO II Dual 640T RTK thermal camera

Sensor

Uncooled VOx Microbolometer

Lens

FOV H33°V26°

Focal length 13mm

Zoom

1-16x

Pixel size

12μm

Wavelength range

8 - 14μm

Image Format

JPG (default) / DNG / JPG+DNG

Temperature range

High gain mode: -20° to +150°

Low gain mode: 0° to +550°

Temperature measurement accuracy

±3℃ or ±3% of reading (whichever is greater)

@Environmental temperature-20℃~60℃

Accurate temperature measurement distance

2-20 meters

Video resolution

640x512@30fps

Video format

MOV / MP4 (Support H.264/H.265)

Camera resolution

Infrared mode: 640*512

Picture-in-picture mode: 1920*1080, 1280*720

Photo mode

Single shot

Burst shooting: 3/5 frames, 3 is the default

Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format

JPG (with irg file)

EVO II Dual 640T RTK V3 visual camera

Sensor

1/1.28"(0.8") CMOS; 50M effective pixels

Lens

FOV: 85°

35 mm format equivalent focal length: 23 mm

Aperture: f/1.9

Focus range: 0.5 m to infinity (with auto focus)

ISO range

Video: 100-64000

Photo: 100-6400

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Zoom

1-16x (up to 4x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size

8192*6144(4:3)

4096*3072(4:3)

3840x2160(16:9)

Image Format

JPG (default) / DNG / JPG+DNG

Video format

MOV / MP4

Video resolution

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Max bitrate

120Mbps

Supported file system

FAT32/exFAT

Photo mode

Single shot

Burst shooting: 3/5 frames, 3 is the default

Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format

JPG (with irg file)

Battery

Capacity

7100 mAh

Voltage

11.55V

Battery type

LiPo 3S

Energy

82 Wh

Weight

365 g

Charging temperature range

5℃ to 45℃

Storage temperature and humidity

-10~30℃, 65±20%RH

Recommended storage temperature

22-28℃

Max charging power

93W

Charging time

90 minutes

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A

5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃
