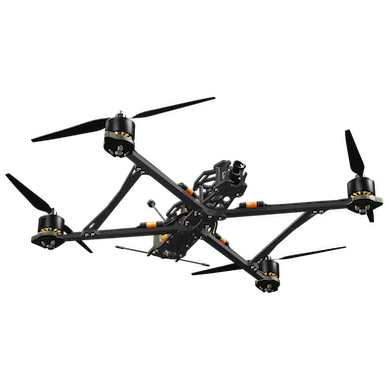

Ikari Kit
The Alphaswift Ikari Kit is a comprehensive drone solution designed for high-performance applications. It features the Alphaswift FC Mini flight controller, which is compact and powerful, making it ideal for various UAV operations. With its advanced features and reliable performance, the Ikari Kit is perfect for professionals seeking a versatile and efficient drone platform.
Air unit - 490USD
Ground unit - 590USD
The Alphaswift Ikari Kit is a high-performance, all-in-one drone solution designed to meet the demands of professional UAV operations. Powered by the Alphaswift FC Mini flight controller, it delivers precise, stable, and responsive flight control in a compact package. Equipped with 10-inch propellers and a 6S 8000mAh battery, the Ikari Kit offers exceptional efficiency and thrust. When flown without payload, it can reach a top speed of 120 km/h and maintain up to 30 mins of flight time, making it ideal for missions that require both speed and endurance.
Built for reliability and adaptability, the Ikari Kit can carry up to a 5 kg payload, allowing operators to customize it for specialized applications. Its modular design ensures easy integration of sensors or additional equipment, while advanced features such as autonomous flight modes and integrated safety protocols provide confidence in every mission. With robust construction, high-performance components, and precise flight control, the Alphaswift Ikari Kit is the ultimate UAV platform for professionals seeking a versatile, efficient, and dependable aerial solution.
Specifications
Physical
Dimensions: 395 x 315 x 60 mm
Weight: 920g (body only)
Battery: 6S 8000mAh LiPo battery
Battery weight: 1260g

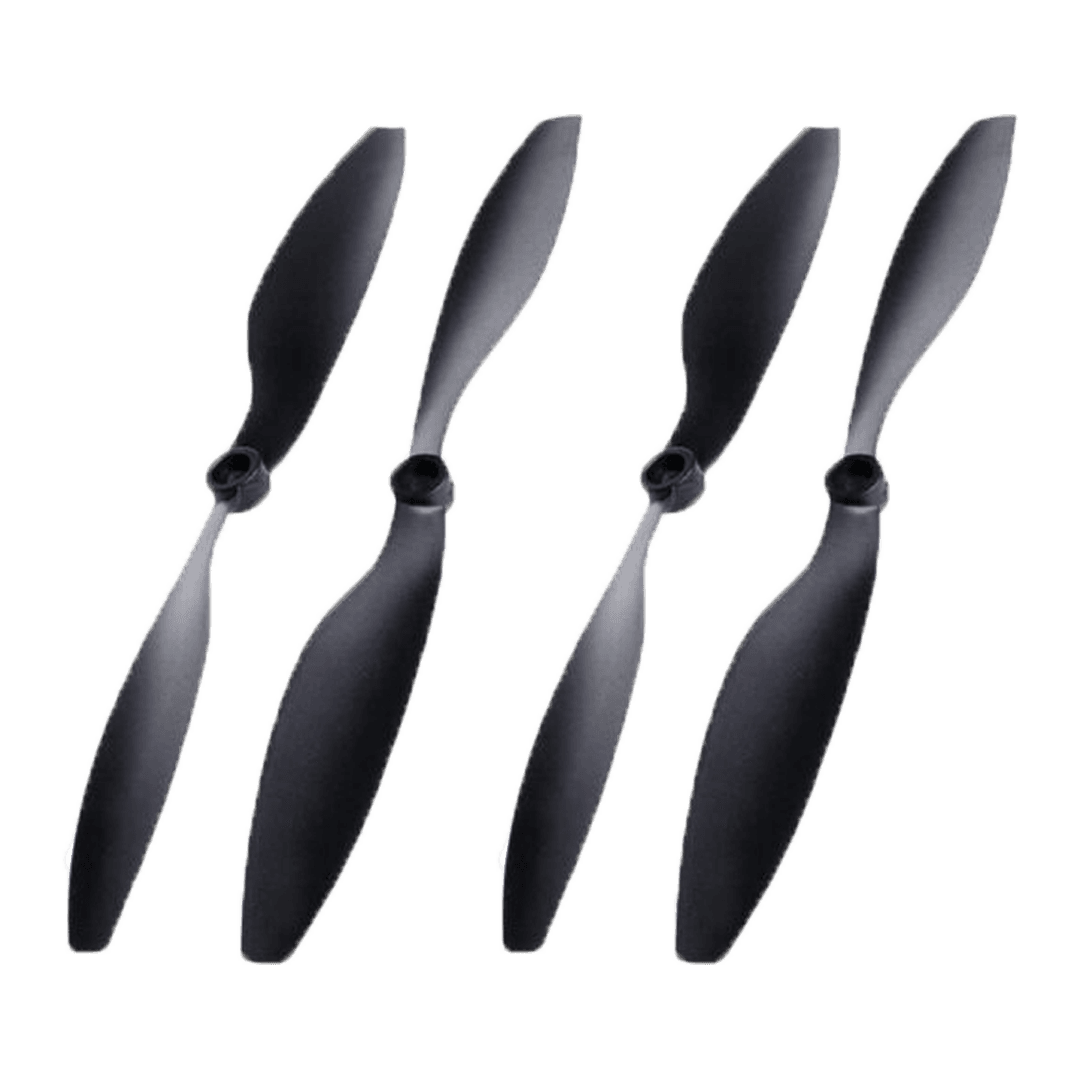

Propeller size: 10inch
Flight time: Up to 30 mins (without payload)
Max. speed: 120 km/h (without payload)
Max. payload: 5 kg

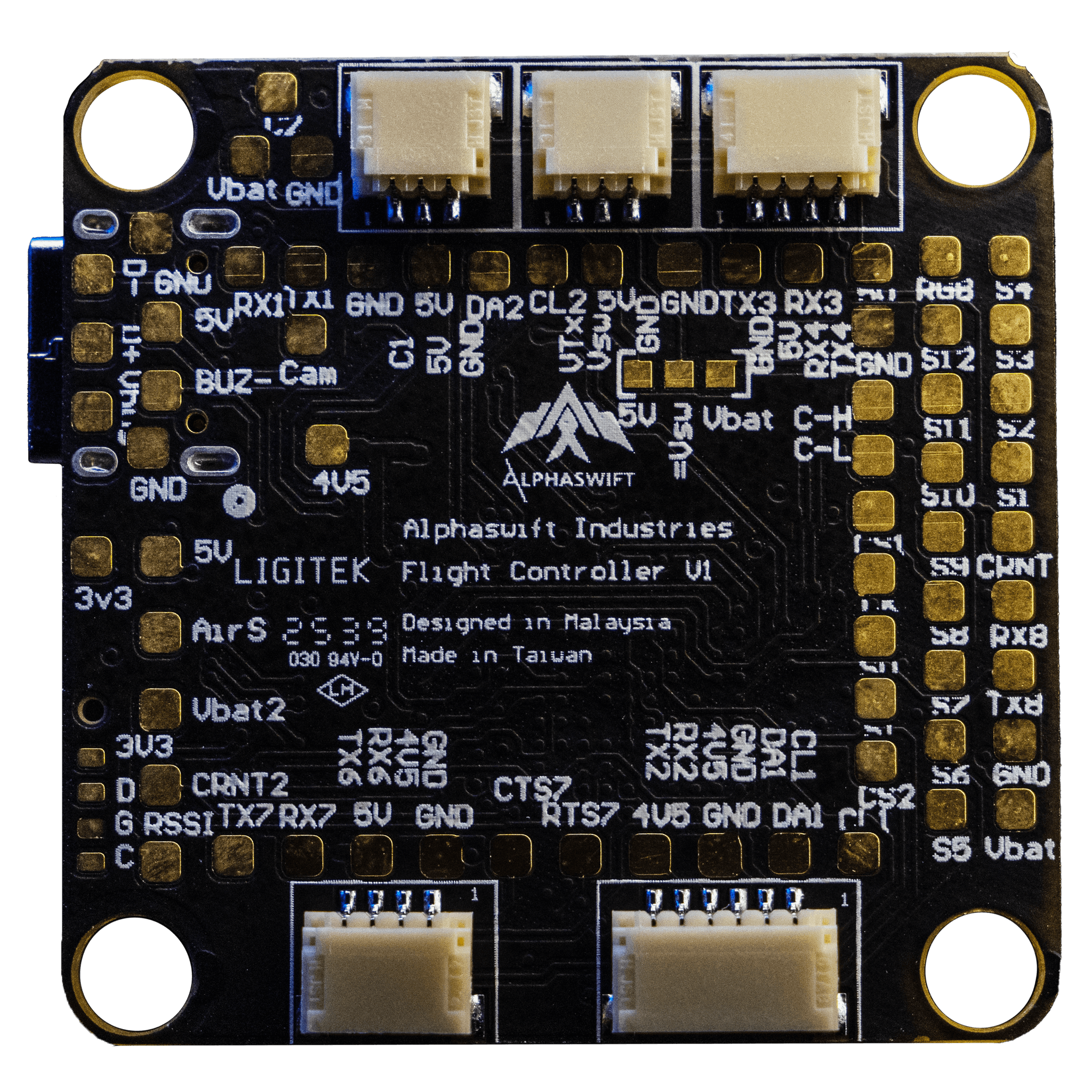

Flight controller
MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
IMU: 2x ICM42688
Baro: Infineon DPS368 (I2C2)
Blackbox: MicroSD card socket (SDIO)
7x UARTs (1, 2, 3, 4, 6, 7, 8) with built-in inversion.
13x PWM outputs(including “LED” pad)
2x I2C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red)
1x SPI3 breakout
USB Type-C (USB2.0)
1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
Dual Camera Inputs switch
5V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART
Power
Vbat Input: 6~36V (2~8S LiPo)
BEC: 5V 4A cont. (Max 5A)
LDO 3.3V: Max 500mA
No Current Sensor built-in
ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
Including

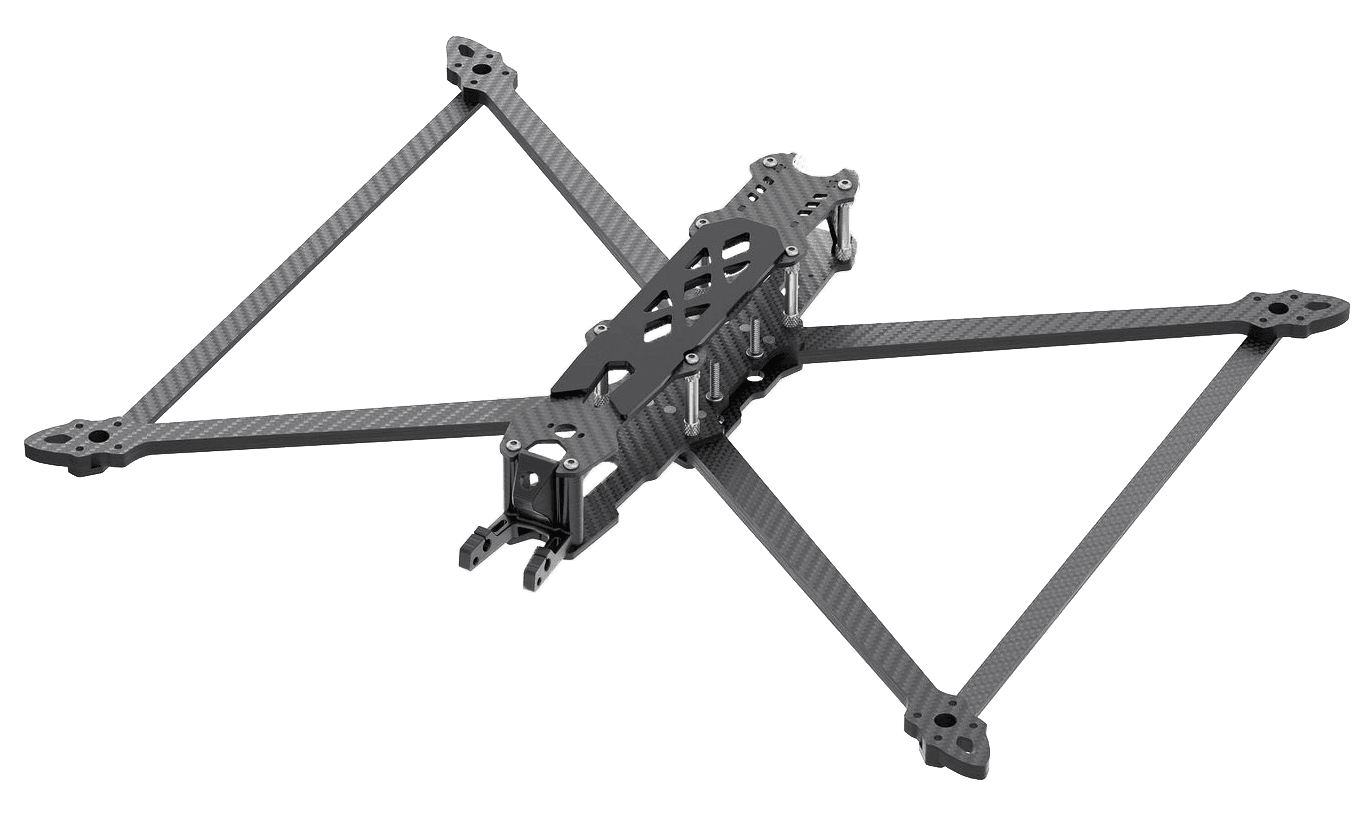

1x Drone Frame (Assembly required)
1x Alphaswift FC Mini

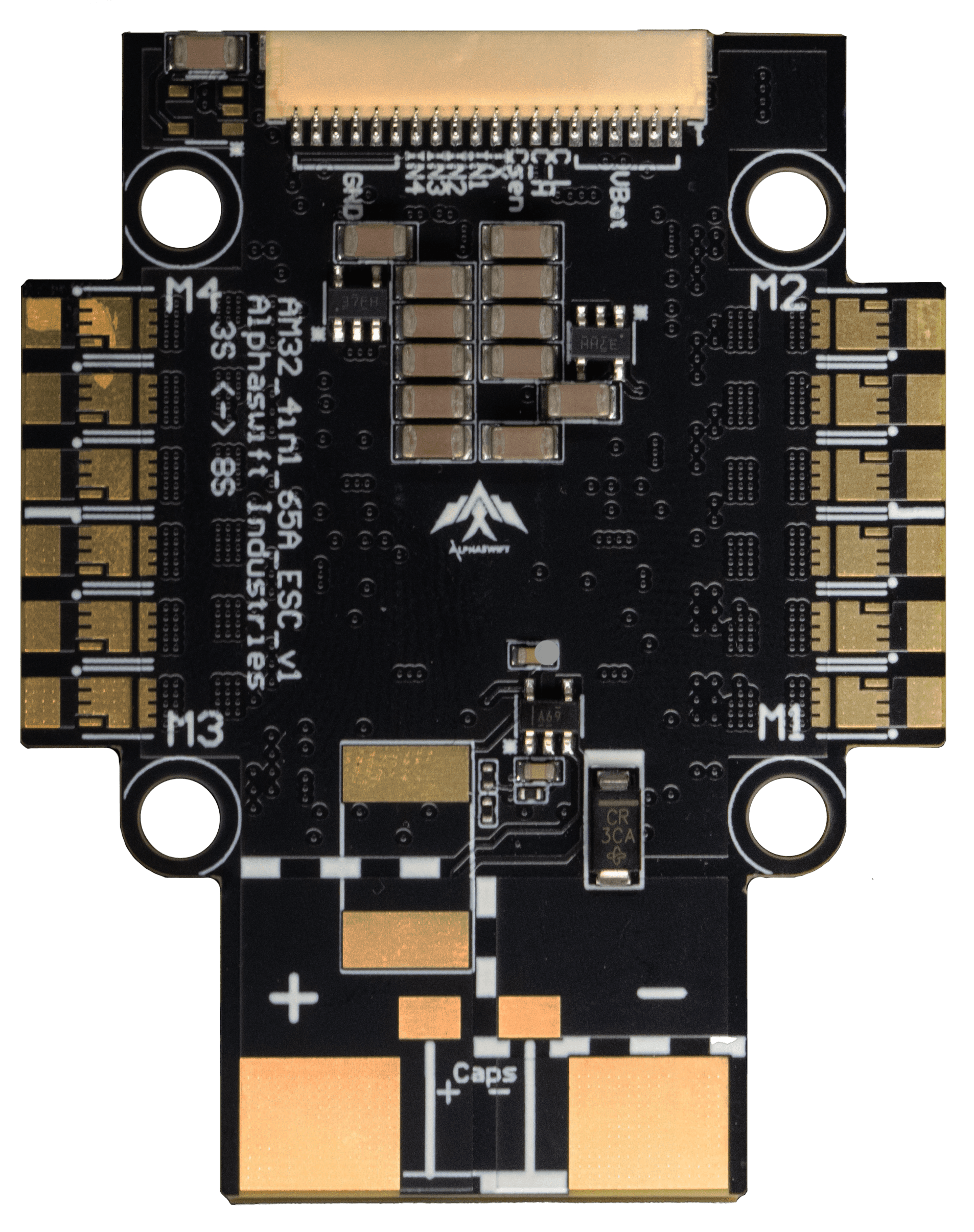

1x Alphaswift 4in1 65A ESC

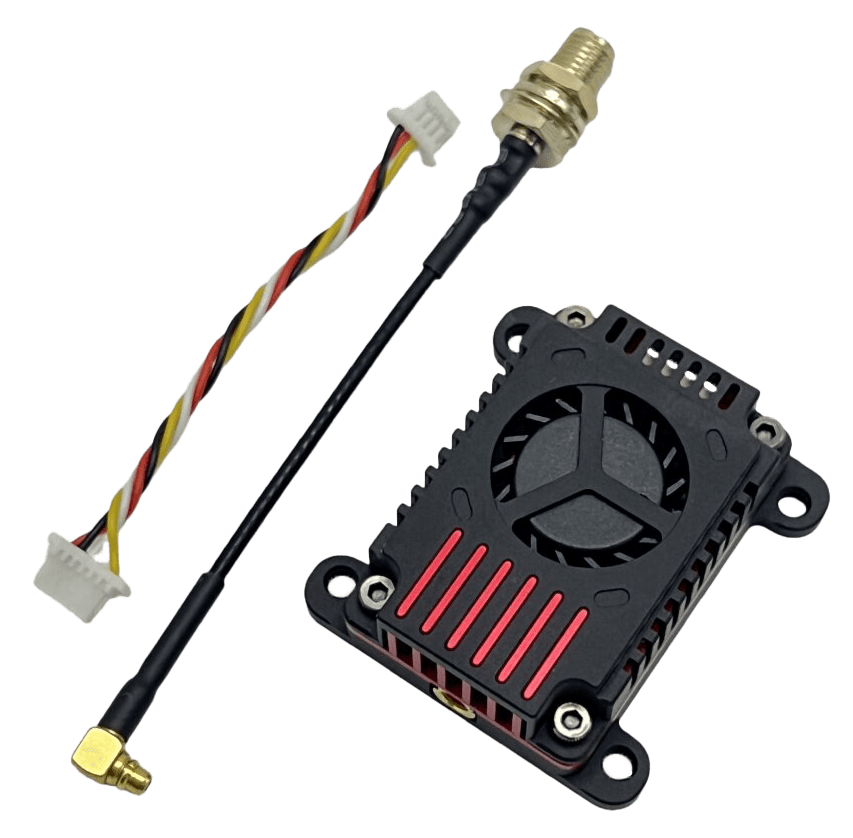

1x Video Transmission Module

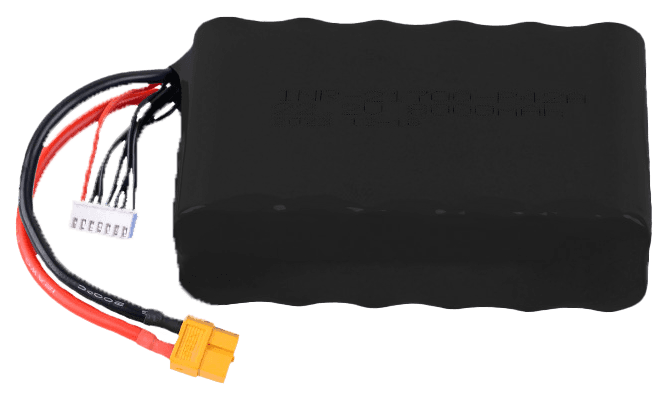

1x 6S 8000mAh Battery

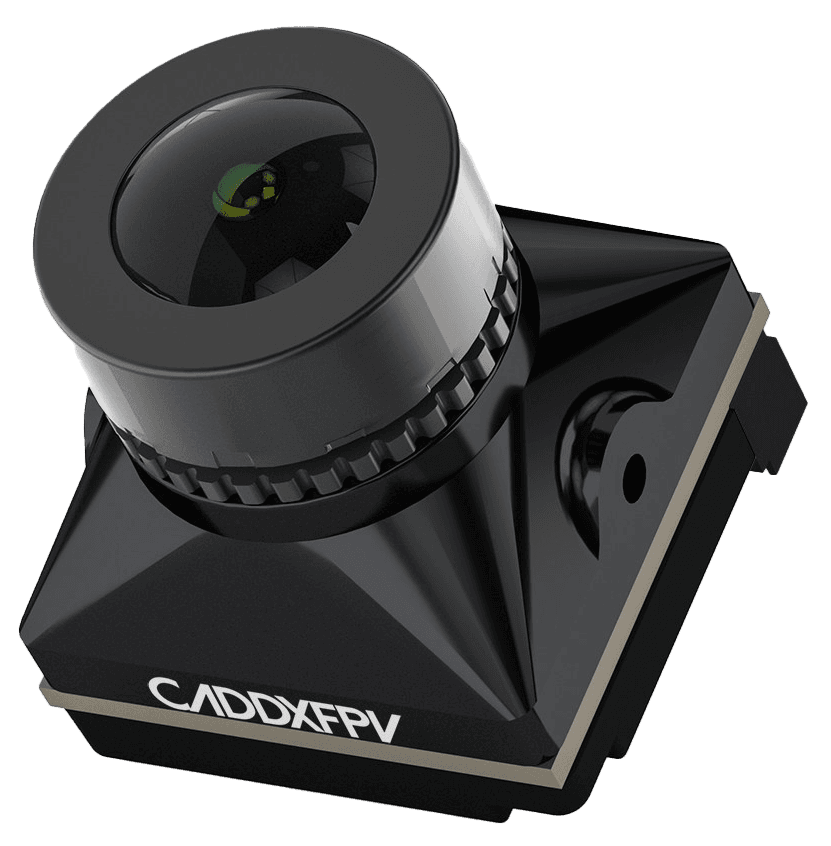

1x Camera
1x Telemetry Antenna

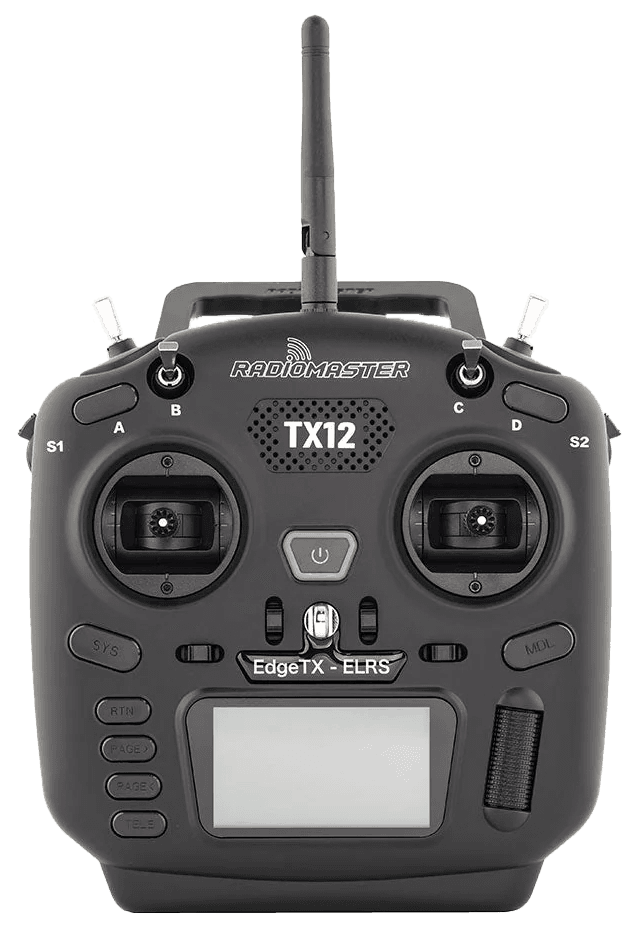

1x Remote Control

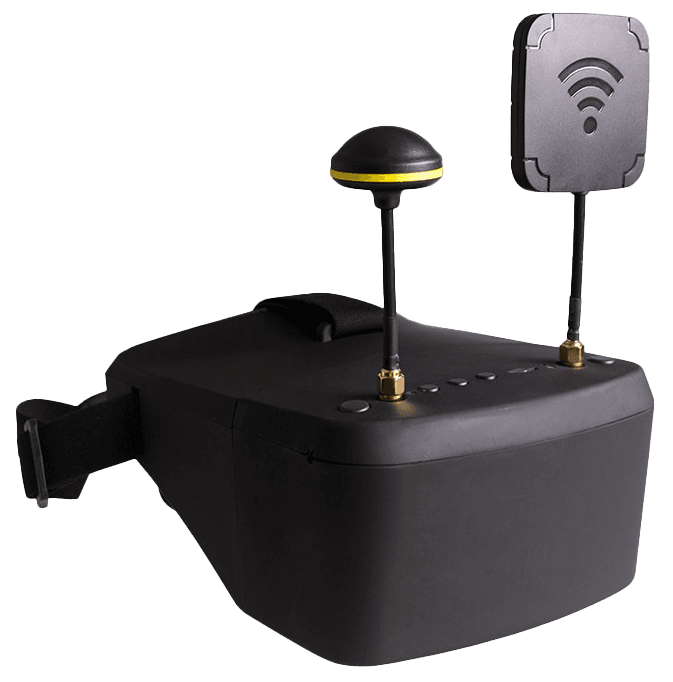

1x Goggles

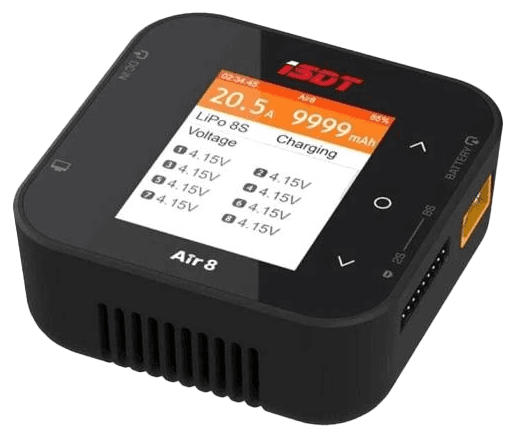

1x Battery Charger
